Manual Transmission
Removing And Installing Sun SensorRemoving sun sensorOverviewRemoving sun sensor 1.

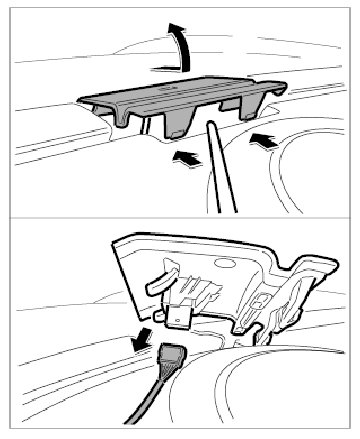

Lift cover on dashboard using plastic spatula and unclip.
2.
Unplug electrical plug connection.
3.

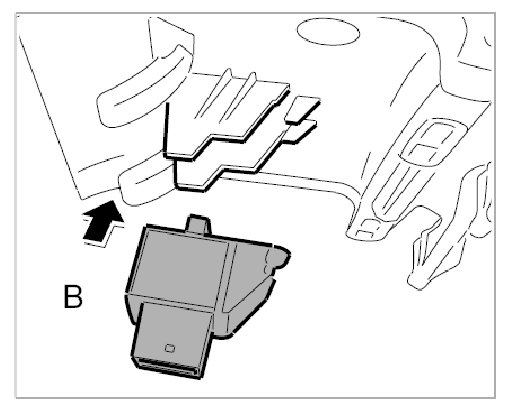

Pull holder -A- apart and remove sun sensor -B-.
Installing sun sensor 1.
Press sensor -B- into the holder until the sensor lugs engage.
2.

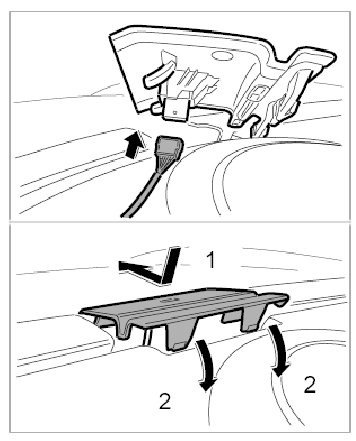

Plug in the electrical plug connection.
3.
Position cover and clip into dashboard.
