1001IN Tightening Torques For V6 3.6 L DFI Engine

WM 1001IN Tightening torques for V6 3.6 l DFI engine

Technical values

Information

Overview

Information

- This torque list is organised according to component groups in the same way as service numbering.

- The tightening sequences are indicated in the figures in the corresponding repair instructions and must always be observed.

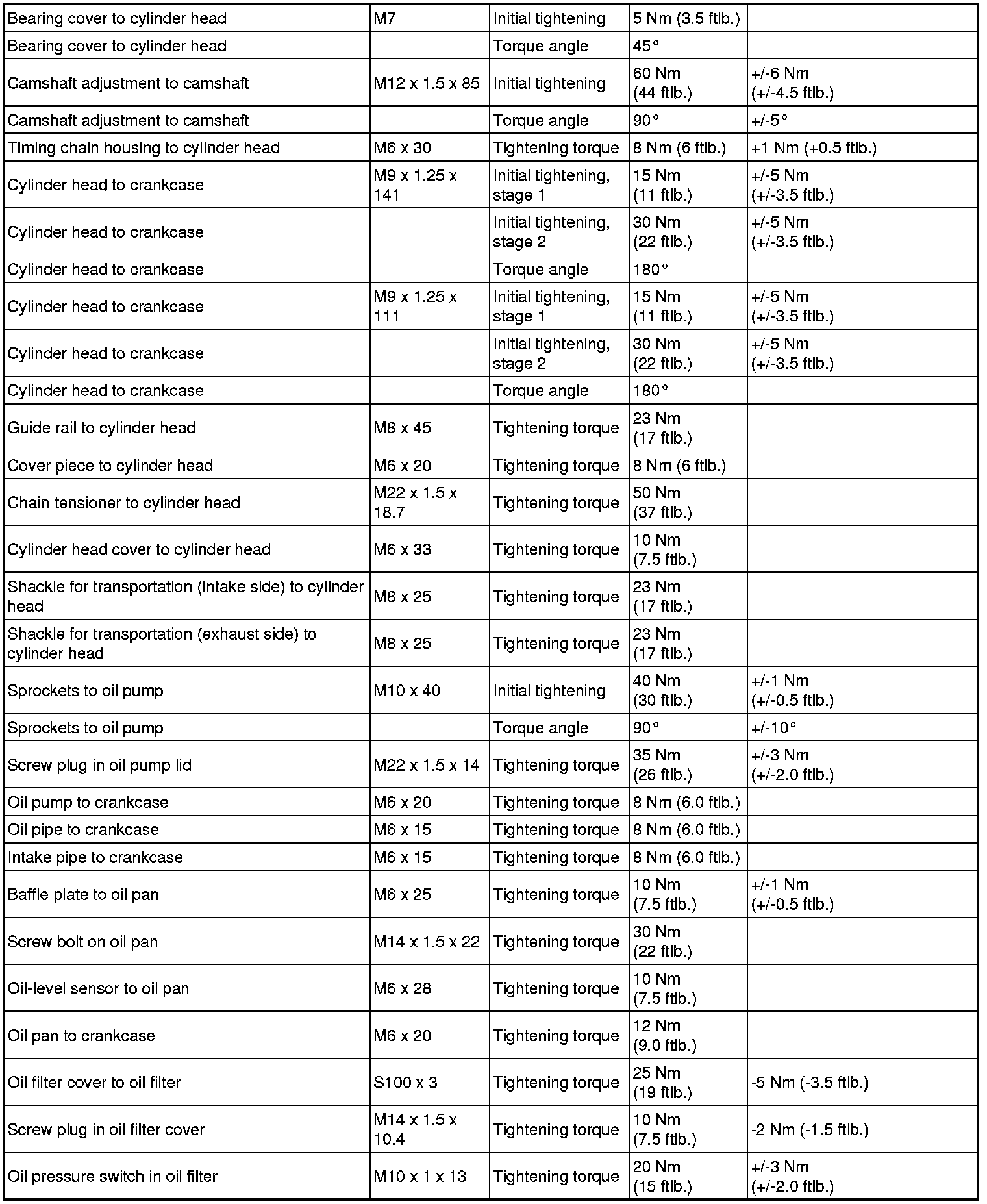

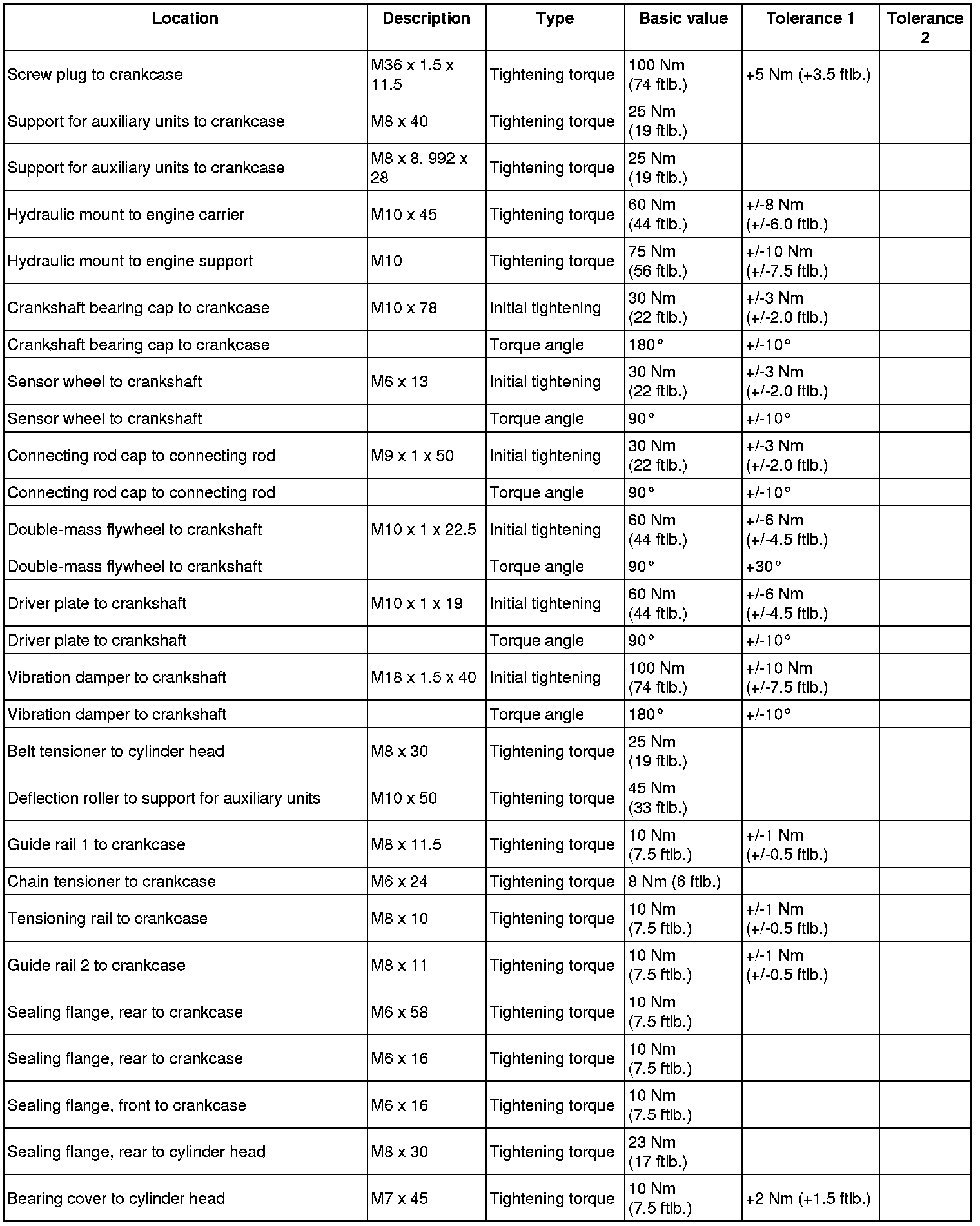

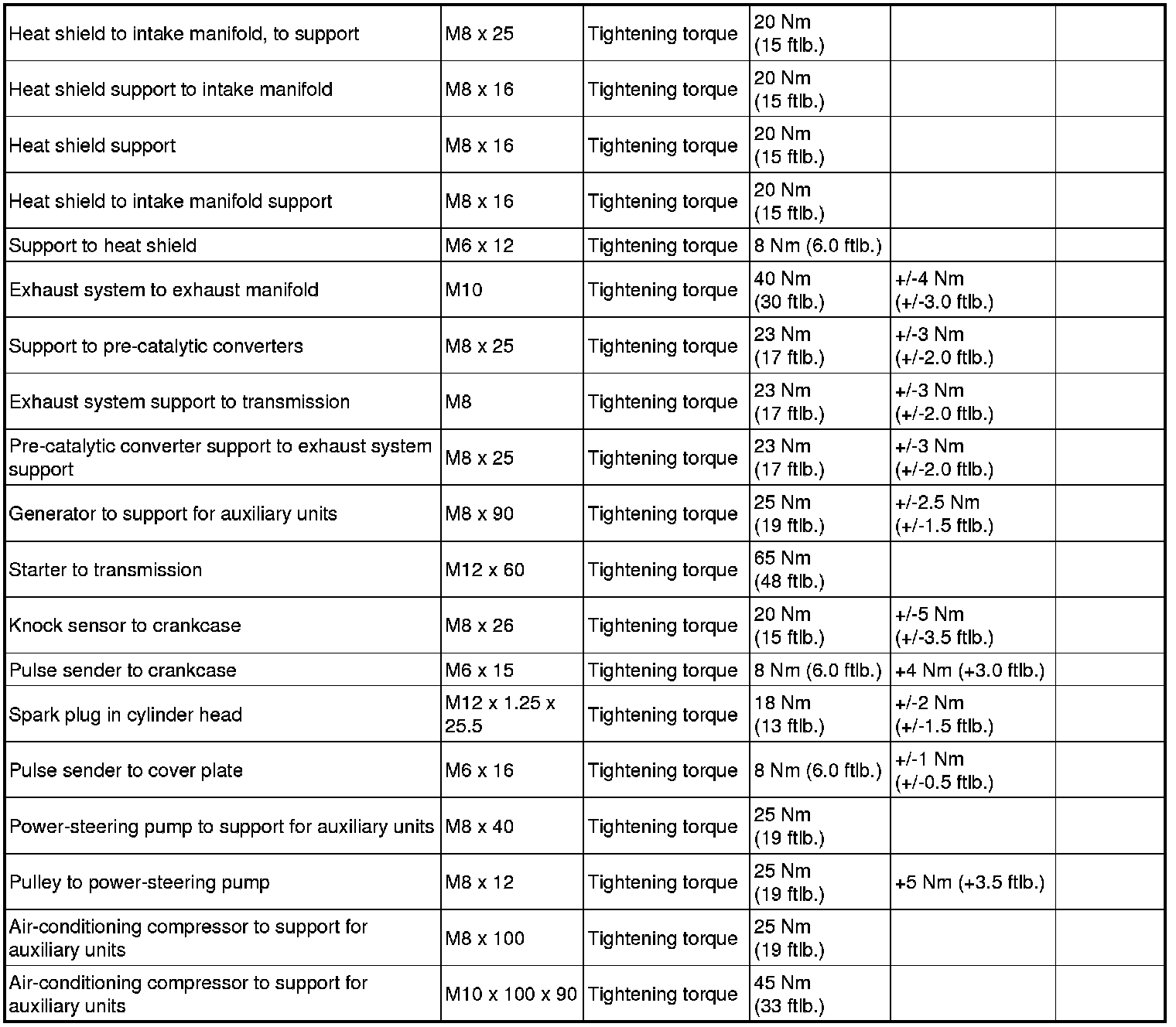

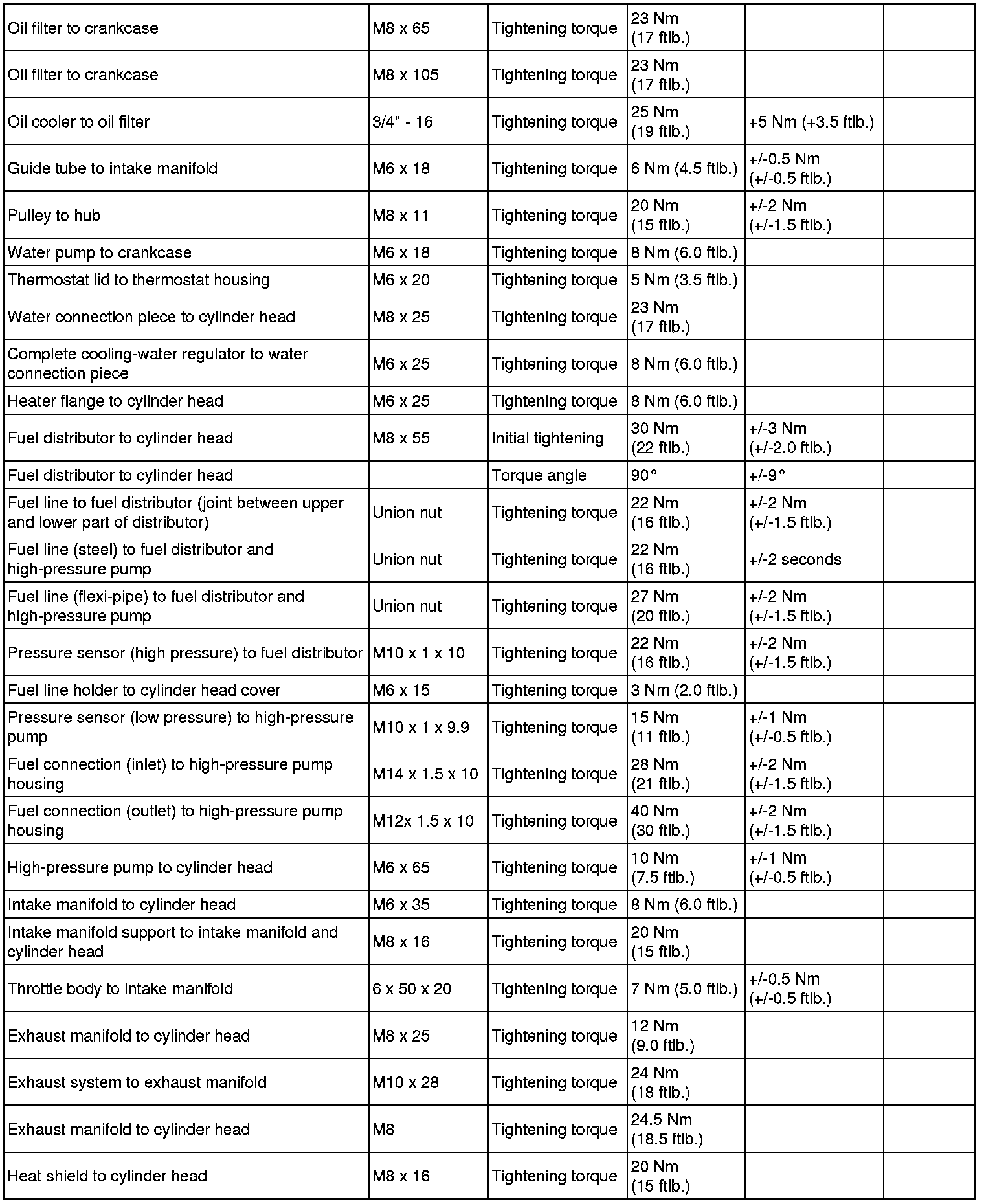

The torques in the table below generally apply to screws which are not specifically listed.
