Water Pump

WM 195019 Removing and installing coolant pump on DFI engines

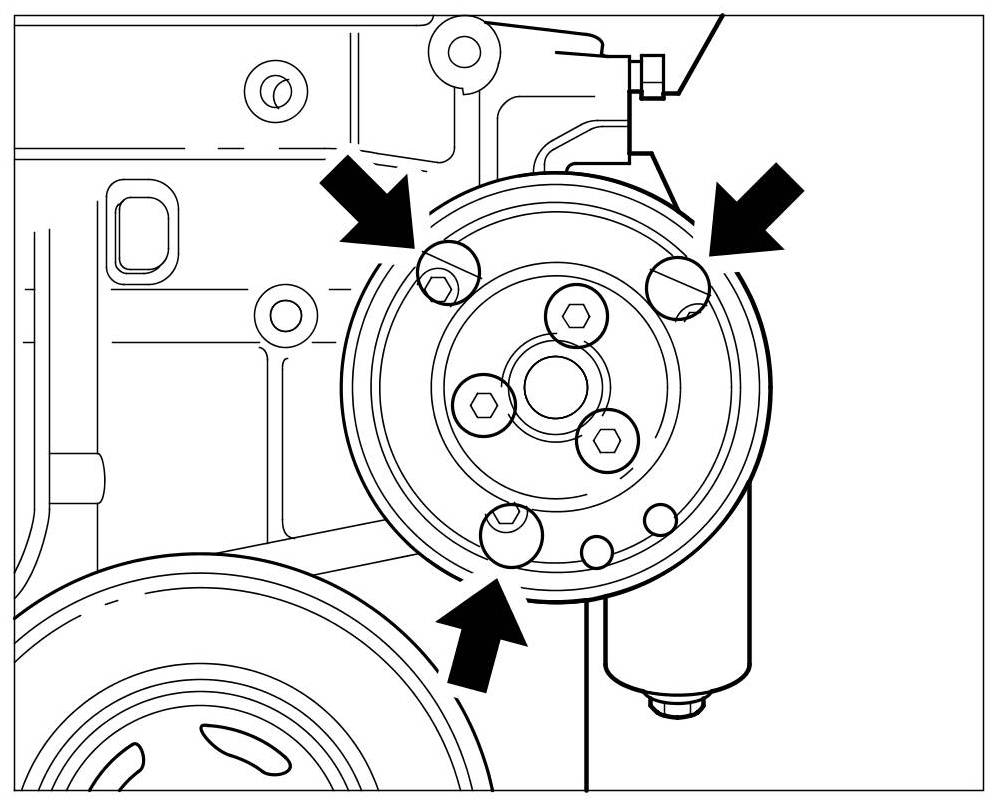

Tighten the three fastening screws.

Tightening torque: 8 Nm (6 ftlb.)

Fit pulley if necessary.
Tightening torque: 20 Nm (15 ftlb.)
