Exhaust Manifold
WM 261019 Removing and installing exhaust manifold on 4.8-litre DFI enginesTighten the fastening nuts to the prescribed tightening torque. Observe tightening sequence.

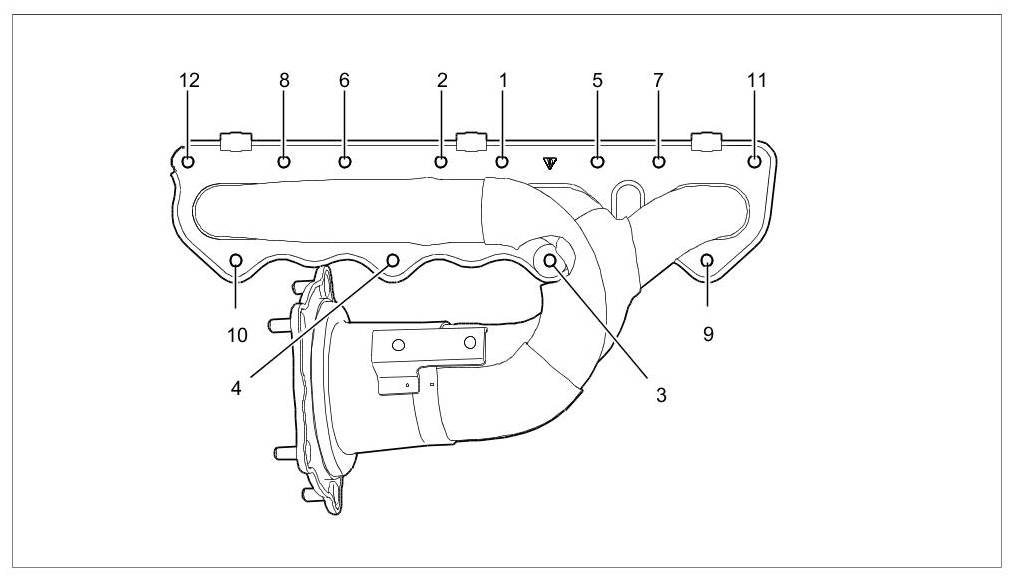

Tightening sequence for
exhaust manifold on naturally aspirated engine M48/01, cylinders 1 to 4

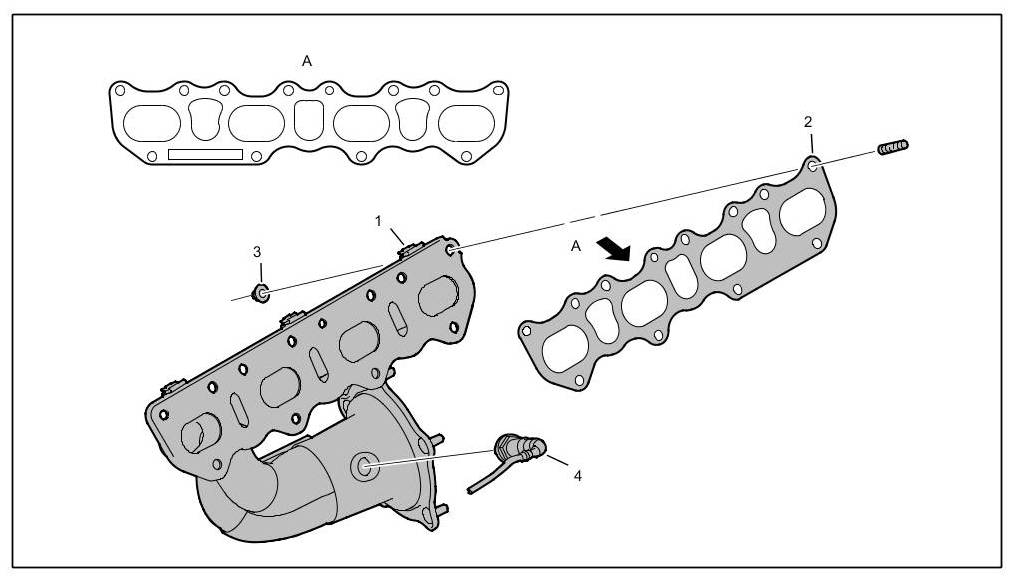

Exhaust manifold on naturally aspirated engine M48/01, cylinders 1 to 4

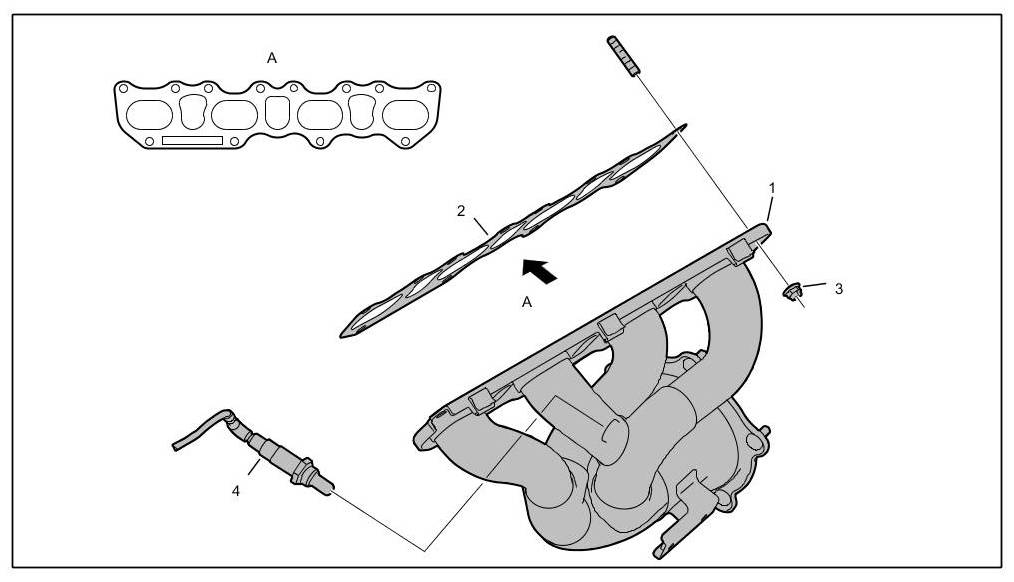

Exhaust manifold on naturally aspirated engine M48/01, cylinders 5 to 8
