Navigation Input Signals



Navigation Input Signals

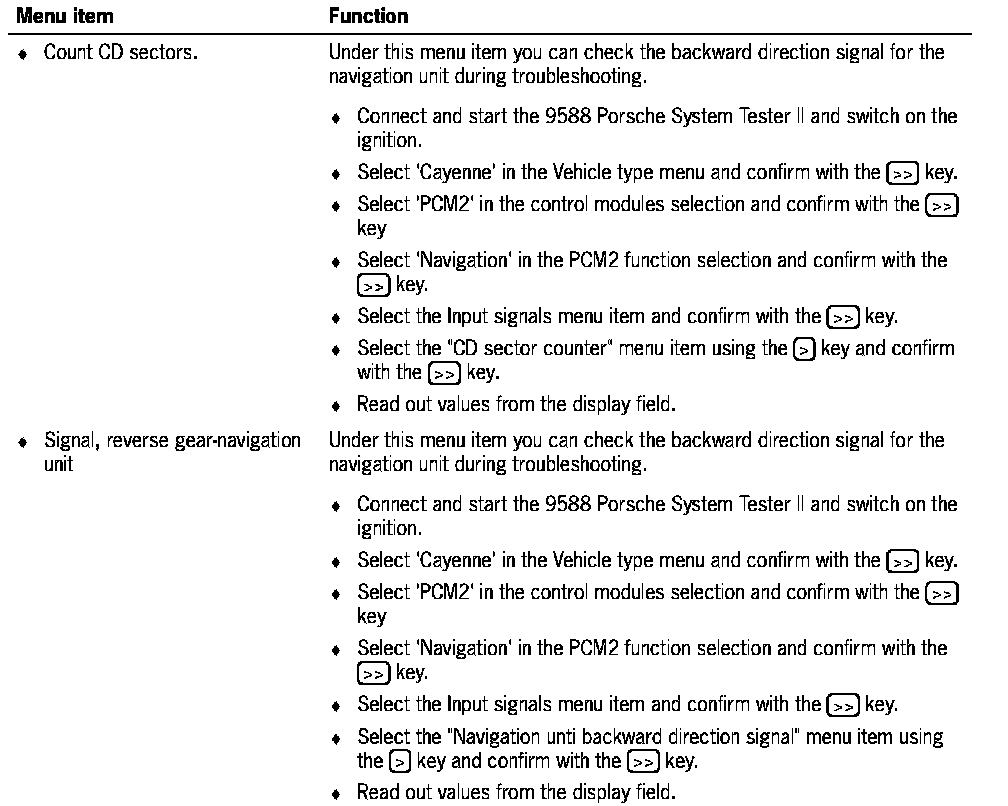

The following queries can be run using this menu item:
- Count CD sectors.
- Signal, reverse gear-navigation unit

NOTE: Deactivate the 'automatic traffic announcement' before performing the diagnosis on the PCM2. If this is not done, the diagnosis will abort.
