Removing and Installing Multi-Functional Switch

Removing and installing multi-functional switch





Preliminary work

Preliminary work for multi-functional switch

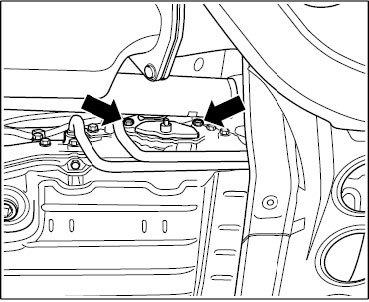

1. Remove engine guard.

Removing multi-functional switch

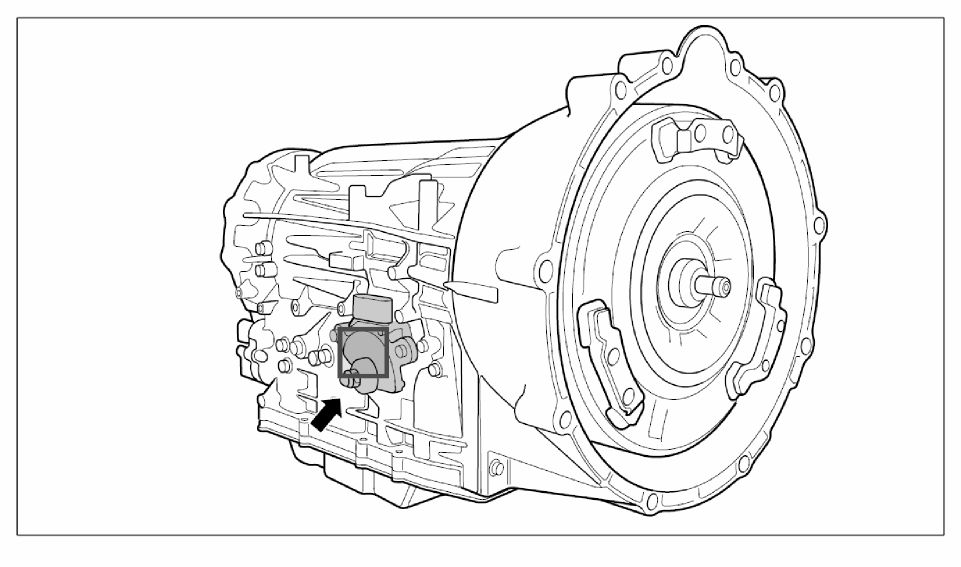

Overview of multi-functional switch

1. Move selector lever to position N.

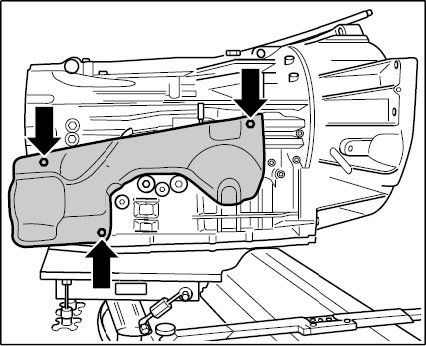

2. Remove shield on the transmission. To do this, unscrew three fastening screws -Arrow-.





Shield to right side of transmission

3. Pull off cable on multi-functional switch.

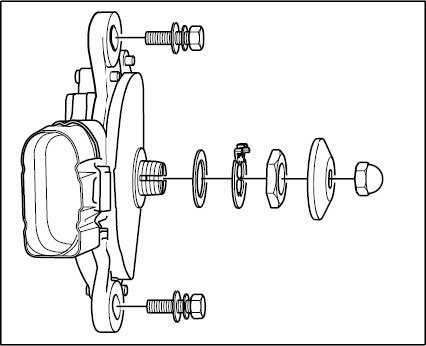

4. Remove cap nut, cap, nut with tab washer and rubber washer on the multi-functional switch.





Assembling multi-functional switch

5. Unscrew fastening screws on the multi-functional switch -Arrow- and remove switch.





Fastening screws for multi-functional switch

Installing multi-functional switch





Overview of multi-functional switch

1. Put multi-functional switch on the selector shaft.
2. Adjust multi-functional switch.
3. Position cable on multi-functional switch.
4. Install shield on the transmission. To do this, screw in three fastening screws -Arrow-. -> Tightening torque: 10 Nm (7.5 ftlb.)





Shield to right side of transmission

5. Functional test of gear selecting system:

^ Will the vehicle start?
^ Do all the selector lever positions work?

Subsequent work

Reworking multi-function switch

1. Fit engine guard.
