Part 4

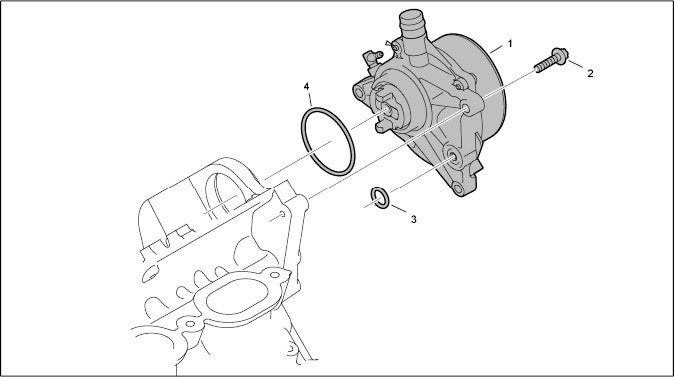

Tightening torques, tightening sequences, assembly overviews for V8 4.8 l DFI naturally aspirated and turbo engine as of October 2008 (Continued)Brakes - Hydraulic brake system, regulatorVacuum pump
1 - Vacuum pump
2 - Screw, M6 x 25 - Tightening torque: 10 Nm (7.5 ftlb.)
3 - O-ring
4 - O-ring
