System Specifications

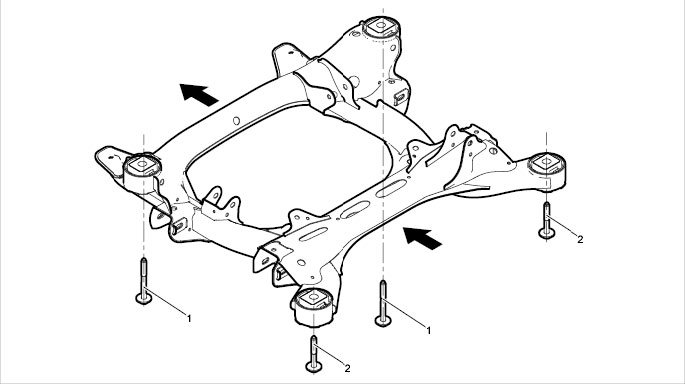

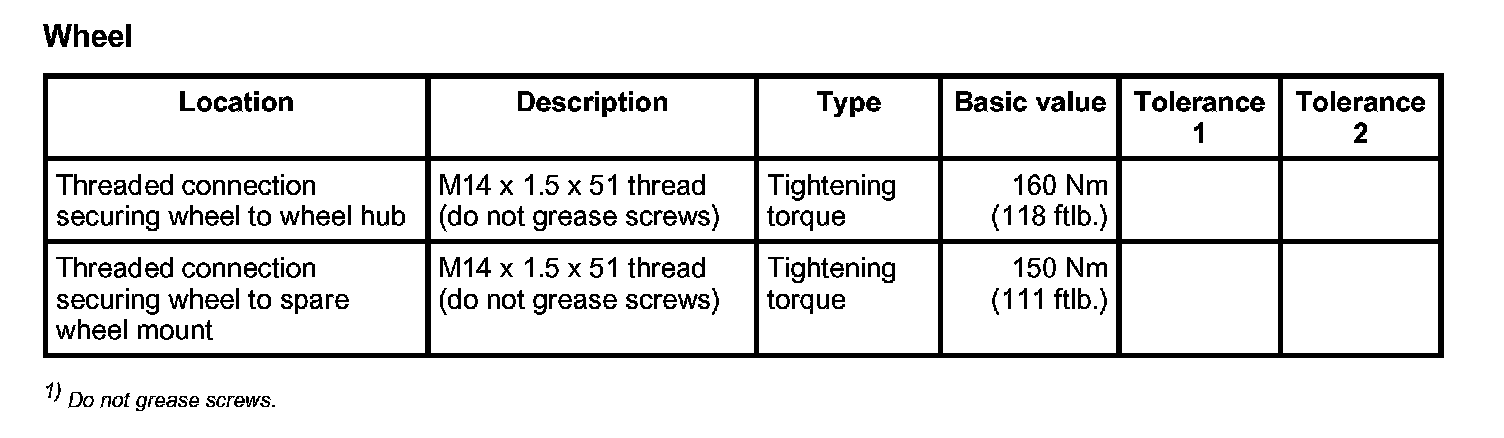

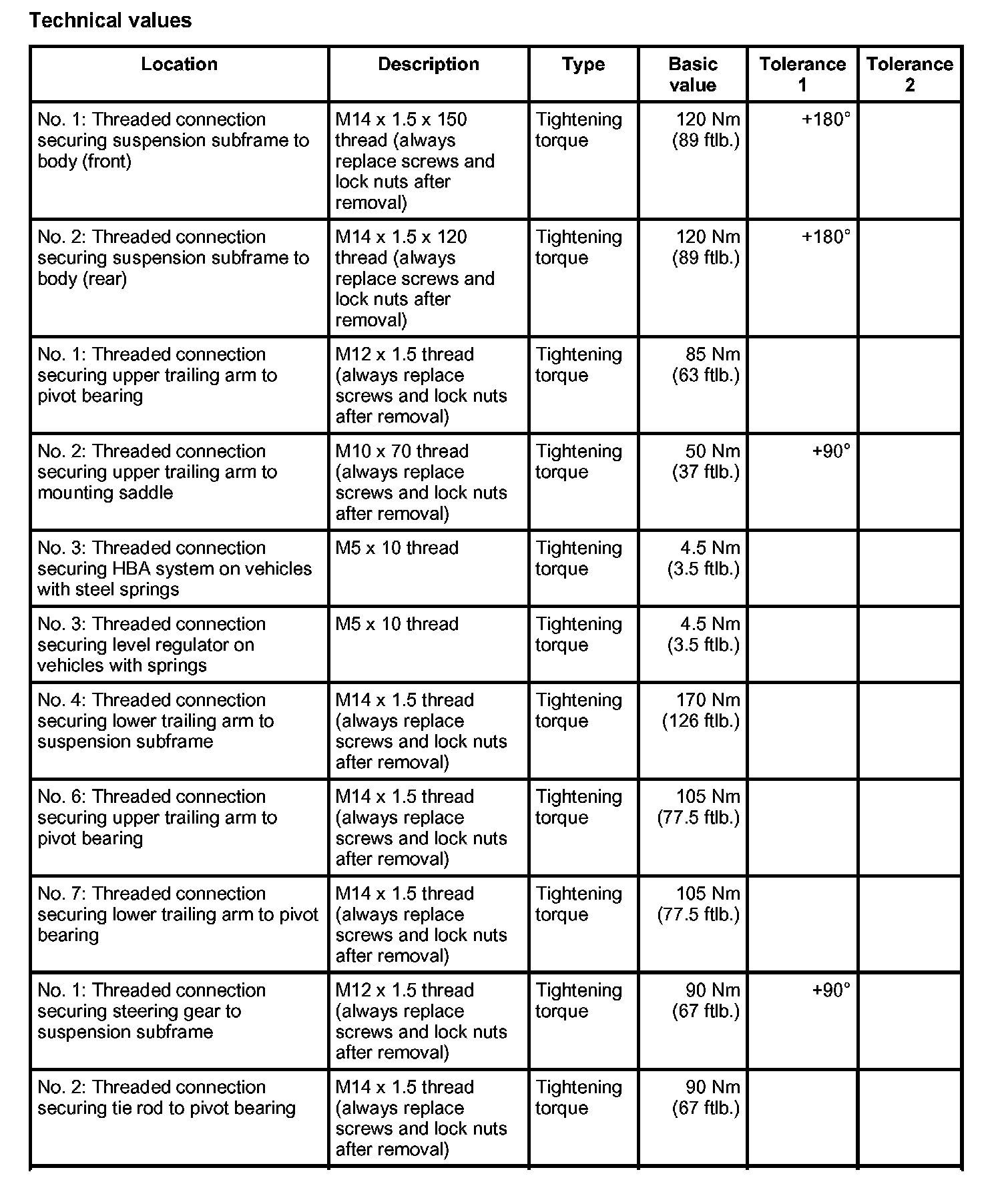

Tightening torques for front axleTightening torquesFront-axle
suspension subframeFront-axle

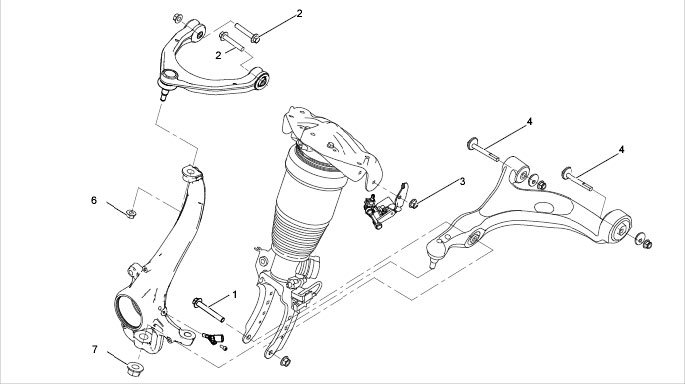

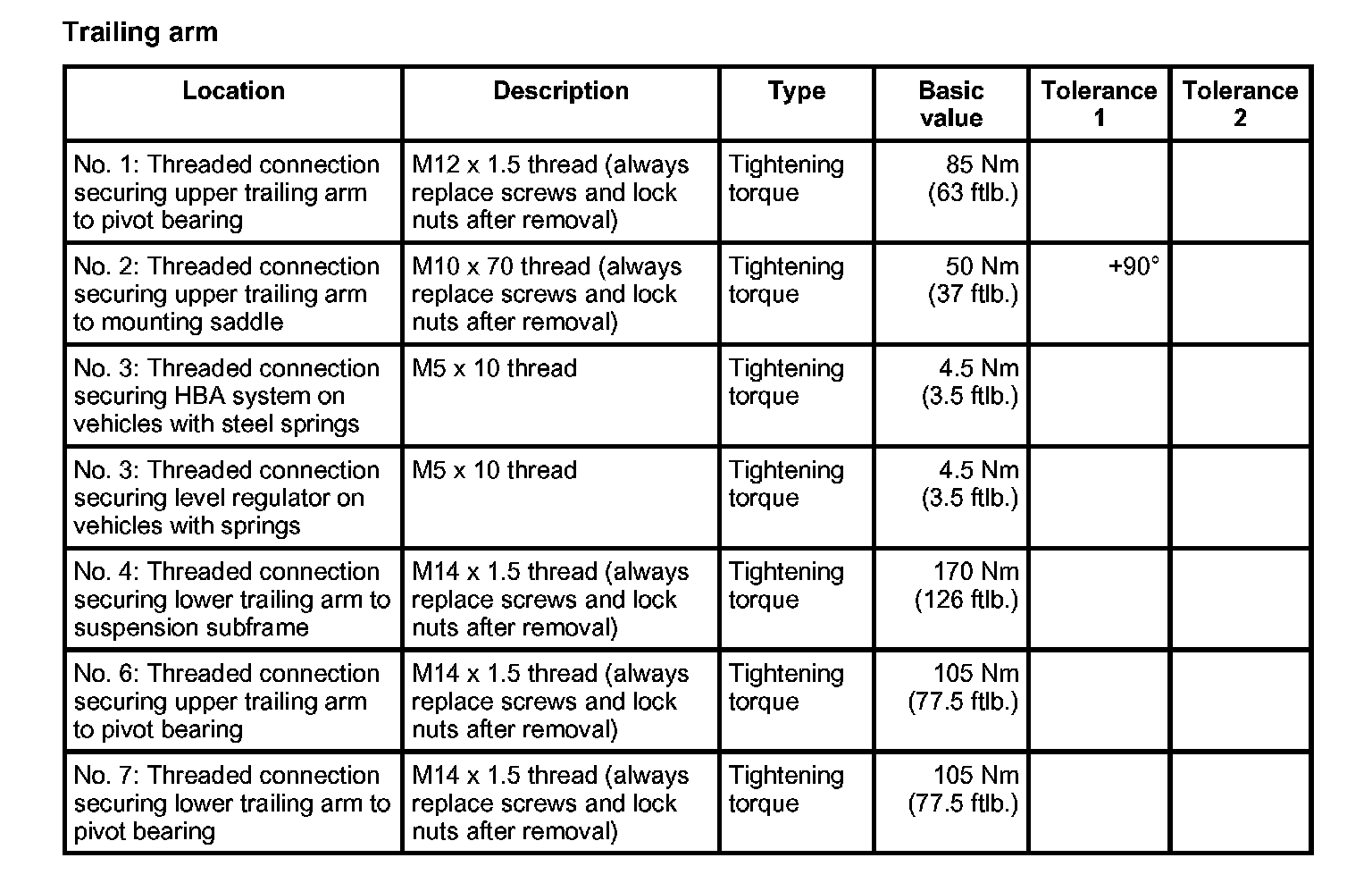

trailing armLevelling system

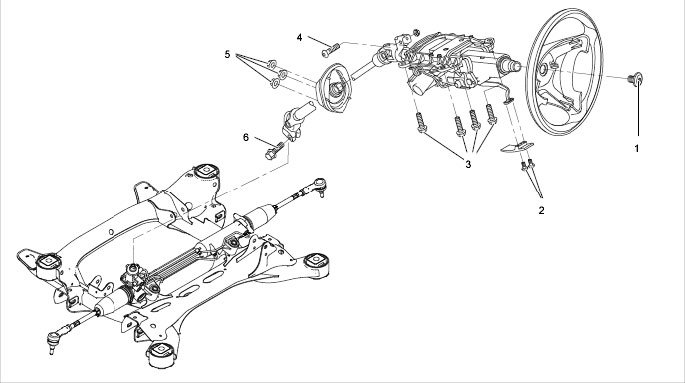

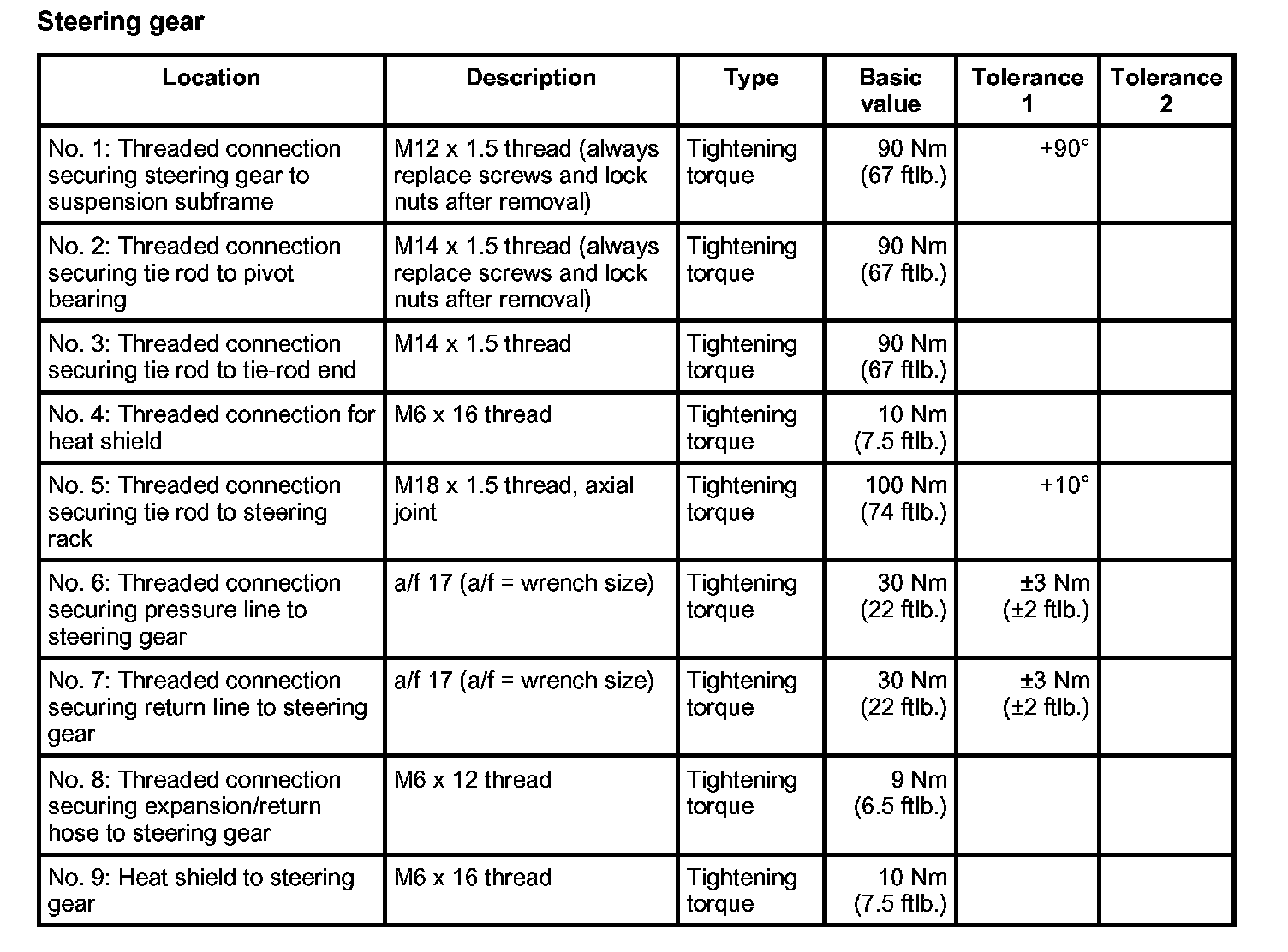

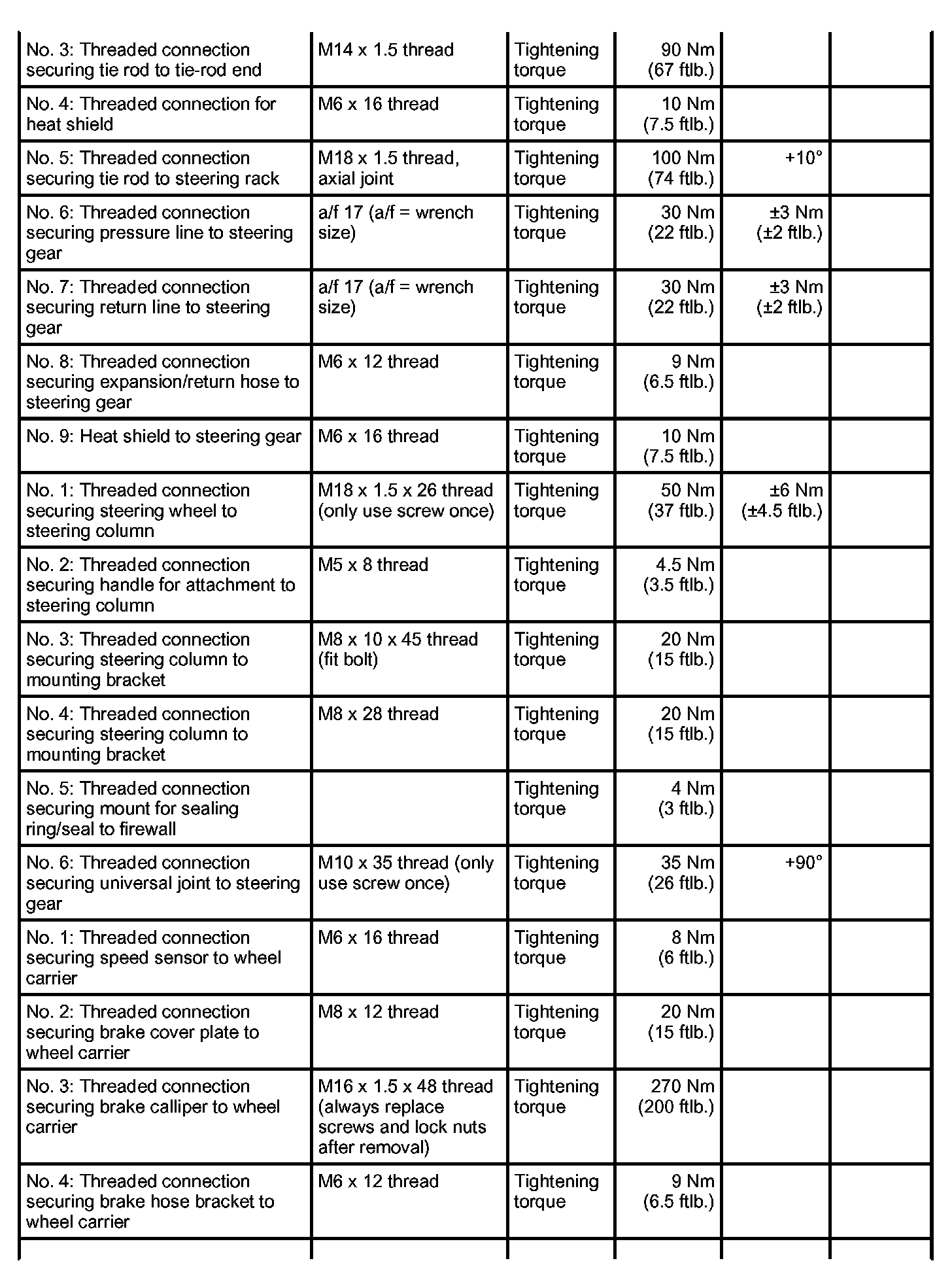

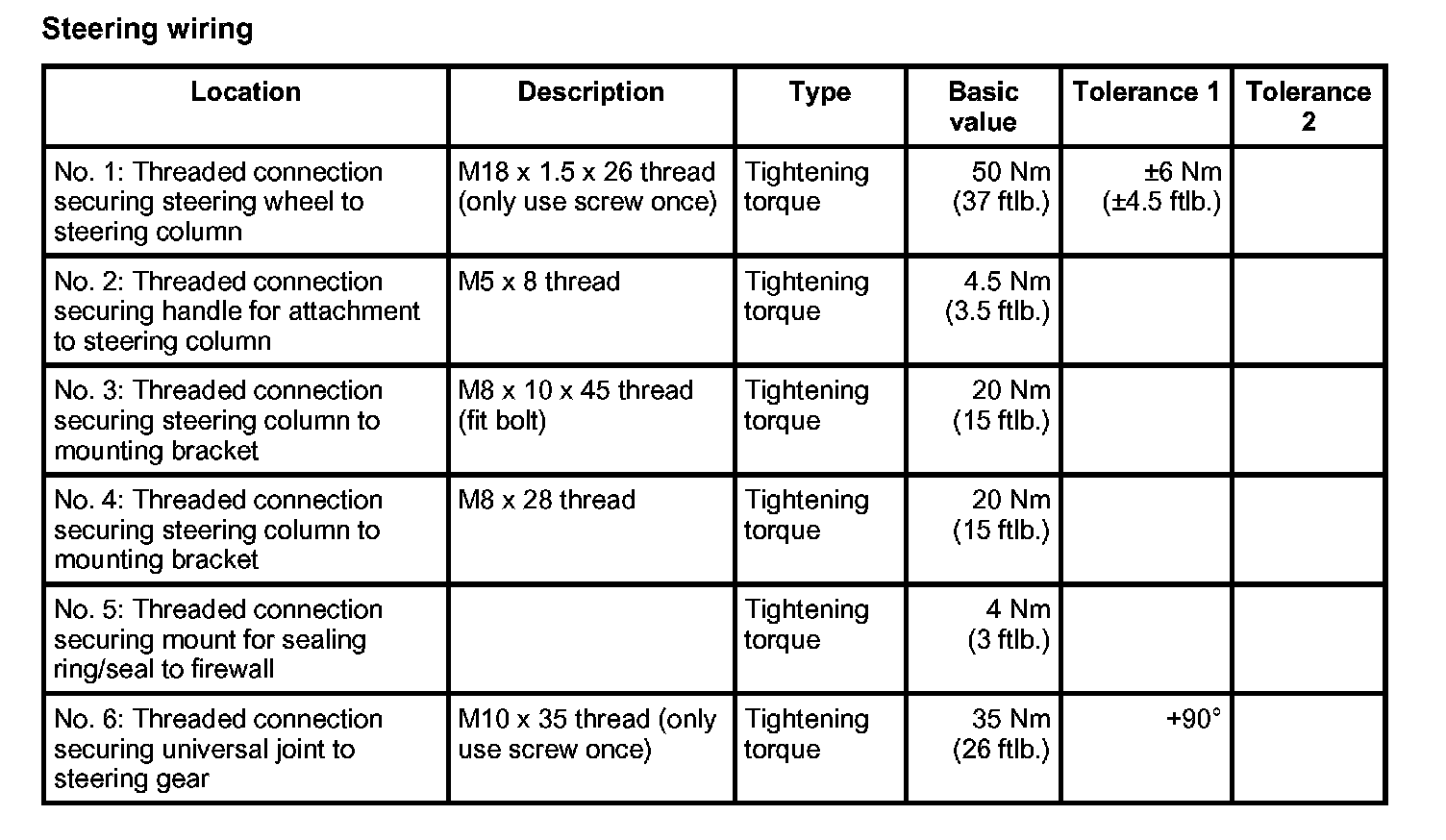

Steering gearSteering wiring

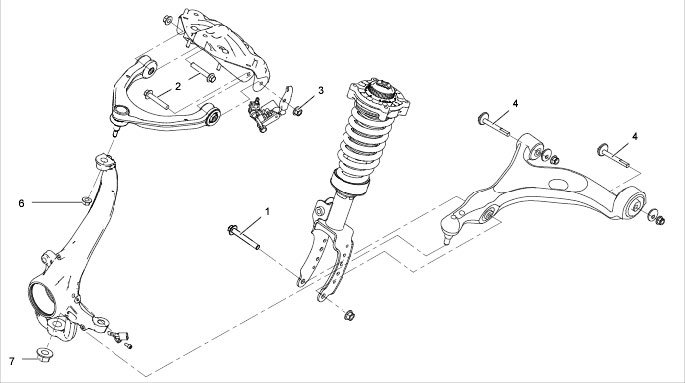

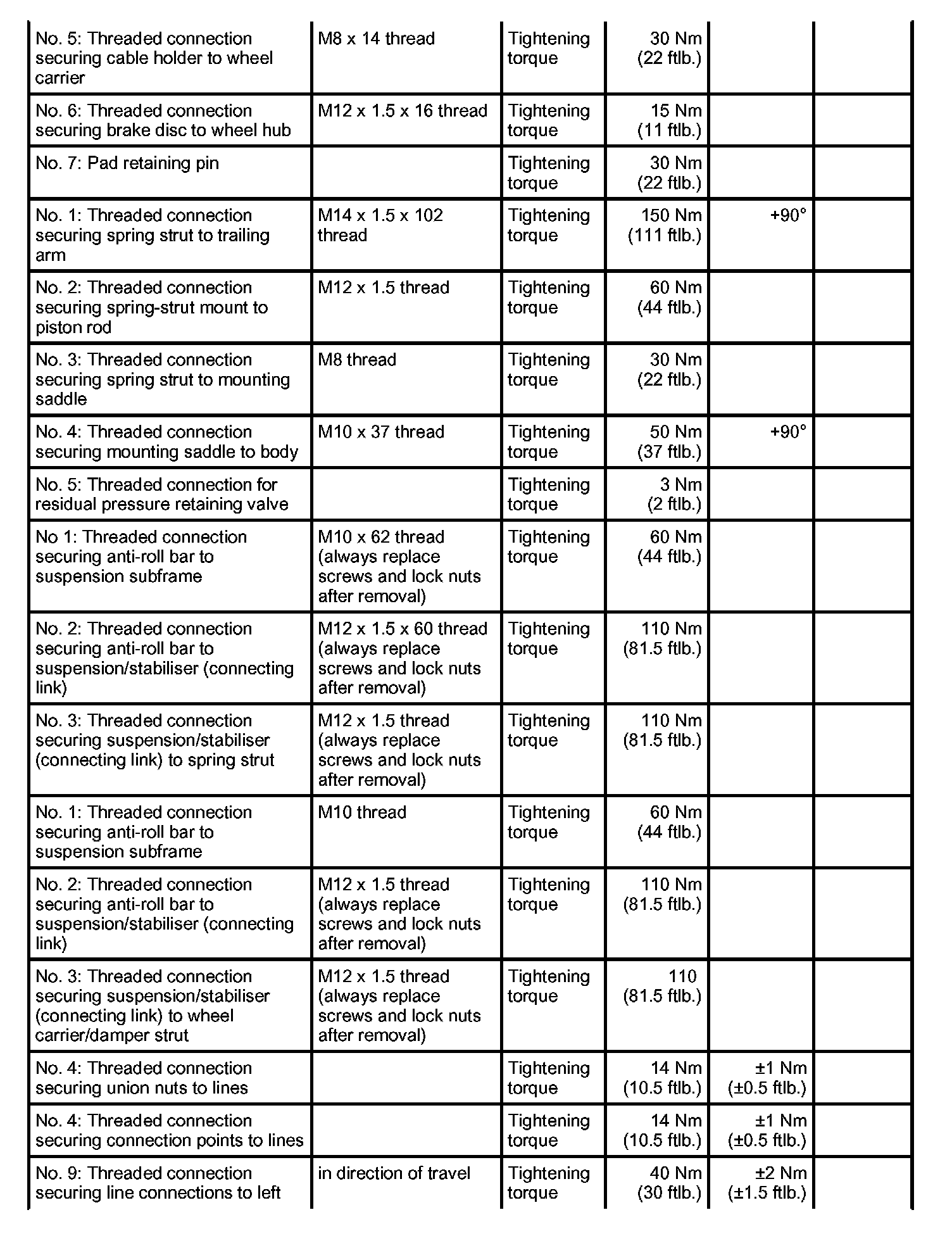

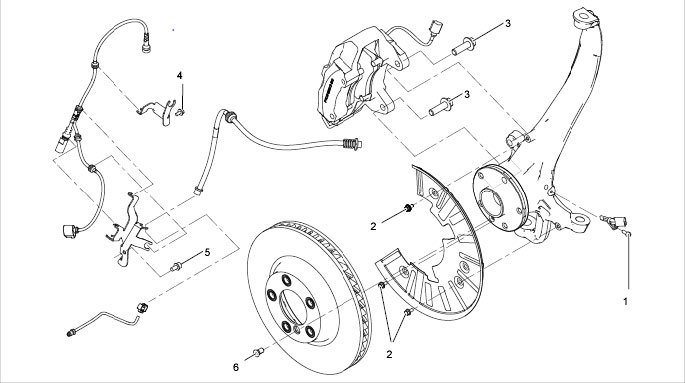

Wheel carrier (pivot bearing)

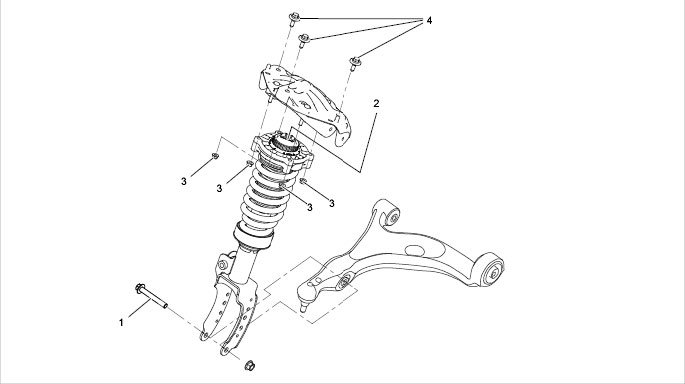

Spring strut - Figure 1 (steel spring strut)

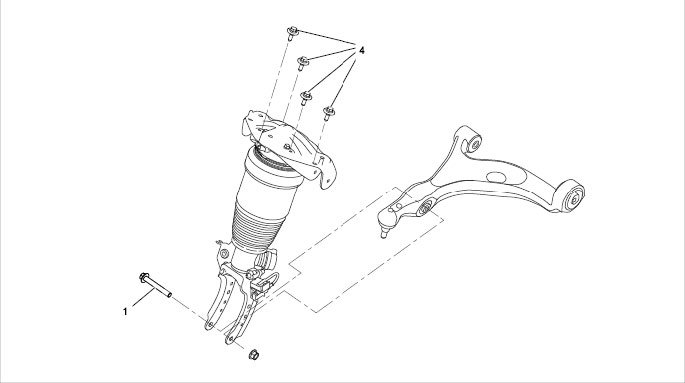

Spring strut - Figure 2 (air
suspension)

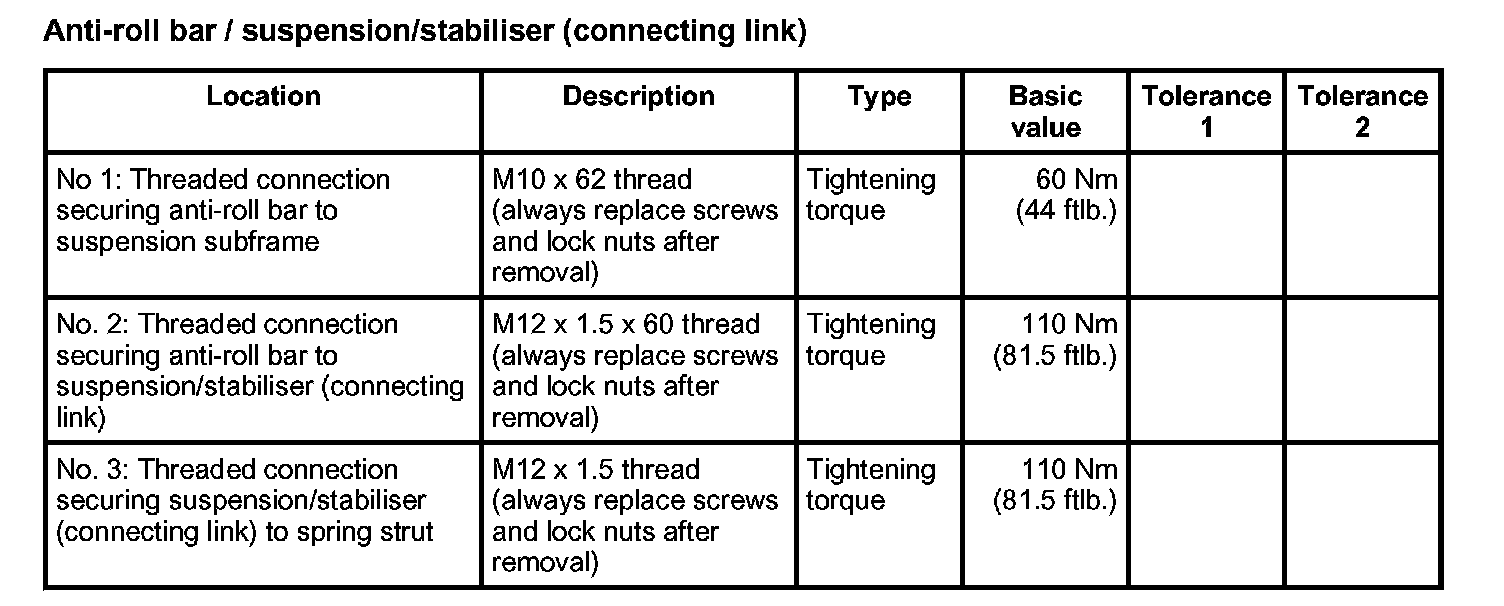

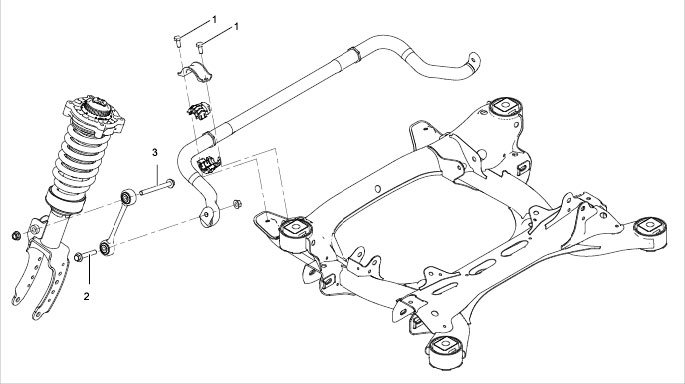

Anti-roll bar mounting

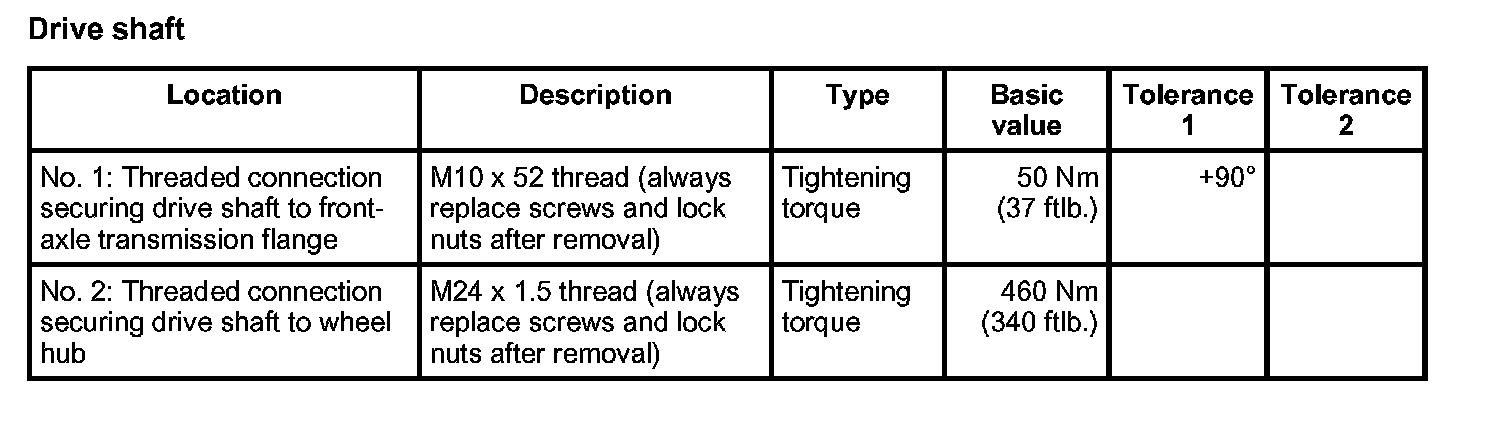

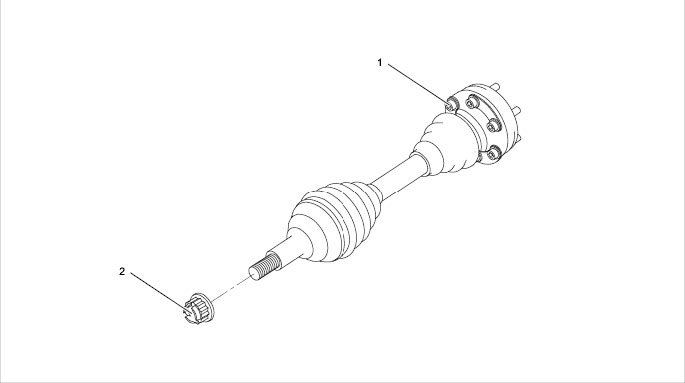

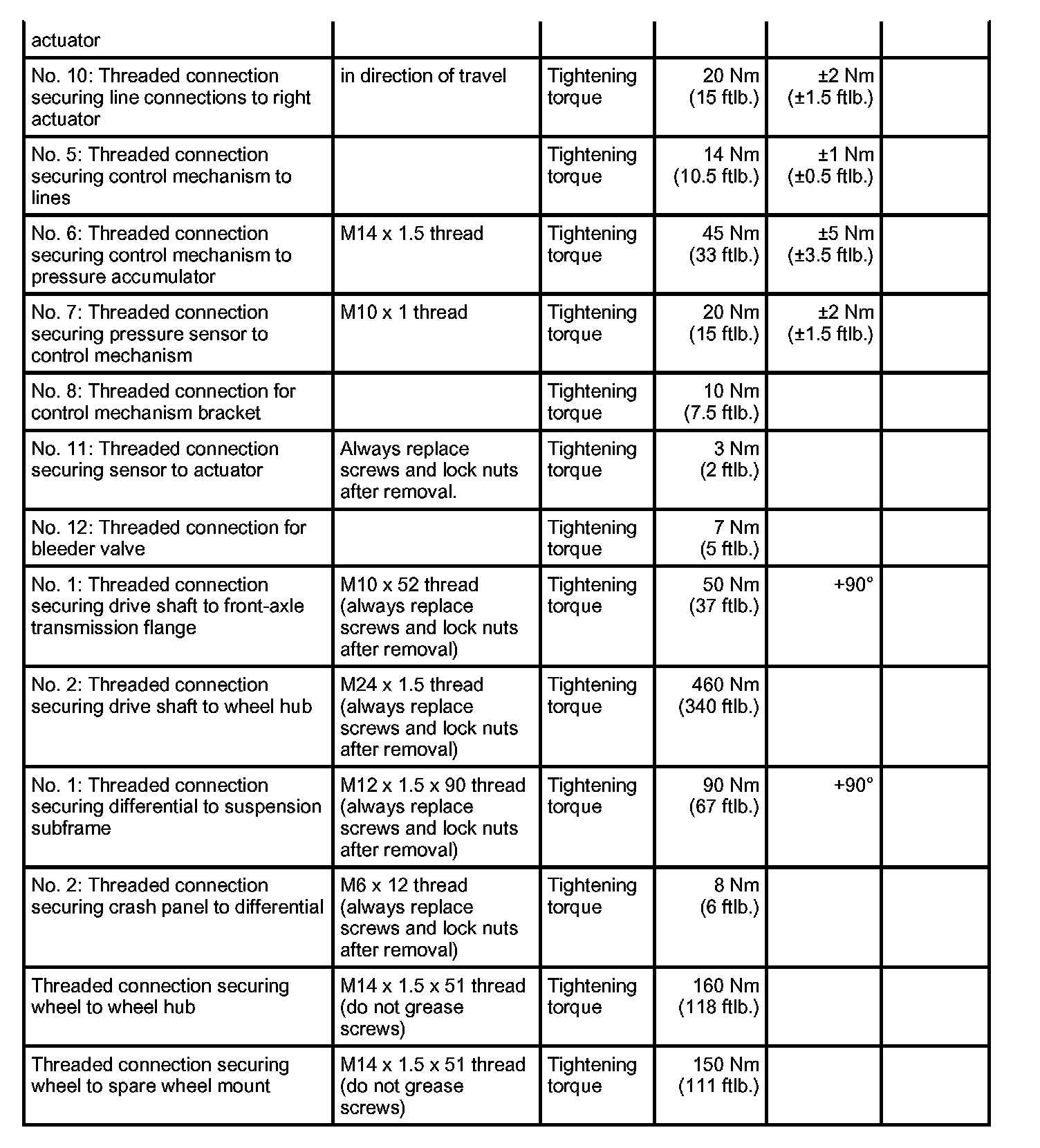

Drive shaft

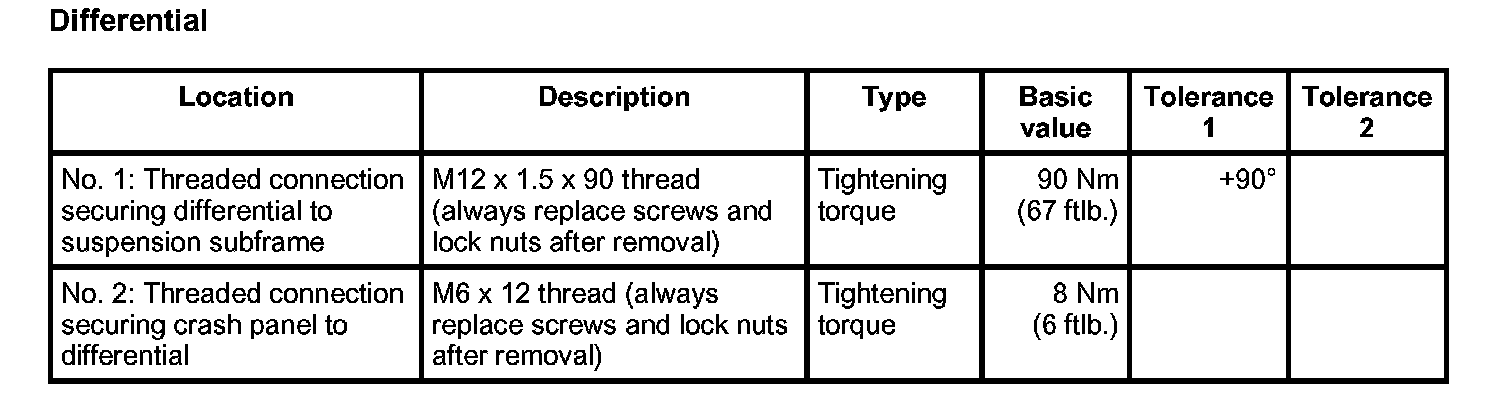

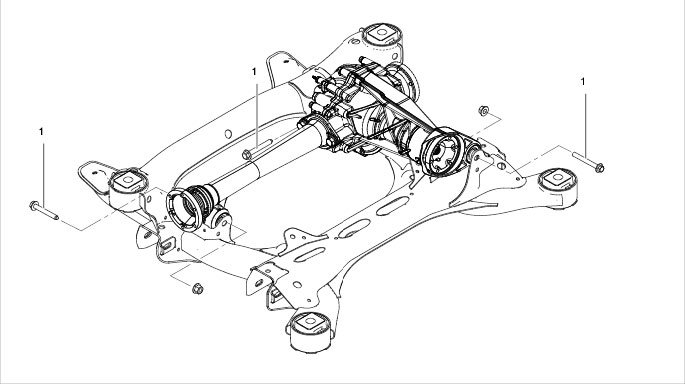

Front-axle differential
