Disassembling and Assembling Rear Centre Panel

Disassembling And Assembling Rear Centre Panel

Preliminary work
1. Remove rear centre panel.
2. Remove auxiliary stop light.


Disassembling rear centre panel

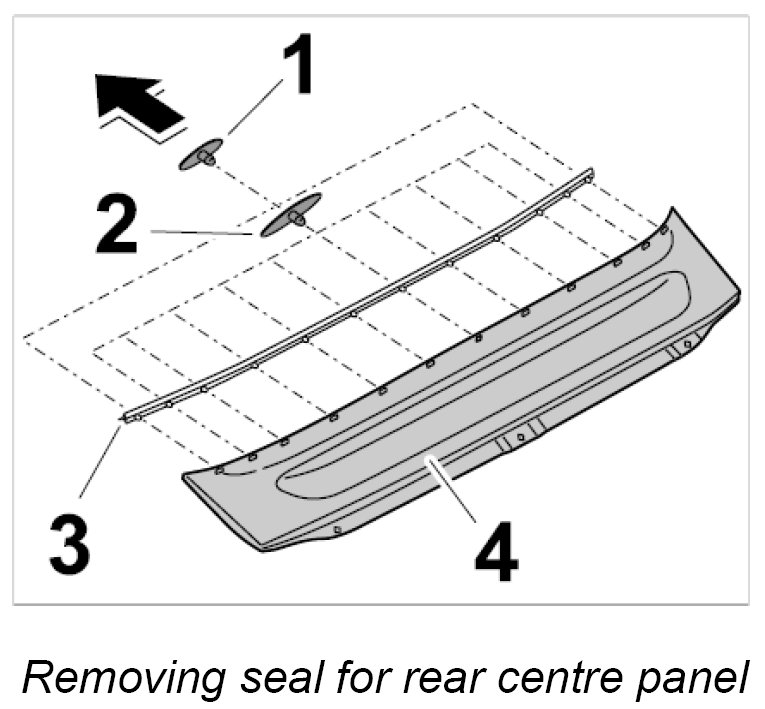

Removing seal for rear centre panel







1. Unclip plug-in mounts -1, 2- and remove seal -3- from rear centre panel -4- .

Assembling rear centre panel

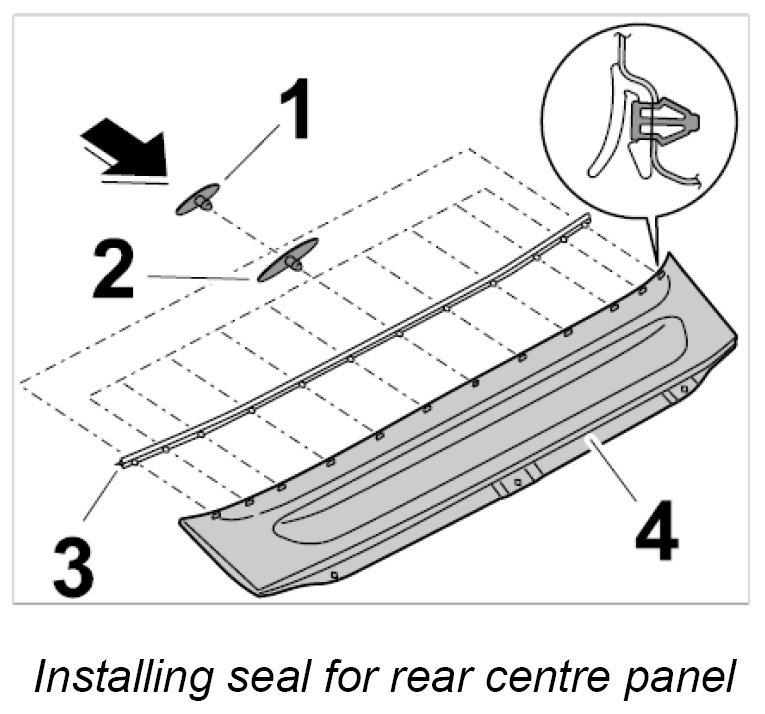

Installing seal for rear centre panel







1. Position seal -3- on rear centre panel -4- and press in plug-in mounts -1, 2-.


Subsequent work
1. Install auxiliary stop light.
2. Install rear centre panel.
