PDK Transmission - Symptom Diagnosis/Repair Procedures: Overview
35/09 ENU 3730 3Aug 31, 2012
The present document was valid at the time of print. A later version may be available online
PDK Transmission Diagnosis: Symptoms and Repair Procedures (35/09)

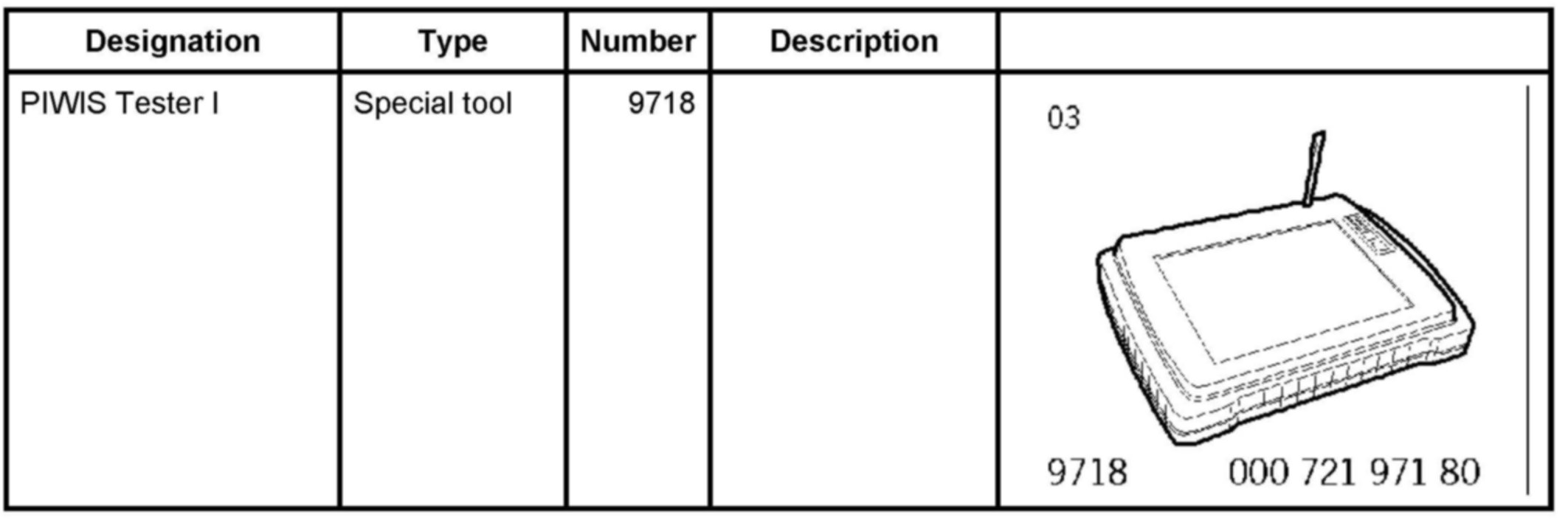

Tools
Model year: as of 2009
Information
This Technical Information replaces the TI Group 3, #35/09 dated January 17, 2012.
Changes/additions compared to the previous Technical Information:
--> Section "Procedure: 2 - Repair measures in the event of leaks on the PDK transmission", Steps 1, 9 and 15 now include the following link: --> 391555 Replacing double sealing ring (previously --> 373419 Removing and installing Porsche Doppelkupplung (PDK)).
Information
This Technical Information replaces the TI Group 3, #35/09 dated July 13, 2011.
Changes/additions compared to the previous Technical Information:
> Reference to changed procedure in the Workshop Manuals - "370235 Checking and topping up ATF clutch fluid" and "370255 Changing ATF clutch fluid".
> Information about fault locations (FES5) added under "Procedure: 2 - Repair measures in the event of leaks on the PDK transmission" for more exact invoicing and documentation using PQIS (--> Cause).
Information
This Technical Information replaces the TI dated June 28, 2010 Changes/additions compared to the previous Technical Information:
> Steps 3.4 and 3.4.1 added under "Procedure: 3 - Remedial action and repair measures in the event of complaints relating to comfort (gearshift and drive-off quality)".
> Additional measure (concerning fault codes P17BD/P17BE) added to flow chart "SF3 - Pressure sensor" for this Technical Information (see "3730 - Flow charts for PDK fault codes" in the information medium TI).
Information
This Technical Information replaces the TI dated June 28, 2010.
Changes/additions compared to the previous Technical Information:

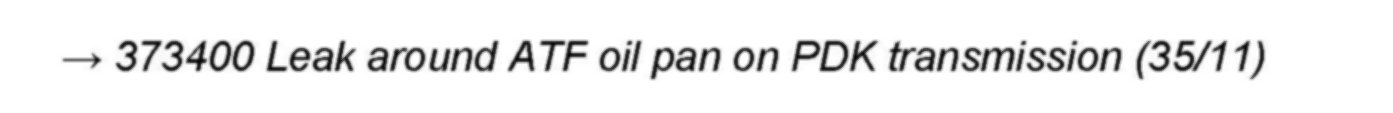

> The following link has been added under Step 13 in the section "Procedure: 2 - Repair measures in the event of leaks on the PDK transmission": --> 373400 Leak around the ATF oil pan on PDK transmission (35/11).
> "References" section now includes the above link.
Information
This Technical Information replaces the TI dated June 28, 2010.
Changes/additions compared to the previous Technical Information:
> Information added under "Procedure: 2 - Repair measures in the event of leaks on the PDK transmission": "Information/Traces of oil around the oil pan seal ..." added under item 13.
> Information added under "Procedure: 4 - Procedure in the event of noises on the PDK transmission": Additional text" (if possible) a video recording "added under "document the information specified below in PQIS".
Information
This Technical Information replaces the TI Group 3, #35/09, dated June 28,
2010.
Changes/additions compared to the previous Technical Information:
> All flow charts for this Technical Information (see "3730 - Flow charts for PDK fault codes" in the information medium TI) and the information provided here now include i-information "Detailed information (e.g. measured values) is stored in the relevant fault code".
> Flow chart "EF - Electrical faults" now includes: Fault code P17A3.
> Flow chart "SF4 - Temperature sensor" now includes: Fault code P172D.
> Flow chart "SF5 - Software errors" now includes: Fault type "$1A" fault code P18B4.
> Step "1.4" and "References" section now include the following link:
> 373000 PDK transmission in limp-home mode: Fault codes P1552, P1990 and/or P1991 (77/09)
> Step "3.4": PDK data version was changed from "T079" to "T082" and PIWIS II Tester software version V5.200 or higher.
Information
Changes/additions compared to the previous Technical Information:
> Step "1.4" and "References" section now include the following link: --> 373000 PDK transmission in limp-home mode: Fault codes P1552, P1990 and/or P1991 (77/09).
Vehicle Type: 911 Carrera (997)/911 Carrera S (997)
911 Carrera 4 (997)/911 Carrera 4S (997)
Equipment:
Porsche Doppelkupplung (PDK) - I-no. 250
Concerns:
PDK transmission/control unit for PDK transmission
Situation:
Procedure and repair measures in the event of complaints relating to PDK:
^ Gearbox emergency operation/other warning messages
^ Fault memory entries in the fault memory of the PDK control unit
^ Leaks on the PDK transmission
^ Complaints relating to comfort
^ Complaints relating to noises
Information
^ Always create a Vehicle Analysis Log (VAL) before starting any measures.
^ Make sure that you are using the latest version of the PIWIS Tester I 9718 software (i.e. version 27.000 or higher)/PIWIS Tester II software version 5.200 or higher.
^ If components are replaced: Return components to Porsche and document all measures in PPN.
Information
The following procedure applies in relation to calibration:
Engine torque loss adaptation must always be performed before carrying out calibration (for details of procedure/conditions, see Step 3.6).
Essentially, calibration is required only after replacing parts or if you are expressly instructed to do so during troubleshooting.
A Calibration after part replacement routine ("major calibration routine") must always be carried out after replacing one of the following components:
- PDK control unit
- Electrohydraulic control unit
- PDK transmission
Calibration without previous part replacement ("minor calibration routine") must be carried out if you are expressly instructed to do so (e.g. during troubleshooting in the event of complaints relating to comfort).
When control unit programming is complete (DME/PDK - with or without part replacement), engine torque loss adaptation must be performed.
If a control unit was only re-programmed (without replacing parts), calibration is not required unless there are other faults present (e.g. problems relating to gearshift and drive-off quality) for which calibration is recommended in order to correct the faults.
References:

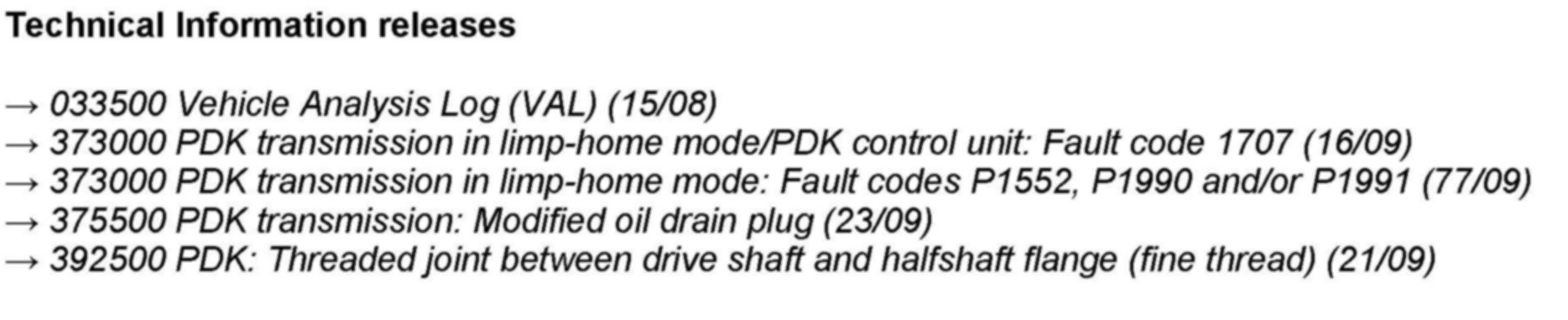

Technical Information Releases
Workshop Manual
Model Year as of 2009
C02, C36
