Calibration
CalibrationCalibration must be performed with the PIWIS Tester after replacing the convertible top or replacing a control unit. During calibration, the respective potentiometer values for convertible top and convertible top compartment cover are determined in the end position. If the potentiometer values are plausible, the values are stored. Six calibration values are calculated from these potentiometer values for the convertible top and four for the convertible top compartment cover.
Sequence for opening the convertible of driving mechanism catch, driving mechanism top with rocker switch
1. Rocker switch is being actuated.
2. Information about CAN that the operating pushbutton was actuated (proceeds from instrument cluster via in the position of the convertible top and the CAN display to Gateway and further from Gateway via CAN Comfort to convertible top control unit). The convertible top is opened only with terminal 15 active and a vehicle speed < 30mph (50 km/h).
3. Convertible top is being opened: from the convertible top control unit, information proceeds via CAN Comfort to driver's door control unit and passenger's door control unit. or lifting the rear power windows before or after Simultaneously, the display proceeds in the instrument cluster "Convertible top is being opened", in the case of a fault "Convertible top controller failure". Windows on driver's and passenger's side are being opened somewhat. Rear fault, convertible top windows are being opened. Latching rear cover hook is being opened. Convertible top top is being opened compartment lid is being opened. top is being closed Convertible top opens. Latching hook is top not in its end position being closed. Rear side flaps are being closed. Convertible top compartment cover is being closed. Windows on driver's and passenger's side are being raised completely.
4. Convertible top status from convertible top control unit: driver's door control unit, passenger's door control unit, rear end control unit, PAS control unit, Gateway.
5. Convertible top is opened.
Value 1: convertible top closed 0 %
When the catch is released, rear side flaps are down and convertible top compartment cover begins moving.

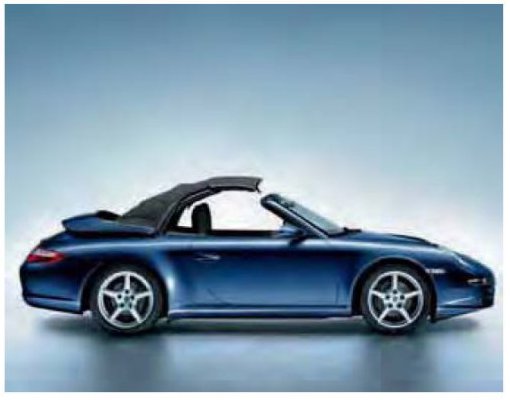

Value 2: convertible top front 20 %
Convertible top only continues to run when closing if catch is released.
Value 3: convertible top center forward 45 %
Driving mechanism catch is actuated to lock when opening. Convertible top compartment cover is actuated in direction of closing when convertible top is being closed.

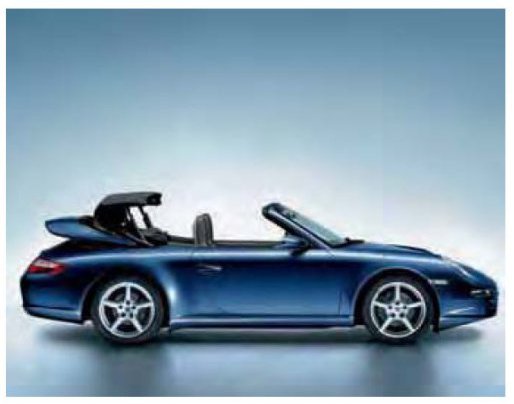

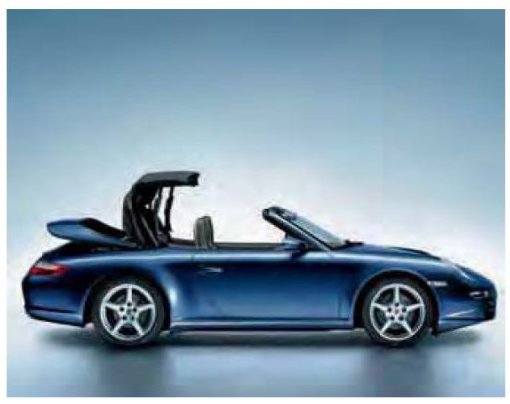

Value 4: convertible top center rearward 65 %
Convertible top only runs when opening if microswitch for convertible-top lock is locked. Convertible top only runs if convertible top compartment cover is open. Driving mechanism catch is actuated to unlock when convertible top is being closed.
Value 5: convertible top rearward 90 %
Convertible top only runs when opening if microswitch for convertible-top lock is locked.

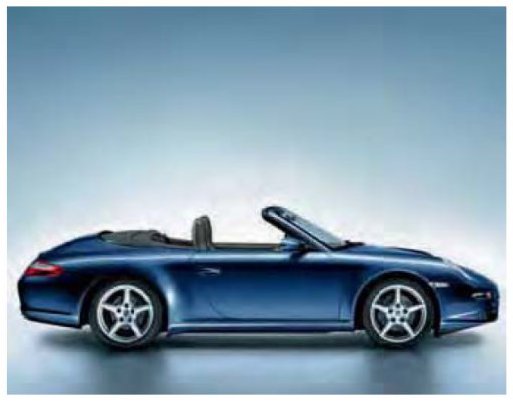

Value 6: Convertible top open 100 %
Convertible top runs when closing if convertible top compartment cover is open and the rear side flaps are down.
SAFETY: Risk of injury or damage exists during emergency operation. There is a risk of crushing or pinching from all moving convertible-top parts. Always carry out emergency operation of the convertible top operate with the greatest care. Do not operate the convertible top button during emergency operation.
Emergency Operation Mechanism
Before operating in an emergency, the following needs to be checked:
Was the ignition switched on and was the engine compartment lid closed during operation of the convertible top with the rocker switch?
Are the electrical fuses OK?
Removing The Rear Wall Lining

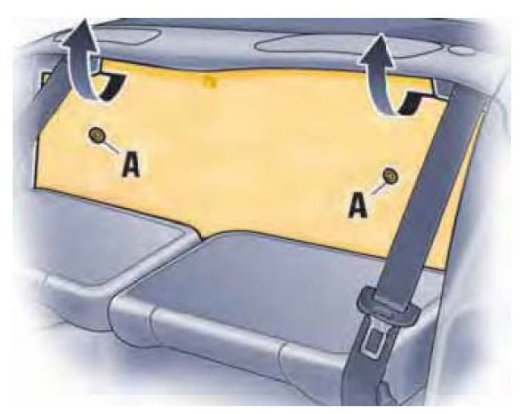

1. Unscrew screws -A- from the rear wall lining. Pull out and reposition the screwdriver insert if necessary.
2. Grasp the rear wall lining by the cut-outs for the seat belts and press downward. Pull rear wall lining forward and lift up and out.
Open The Convertible-top Compartment "D"
1. Take red Allen key -B- out of its holder.

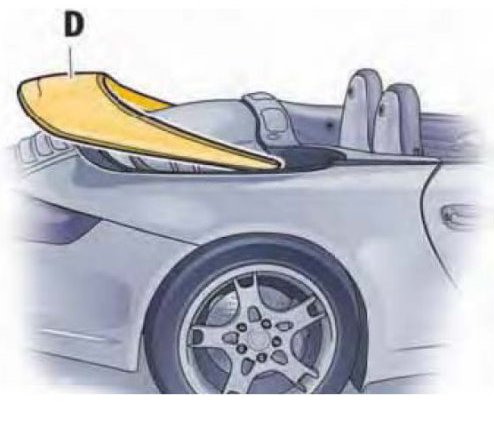

2. Put handle of screwdriver onto Allen key -B-.Insert the Allen key into the drive axle -C- and turn it counter-clockwise (in the direction of the arrow) until the convertible-top compartment cover -D- is fully open. Remove Allen key.
SAFETY: Danger of injury. The Allen key can rotate or slip off if the convertible top is operated. Always remove the Allen key from the drive axle before operating the convertible top. When the convertible-top compartment cover is opened, it should be attempted to close the convertible top using the rocker switch.If the convertible top cannot be closed, continue with emergency operation.
Opening Side Flaps
1. Remove ignition key.
2. Use the screwdriver to remove plastic lid -E- from the lining from behind.

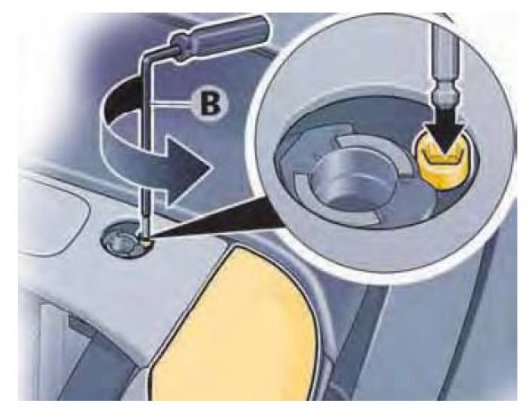

3. Insert Allen key -B- into the drive axle for the left side flap. Turn the Allen key counter-clockwise (in the direction of the arrow) until the side flap is fully open (until you can feel it stop).
4. Repeat procedure with the right side flap. Remove Allen key.
Closing The Convertible Top

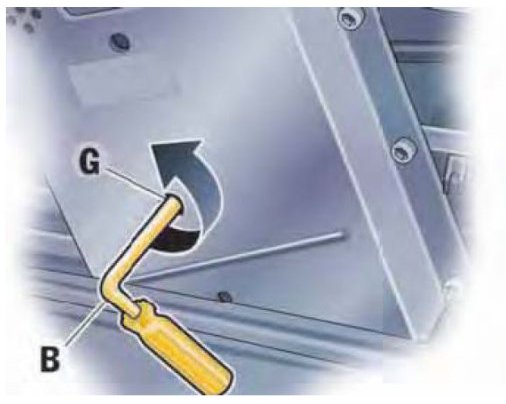

1. Insert the Allen key -B- through the hole -G- in the hydraulic valve. Turn the Allen key -B- counter-clockwise by approx. 1 revolution. Always remove Allen key -B-.
2. Get behind the front seats and grasp the convertible top in the middle.
3. Close the convertible top until it reaches its highest position.
4. The convertible top lock with the locking hook which is mounted on the convertible top. Please perform work on the convertible top lock while standing on the righthand side of the vehicle.
Extending Locking Hook "H"

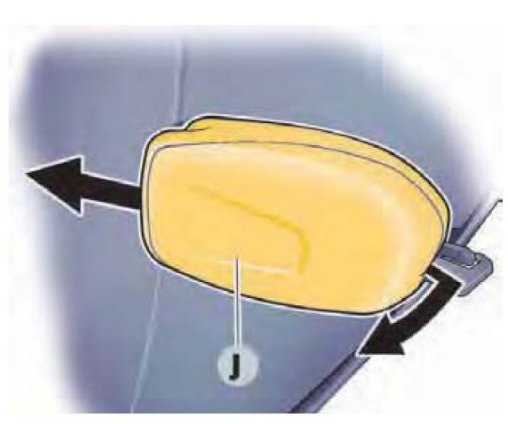

1. Pull plastic cap -J- down on the front corners. Slide the cap to the rear and remove it.
2. Take the Allen key -K- from the oddments tray between the front seats.

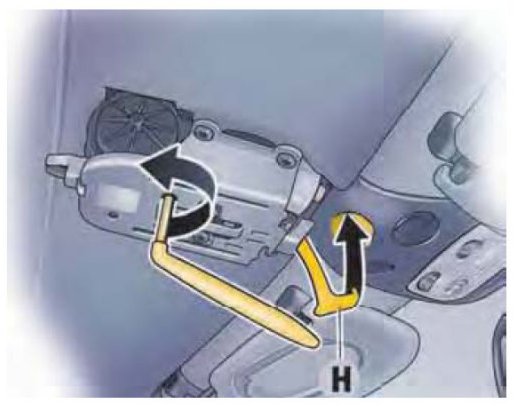

3. Insert Allen key -K- in opening -L- and turn in direction of arrow until significant resistance can be felt. The locking hook -H- is now extended.
4. Remove the Allen key.

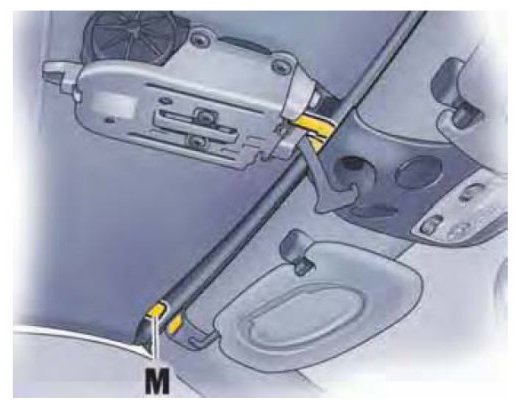

5. Pull the convertible top all the way forward to the windshield frame. Lock the locking hook -H- in the windshield frame. When locking the convertible top, make sure that the locking hook engages in the windshield frame. Pull the convertible top to the windshield frame if necessary. The centering journal -M- must retract into the mounting in the windshield frame.
6. Insert the Allen key again. Turn in the direction of arrow until you can feel significant resistance and the convertible top is completely locked.
7. Remove the Allen key.
Installing The Cover

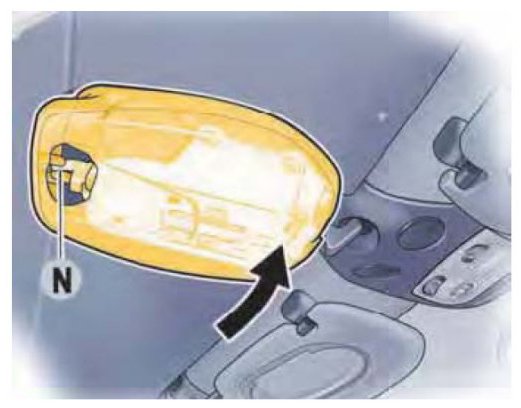

Slide plastic cover over the convertible top lock from the rear.The cover must be centered and engaged in guide -N-.Press the cover up at the front edge and engage.
Closing The Cover To The Convertible Top Compartment

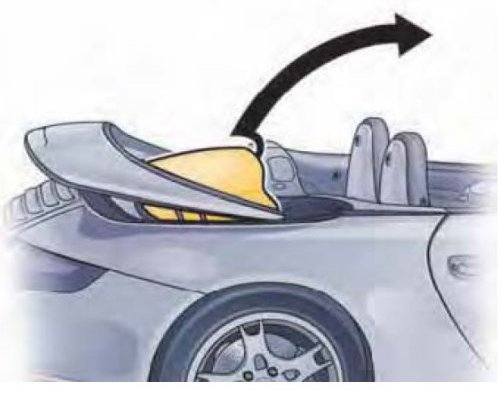

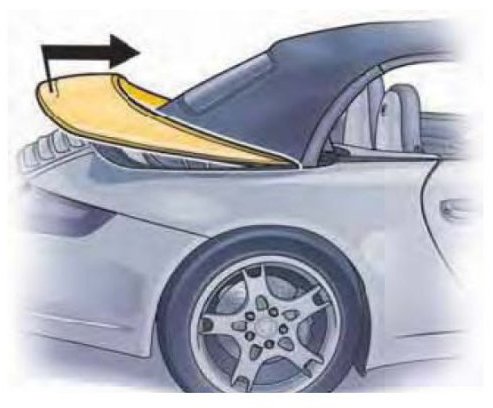

Grasp convertible-top compartment cover above the brake light and push forward against the perceptible resistance until it is completely closed.
SAFETY:
- Risk of pinching when closing the cover of the convertible-top compartment. Place hands on the cover to the convertible top compartment when pushing.
- Risk of damage to the convertible top. After emergency operation, do not operate the convertible top via the rocker switch or remote control.

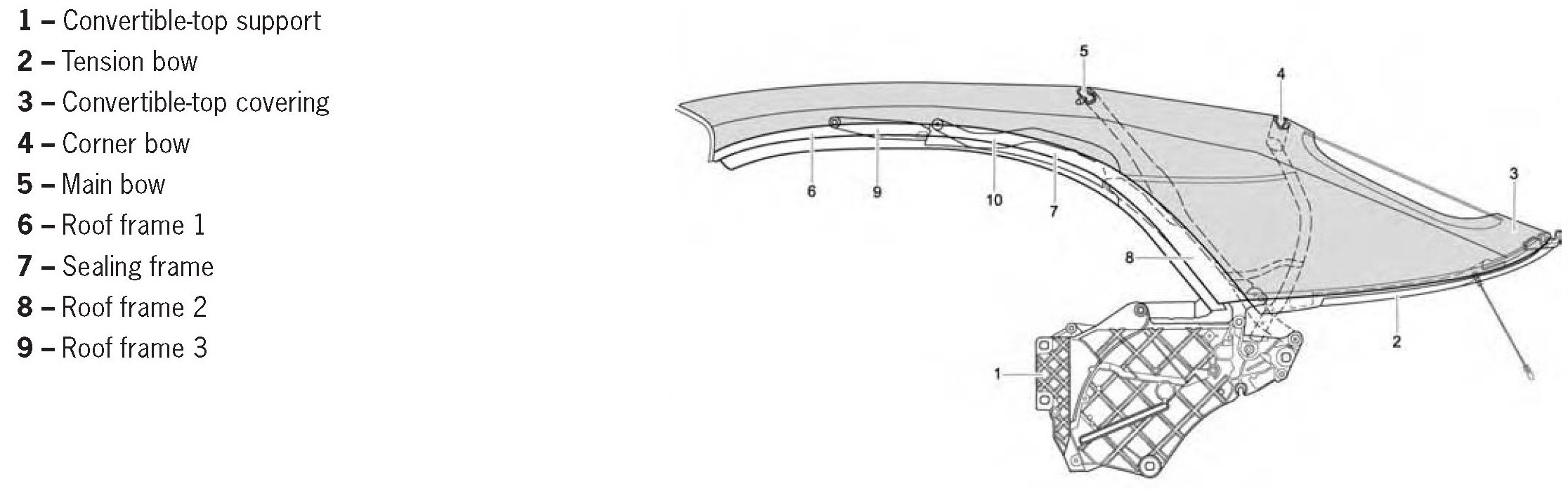

The convertible top has ten main components made of 26 % aluminium and 20 % magnesium. The remaining portion of the convertible top is made of steel forgings, covering material, intermediate layer, roof liner, as well as gaskets and mounting parts. The solid lightweight design leads to increased torsional rigidity of the convertible top frame.
The bearing points are mostly fork-shaped bearings which make an essential contribution to the high stability of the roof construction. The covered bearing surfaces contribute to a visually harmonious appearance of the pop-up linkage.
The convertible top is based on the predecessor, although many details were optimized. The water drainage on the convertible top was improved by adding additional water drainage to the front water channel. This outlet serves to discharge the rain water collecting in the header bow when the vehicle is stationary into the seal of the A-pillar via the corner piece of the seal. The improved water drainage reduces rainwater from possibly dripping on the vehicle seats when the convertible top is wet.

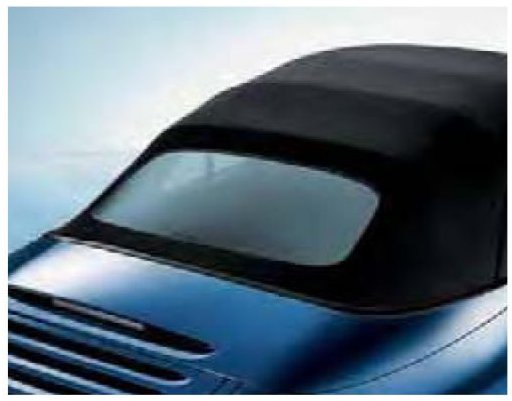

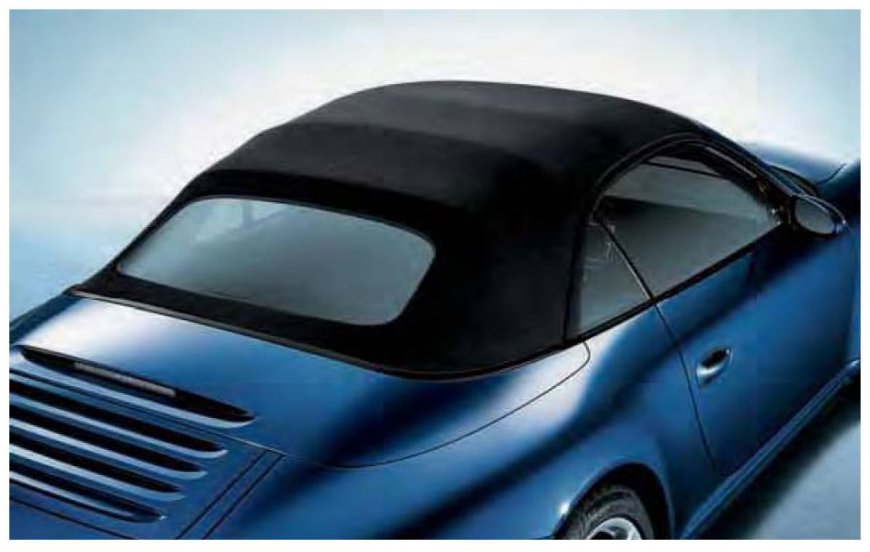

The scratch resistant glass rear window with integrated rear window heating was adopted from the previous 911 Carrera (996) model. It provides clear visibility especially during the colder months. Signs of wear and tear from weathering will be kept to a minimum. The rear window is made of single-sheet safety glass and is fastened to the convertible top using a service friendly replacement method. Inner and outer frames are held together with clamps. Repair costs for a required replacement of the rear window can be kept low due to this, since the entire convertible top fabric covering does not need to be replaced. The Porsche logo is integrated on the lower edge of the rear window.
The surface finish of the convertible top has been improved by optimizing the seam design. The visible styling edges play an important role in the high-quality appearance of the convertible top's exterior shape. Together with the high-quality convertible top covering, these Porsche styling elements help to give the cars a brand-specific look.
The outer textile covering of the convertible top is extremely durable and its UV light stabilizers make it resistant to fading. The overall high-quality impression of the convertible top is achieved on the inside with the high-quality black fabric lining, the full convertible top frame trim as well as the good interior acoustics.
This reduces wind noises with the convertible top closed to the level of the 911 Carrera Coupe.
