Accelerator Pedal Position Sensor: Testing and Inspection

Electronic Pedal - Pedal position sensor

General
The aim is to detect a multiple pedal value sensor fault. In case of multiple pedal value sensor fault the engine management state is set to idle state. Only creeping is possible.

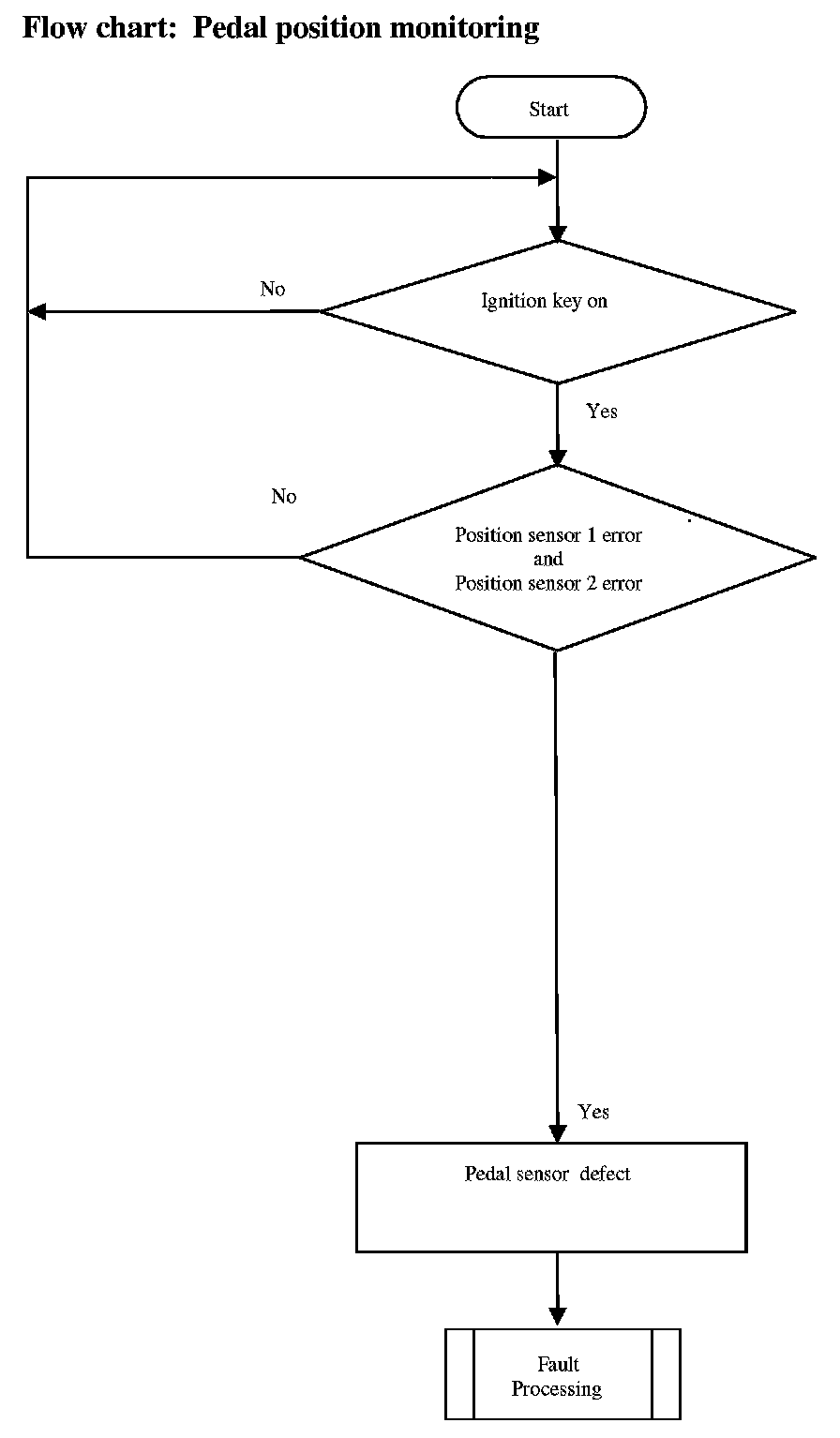

Flow chart: Pedal position monitoring
