Collision Avoidance and Parking Assist Systems

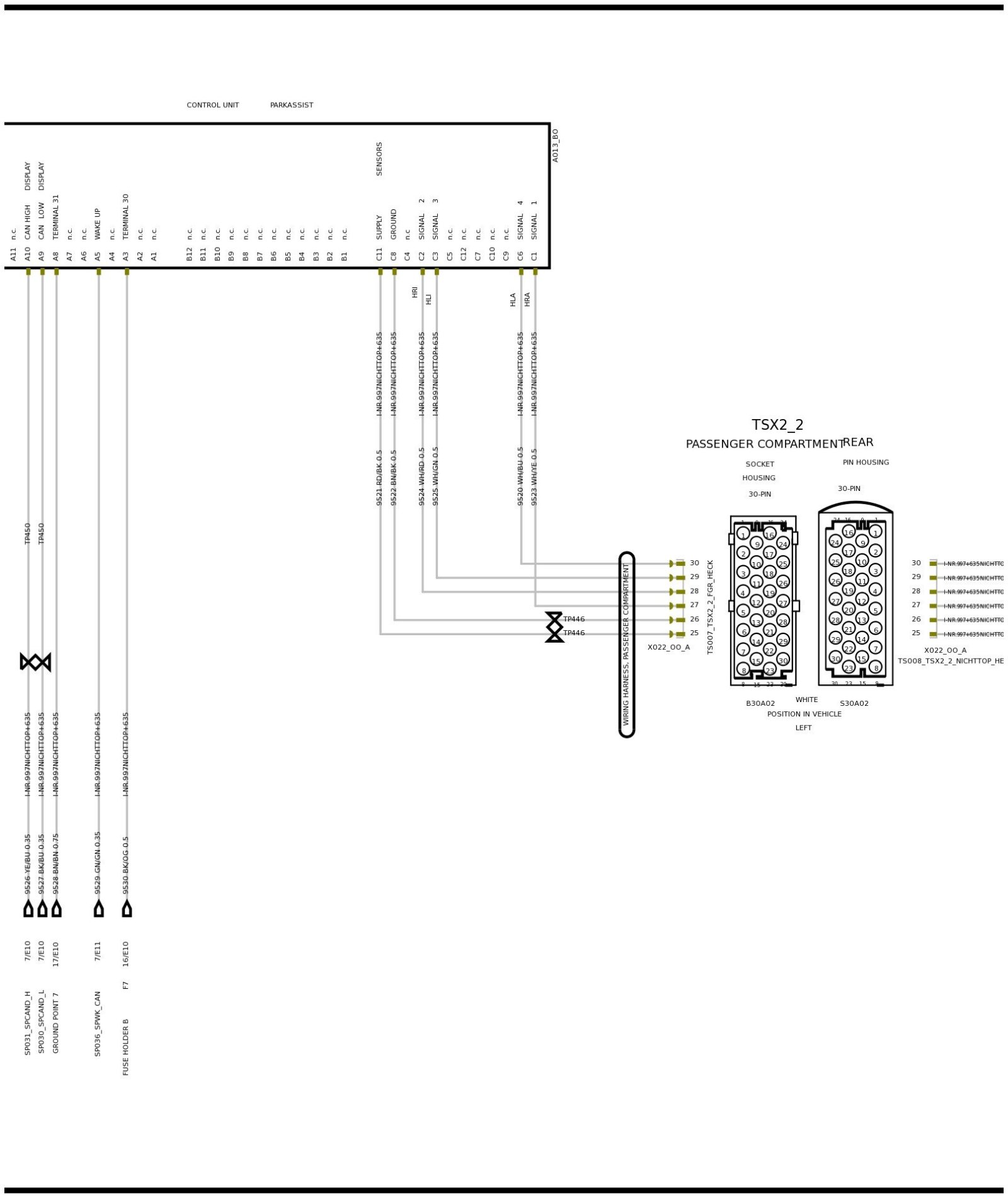

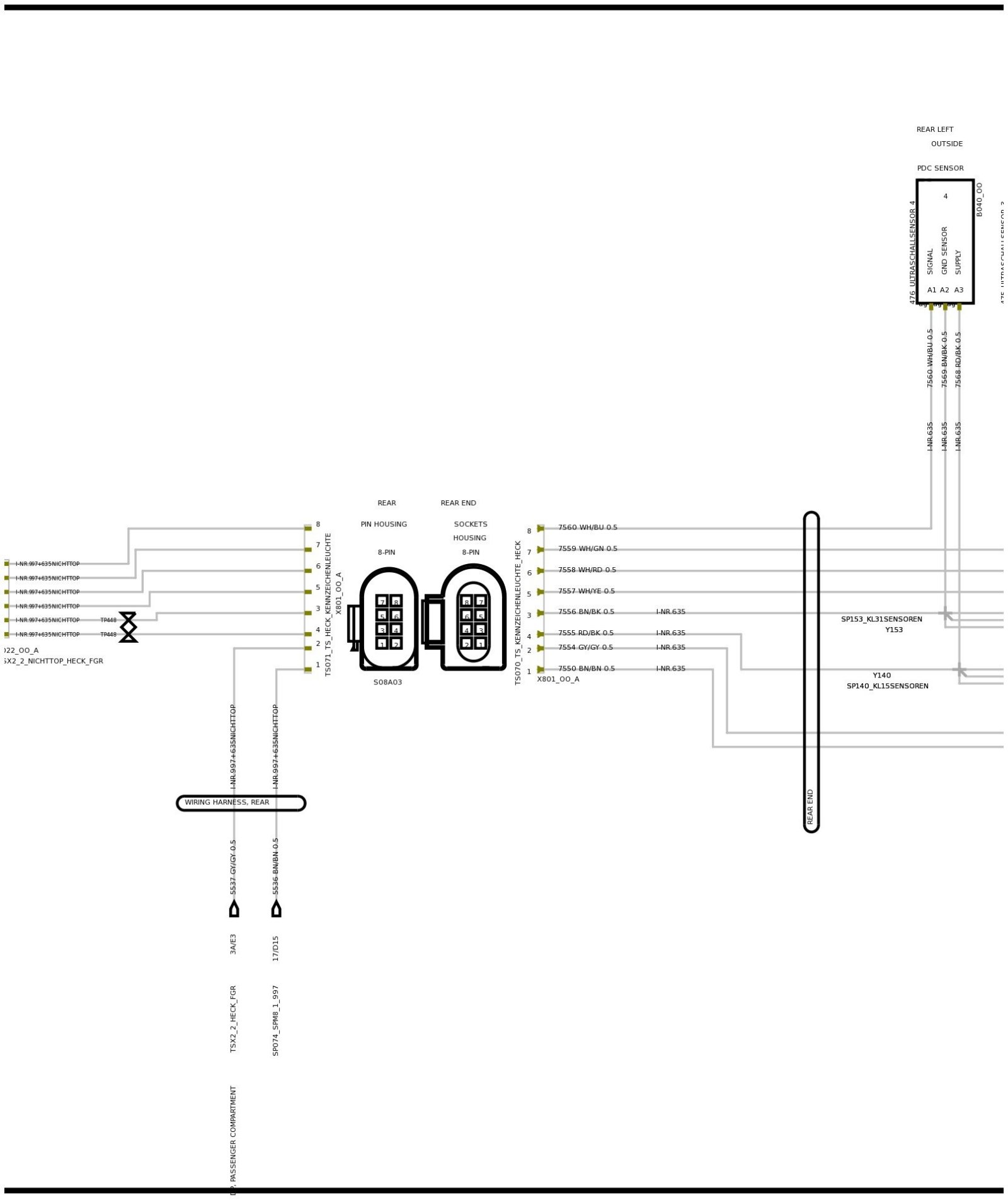

Parkassist - Sheet 25



















Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
