Dashboard Protector / Mat: Service and Repair


WM 701619 Removing and installing dashboard cover

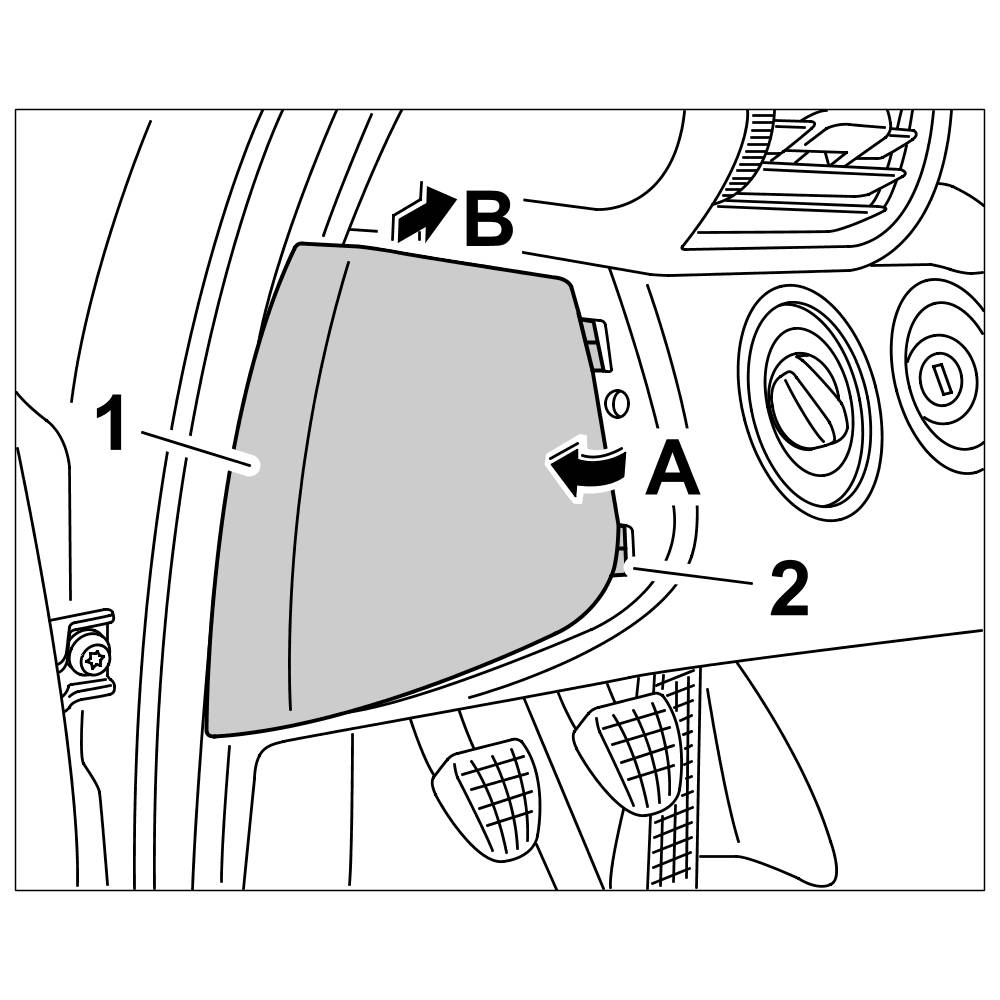

Removing dashboard cover

1. Unclip cover -1- using a plastic wedge on the retaining clips -2- and swivel it outwards -Arrow A-.





Removing cover

2. Remove the cover -1- to the rear -Arrow B-.

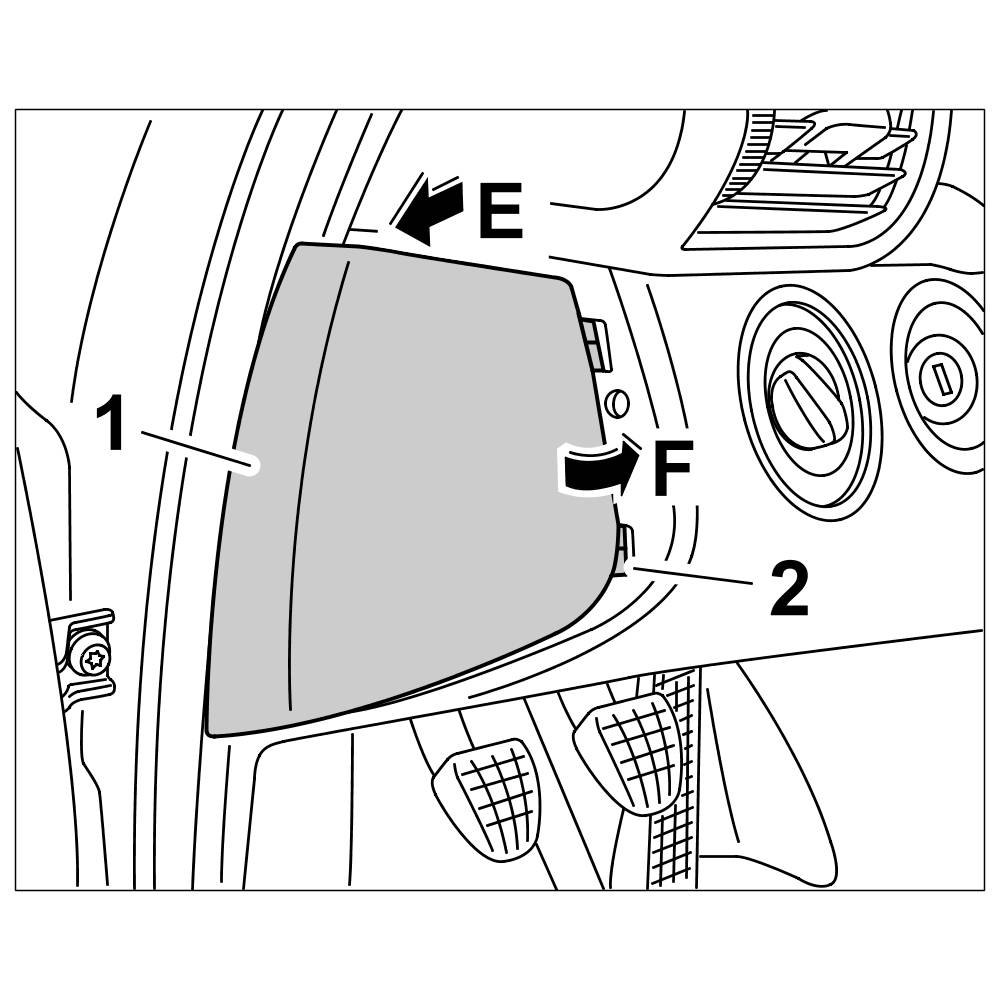

Installing dashboard cover

1. Insert cover -1- at the front -Arrow E-.





Installing cover

2. Swivel cover -1- inward and push it in -Arrow F- until the retaining clips -2- click into place.
