Windshield Washer Pump: Service and Repair


WM 925619 Removing and installing pump for windscreen washer system

Preliminary work

Remove tank for windscreen washer system. => Removing and installing tank for windscreen washer system - section on "Removing"

Installing pump for windscreen washer system

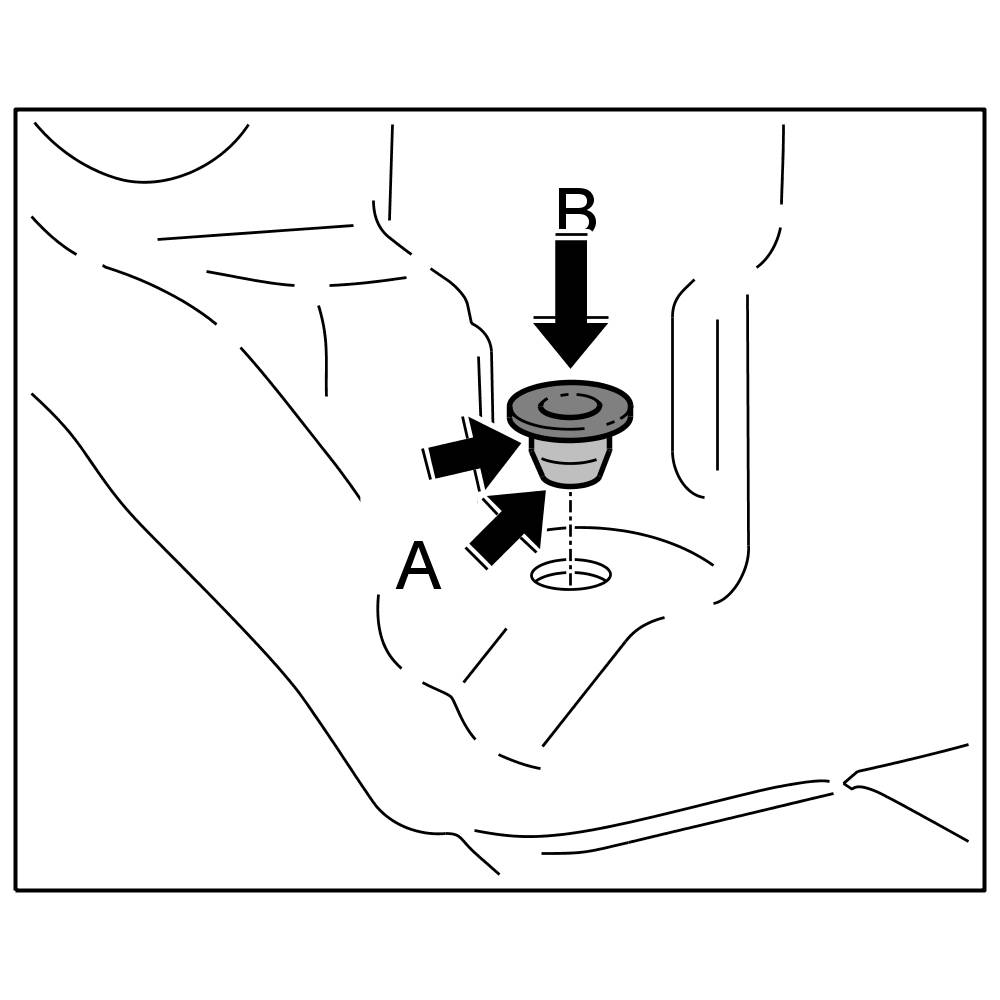

1. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A- and press the rubber seal into the tank -arrow B- until it is felt to engage.





Fitting rubber seal

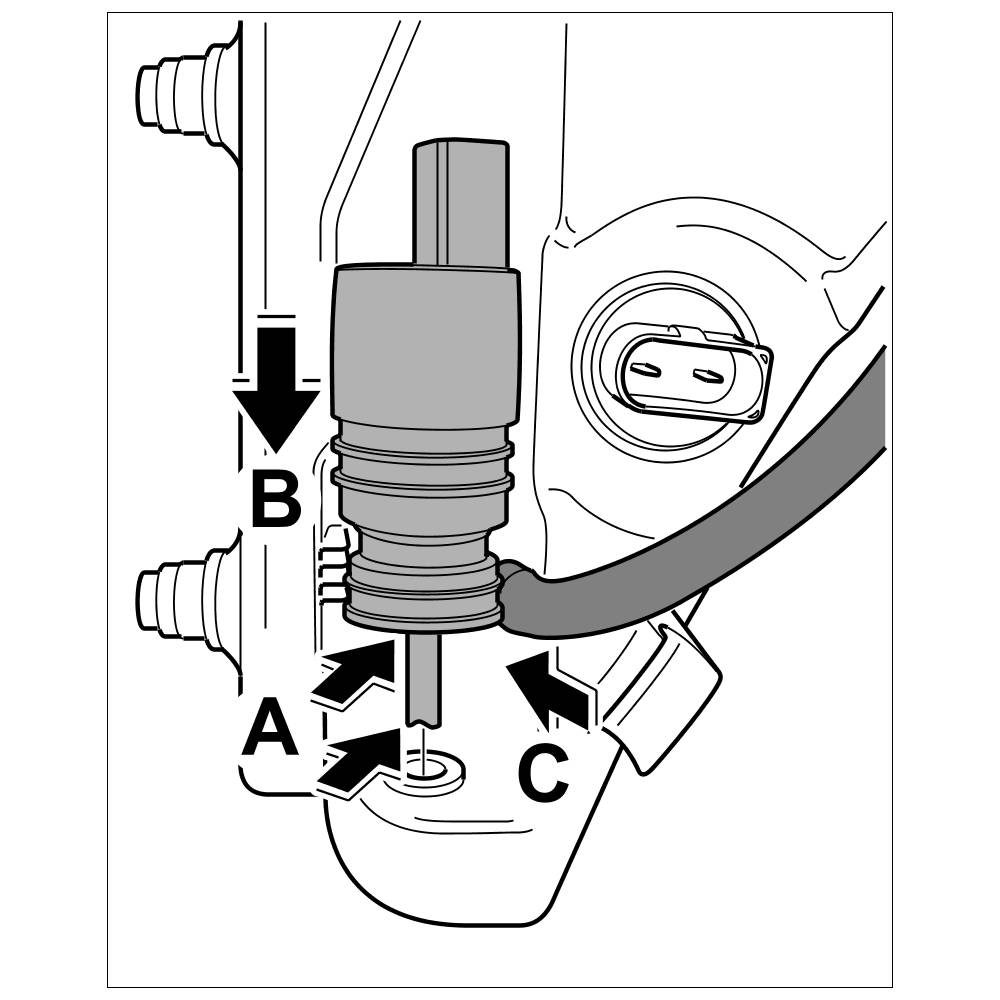

2. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A- and press the pump for the windscreen washer system into the rubber seal -arrow B- until the pump is felt to engage.





Installing pump for windscreen washer system

3. Connect the water pipe to the connections at the pump for the windscreen washer system -arrow C-.

Subsequent work

Install tank for windscreen washer system. => Removing and installing tank for windscreen washer system - section on "Installing"
