Wiper Blade: Service and Repair
WM 922719 Removing and installing wiper blade
Removing wiper blade
WARNING
Danger of trapping and injury due to uncontrolled activation of wiper arms when fitting.
-> Switch off ignition and remove ignition key.
1. Raise wiper arm, release holder -A- and remove wiper blade by sliding it downwards and to the side.

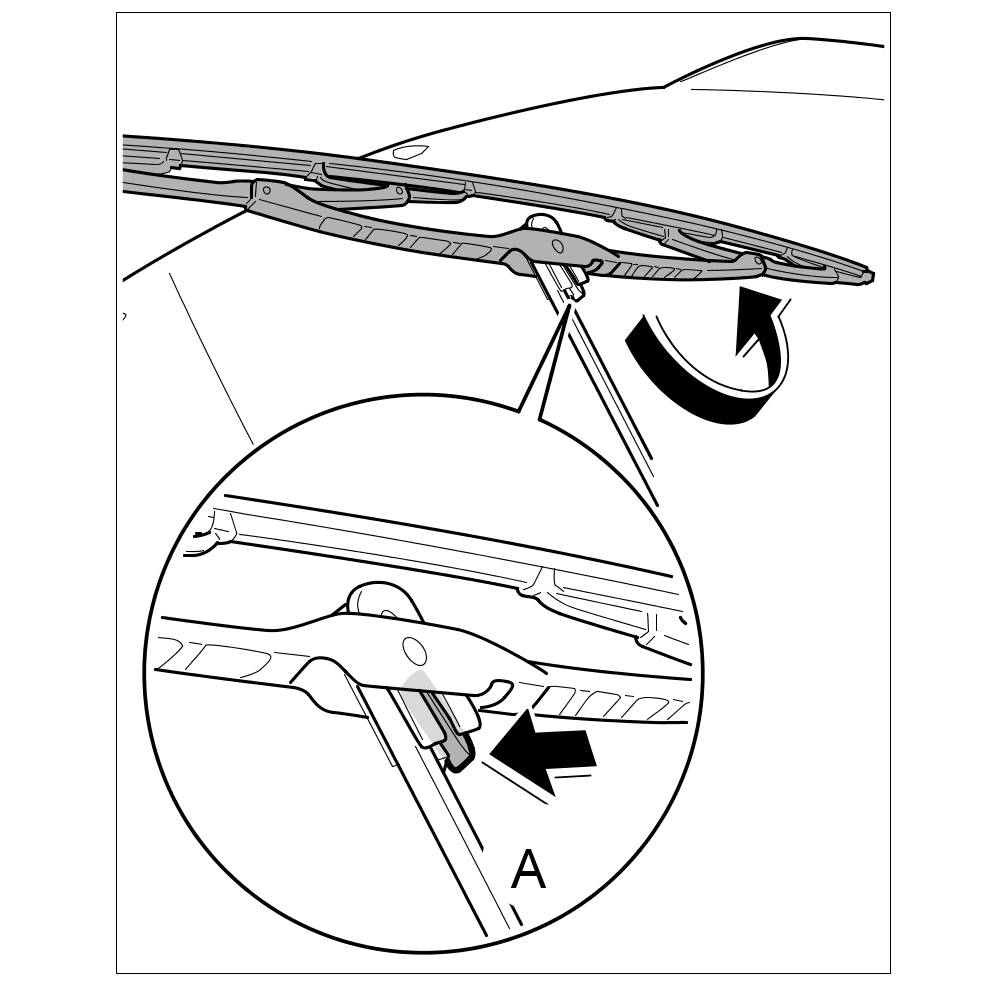

Releasing wiper arm
Installing wiper blade
WARNING
Danger of trapping and injury due to uncontrolled activation of wiper arms when fitting.
-> Switch off ignition and remove ignition key.
1. Slide wiper blade in from the side and engage in the wiper arm.

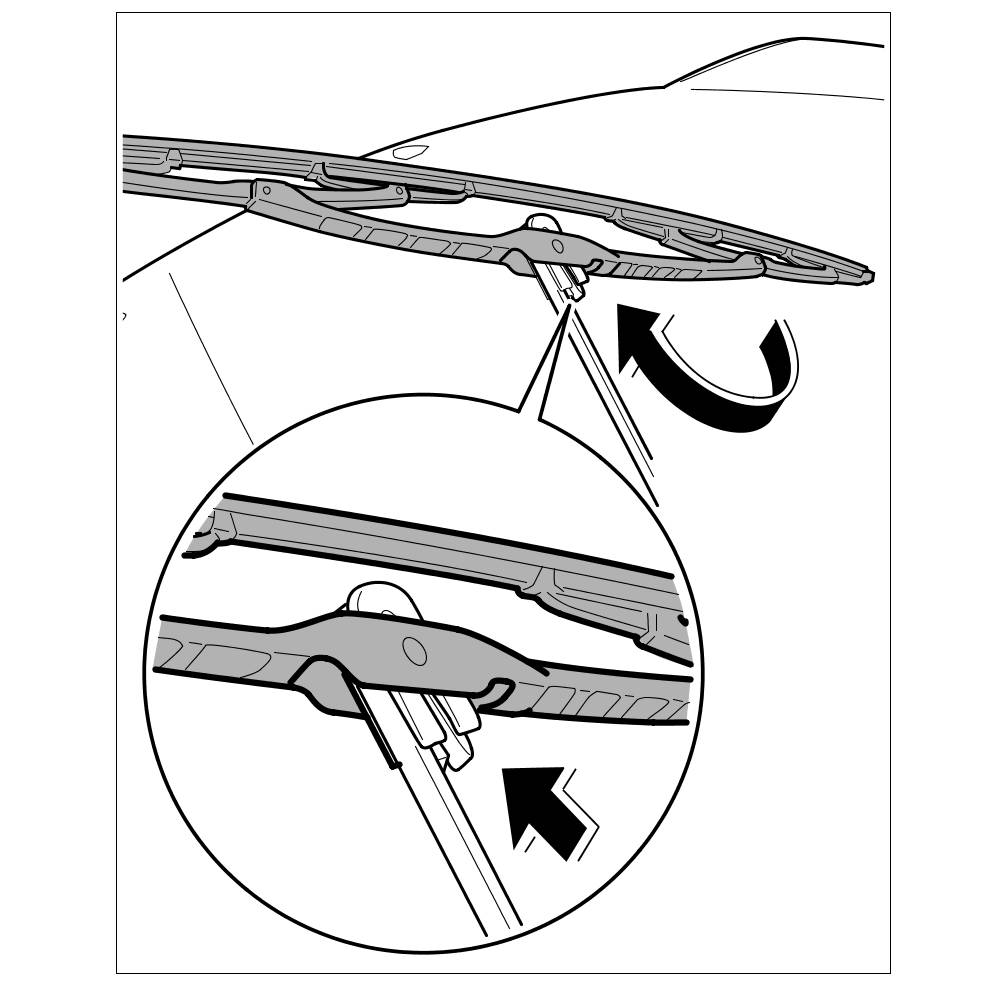

Sliding in wiper arm
2. Lower wiper arm and check wiper function.
