Air Conditioning

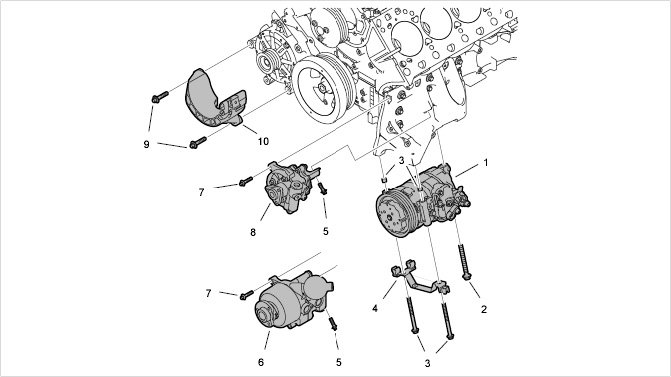

Air ConditioningAuxiliary units
1 - Air conditioning compressor
2 - Screw, M10 x 100 -> Tightening torque: 46 Nm (34 ftlb.)
3 - Screw, M8 x 100 -> Tightening torque: 23 Nm (17 ftlb.)
4 - Holder
5 - Screw, M8 x 20
6 - Tandem pump
7 - Screw, M8 x 35
8 - Power-steering pump
9 - Screw, M8 x 35
10 - Support bracket is made of magnesium
11 - Dowel sleeve
