Technical Data - Air Conditioning System



Technical Data - Air Conditioning System

Technical values







Technical data for air conditioning system

- Refrigerant quantity (R 134a): -> : 580 g

- Refrigerant oil in compressor: -> : 140 cm3

- High-pressure cut-off: -> : 32 bar

- Low-pressure cut-off: -> : 1 bar

- Pressure relief valve purge pressure: -> : 44±4 bar

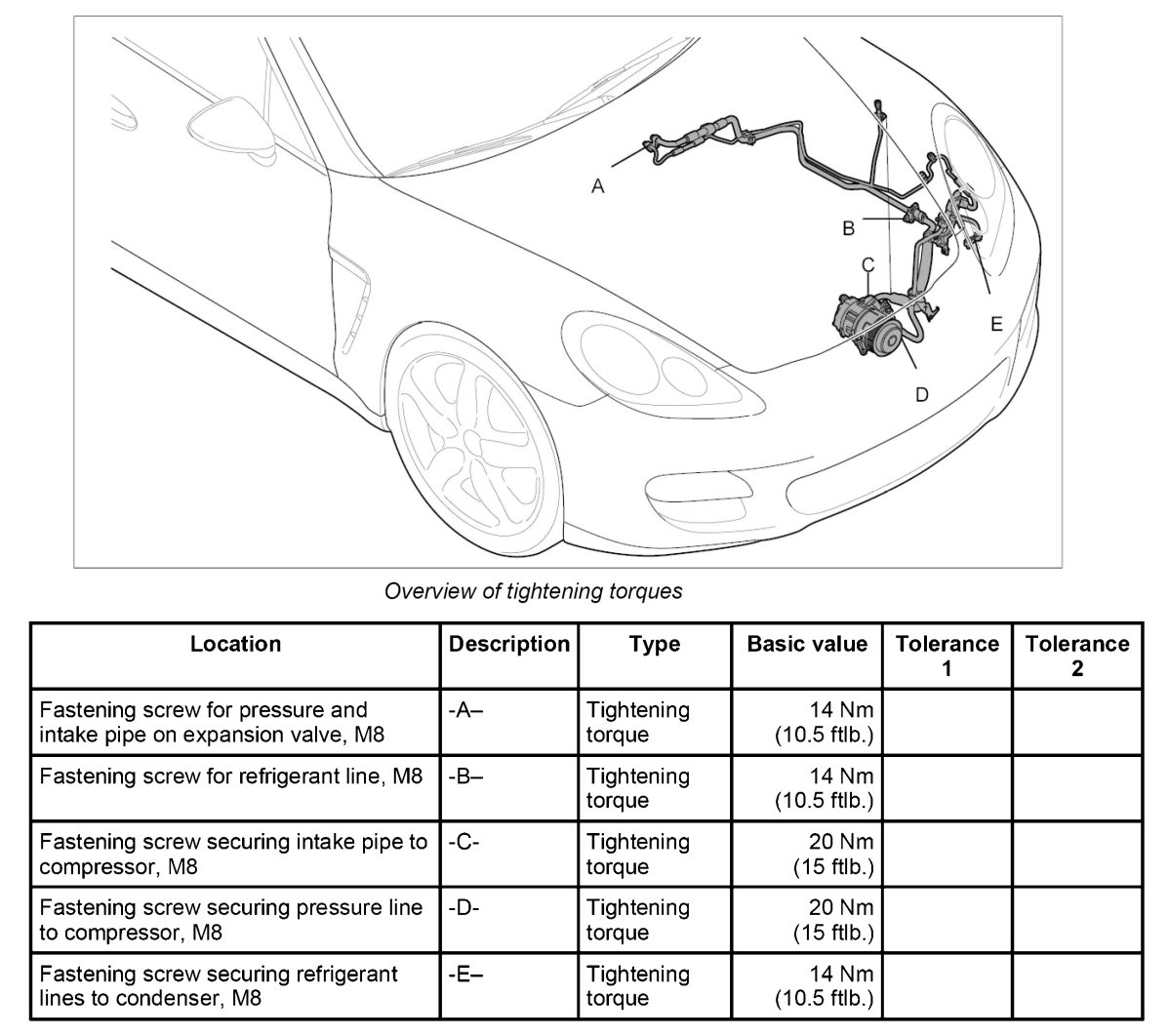

Tightening torques







INFORMATION:
- When installing the refrigerant lines, the screw connections and the O-rings must always be wetted with refrigerant oil.

- The extracted refrigerant oil must be disposed of as special-category waste.
