Cylinder Head Assembly

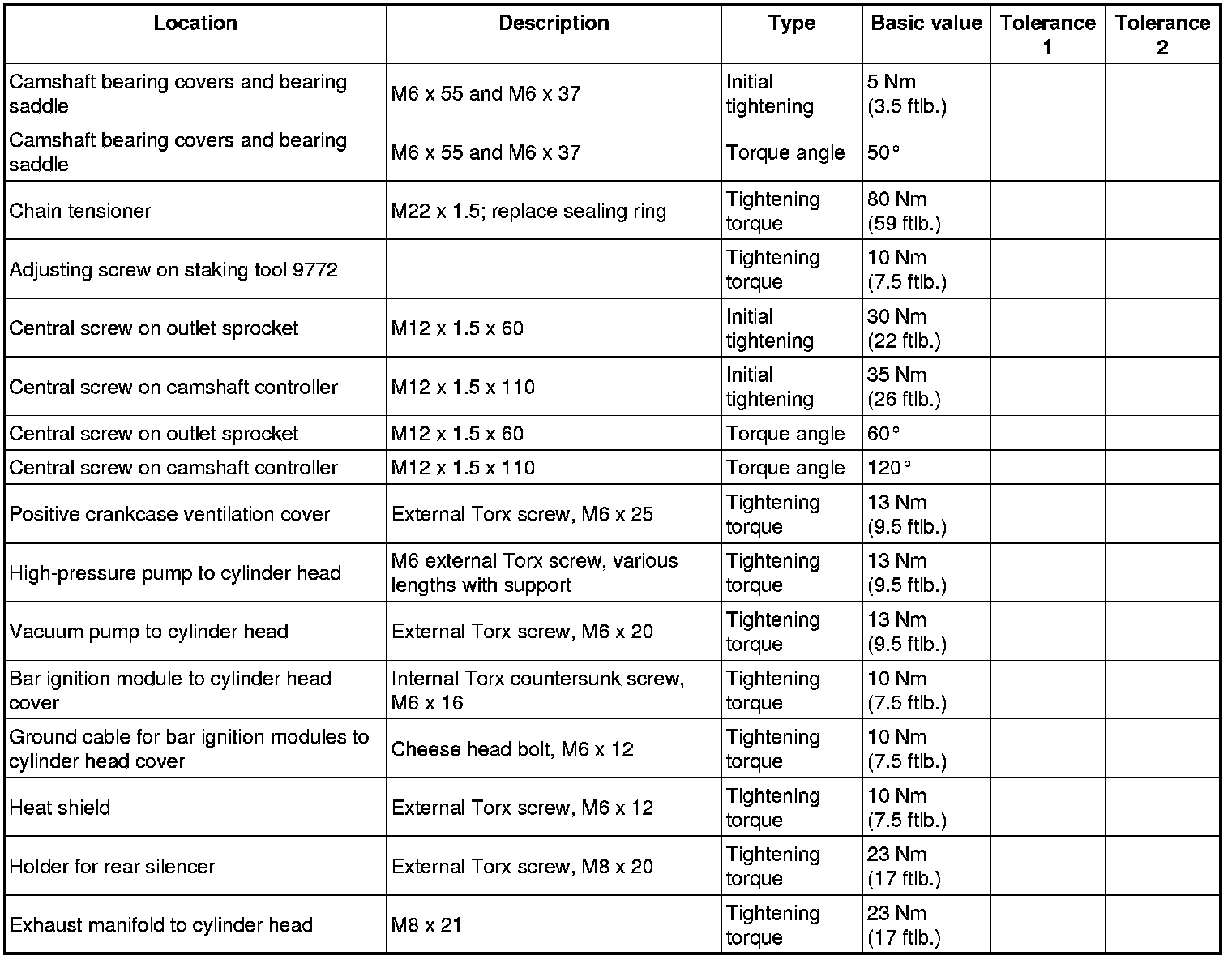

WM 150520 Removing and installing camshafts (includes setting timing) - Turbo

Cylinder Head

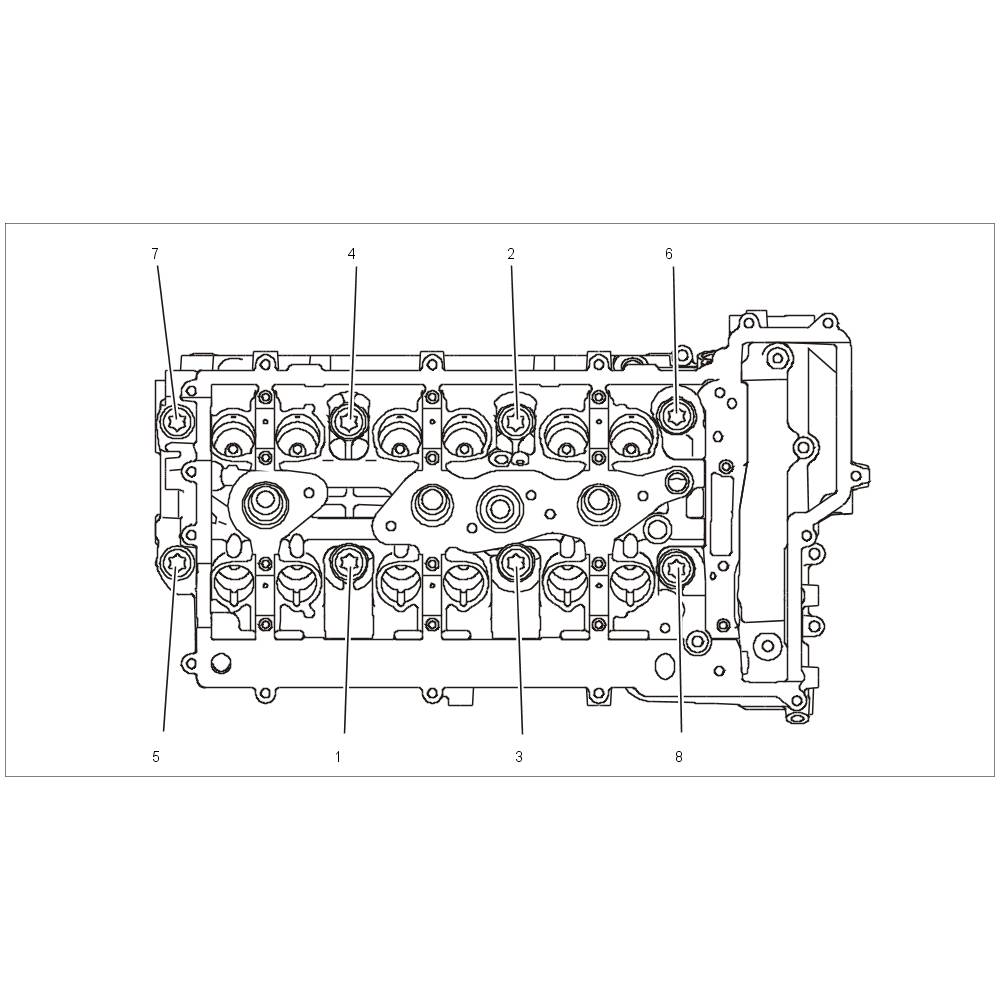

Tightening sequence for cylinder head screws






Screw in four external Torx screws (E10) - three M6 x 25 screws -1- and one M6 x 80 screw -2- on the inside of the cylinder head and tighten according to specifications.

Tightening torque: 13 Nm (9.5 ftlb.)

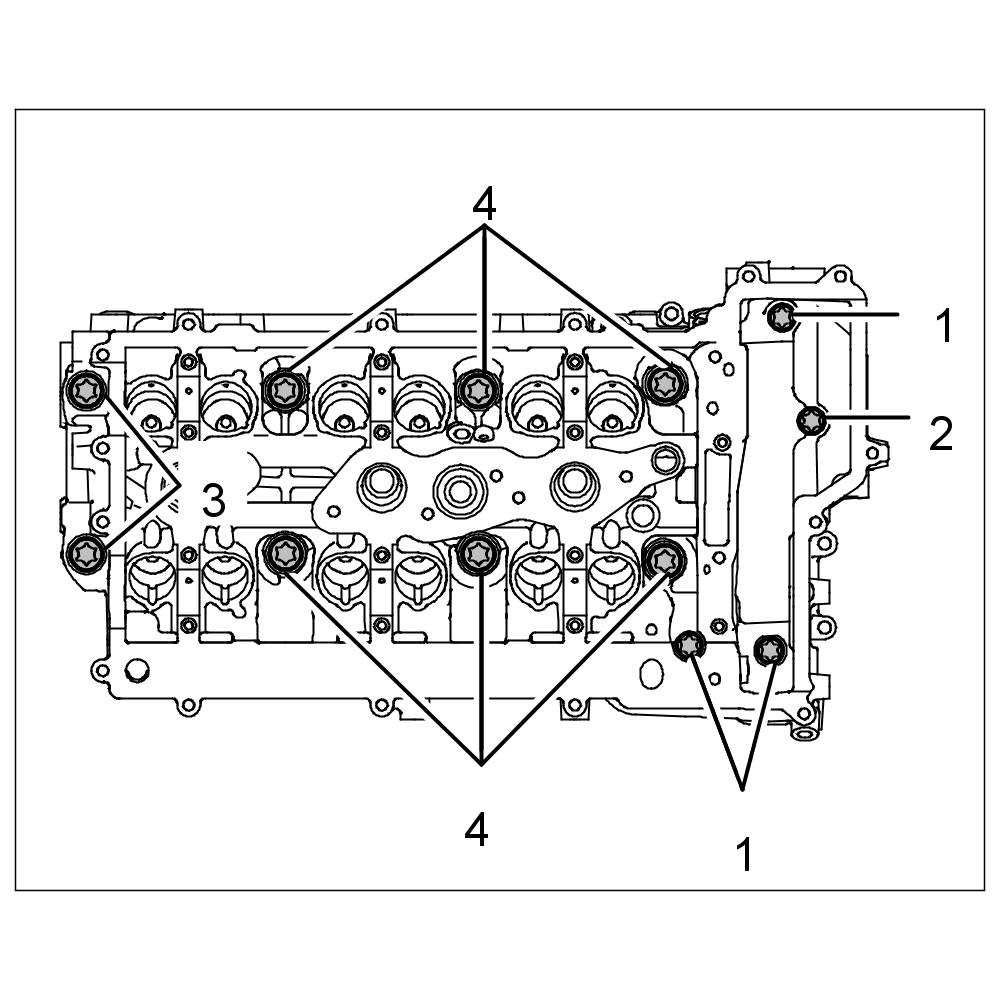

Overview of screws for cylinder head 1-3

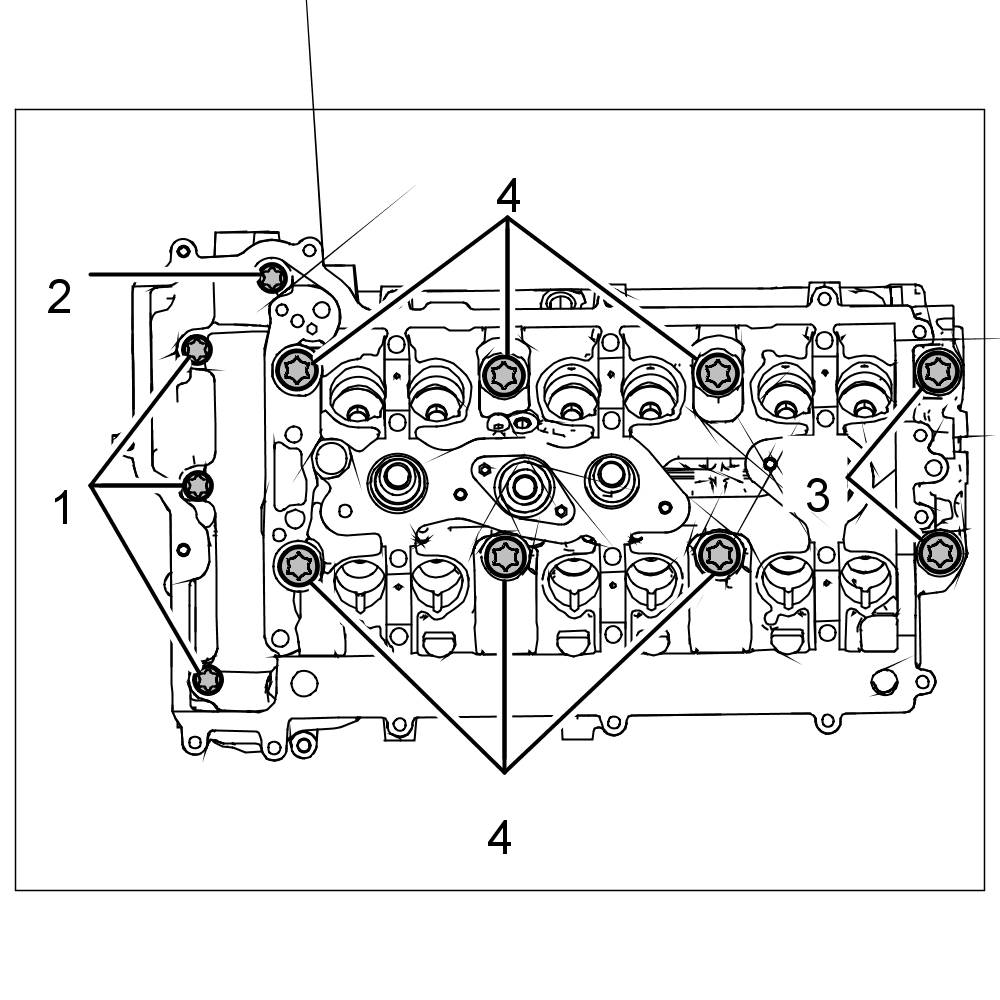

Overview of screws for cylinder head 4-6

Screw in external Torx screws (E10, M6 x 25) on the outside of the cylinder head and tighten according to specifications.

Tightening torque: 13 Nm (9.5 ftlb.)
