Differential Assembly: Specifications


WM 4201TW Tightening torques for rear axle

Technical values





























Tightening torques for rear axle

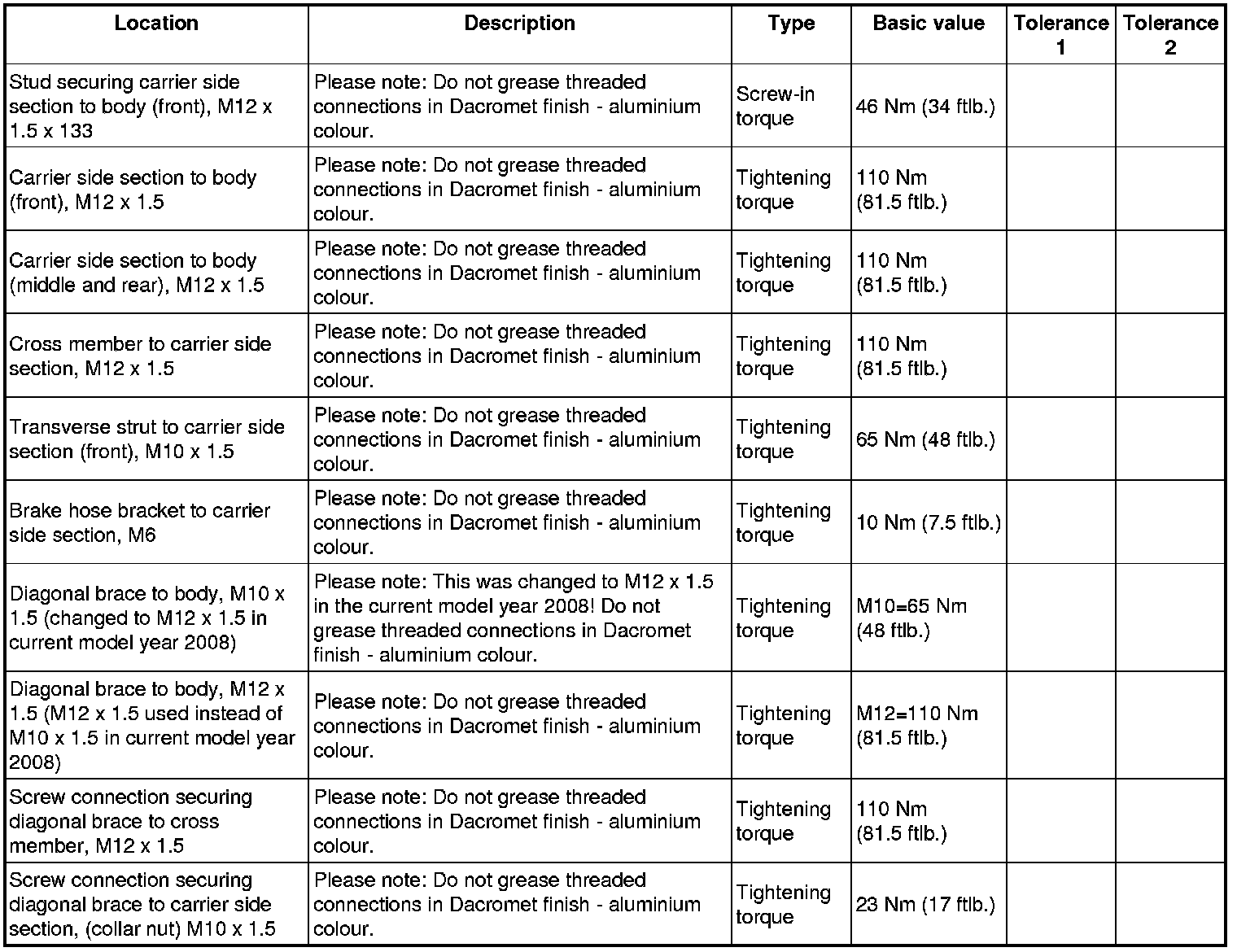

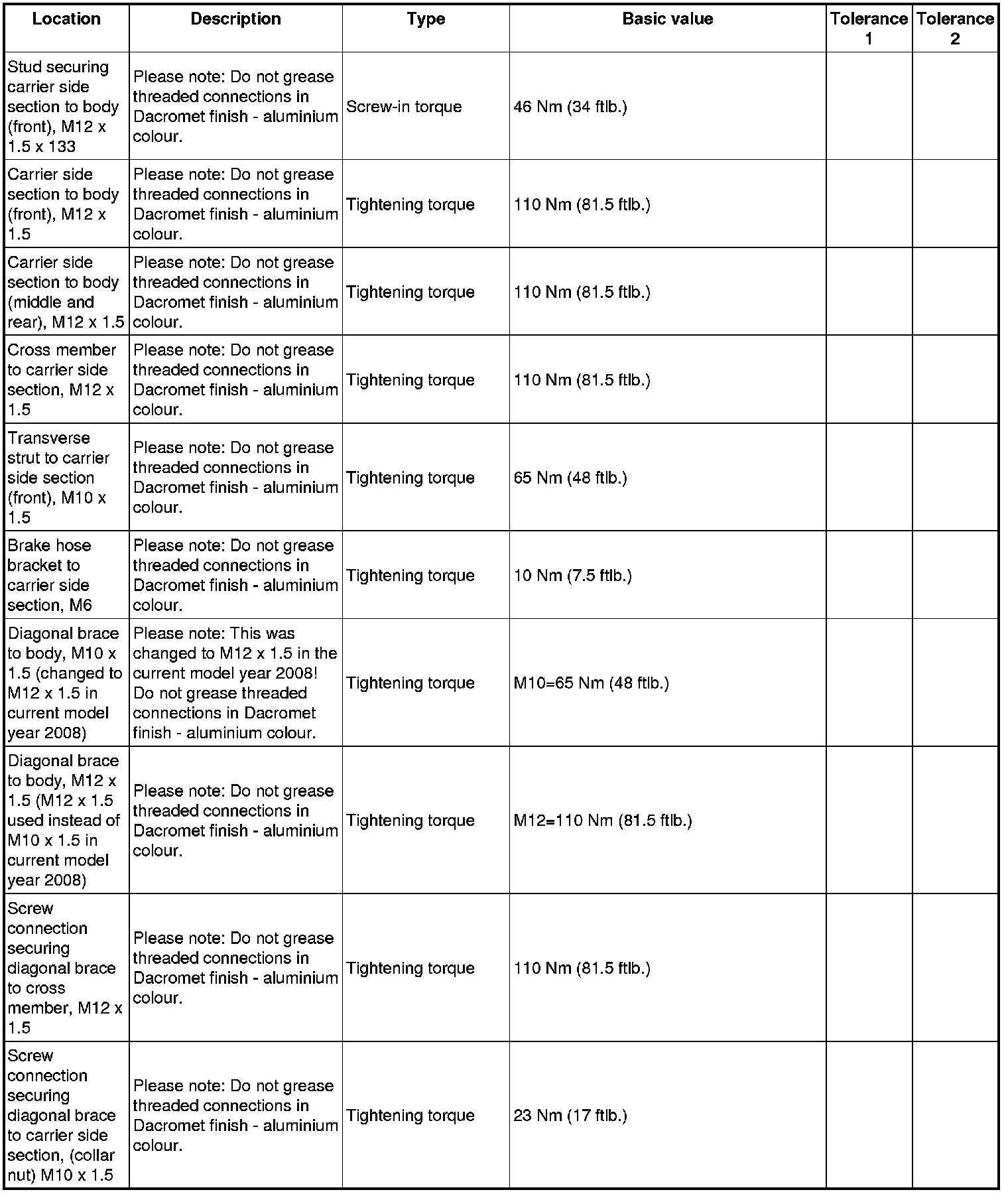

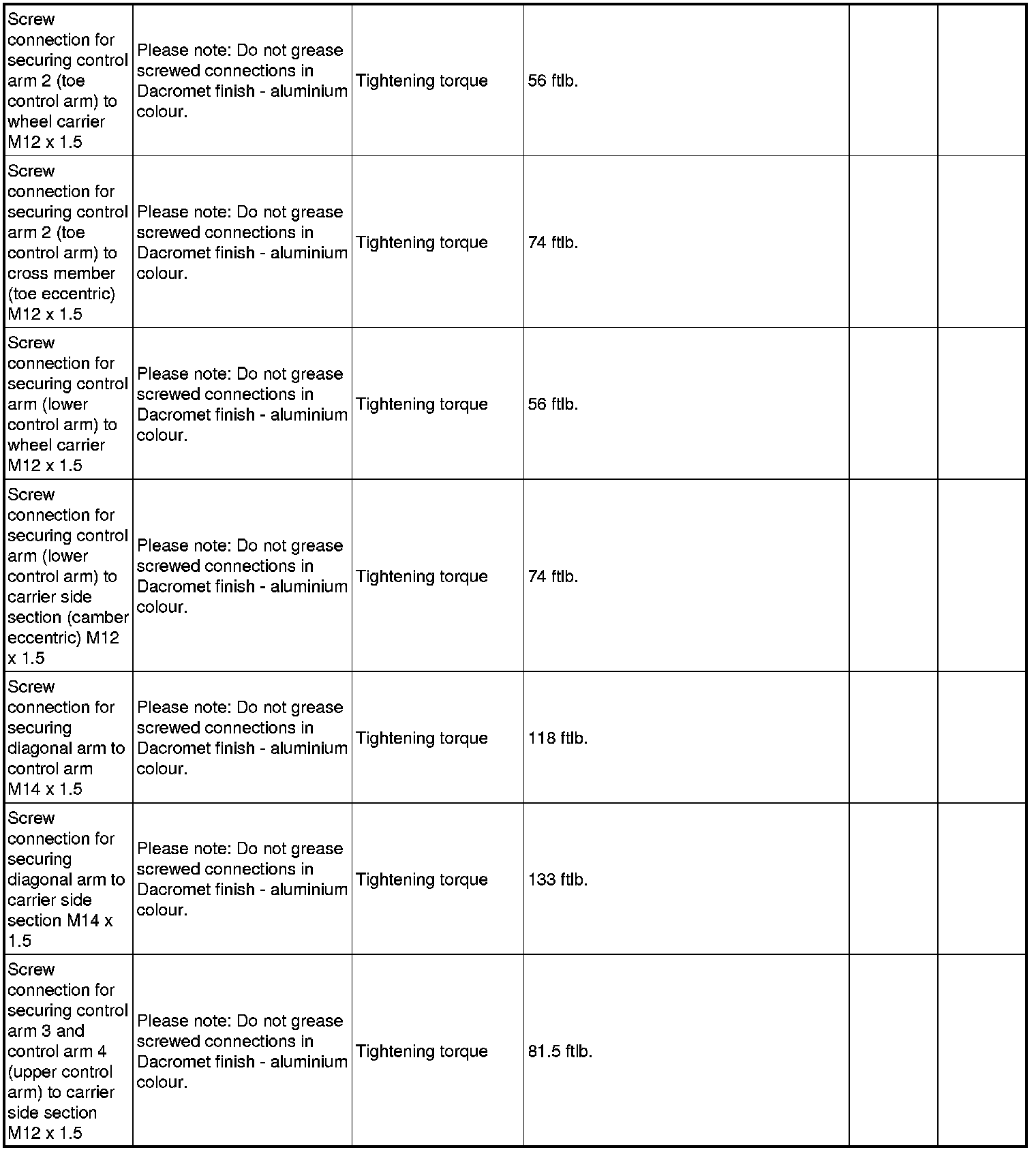

Tightening torques for carrier side section/cross member

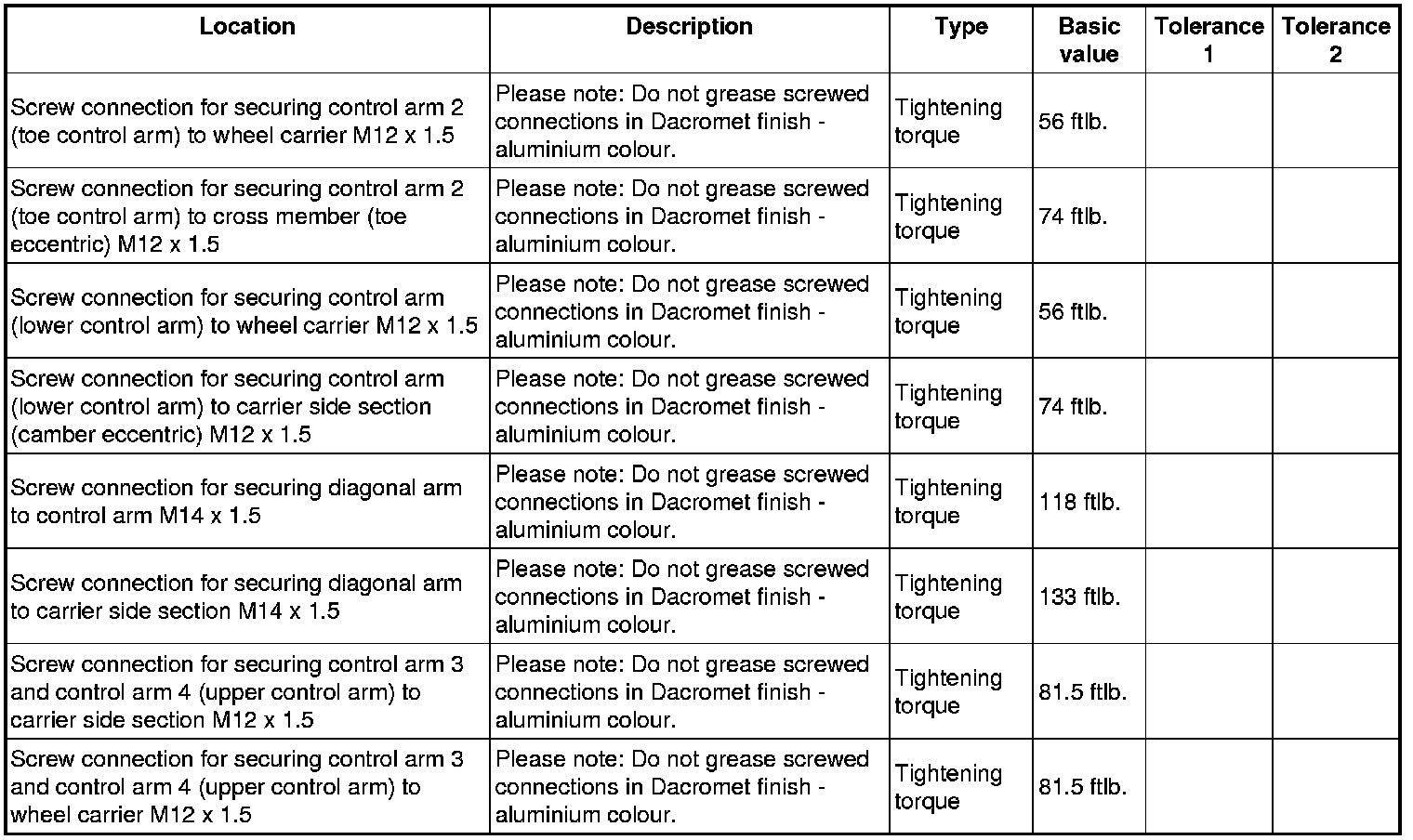

Tightening torques for axle strut

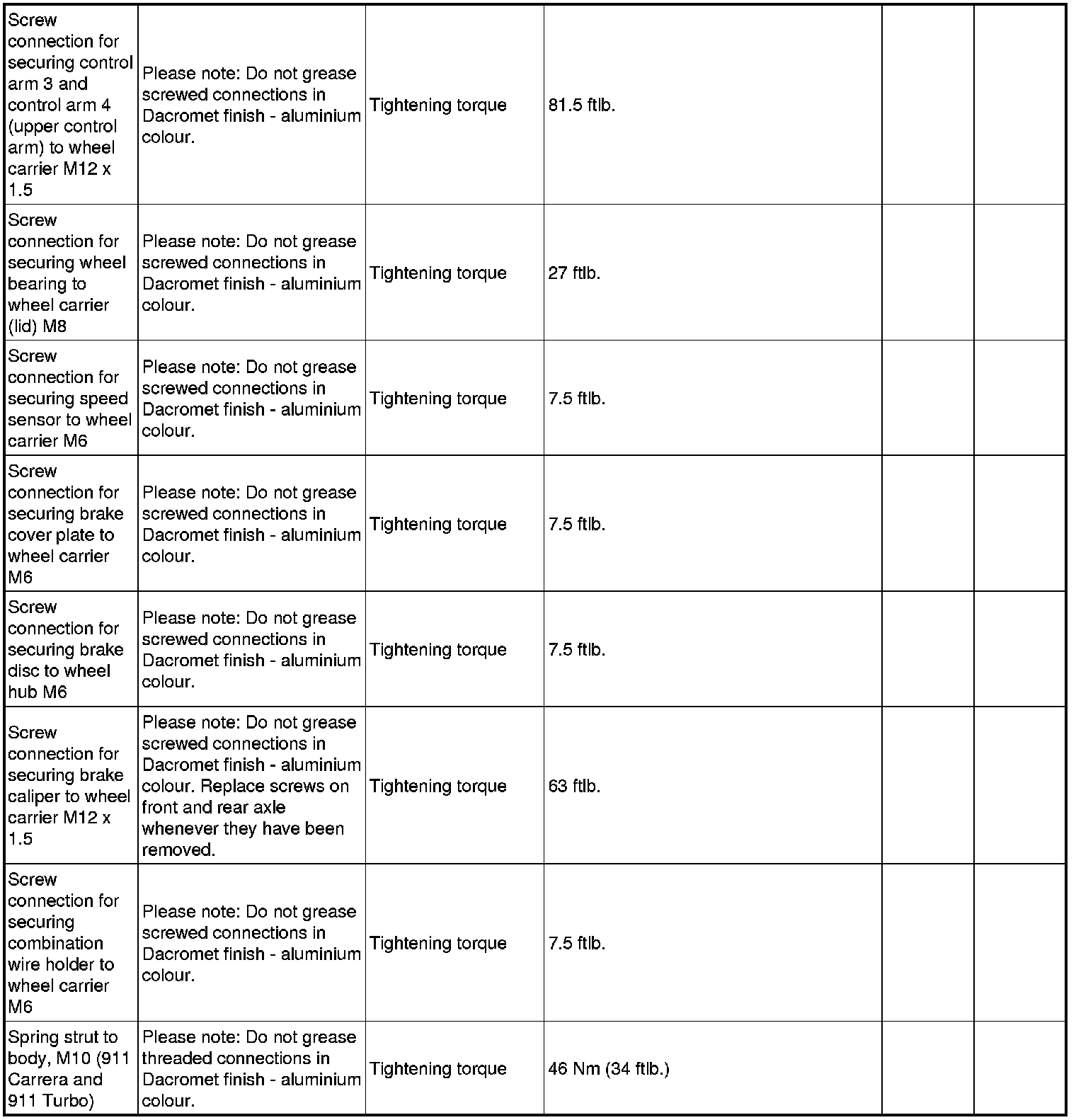

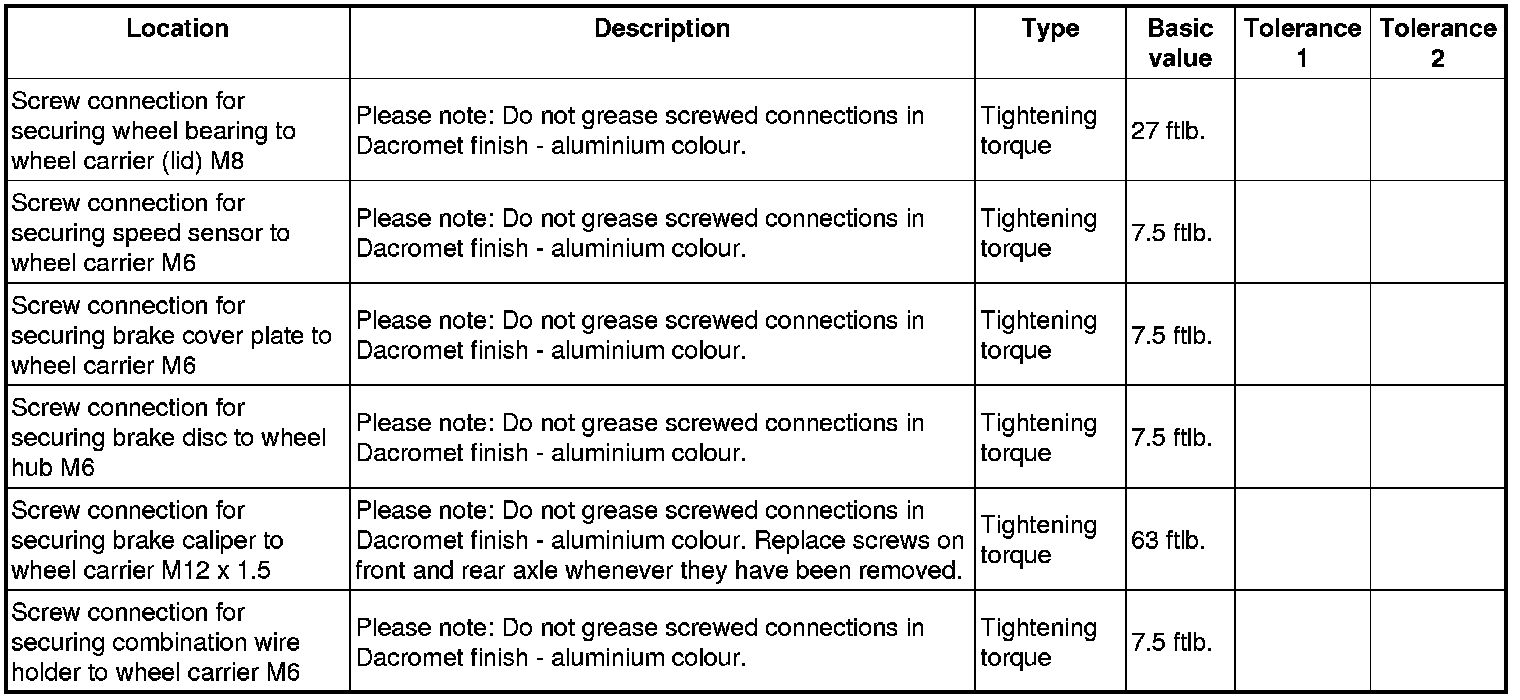

Tightening torques for wheel carrier

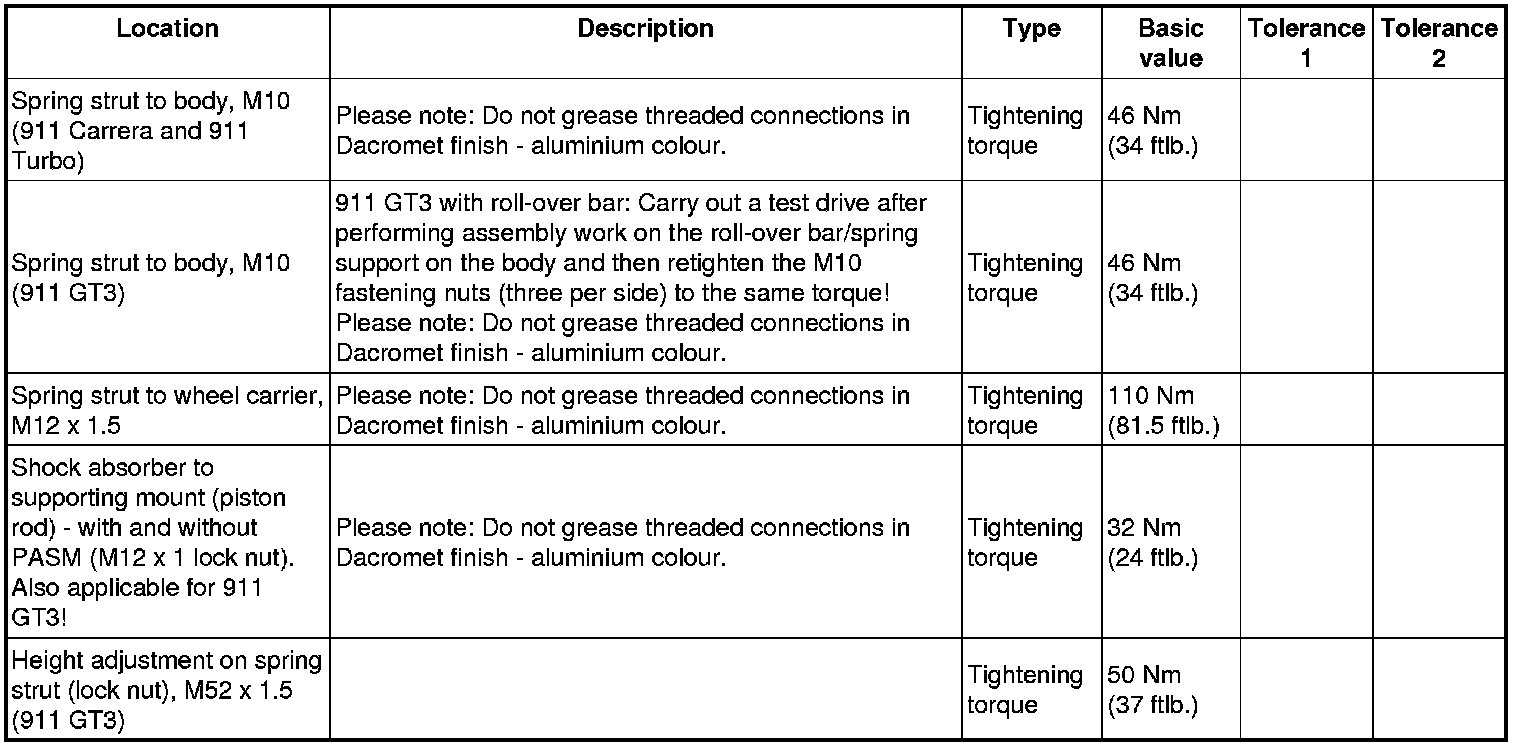

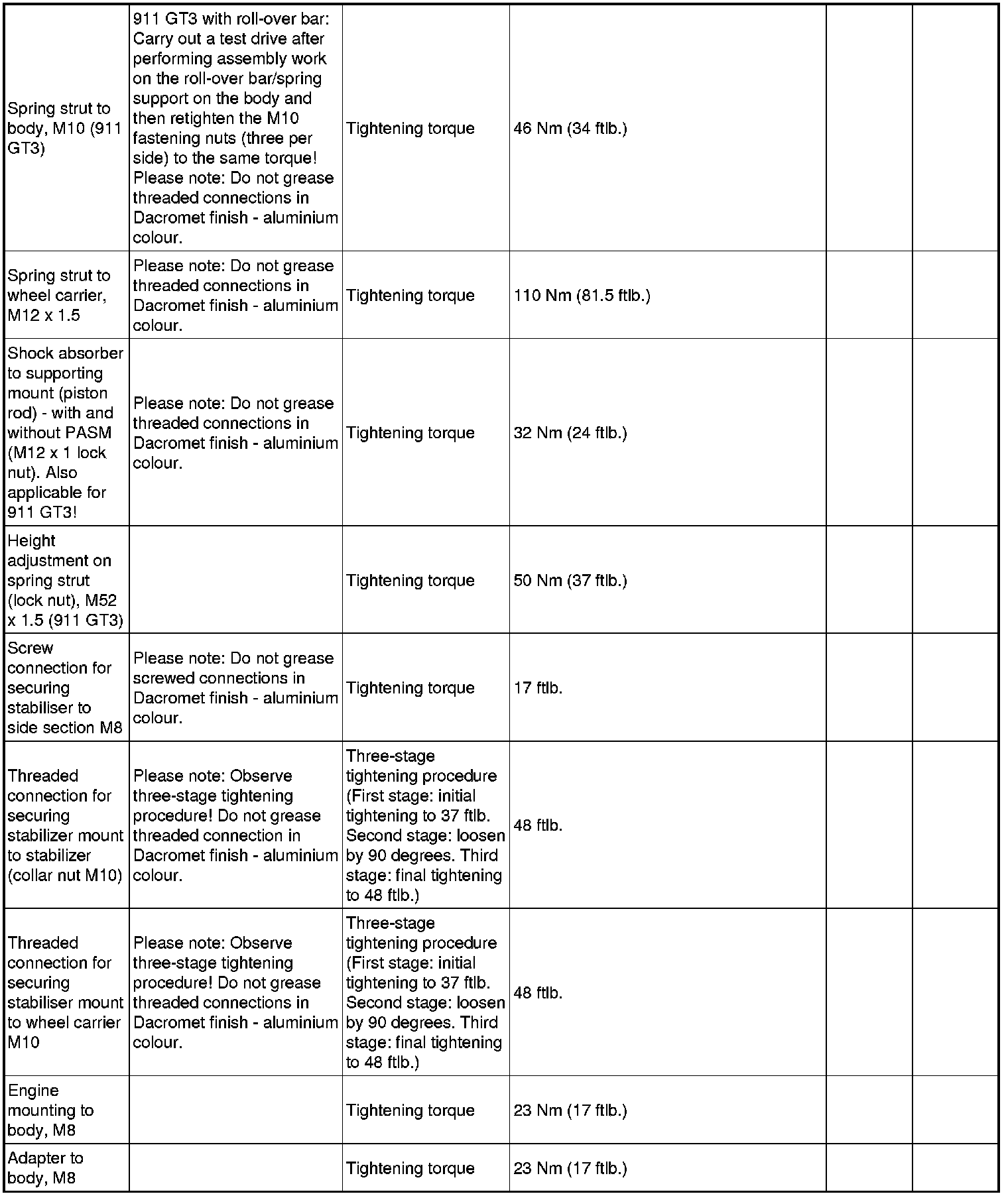

Tightening torques for spring strut

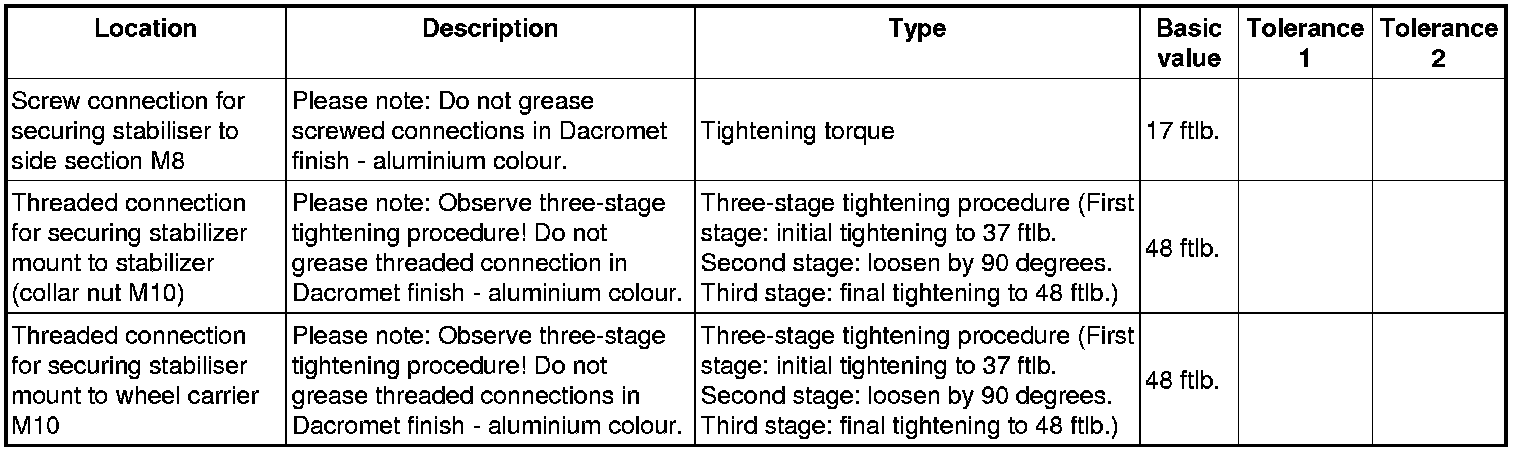

Tightening torques for stabilizer

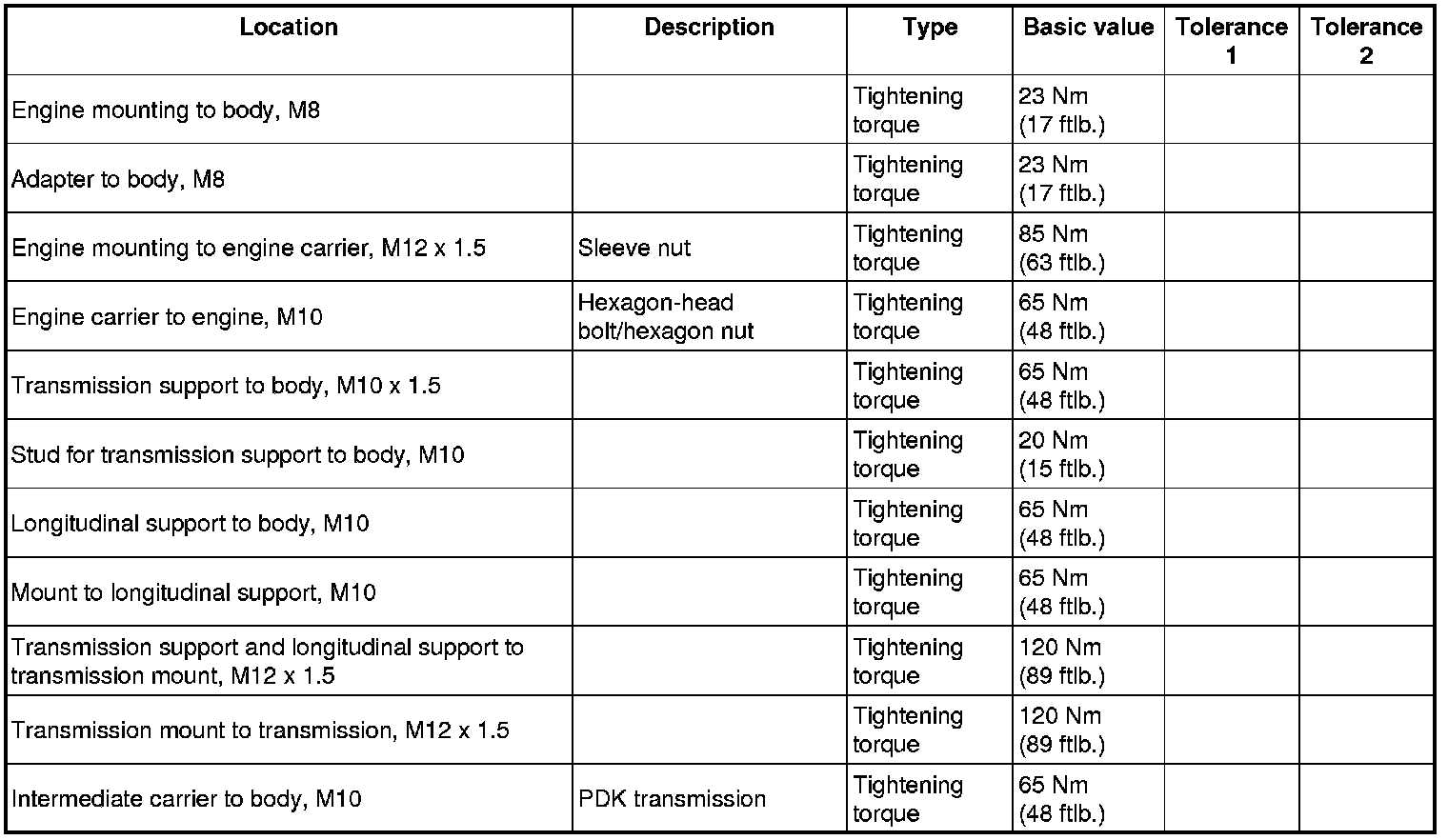

Tightening torques for unit mounts - as of model year 2009

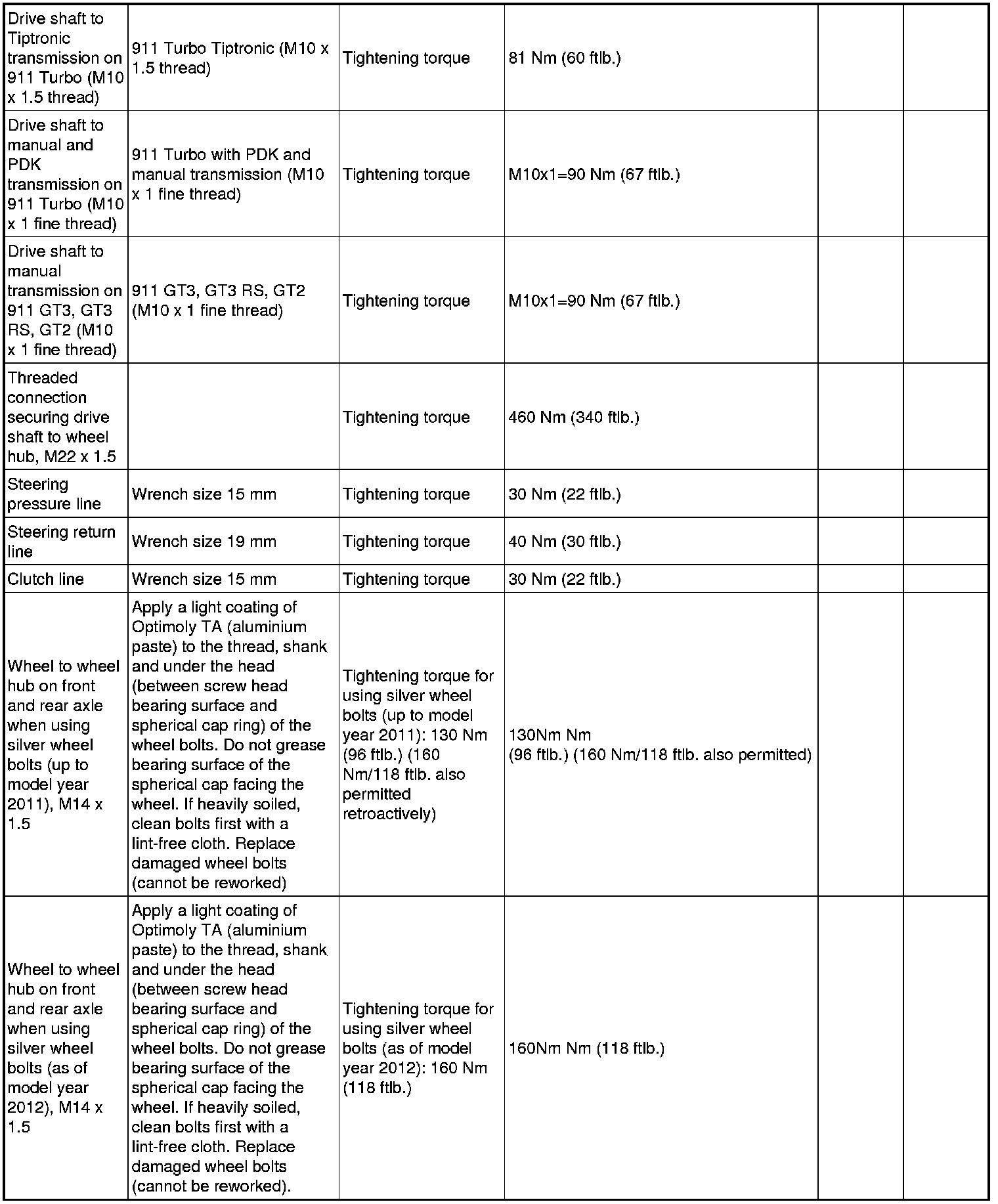

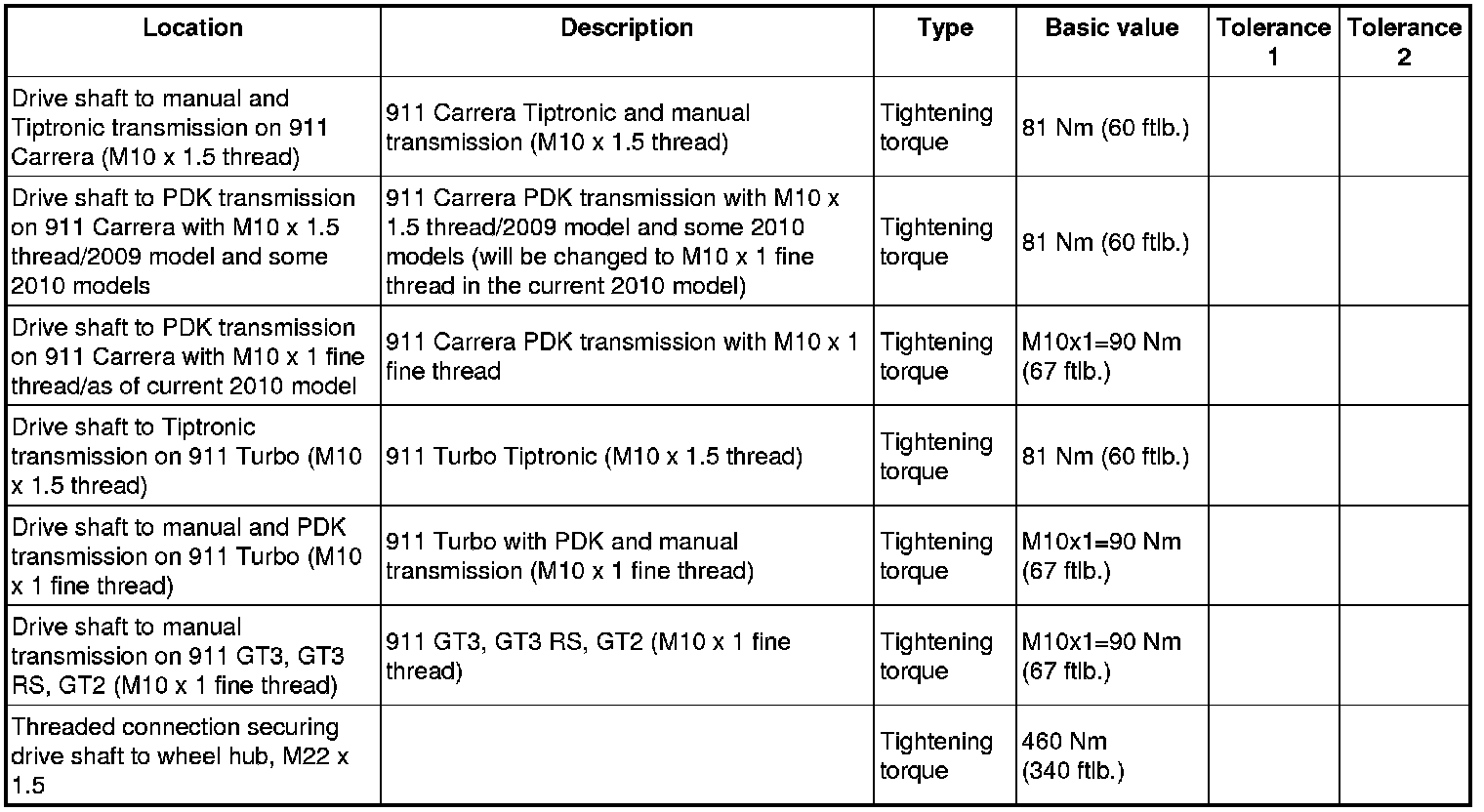

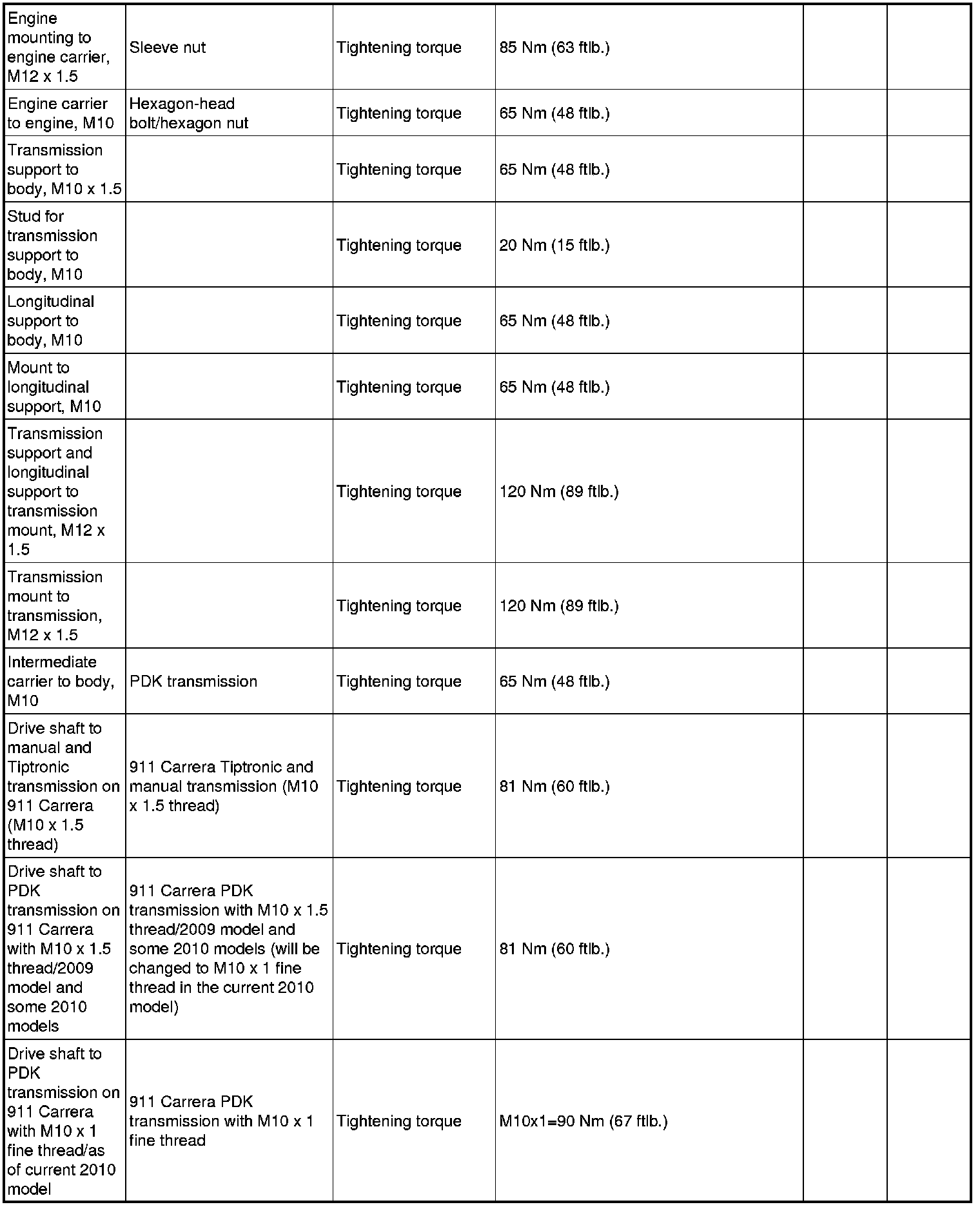

Tightening torques for drive shaft





Tightening torques for plug-in couplings for steering hydraulics





Tightening torques for plug-in couplings for clutch hydraulic system

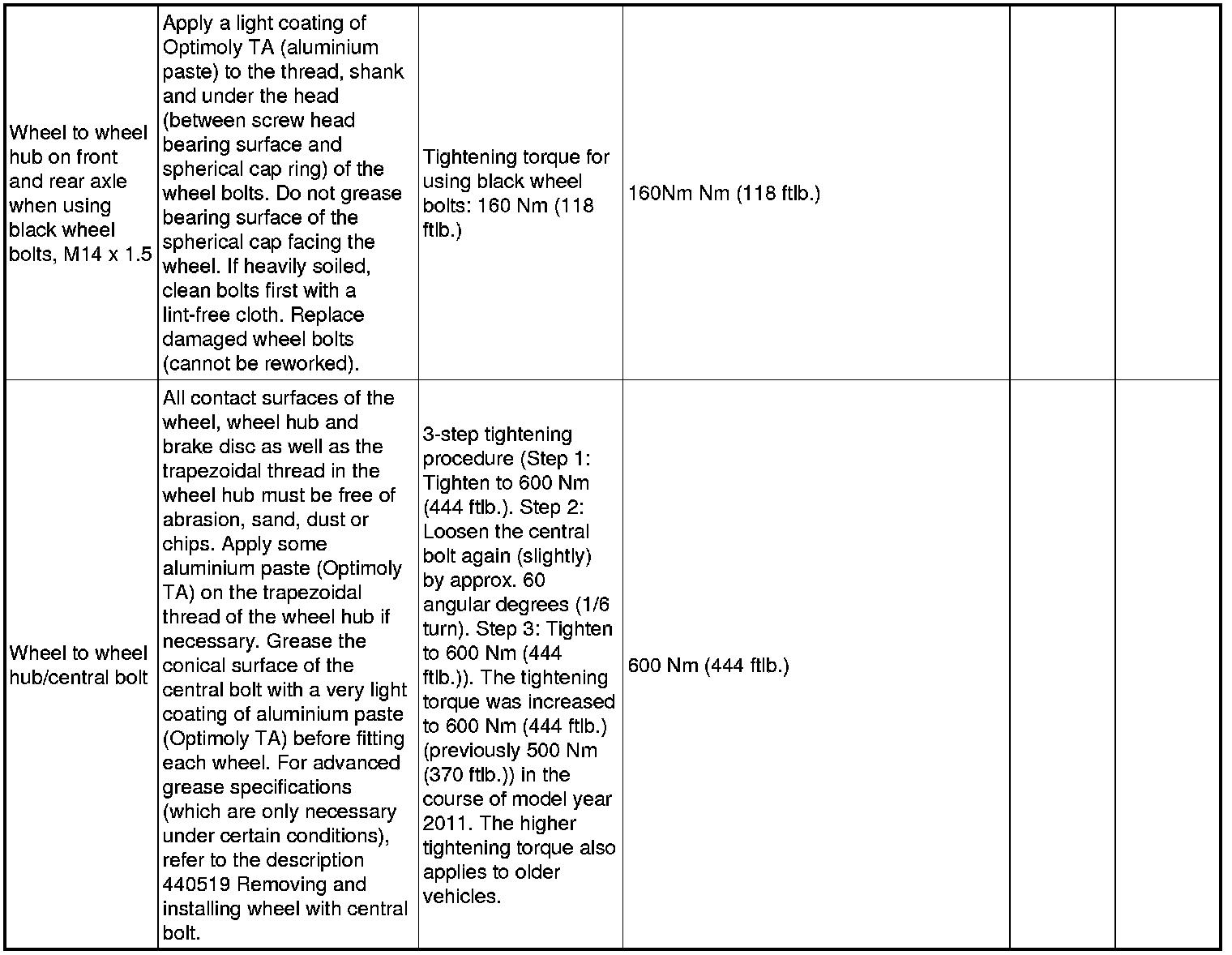

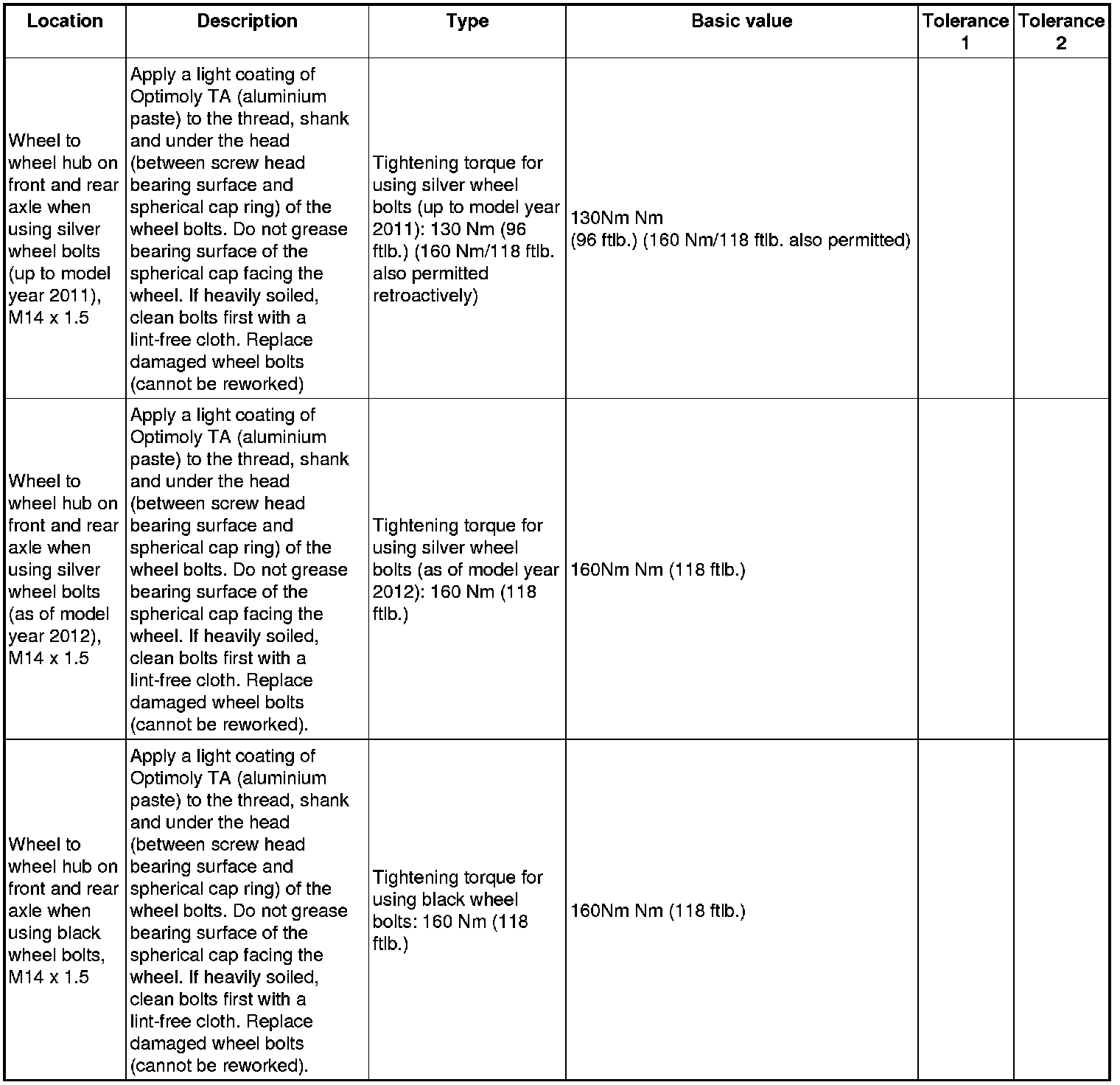

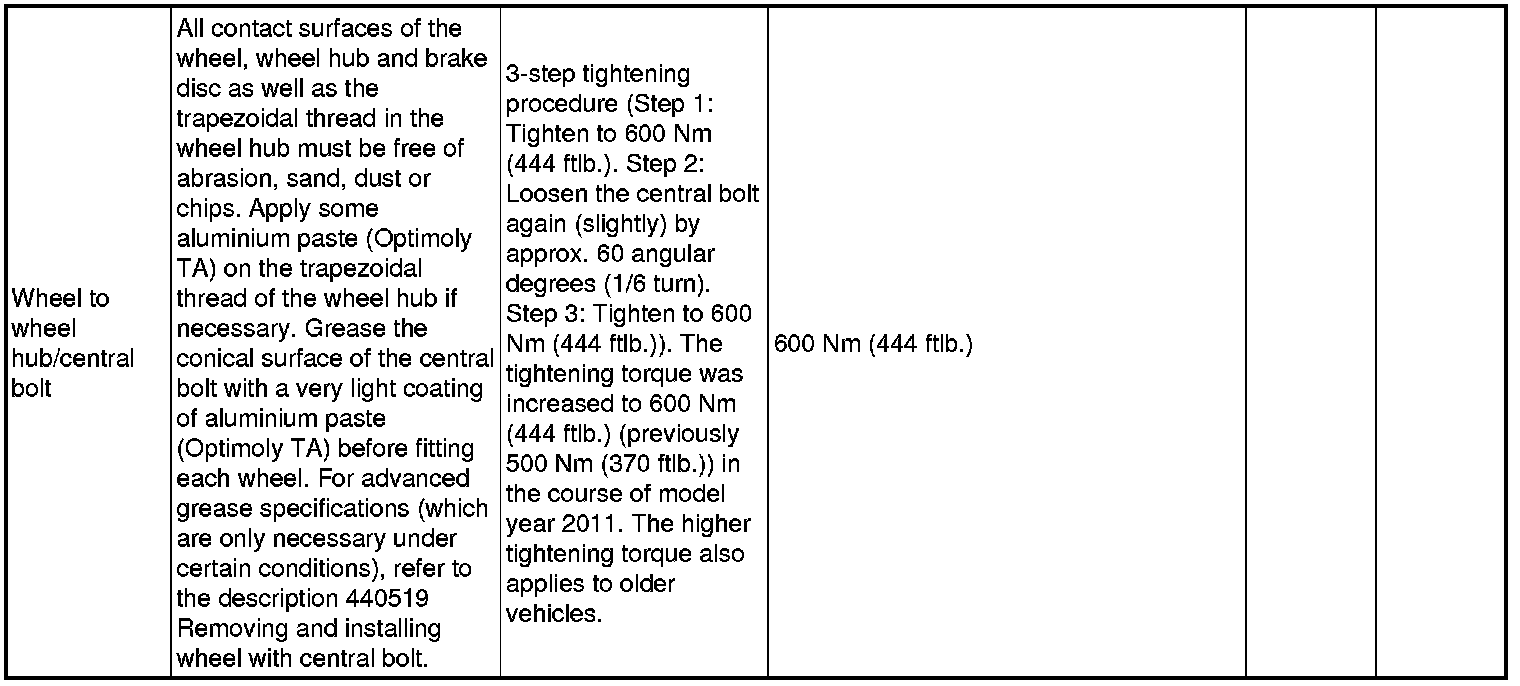

Tightening torques for wheel mounting
