Fluid - M/T: Service and Repair

WM 340155 Changing transmission oil

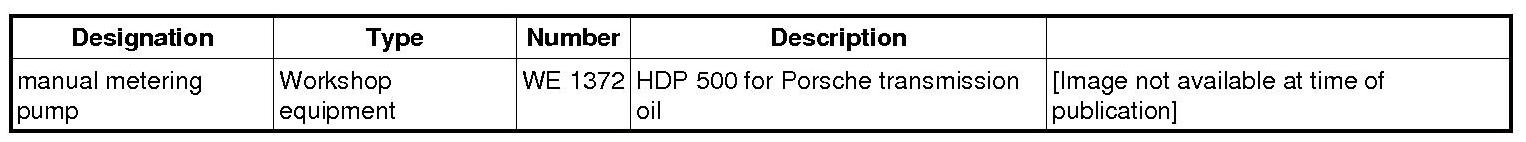

Tools





Technical values






Information

Notes

Information

Only use oil approved by Porsche, see Spare Parts Catalogue.

Technical values

Filling capacities






Preliminary work

1. Raise the vehicle at the prescribed jacking points. => 400000 Lifting the vehicle
2. Remove underbody panels. => 519419 Removing and installing rear trim - removing
3. Place oil collection pan under the transmission.

Draining transmission oil

1. Unscrew oil filler plugs -1-.

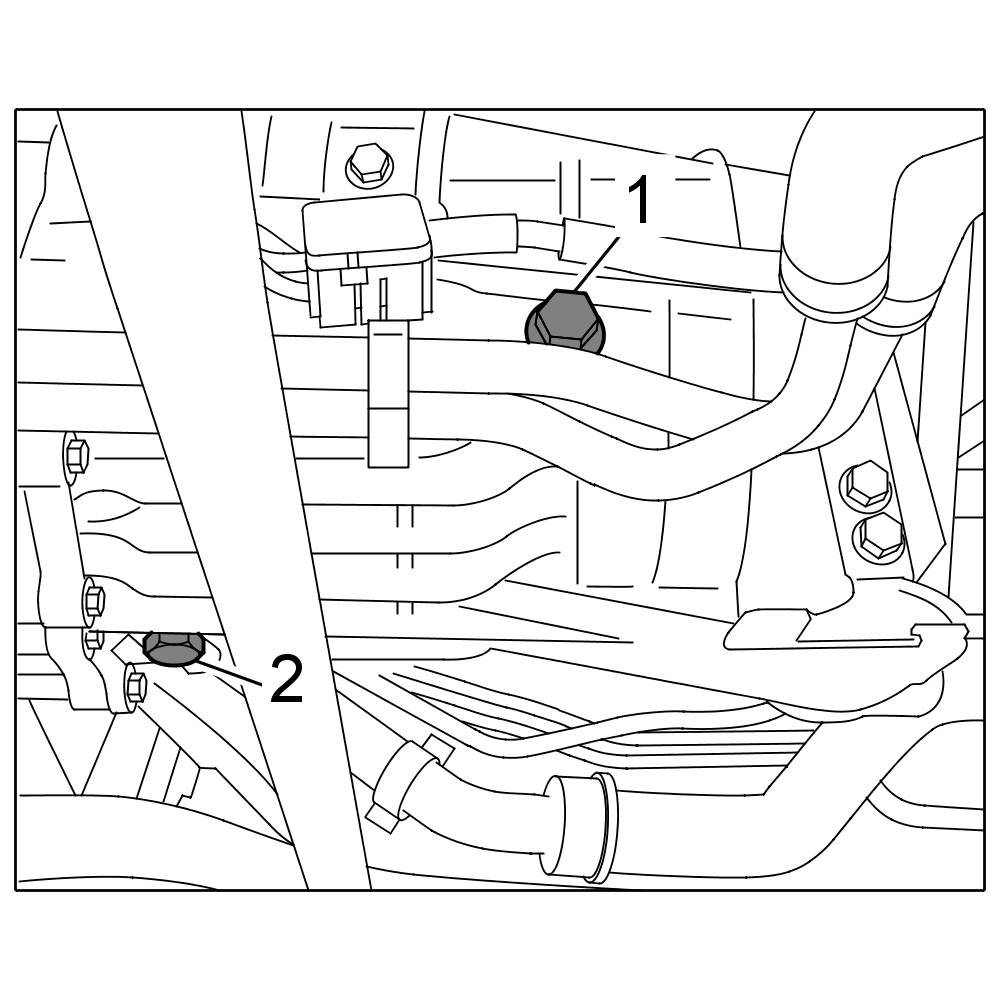

Filler and drain plug

WARNING

Hot fluid

- Danger of scalding

-> Let the fluid cool down.
-> Wear personal protective gear.

2. Unscrew oil drain plug -2- and drain transmission oil.

Filling transmission oil

WARNING

Hot fluid

- Danger of scalding

-> Let the fluid cool down.
-> Wear personal protective gear.

1. Clean oil drain plug and screw in with new sealing ring.






2. Fill in transmission oil up to the lower edge of the filler opening using manual metering pump WE 1372.
3. Clean oil filler plug and screw in with a new seal.






Subsequent work

1. Fit underbody panels. => 519419 Removing and installing rear trim - installing
2. Lower the vehicle.
