Water Pump

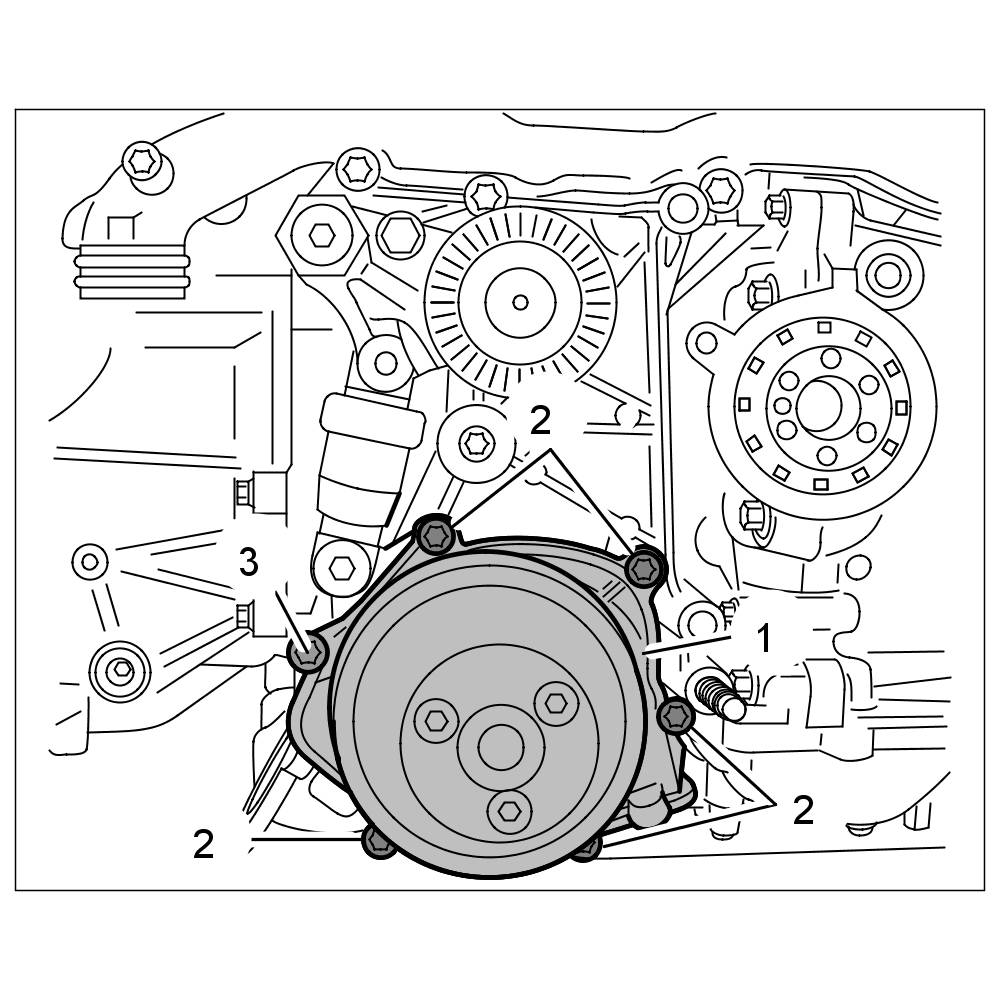

WM 195019 Removing and installing coolant pumpTighten screws uniformly.
Tightening torque:
13 Nm (9.5 ftlb.)
Tightening torque:
23 Nm (17 ftlb.)
coolant pump
