Intake-Air Distributor - X51
WM 244619 Removing and installing intake-air distributor - X51.Tighten eight new external M6 x 30 Torx screws (E10, microencapsulated) -1- from the inside out.
Tightening torque:
13 Nm (7.4 ftlb)

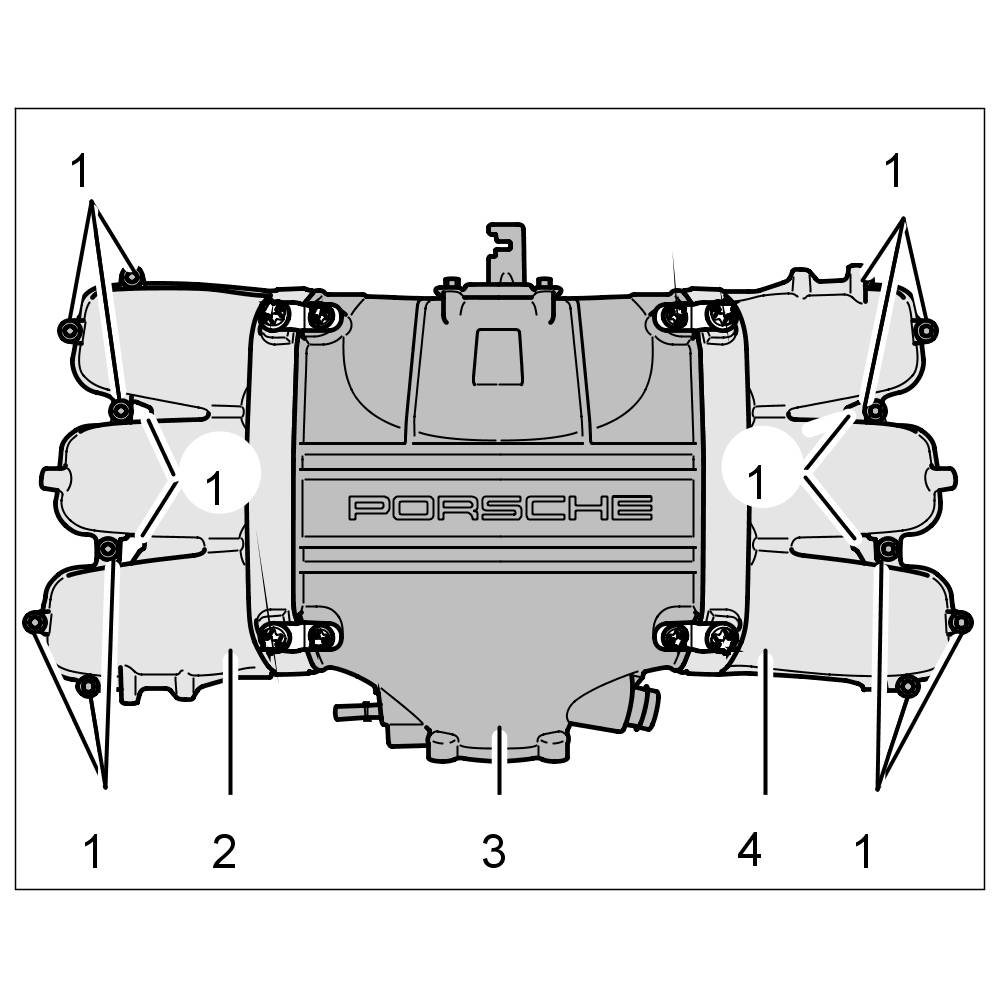

Overview of screws, intake-air distributor
Tighten four M6 x 16 external Torx screws (E10) -4-.
Tightening torque:
13 Nm (7.4 ftlb)
