Water Pump

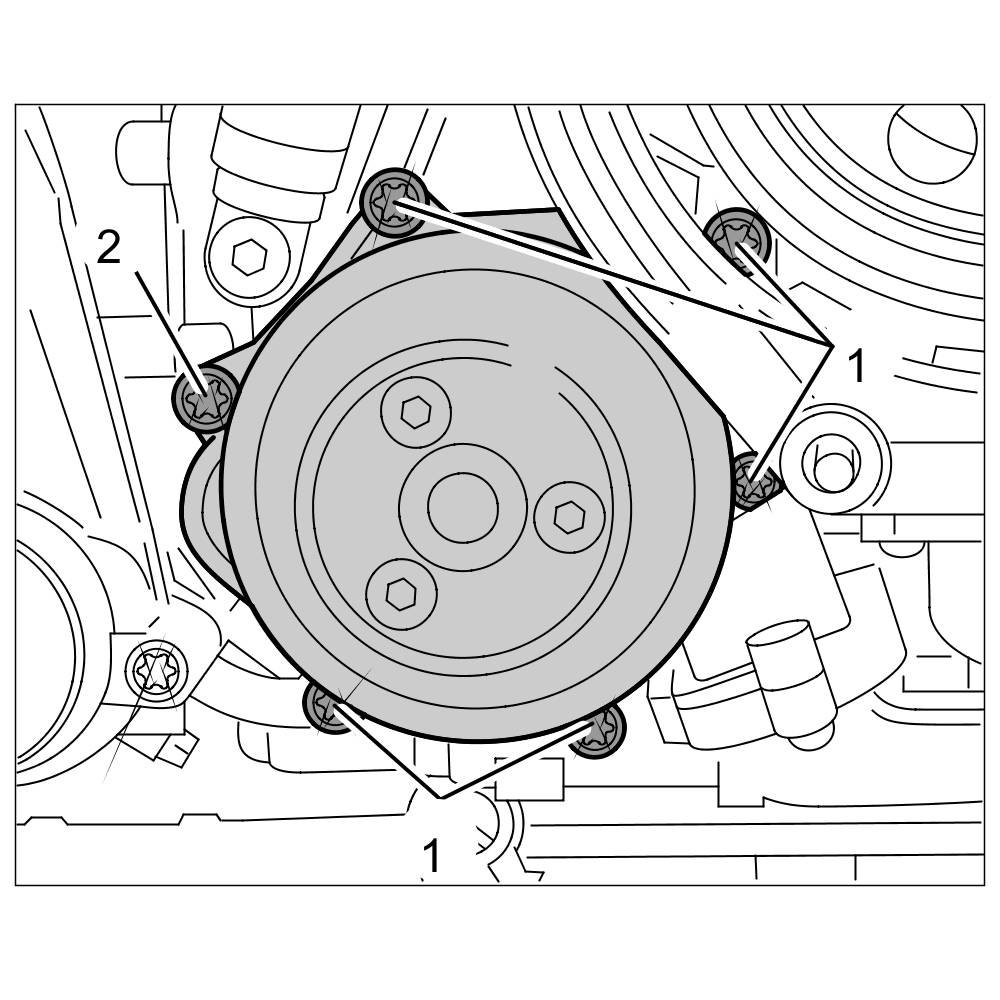

WM 195019 Removing and installing coolant pump - TurboTighten one external Torx screw (E12, M8 x 25) -2-.
Tightening torque:
33 Nm (24 ftlb.)
Tighten five external Torx screws (E10, M6 x 20).
Tightening torque:
13 Nm (9.5 ftlb.)
Coolant pump
