Intake Manifold

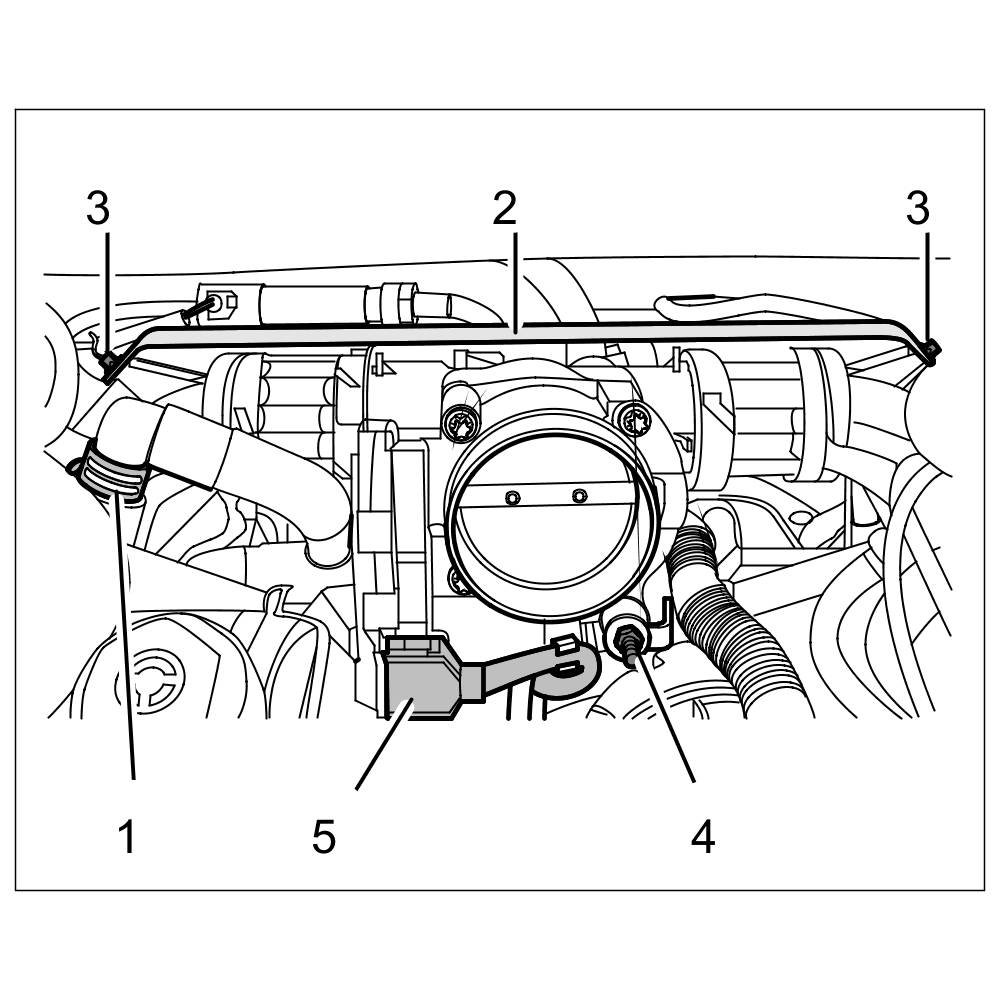

WM 244619 Removing and installing intake-air distributor - TurboTightening one M6 hexagon nut -4-.
Tightening torque:
6 Nm (4.5 ftlb.)
Tighten two external Torx screws (E10, M6 x 12) -3-.
Tightening torque:
10 Nm (7.5 ftlb.)

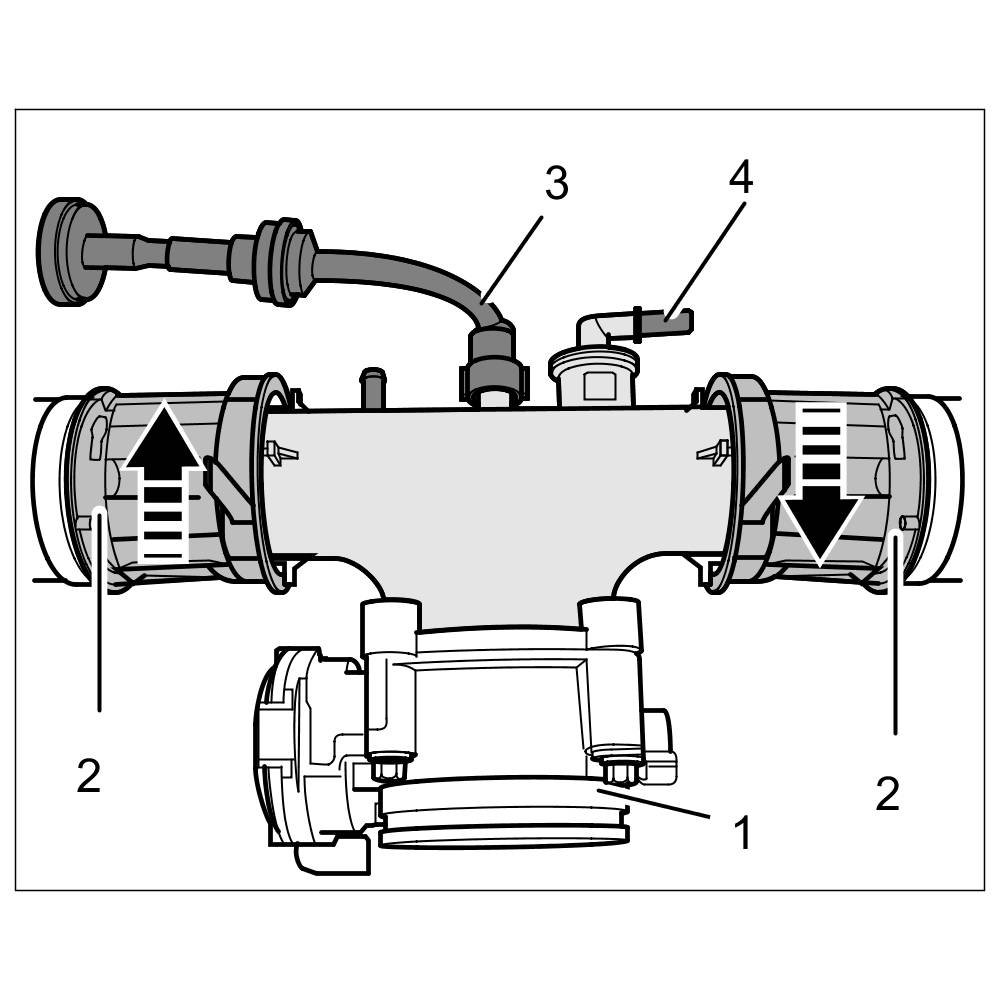

Peripheral elements on centre intake-air distributor
