System Specifications


WM 3X00IN Technical data, transmission

Technical values





Technical values

Technical data

Transmission type: G97/01

Equipment: 6-speed

Installed in: Carrera (997)

Model year: 2005

Transmission ratios

1st gear: 43/11 = 3.91

2nd gear: 44/19 = 2.32

3rd gear: 45/28 = 1.61

4th gear: 41/32 = 1.28

5th gear: 40/37 = 1.08

6th gear: 38/43 = 0.88

Reverse: 27/11 x 41/28 = 3.59

Final-drive ratio: 31/9 = 3.44

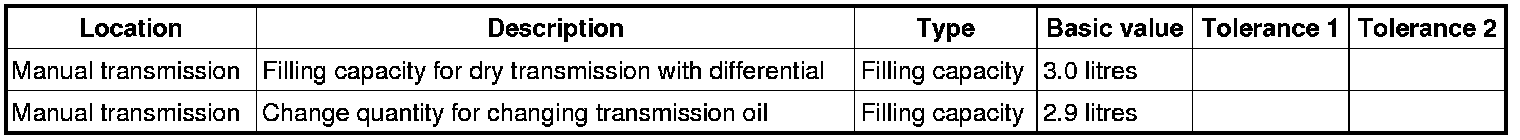

Filling capacities
