System Specifications

WM 1X00IN Technical data for the MA.170 and MA.170 S engine

Information

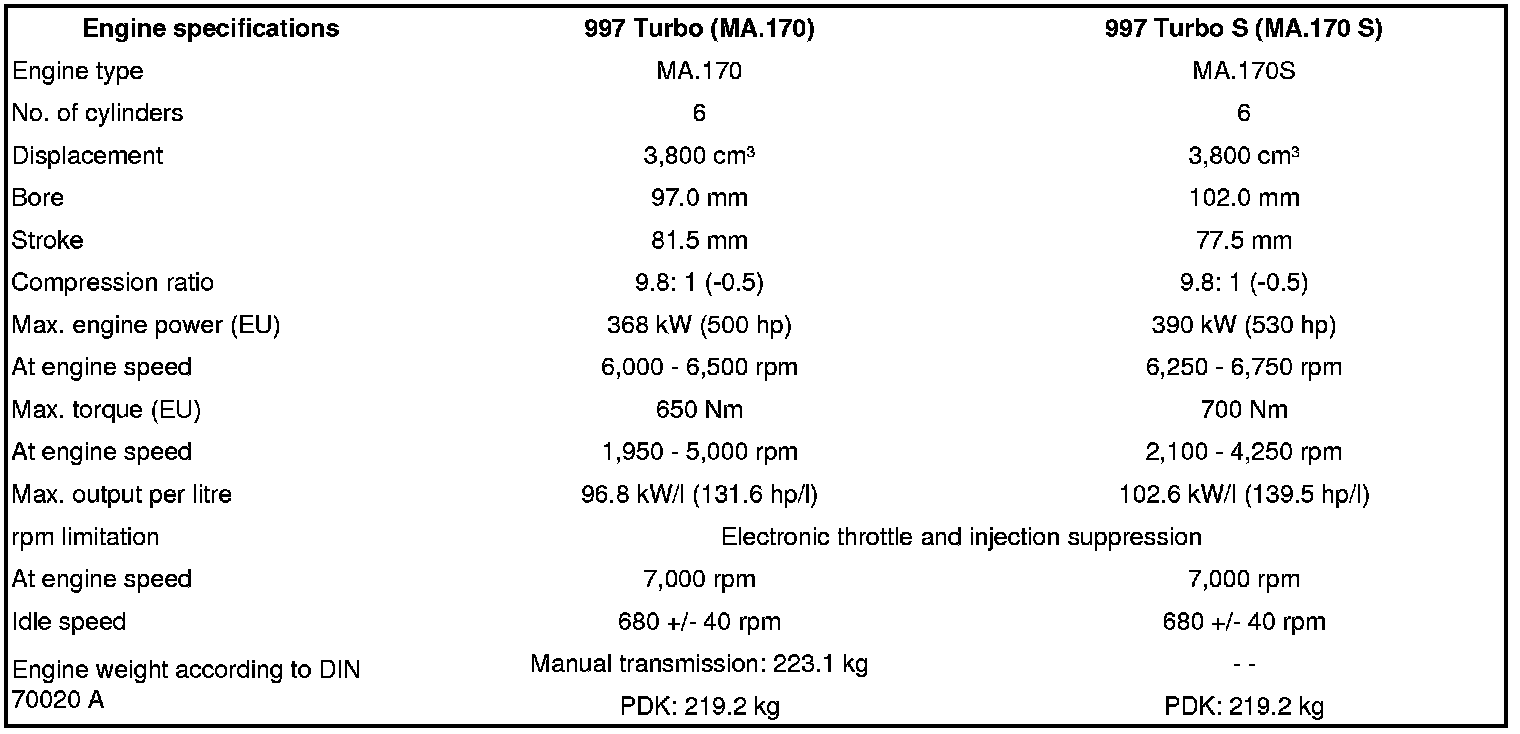

Engine specifications

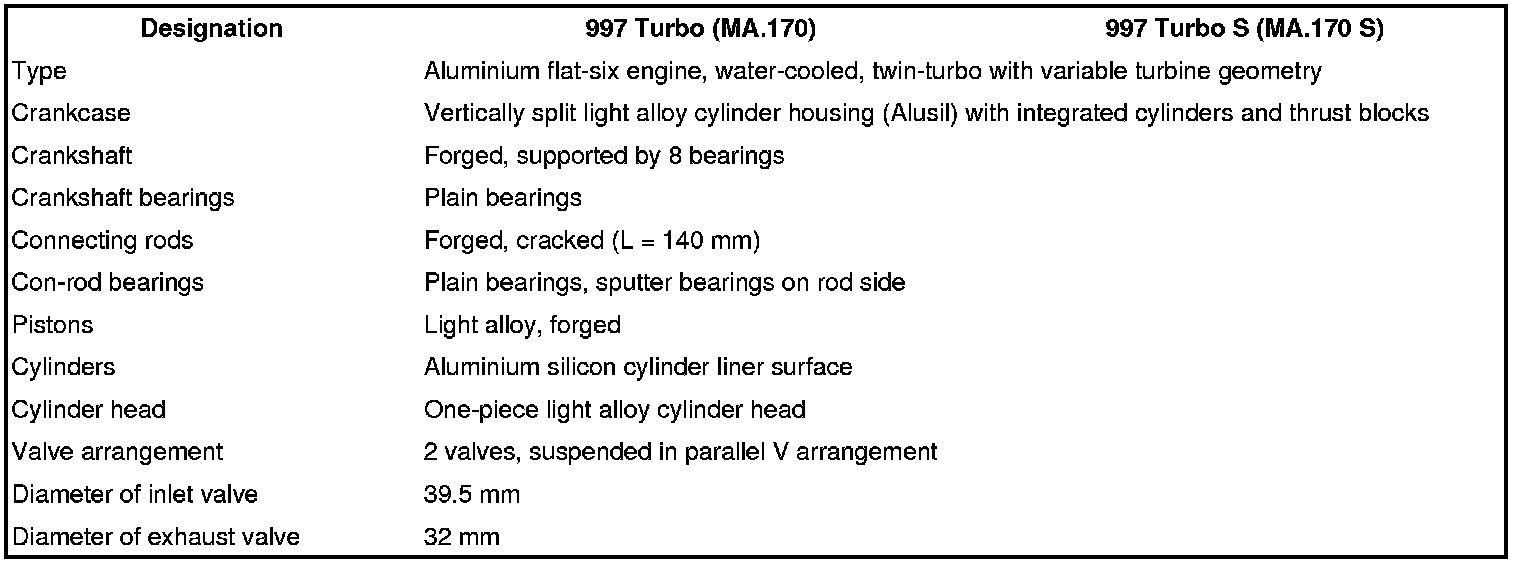

Engine design

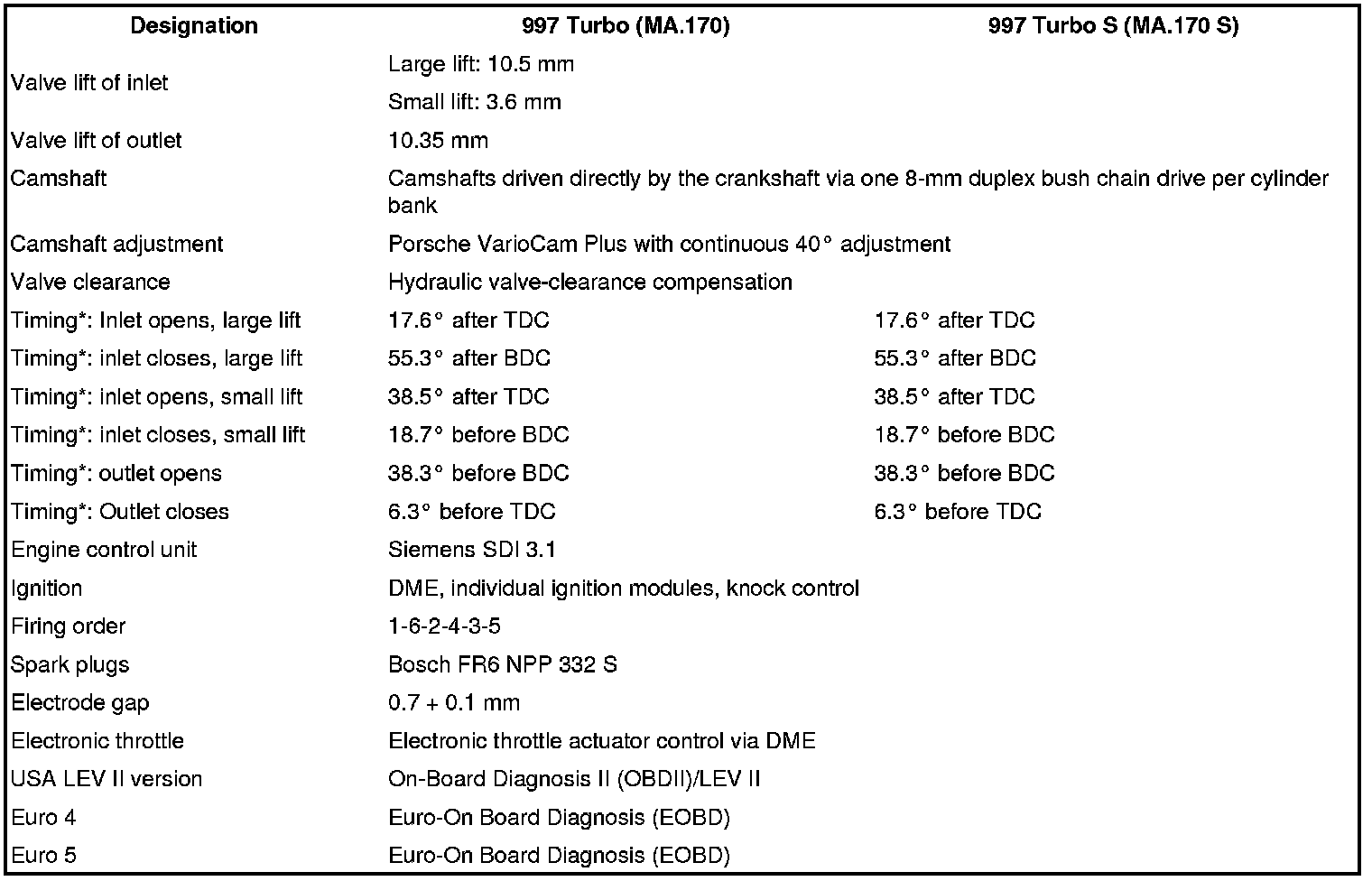

Engine control

* Timing in late position with 1 mm valve lift and zero clearance

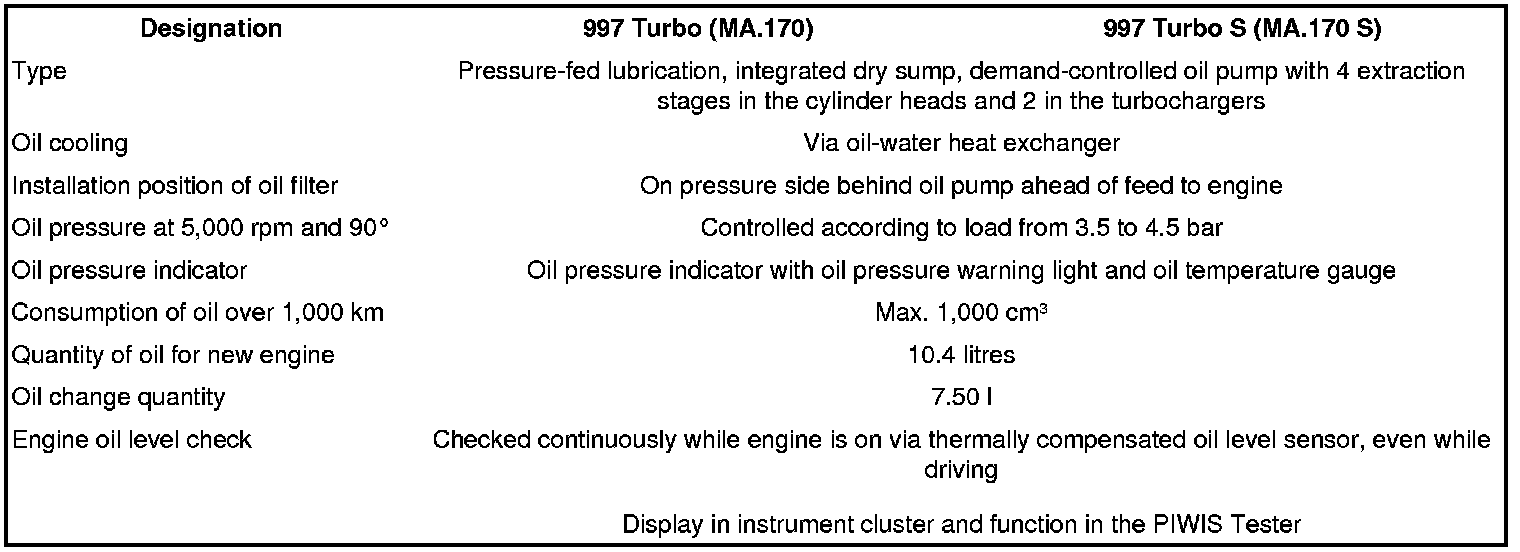

Engine lubrication

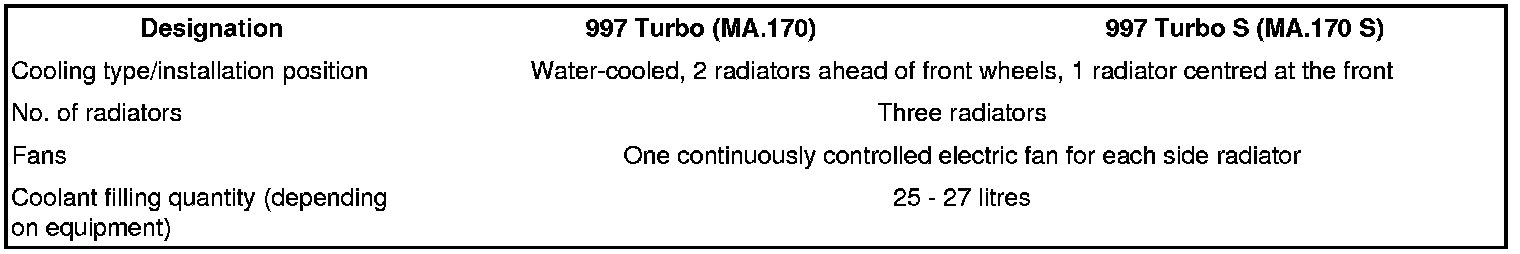

Engine cooling
