Remote Control: Service and Repair

WM 916119 Removing and installing multi-function remote control

Preliminary work

Preliminary work for multi-function remote control

Remove driver's airbag unit. -> 695819 Removing and installing driver's airbag unit - section on "Removing" 69581900 Removing and installing driver's airbag unit

Removing multi-function remote control

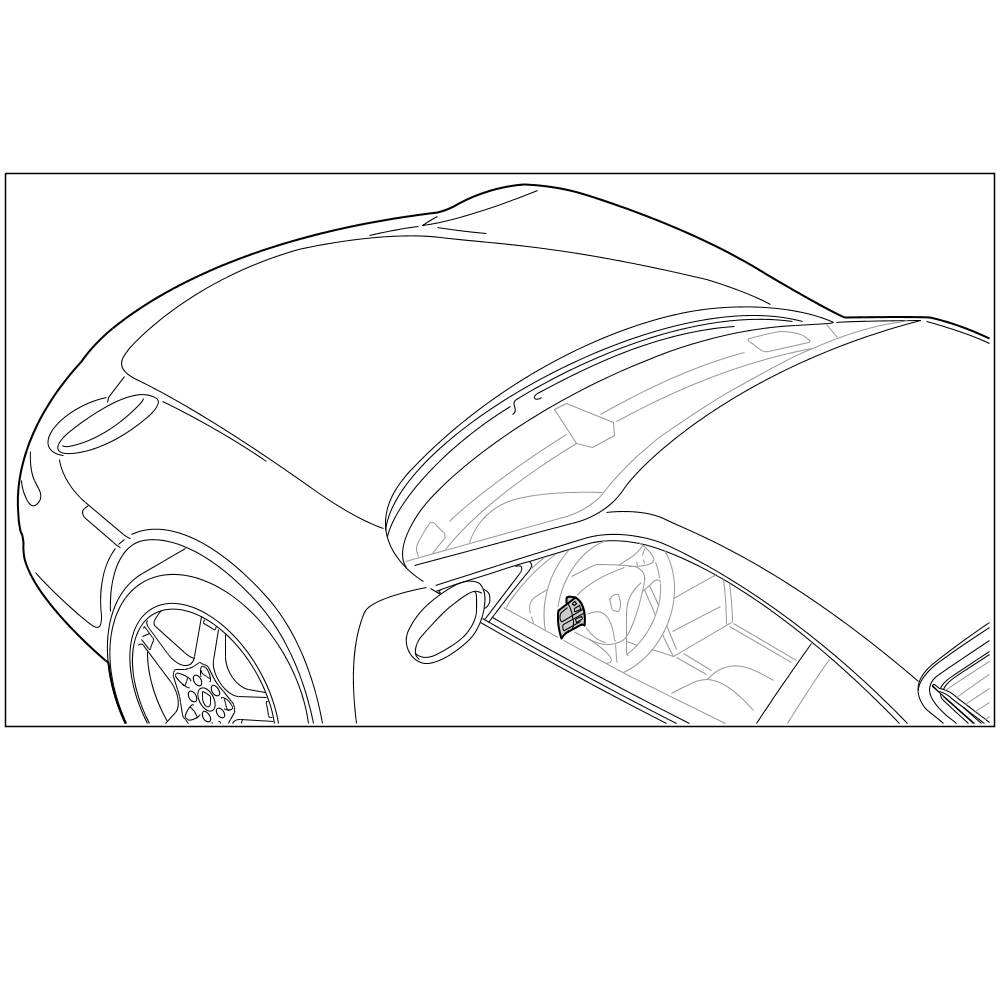

Installation position of steering wheel, shown on the 911

1. Unscrew the fastening screws -2- and washers -3- for the remote control and carefully lever the remote control out using a screwdriver.

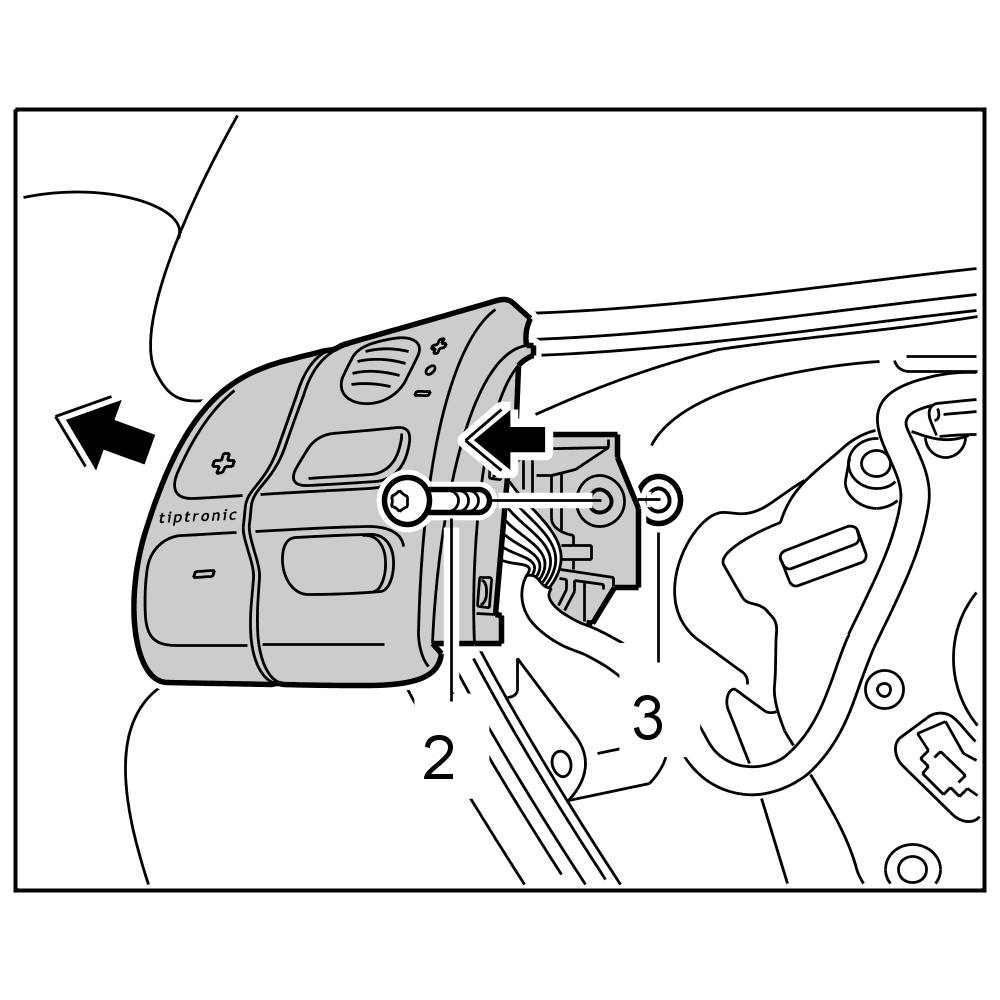

Removing remote control from steering wheel

2. Release the electric plug connection on the remote control -A- and disconnect it.

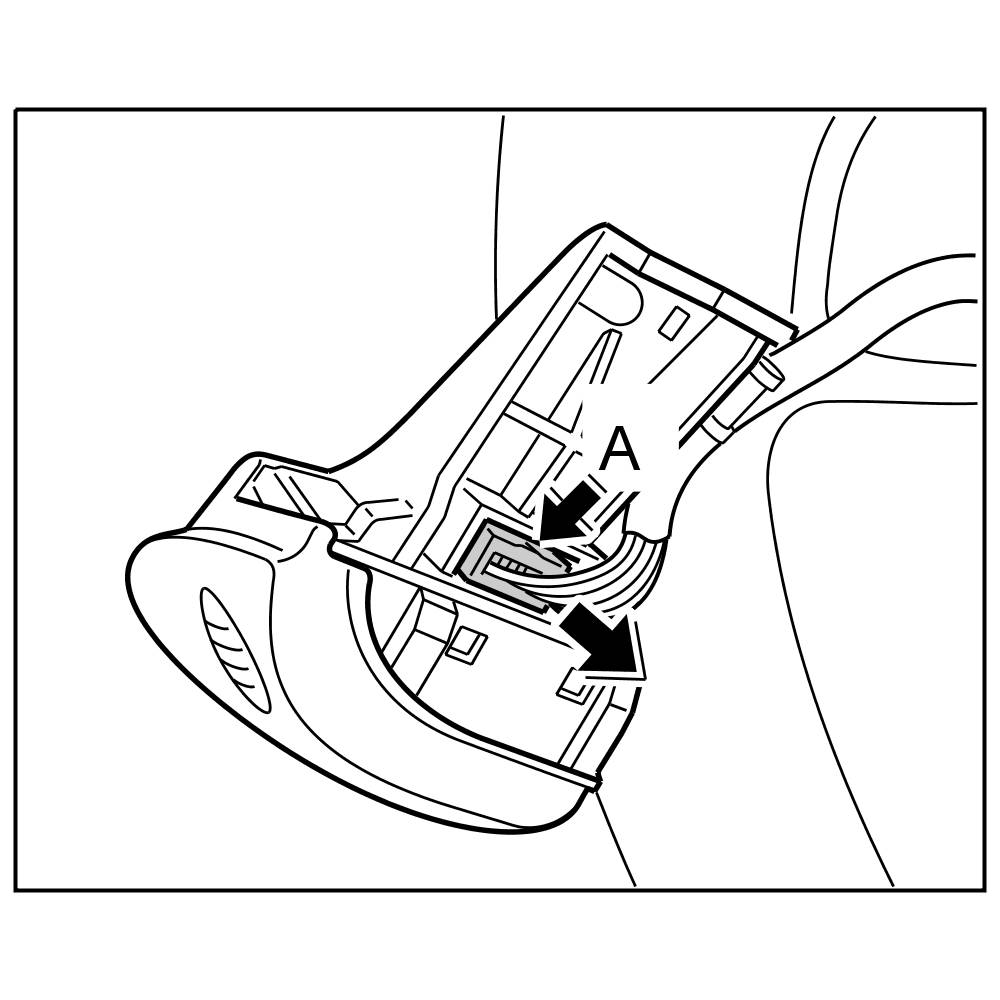

Releasing plug connection on the remote control

3. Remove remote control.

Installing multi-function remote control

1. Insert electric connector into the remote control until it clicks into place.

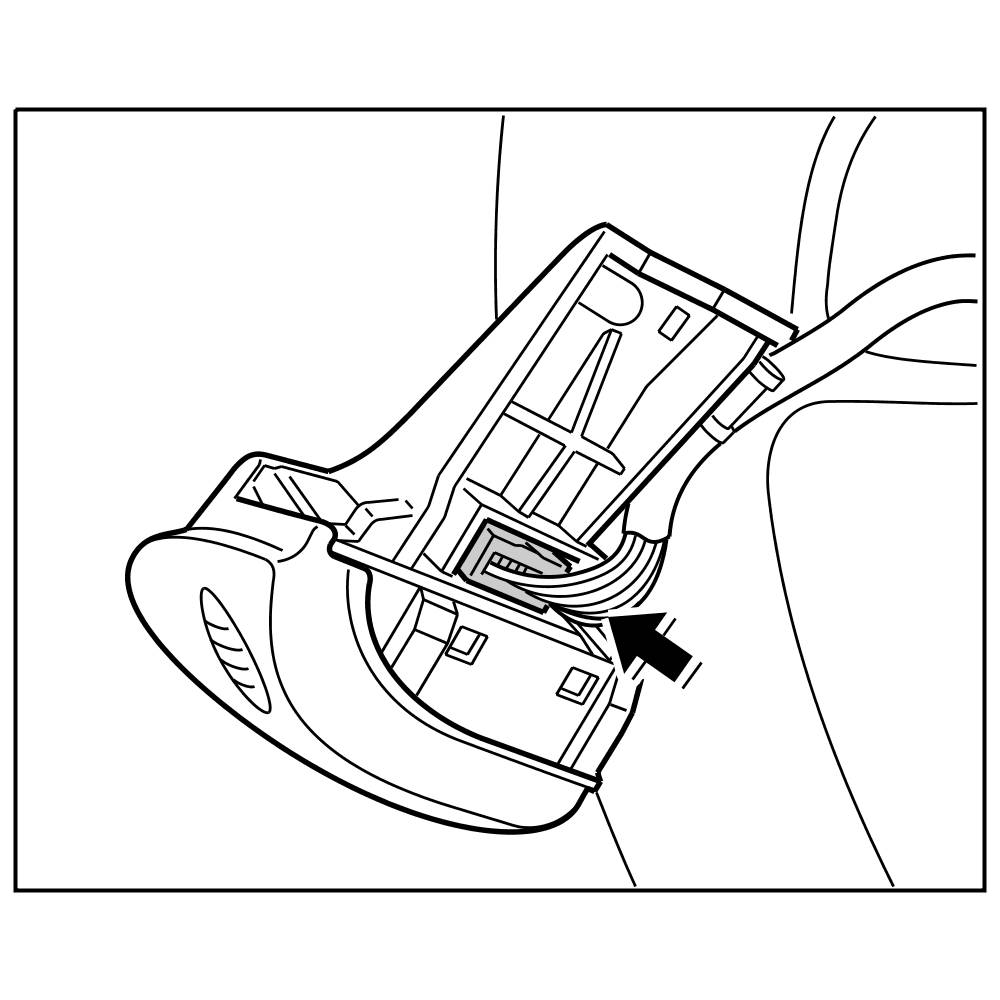

Connecting plug connection on the remote control

2. Insert remote control into the steering wheel, position washers -3- and screw down with the fastening screw -2-.

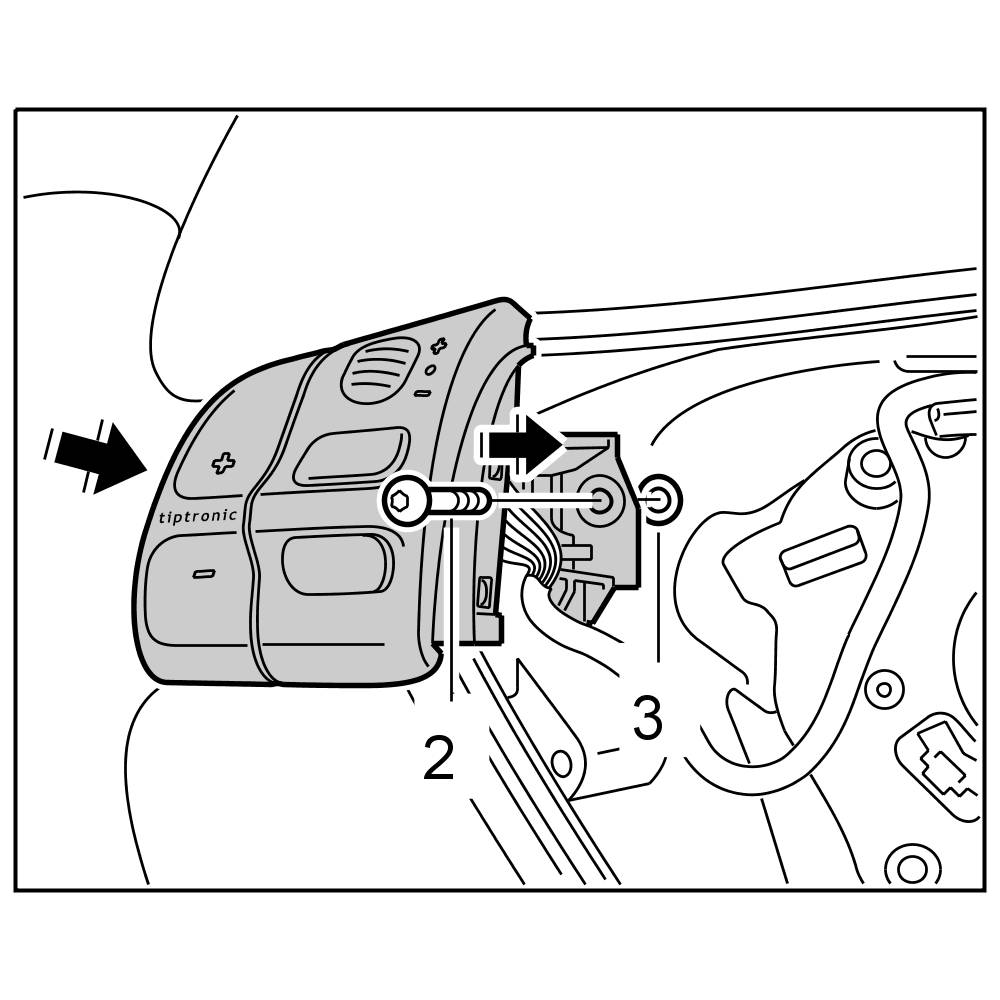

Installing remote control

Subsequent work

Subsequent work for multi-function remote control

Install driver's airbag unit. -> 695819 Removing and installing driver's airbag unit - section on "Installing" 69581900 Removing and installing driver's airbag unit
