Accessories and Optional Equipment: Testing and Inspection

WM 911049 Eliminating symptoms in body interior: PCM3.0 integrated system: Complaints and repair instructions (SY01-08)

Tools

General information

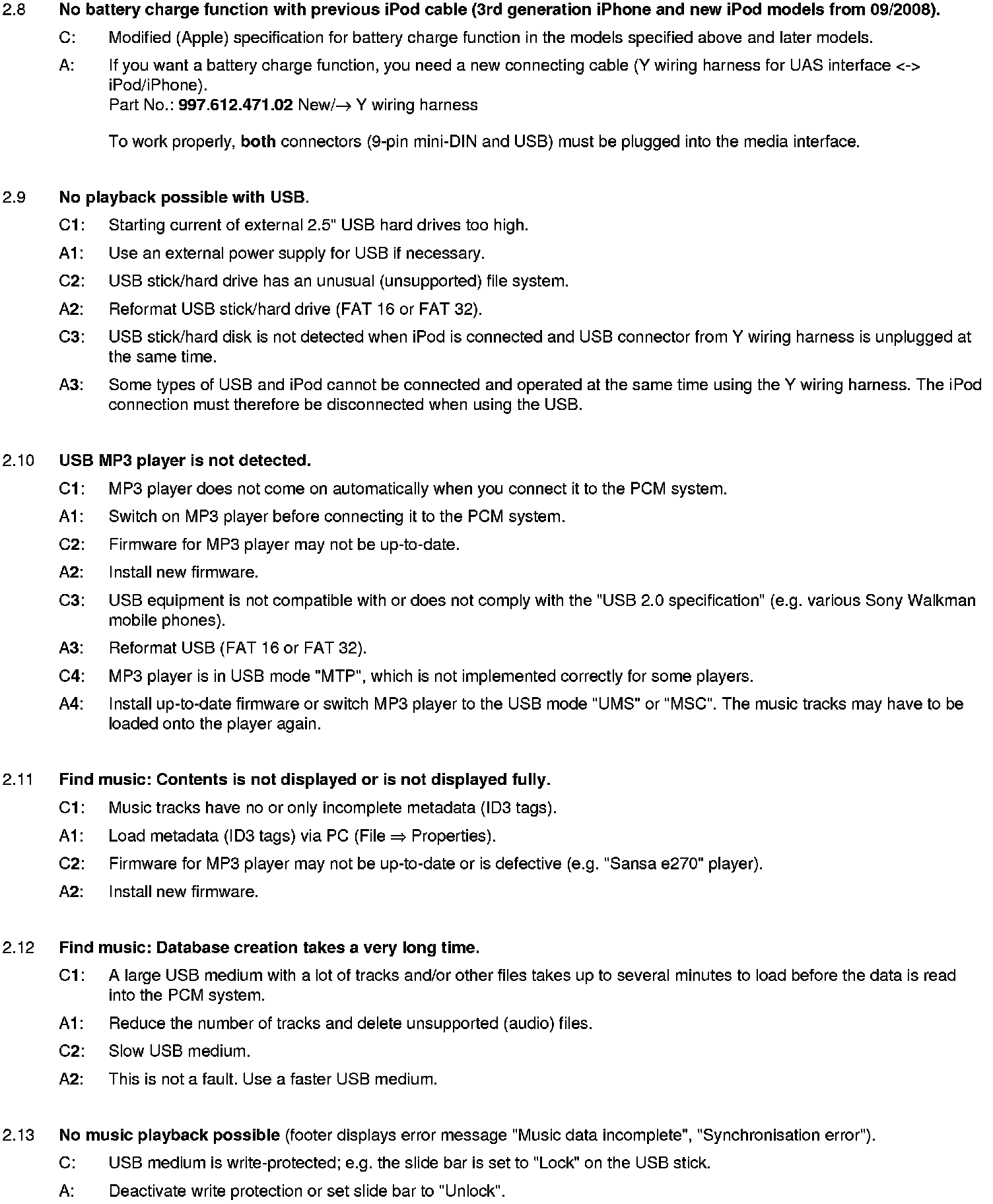

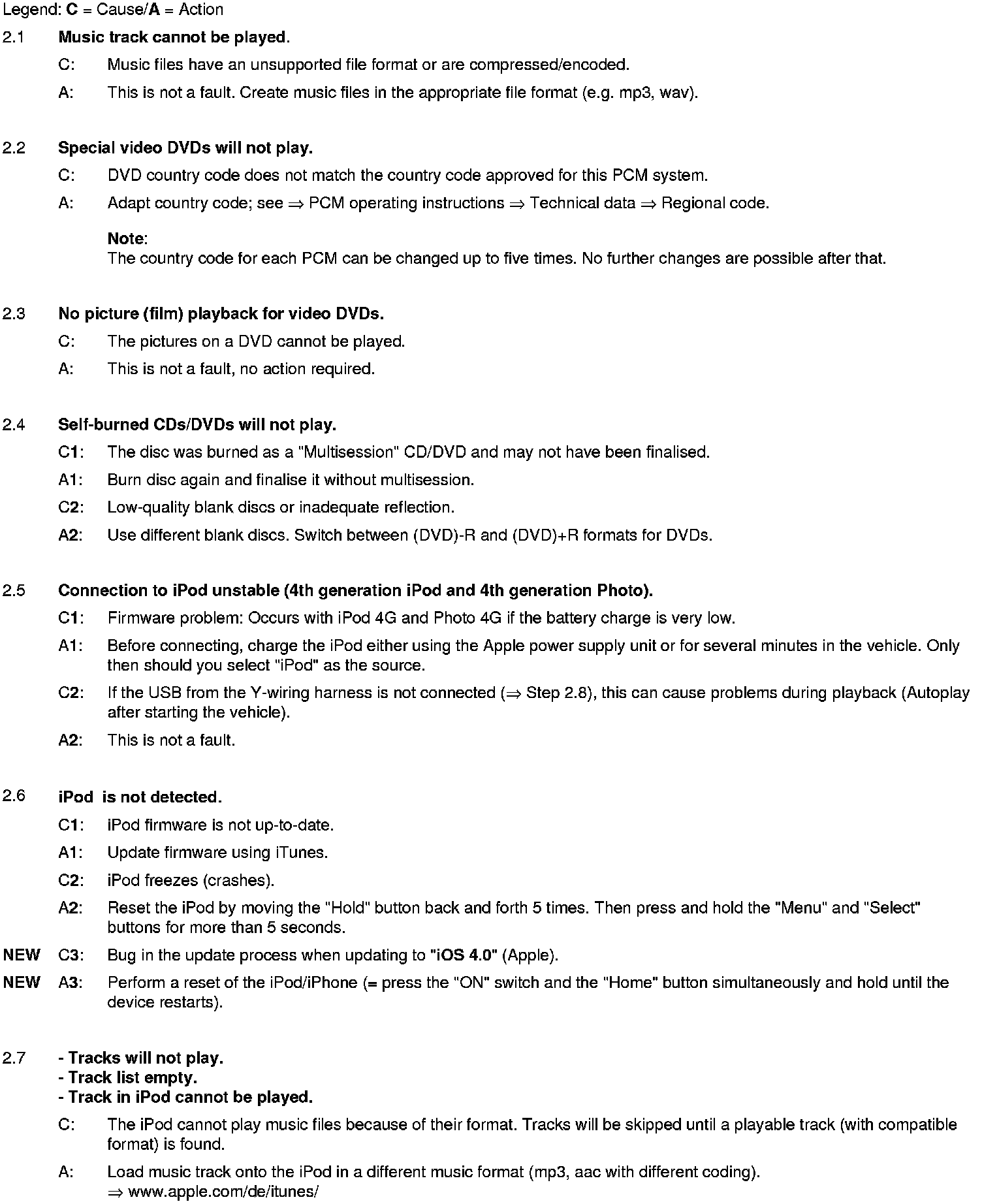

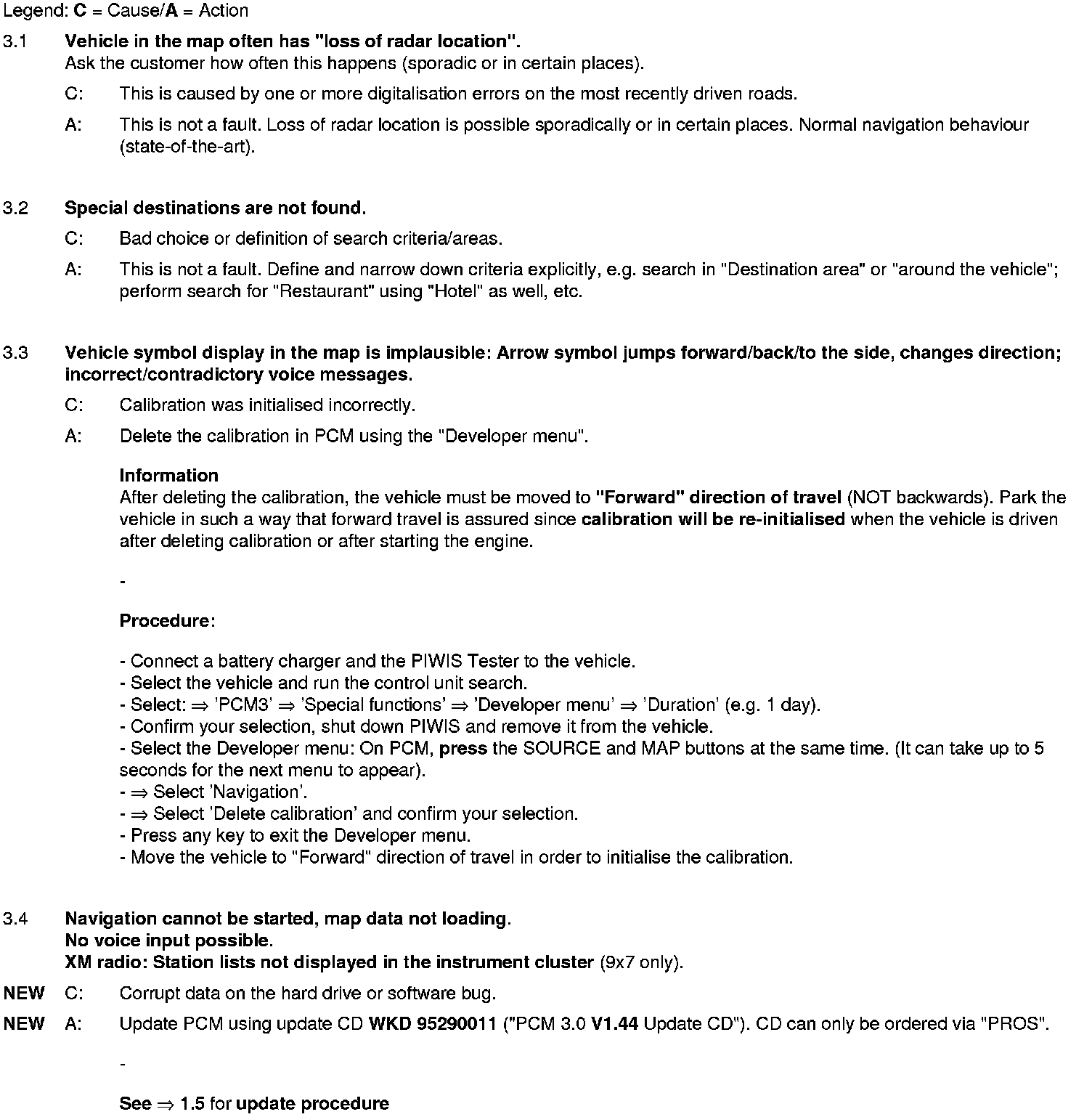

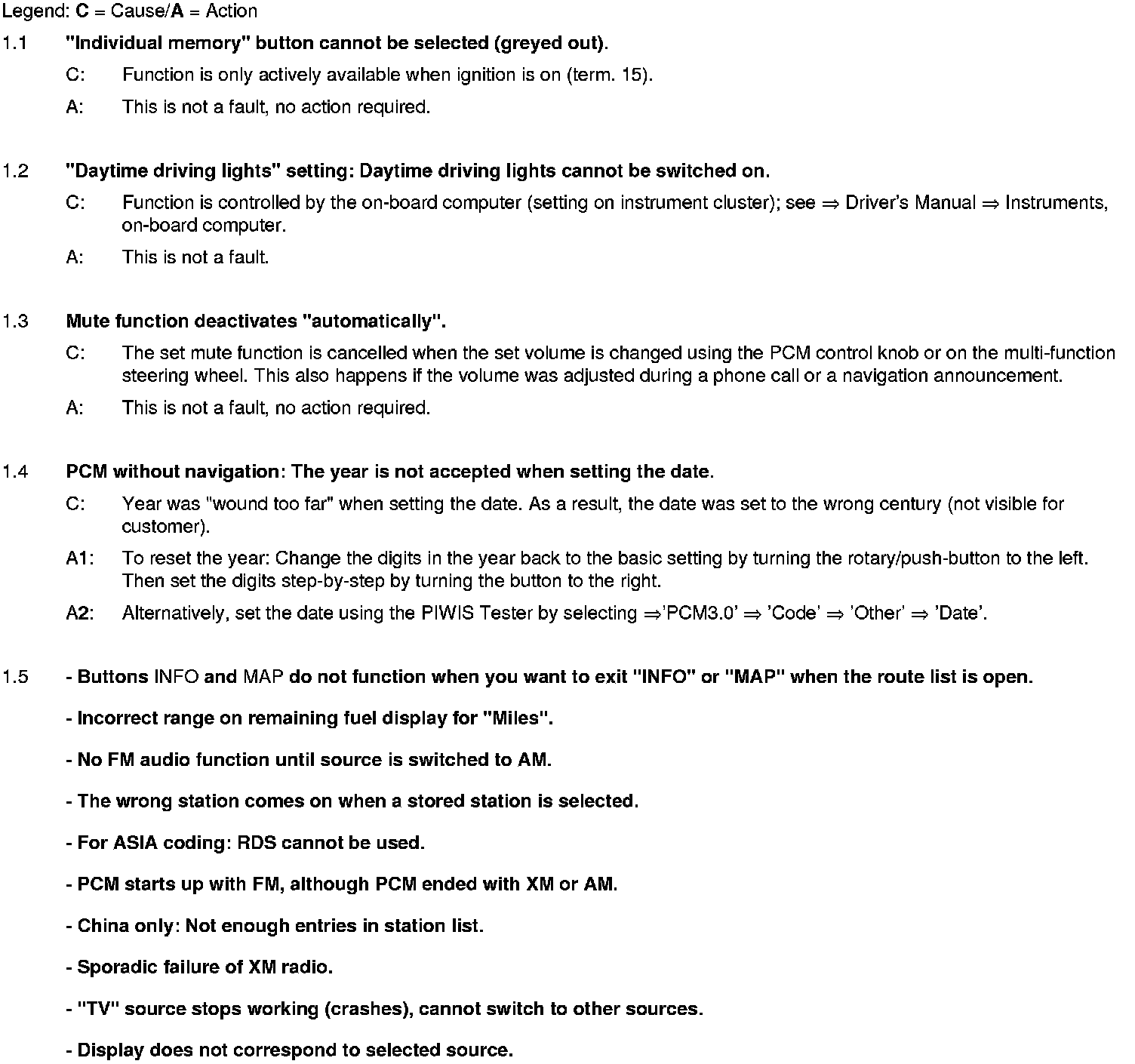

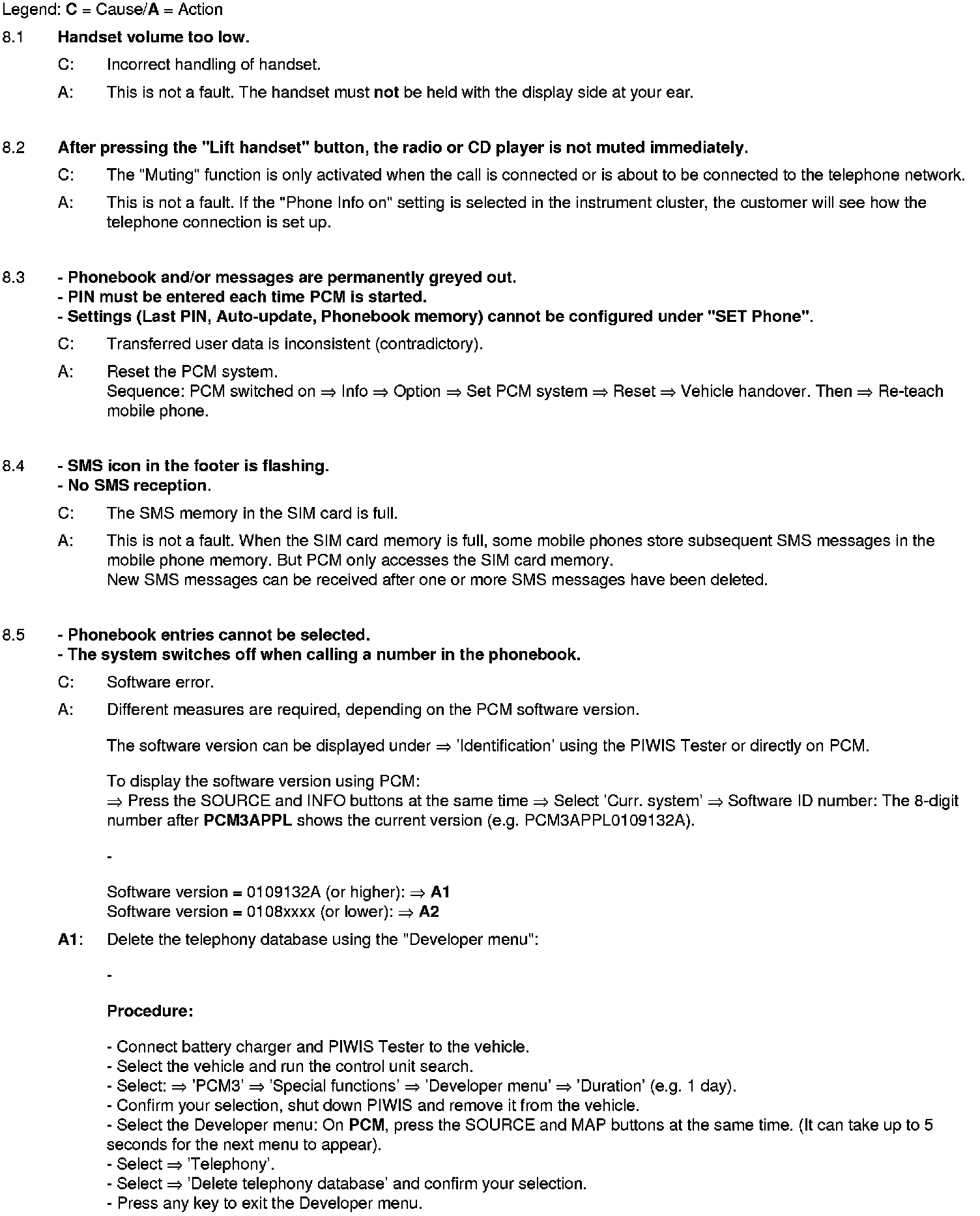

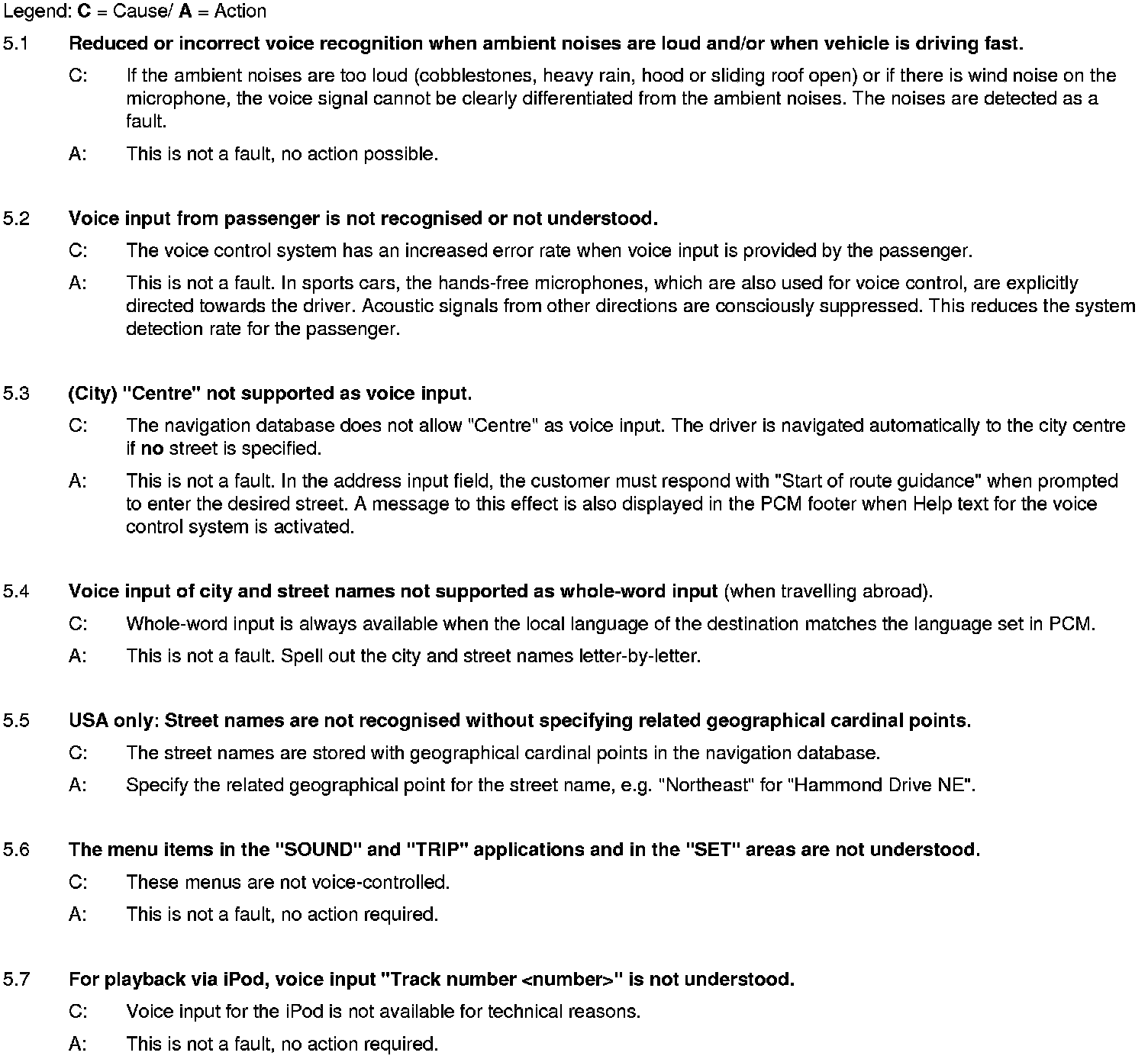

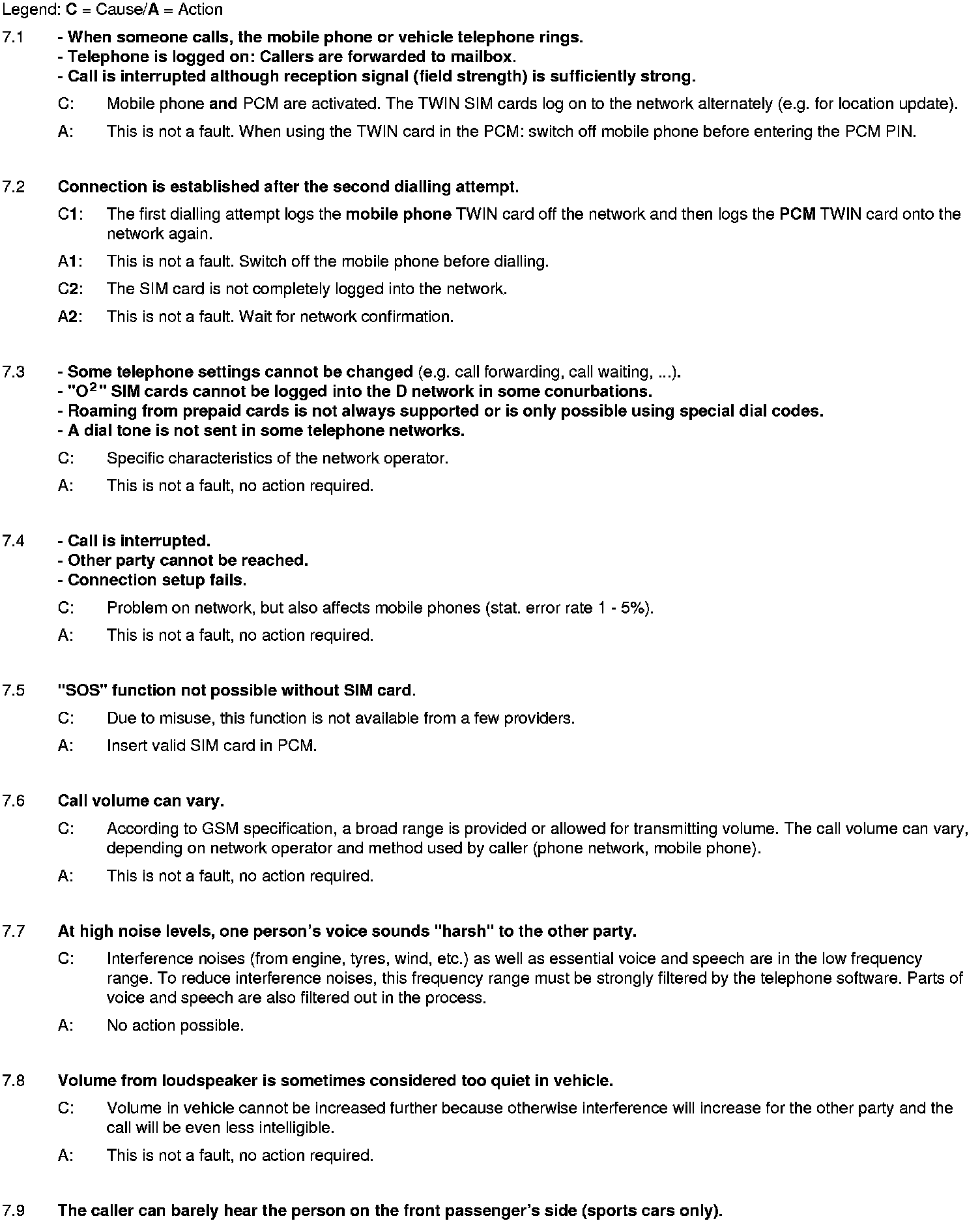

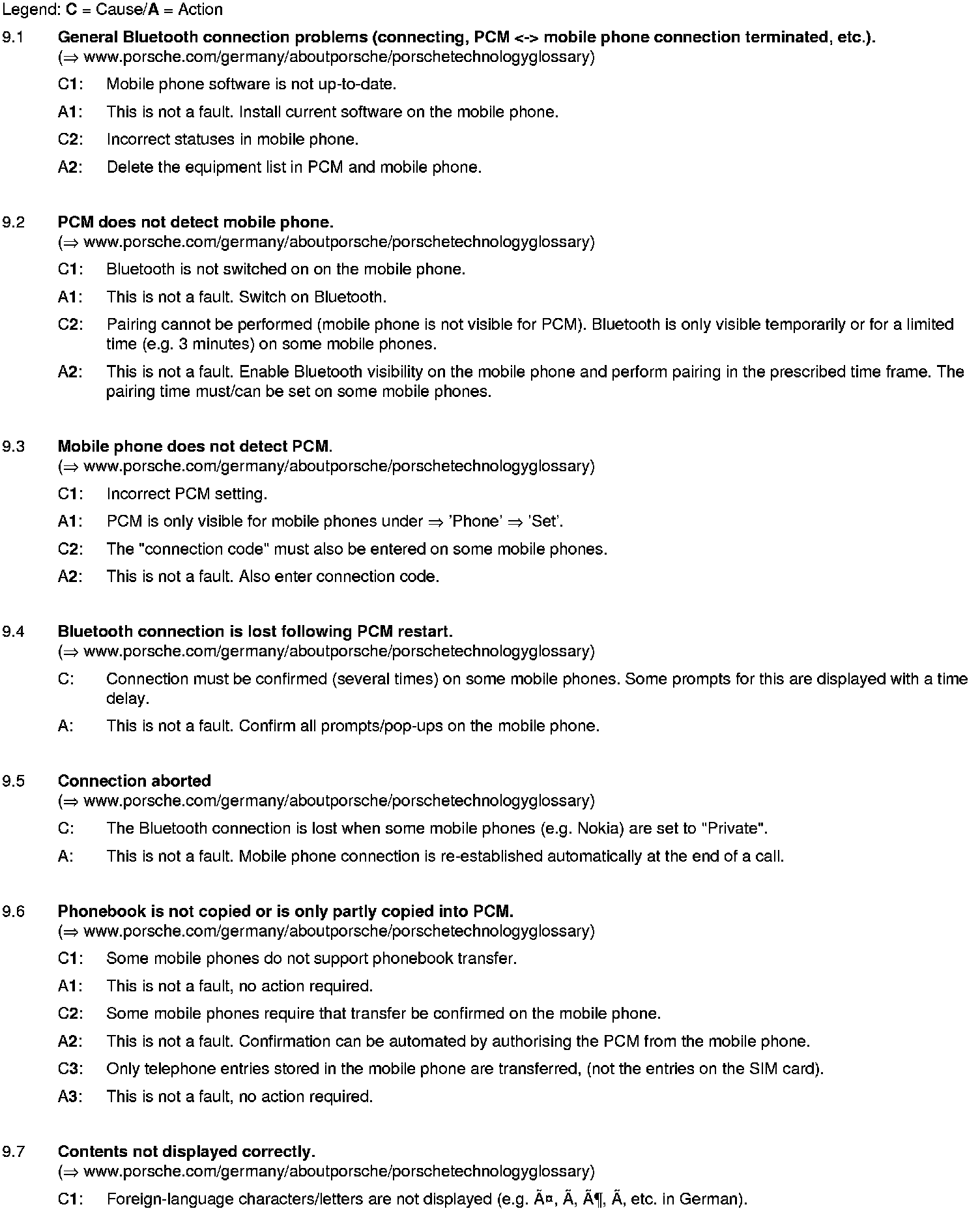

Symptom, causes and remedial action

Below you will find information about possible complaints in relation to system components in the PCM 3.0 integrated system.

Other topics and additional help for resolving complaints over and above the information provided here are covered in the => PIWIS Tester under '=> Guided Fault Finding => System => Audio, Video, Infotainment' (referred to below as "GFF").
Furthermore, for information on remedial measures, also use the => 'Driver's Manual or PCM3 operating instructions'.

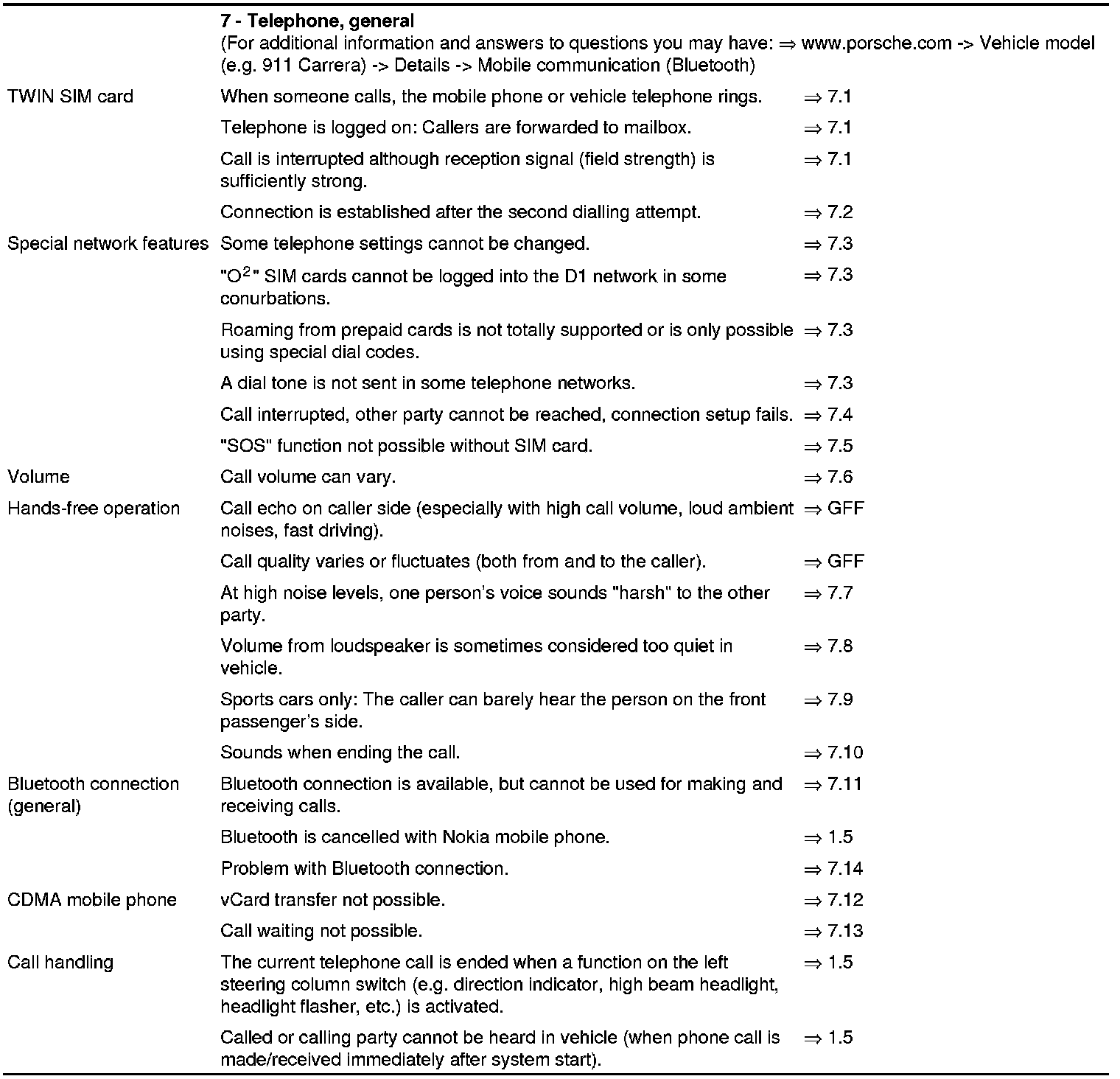

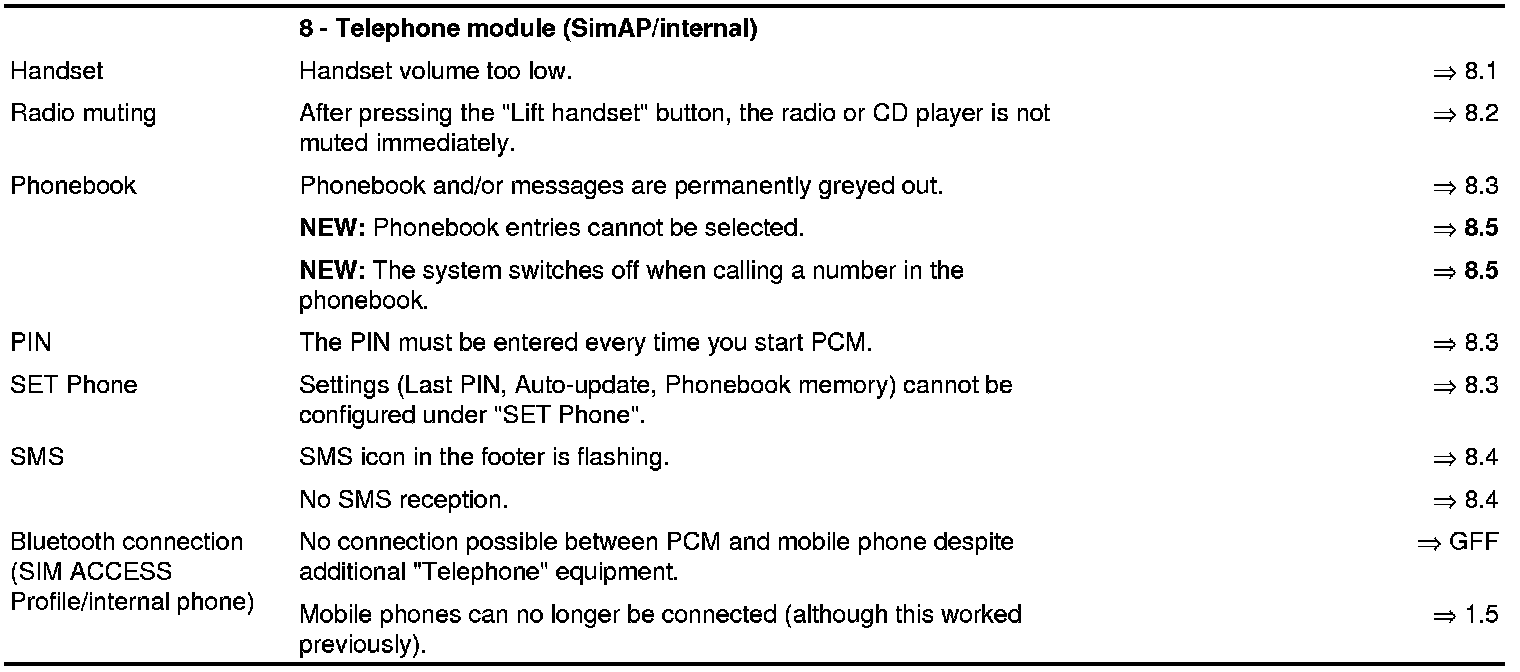

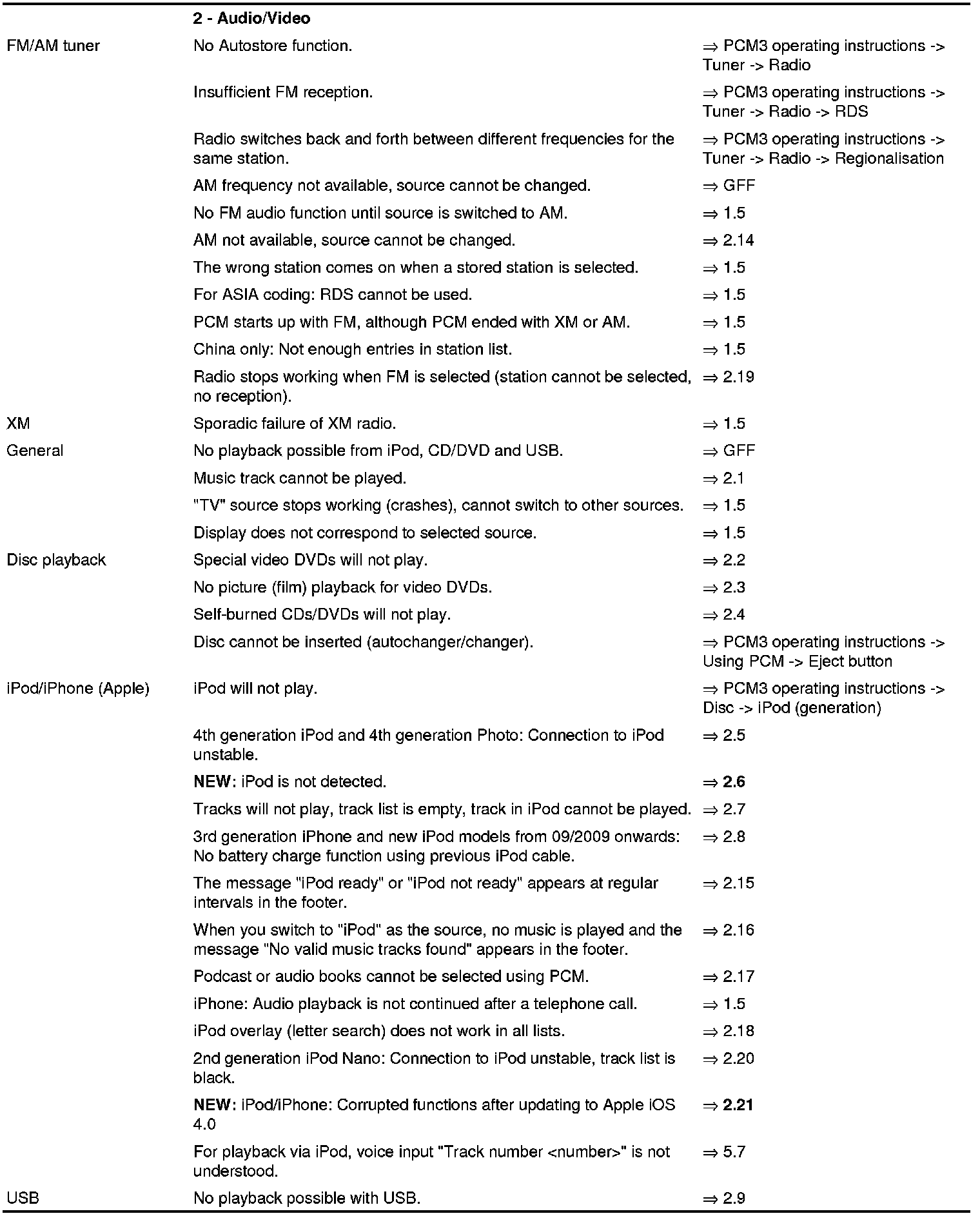

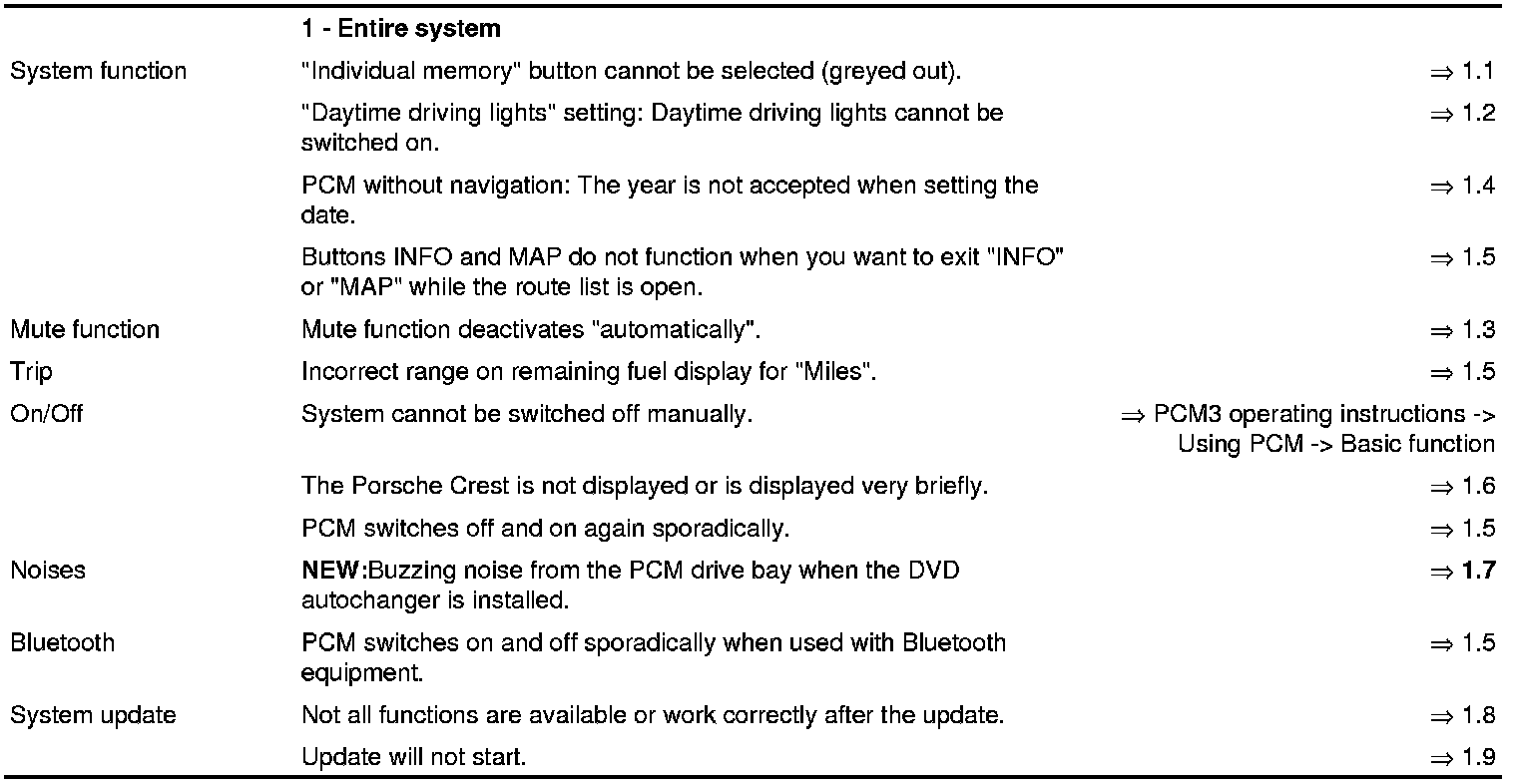

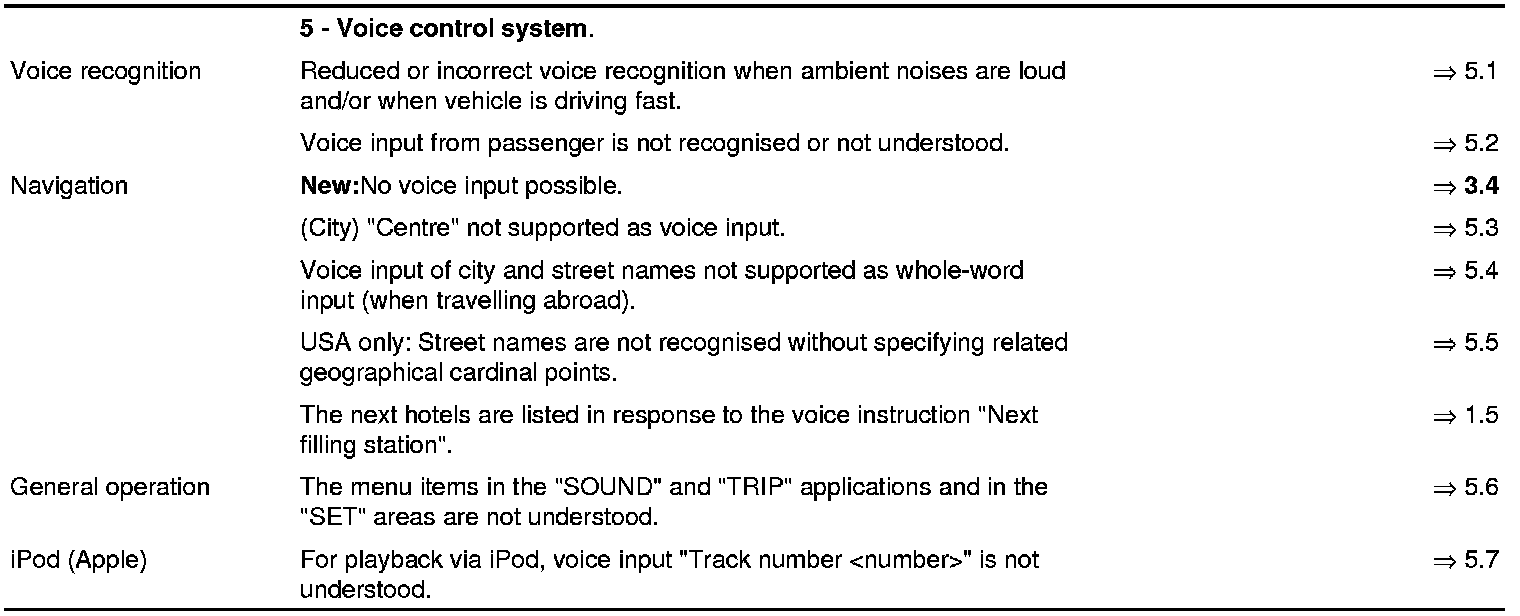

The list is sorted according to the system components and possible complaints. This is not a complete list of defects.

Information

New information has been provided.
This additional information can be found in the overview below and is marked "New" in the relevant section (see also "Documentation" section at the end of the document.

Tools and materials

Tools

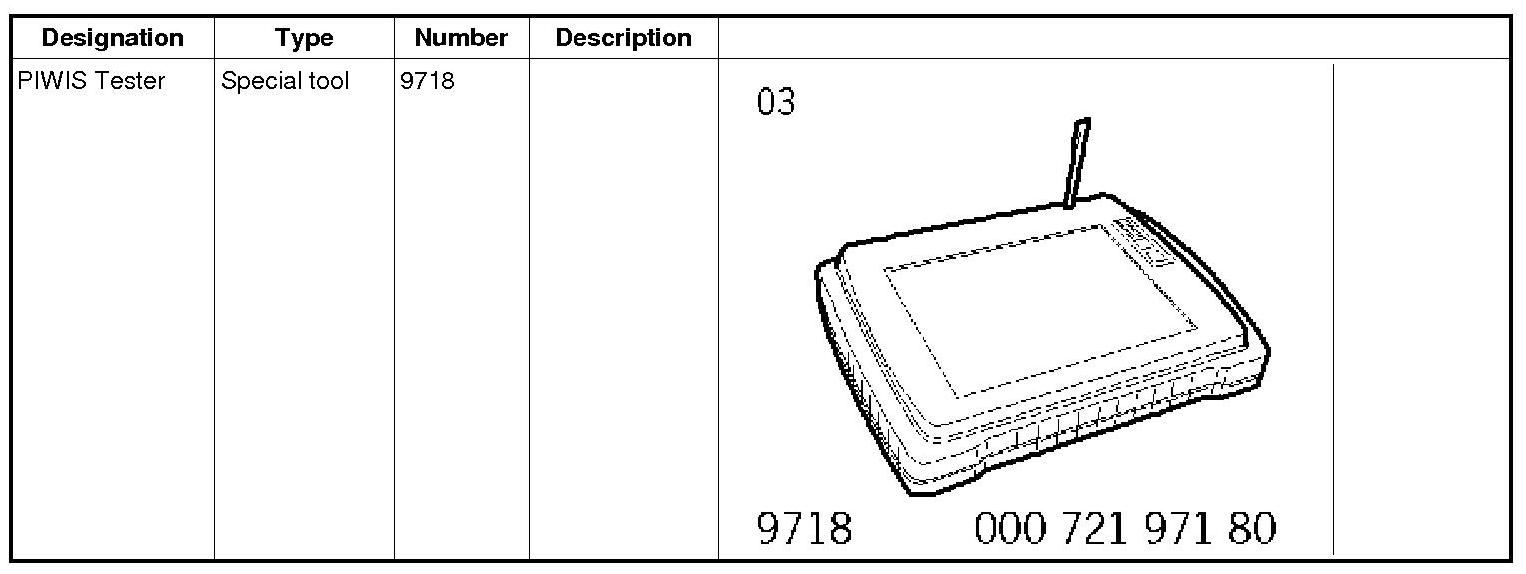

PIWIS Tester 9718

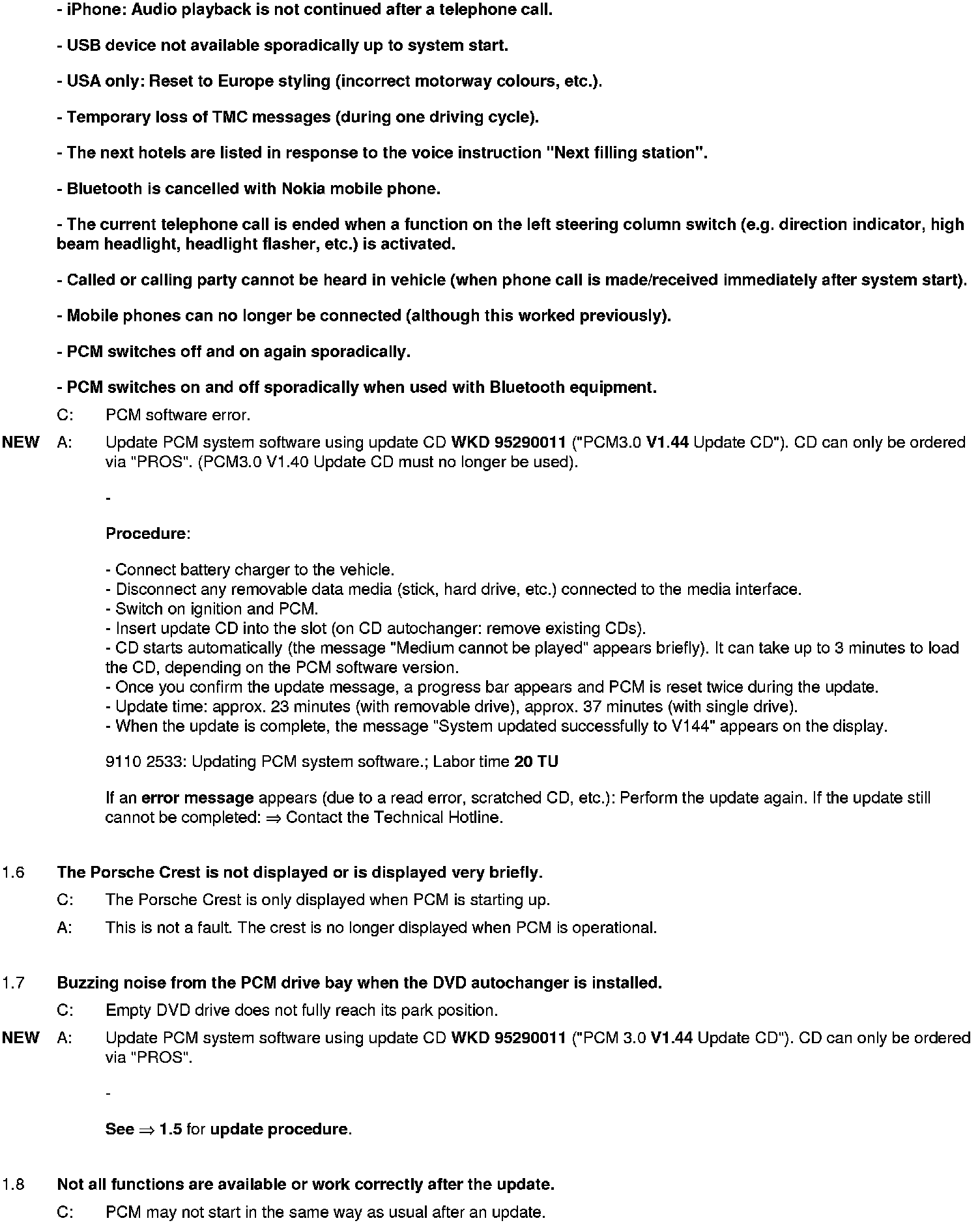

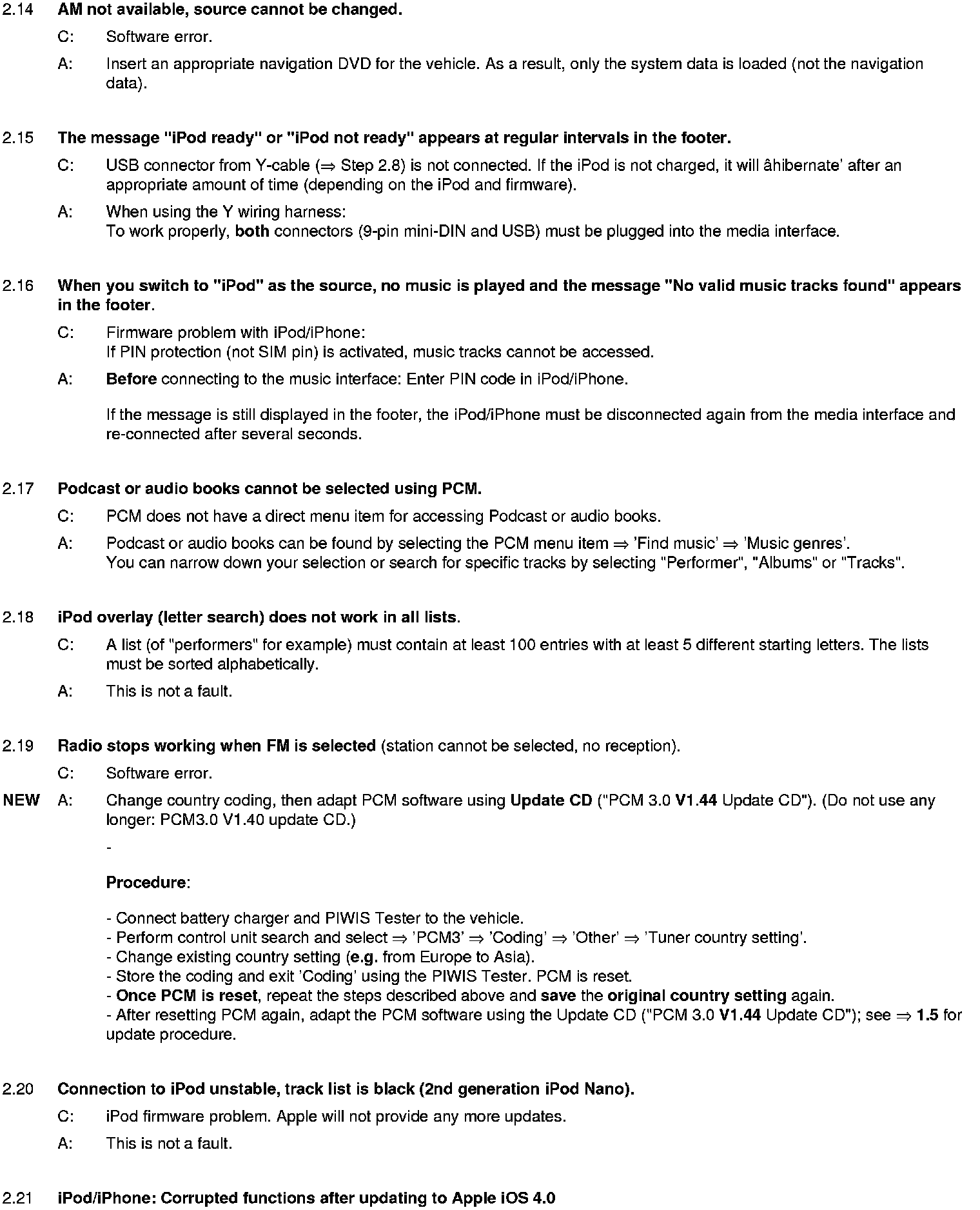

PCM3.0 V1.44 Update CD (WKD95290011)

Do not use the following CD any longer:

PCM3.0 V1.40 Update CD (000.043.205.46.010)
