Front Door Window Glass Weatherstrip: Service and Repair


WM 644819 Removing and installing front window shaft seal

Removing front window shaft seal

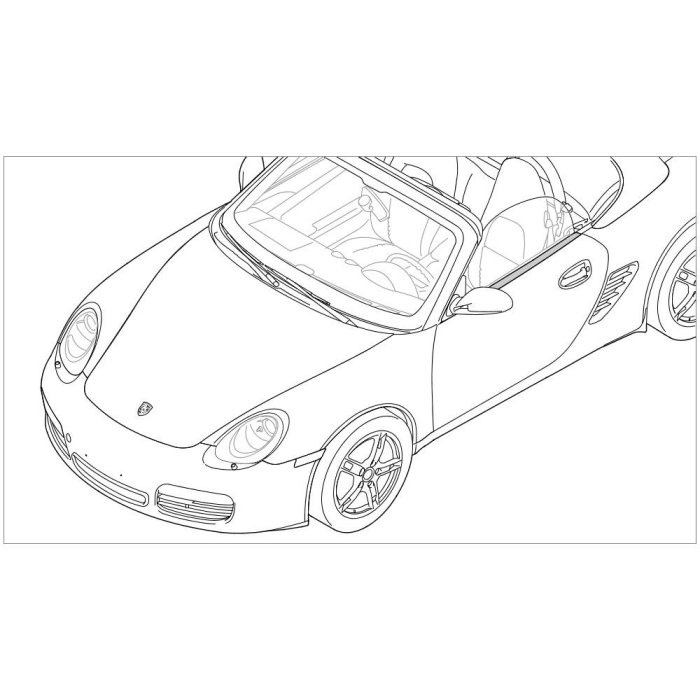

Installation position of front window bay seal

1. Open the front door window -1- fully.

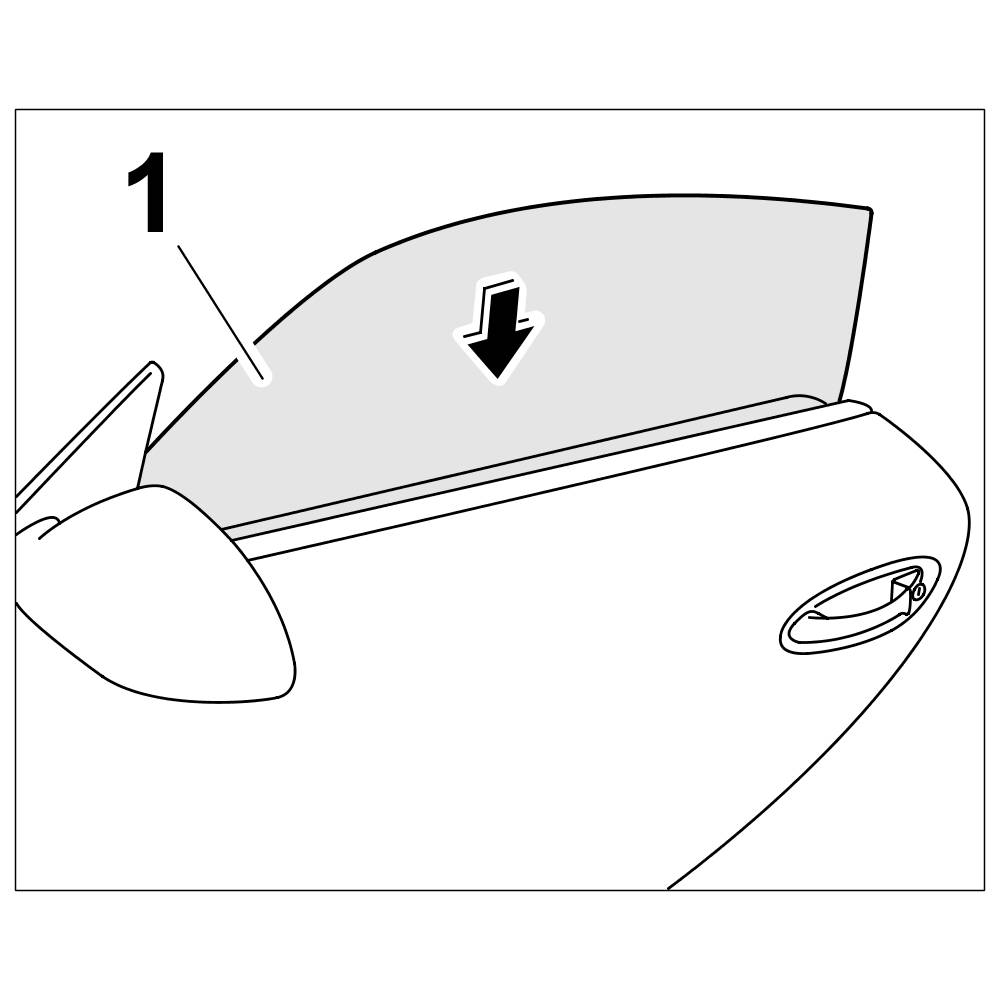

Opening the front door window

2. Pull front window bay seal -1- - beginning at the rear end -Arrow A- - off the sheetmetal door flange -2- in an upward direction -Arrow B-.

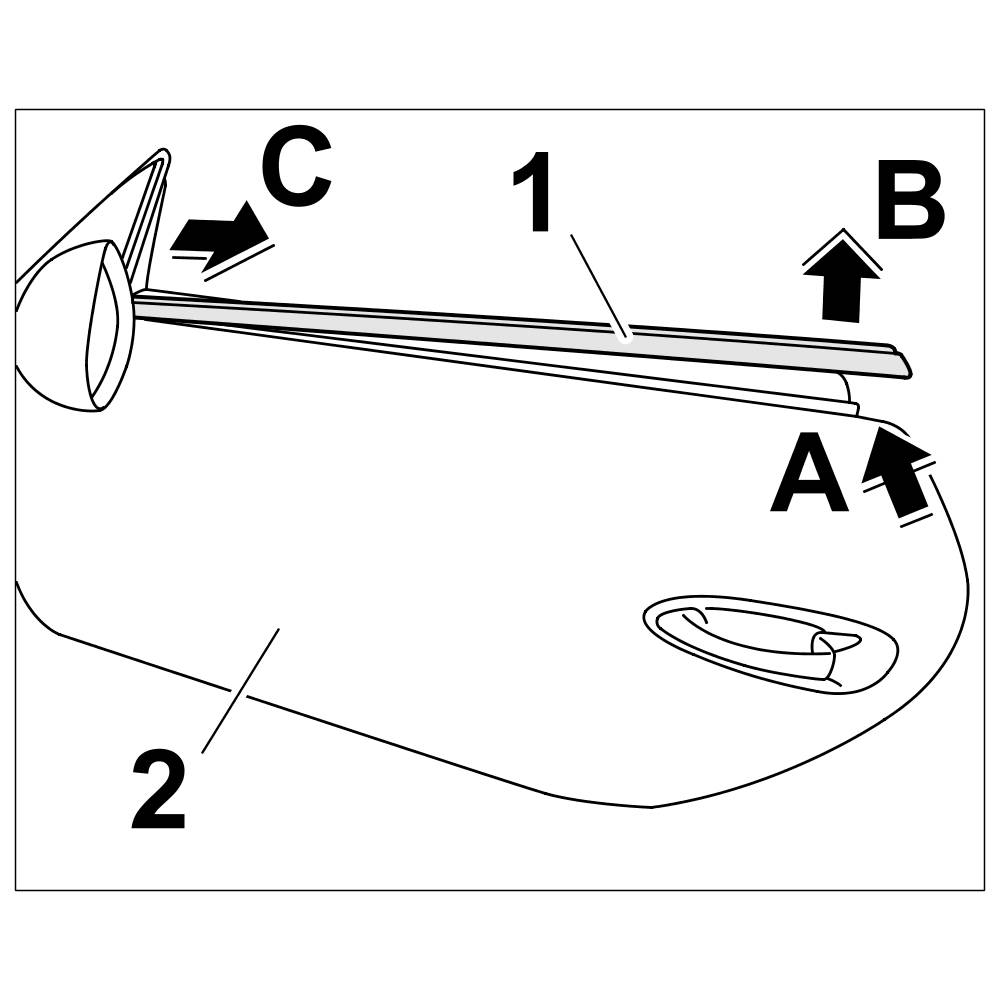

Removing the front window bay seal

3. Remove the front window bay seal -1-.

Installing front window shaft seal





Installation position of front window shaft seal

NOTICE

Dirty door window glass installed

- Risk of irreparable damage to front window channel seal

-> During installation, make sure that no lubricant from the window guides gets on to the door window glass.
-> Clean the door window glass and check that the front window channel seal is clean.
-> Replace damaged window channel seal.

Information

- Make sure horizontal alignment is correct (Arrows C, D).

1. Attach front window shaft seal -1- - starting at the front end -Arrow A- - to the sheetmetal door flange -2- from above -Arrow B-.

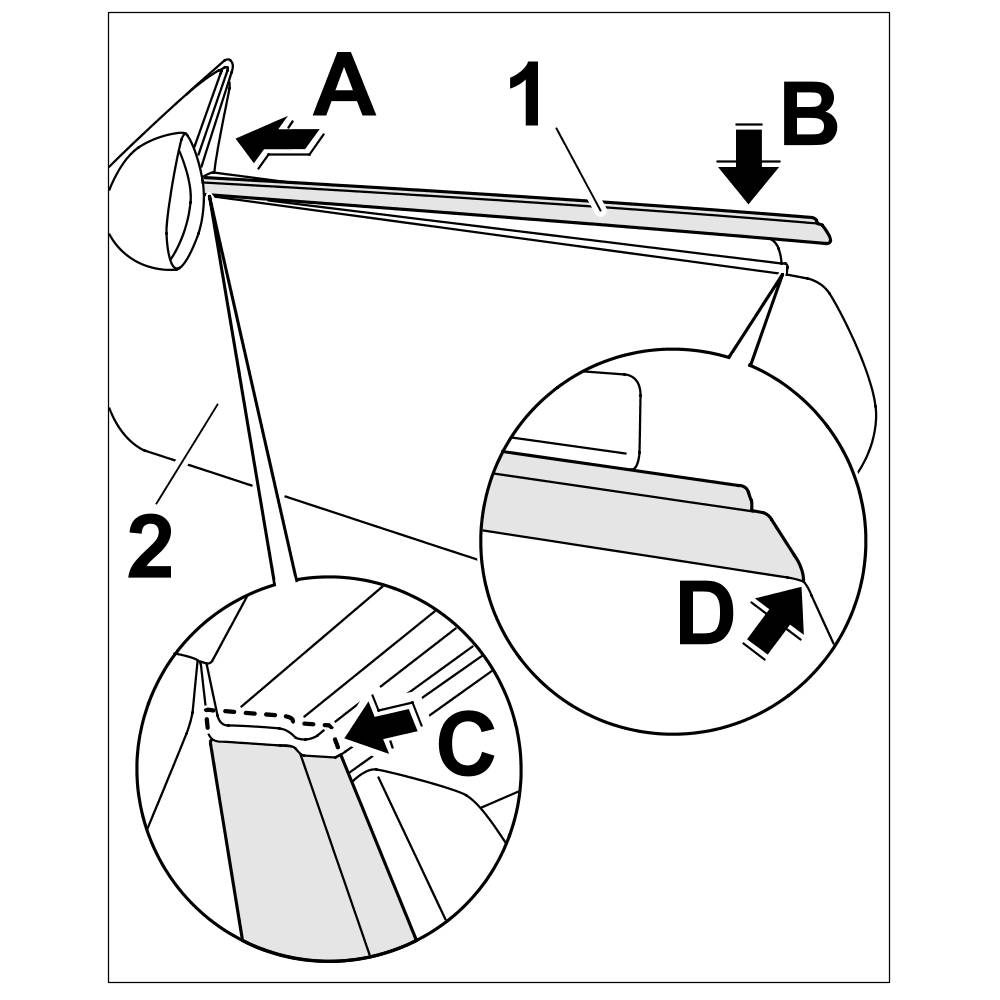

Installing the front window shaft seal

2. Close the front door window -1- fully.





Closing the front door window
