Engine Coolant Temperature Sensor Monitoring

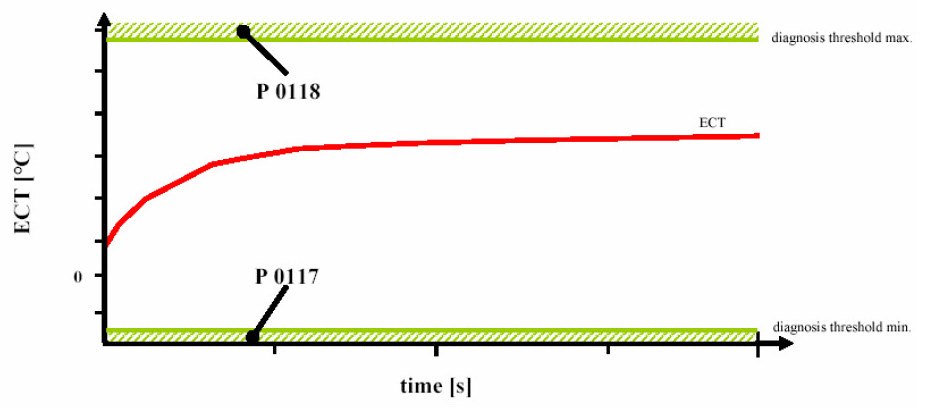

ENGINE COOLANT TEMPERATURE SENSOR MONITORINGThe engine coolant temperature is electrical O.K., if the following condition is true:
Diagnosis threshold min. < engine coolant temperature < Diagnosis threshold max.
RangeCheck

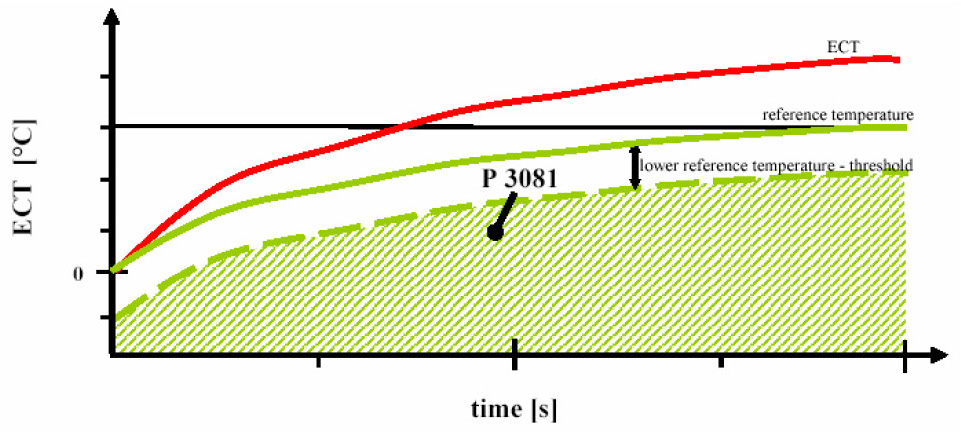

PlausibilityCheck lowside
The engine coolant temperature is plausible, if:
(reference temperature - threshold) < engine coolant temperature

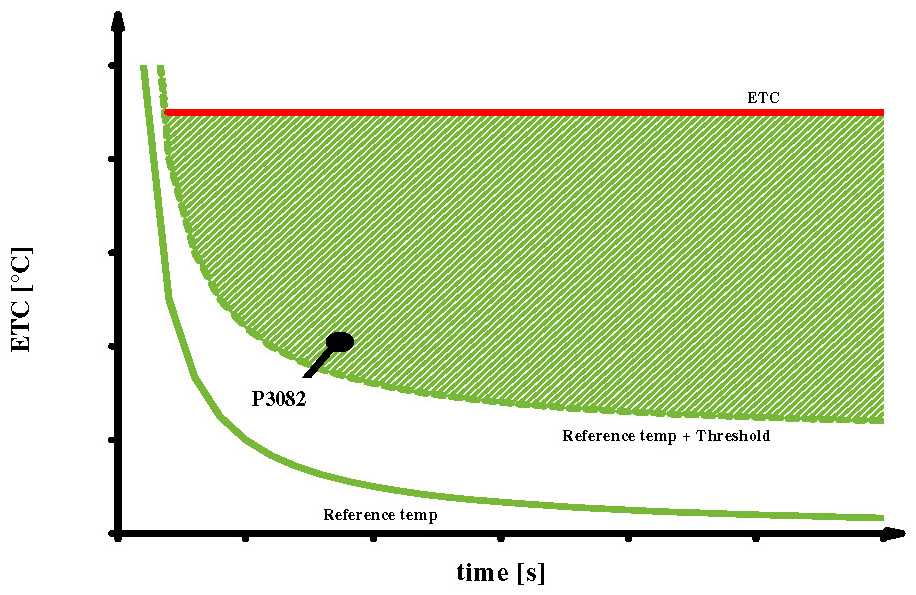

PlausibilityCheck highside
The engine coolant temperature is plausible, if:
(engine coolant temperature - reference temperature) > threshold

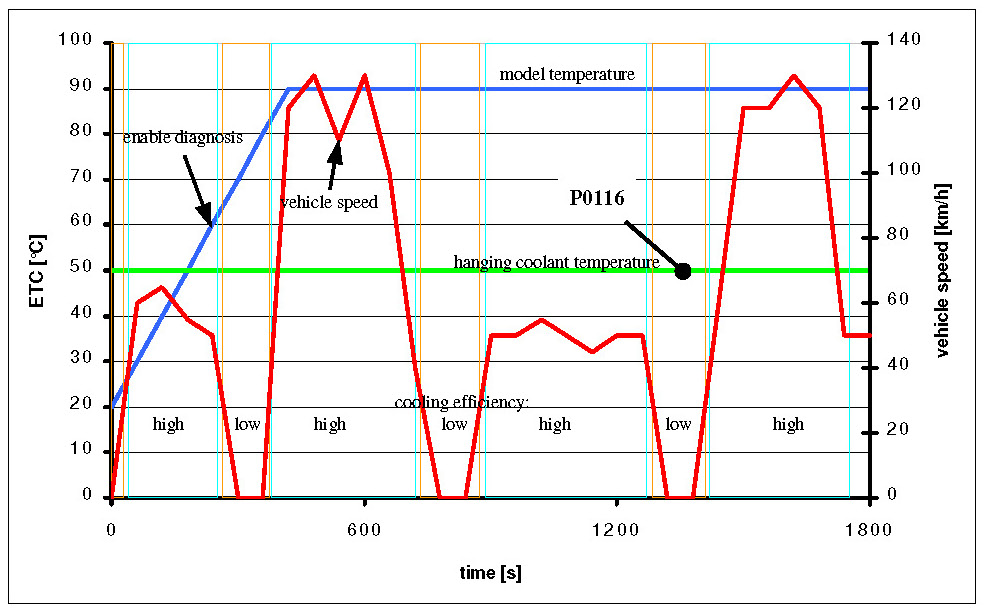

Stuck Signal Check
The engine coolant temperature is plausible if - after subsequent periods of vehicle operation at high and low cooling condition, respectively - a certain amount of variability in the engine coolant temperature signal is observed.
(engine coolant temperature(max) - engine coolant temperature(min) > threshold.
flow chart:
