Accelerator Pedal: Service and Repair

WM 208019 Removing and installing accelerator pedal

Information

The accelerator pedal is an electronic accelerator pedal unit without a mechanical accelerator cable. The electric printed circuit board, among other things, is integrated in the accelerator pedal unit. On vehicles with Tiptronic transmission, the accelerator pedal unit also features a spring-loaded aneroid diaphragm -3- for kickdown simulation. The integrated pedal stop obviates the need for a basic kickdown setting.

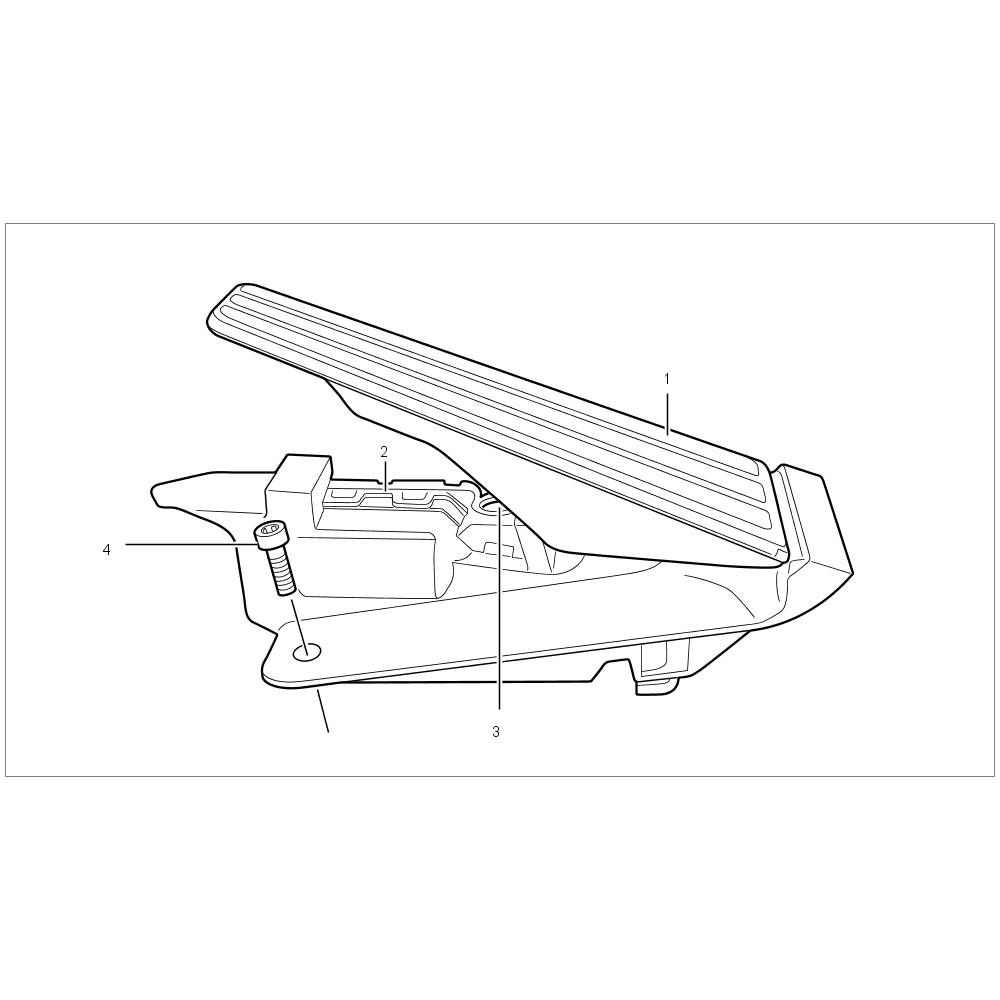

Overview of accelerator pedal

Removing accelerator pedal

Removing





Overview of accelerator pedal

1. Loosen accelerator pedal.
Remove screw -4-.
2. Remove accelerator pedal.
Pull accelerator pedal forward slightly and remove it in an upward direction.
3. Pull electric connector off the accelerator pedal.
Press locking mechanism (see -arrow- ) down as far as the locking point and pull off electric connector -2-.

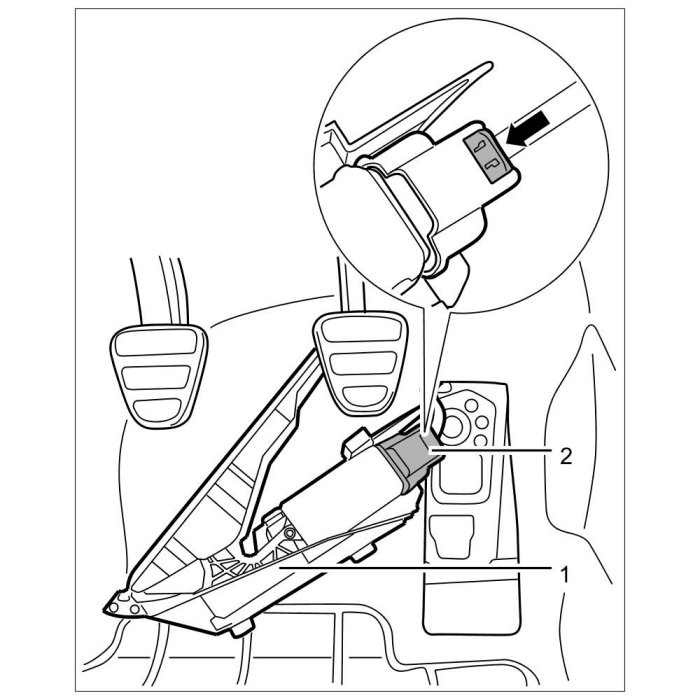

Removing and installing accelerator pedal

Installing accelerator pedal

Installing

1. Connect accelerator pedal.
Slide electric connector -2- back onto the accelerator pedal as far as the locking point until the locking mechanism -1- releases and locks the connector -2- in position again.

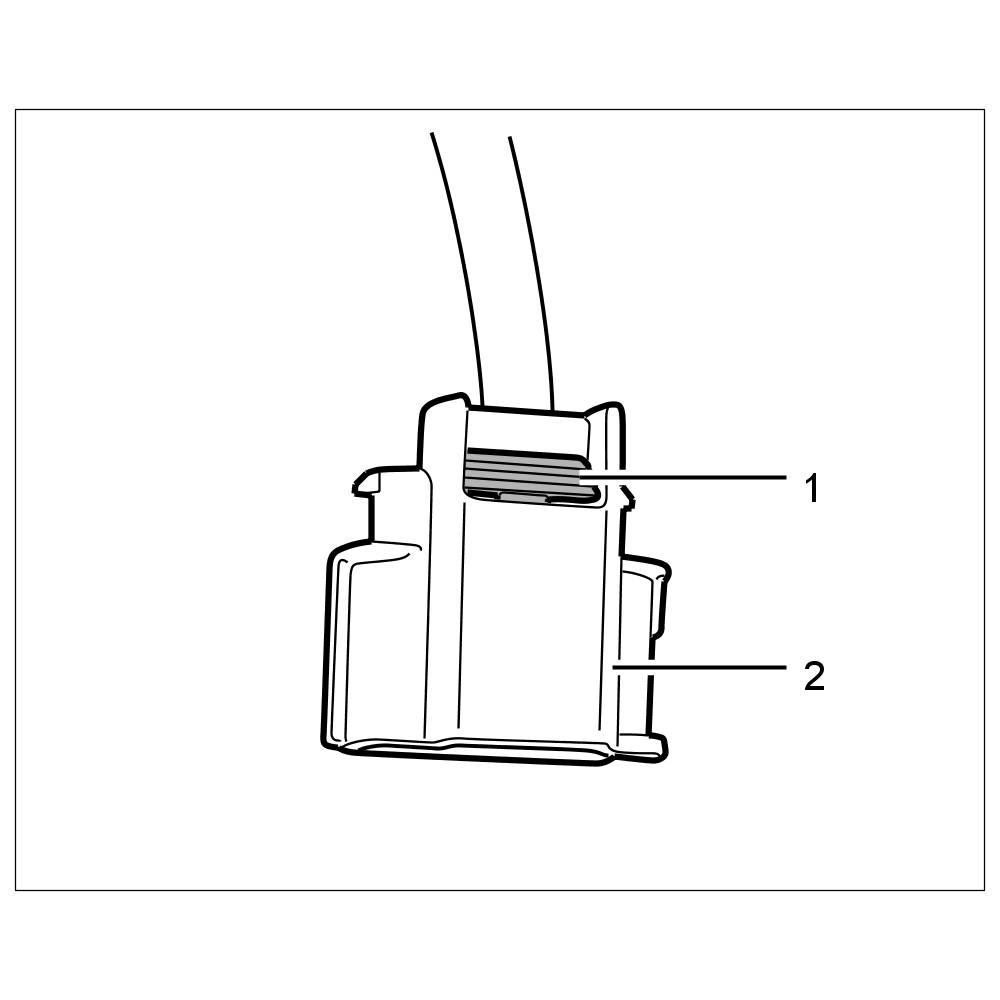

Electric connector for accelerator pedal

2. Insert and secure the accelerator pedal. Use correct tightening torque!
