Brake Pad: Specifications

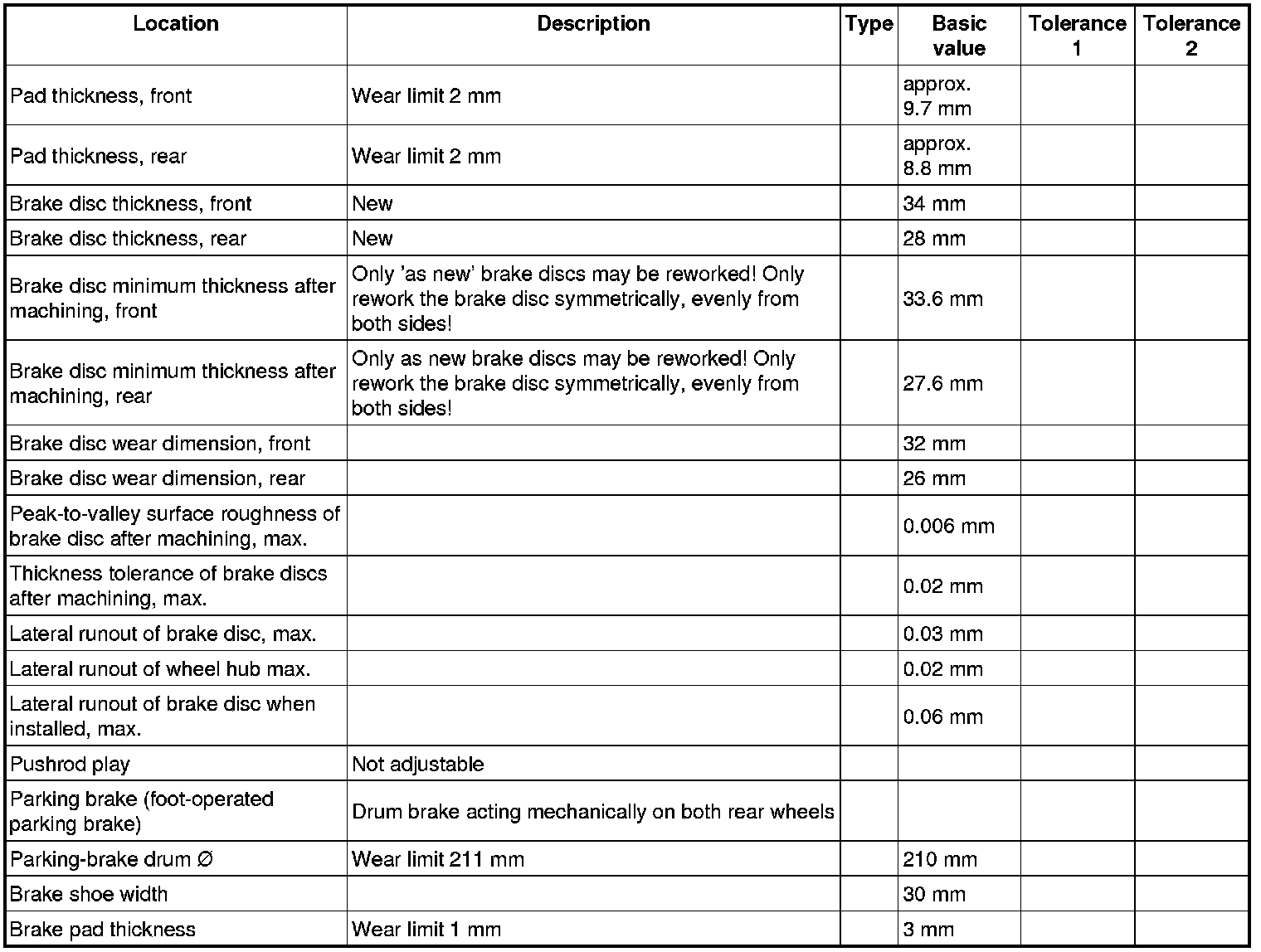

Test values and wear limits for 18-inch brake system (V6/V6 Diesel/V6 China)

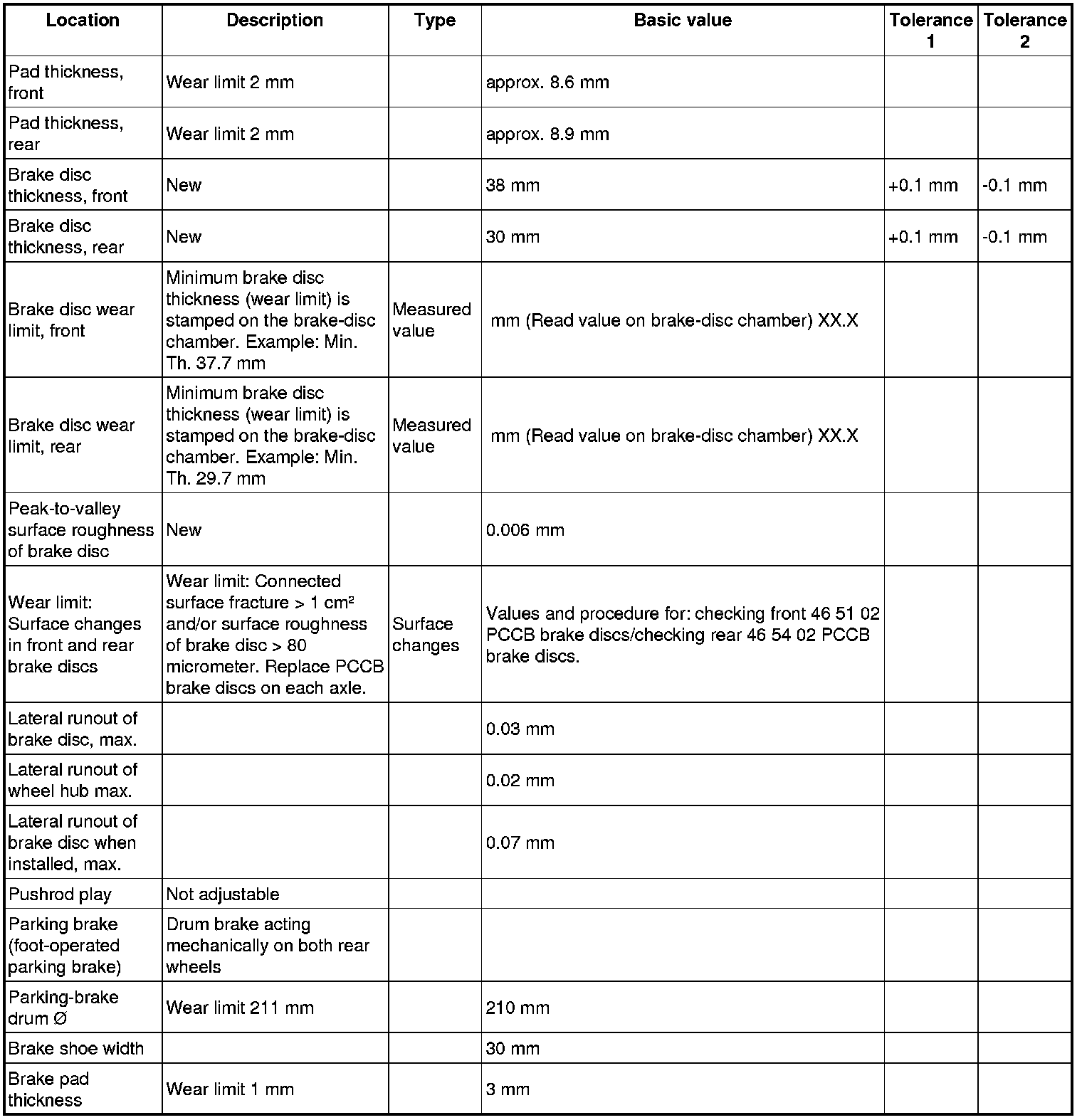

Test values and wear limits for PCCB (V6/V6 Diesel/V6 China/V8S/V6 Hybrid)
