Hybrid Module

Hybrid Module

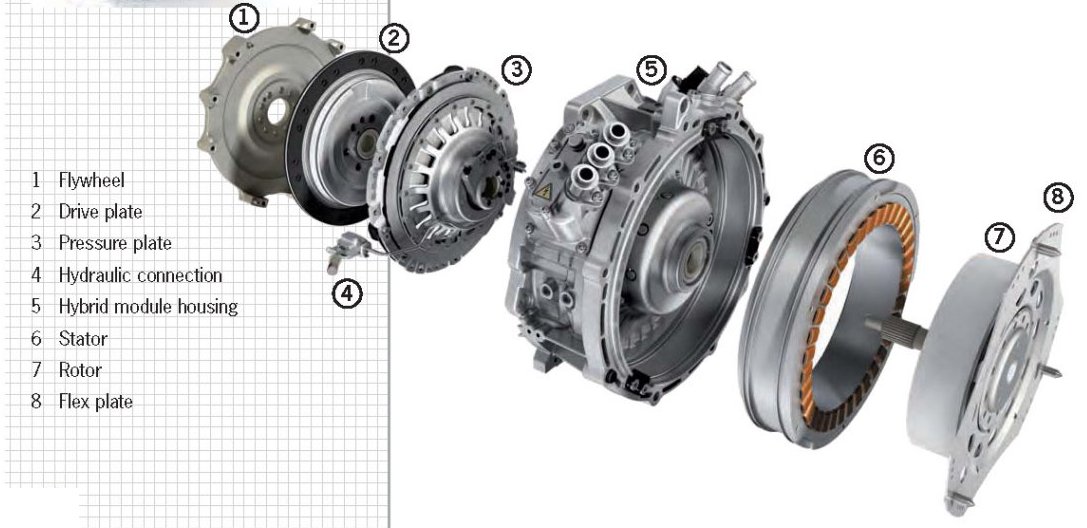

The hybrid module is integrated between the combustion engine and the transmission according to the modular principle. The complete module consisting of E-machine and clutch is only 147.5 mm in length and weighs approx. 117 lbs (53 kg). Due to its compact dimensions, it was possible to integrate the module in the drive train without making major modifications.







NOTE: A special tool is required to install and remove the hybrid module and individual components. When performing work, do not damage or bend the hydraulic line under any circumstances. See Workshop Data.

The module consists of a decoupler at the end connected to the combustion engine and the E-machine, which transmits power to the transmission via the flex plate. The rotor on the electric motor with flex plate connects the hybrid module at the transmission end to the converter on the 8 speed automatic transmission. While the components on the electric motor can only be replaced as a complete unit, the components on the decoupler, flywheel, drive plate and pressure plate can be replaced individually.
