Component Tests and General Diagnostics

COMPREHENSIVE COMPONENT MONITORING

ENGINE CONTROL UNIT

General Description
The purpose of this diagnosis is to detect electrical faults of the engine control unit.

Monitoring Conditions:
Ignition key on

Error Symptoms:
- Error based on ECU internal software checks
- Error based on ECU internal hardware checks

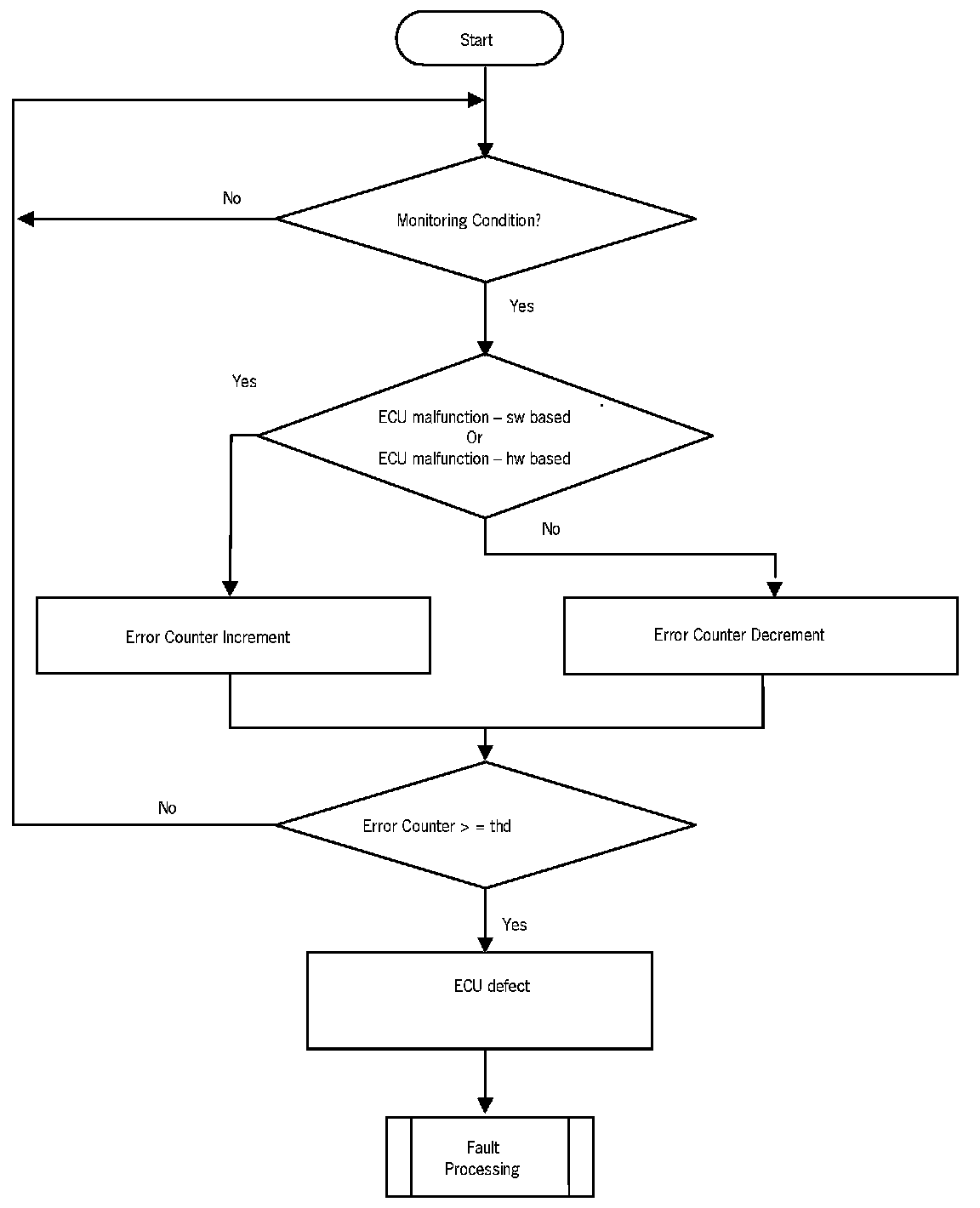

Flow chart: ECU monitoring
