Antenna Control Module: Service and Repair

WM 918619 Removing and installing control unit for antenna

Preliminary work

1. Remove trim panel for rear lid. -> 709219 Removing and installing trim panel for rear lid - section on "Removing" Service and Repair

Removing control unit for antenna

Removing antenna control unit

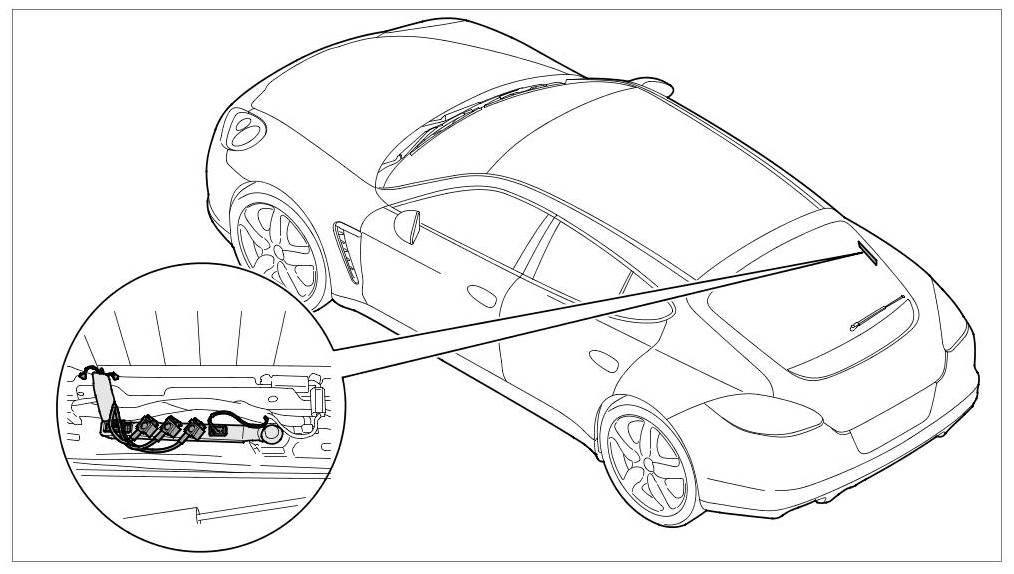

Component overview - antenna

1. Switch off ignition and remove remote control.

Information

The number of plug connections can vary, depending on equipment.

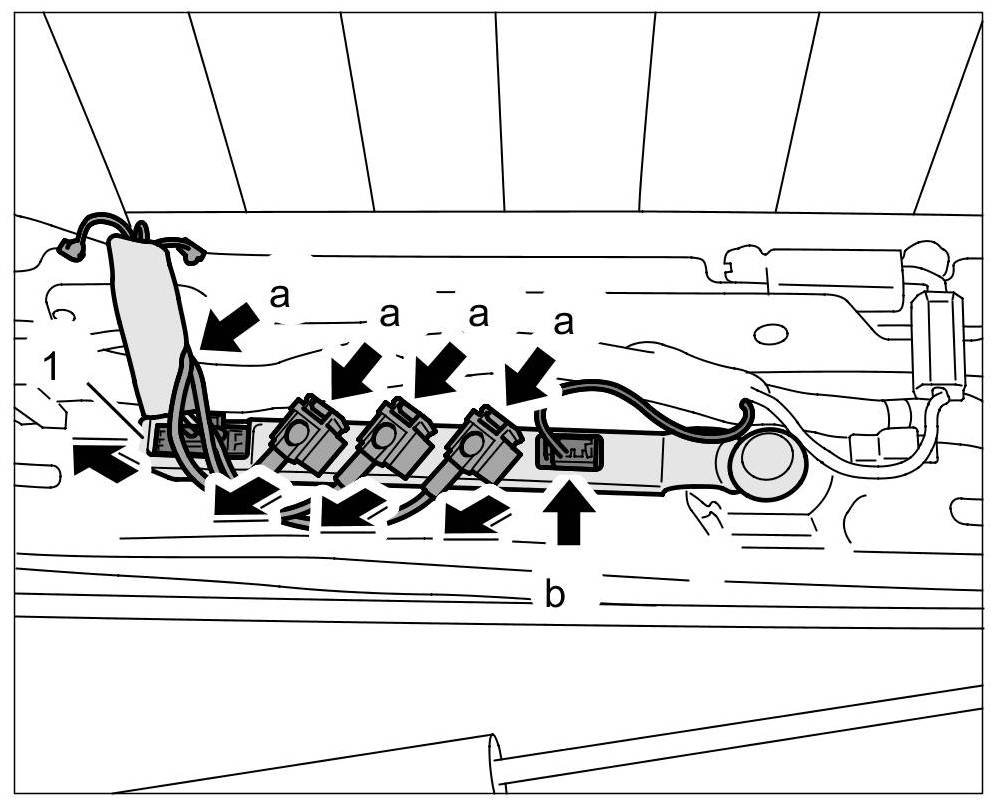

2. Detach plug connections for antenna control unit.
2.1. Release plug connections for antenna control unit -1- and pull them off -a-.
2.2. Carefully lever off plug connection for antenna control unit with a screwdriver -b-.





Disconnecting plug connections

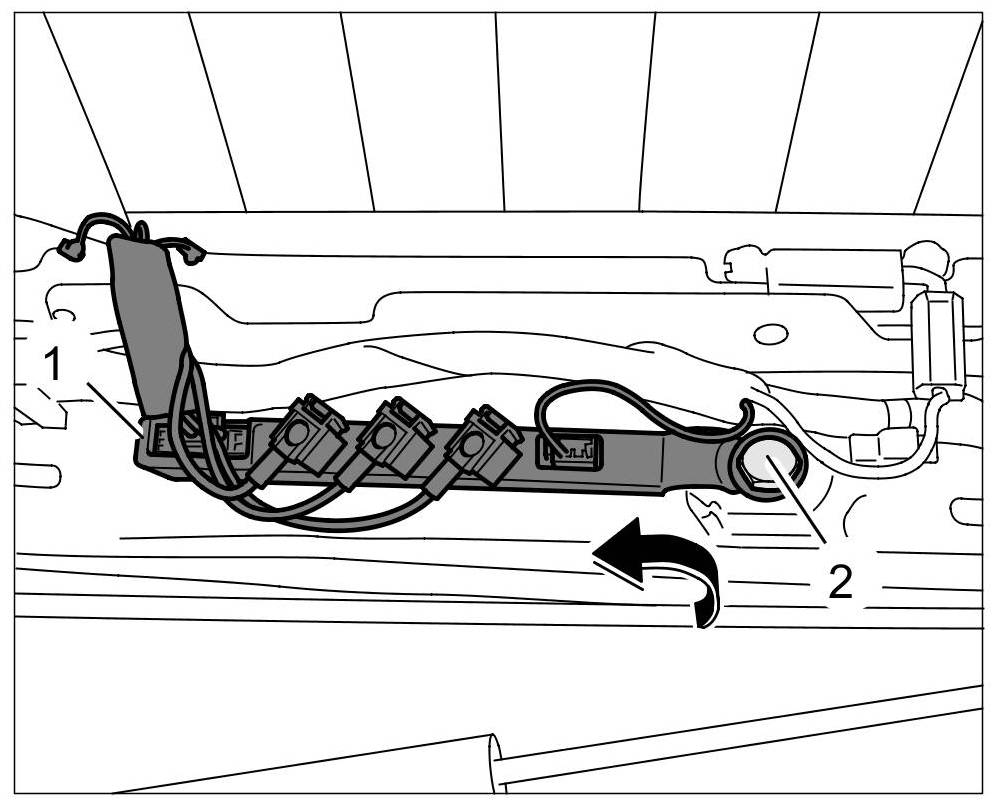

3. Unscrew fastening screw -2- for antenna control unit -1- and remove antenna control unit from its bracket.





Removing antenna control unit

Installing control unit for antenna

Installing antenna control unit

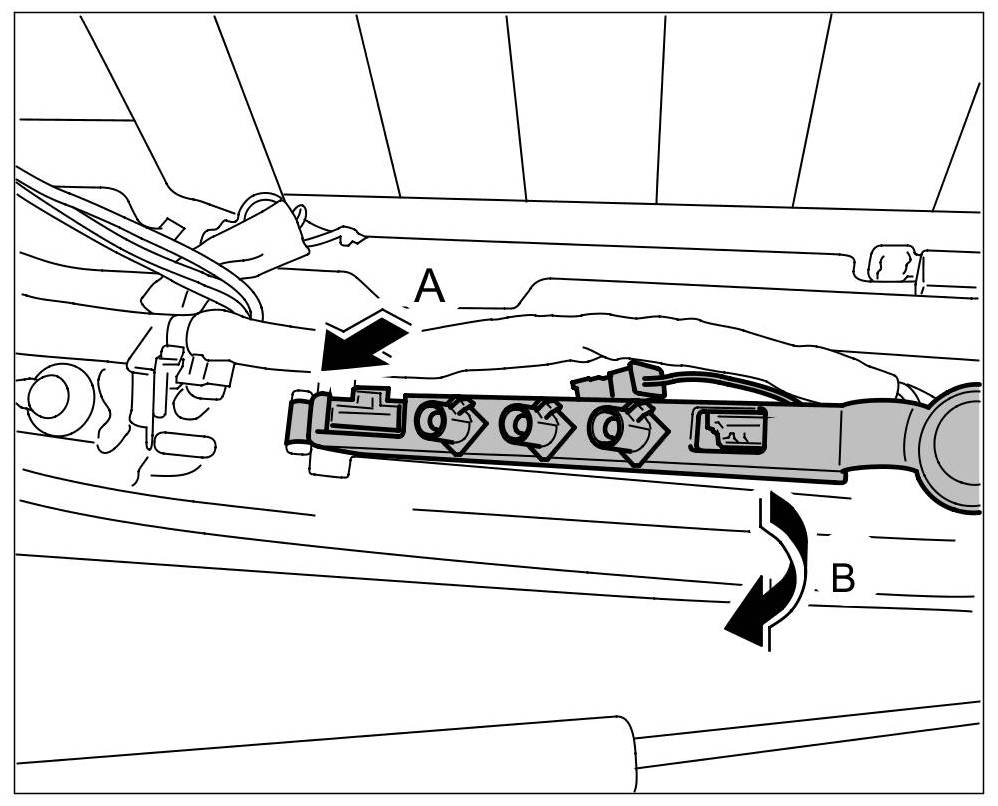

1. Install the antenna control unit.
1.1. Guide the nose of the antenna control unit into the rear lid -A-.
1.2. Place antenna control unit in installation position -B- and screw in the fastening screw.





Installing antenna control unit

Information

The number of plug connections can vary, depending on equipment.

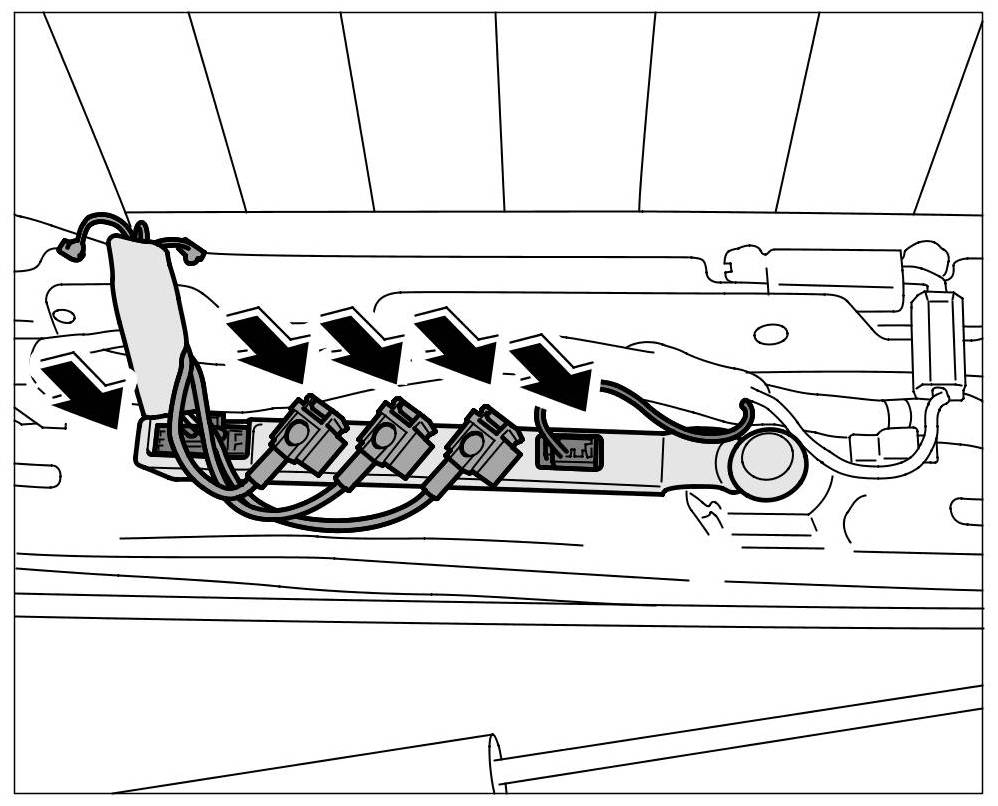

2. Connect plug connections (according to colour coding) until they engage securely.





Connecting plug connections

Subsequent work

1. Install trim panel for rear lid.-> 709219 Removing and installing trim panel for rear lid - section on "Installing" Service and Repair
