Washer Fluid Level Switch: Service and Repair


WM 926719 Removing and installing sensor for fluid level indicator

Preliminary work

1. Turn right front wheel to the right.
2. Remove rear part of front right wheel housing liner. -> 505619 Removing and installing front wheel housing liner - section on "Removing" Service and Repair

Removing sensor for fluid level indicator

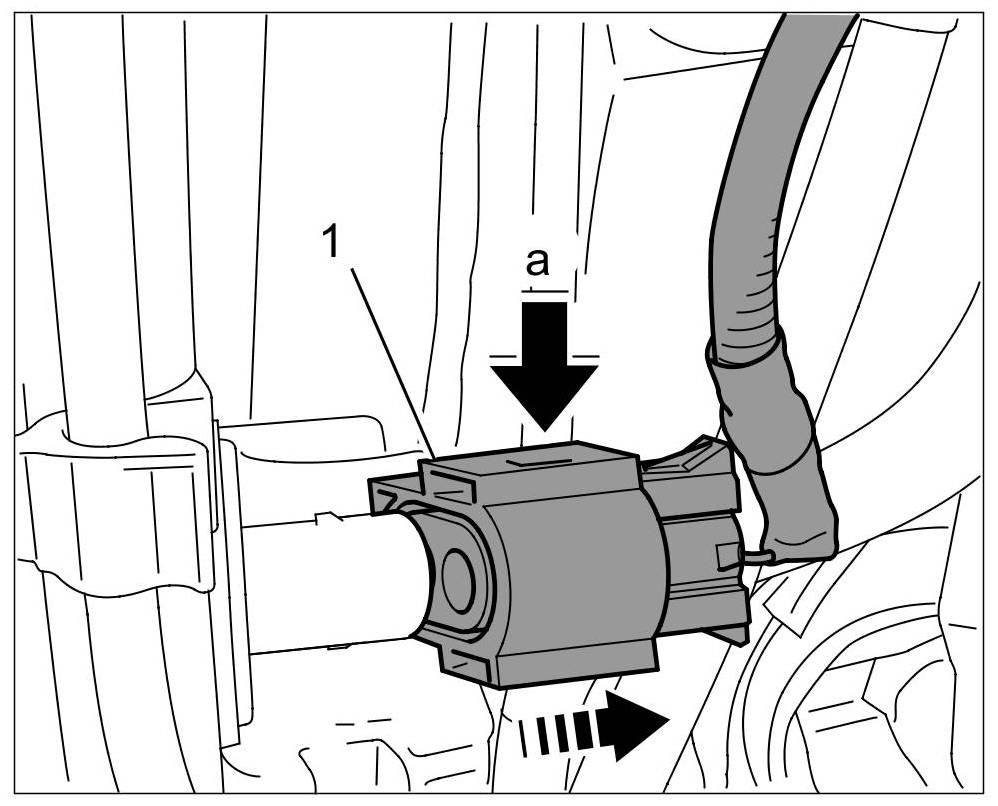

1. Release electric plug connection for sensor -1- and pull it off -a-.





Pulling off connector

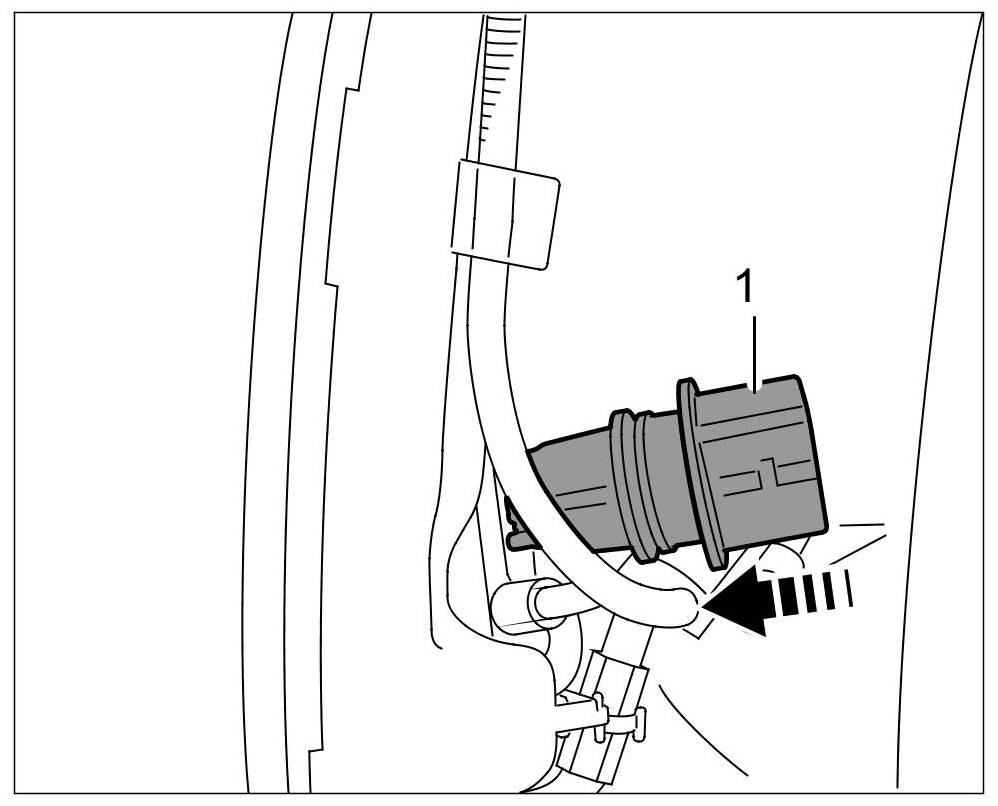

2. Pull the sensor -1- out of the rubber sleeve by turning it back and forward slightly.





Pulling sensor out of rubber sleeve

Installing sensor for fluid level indicator

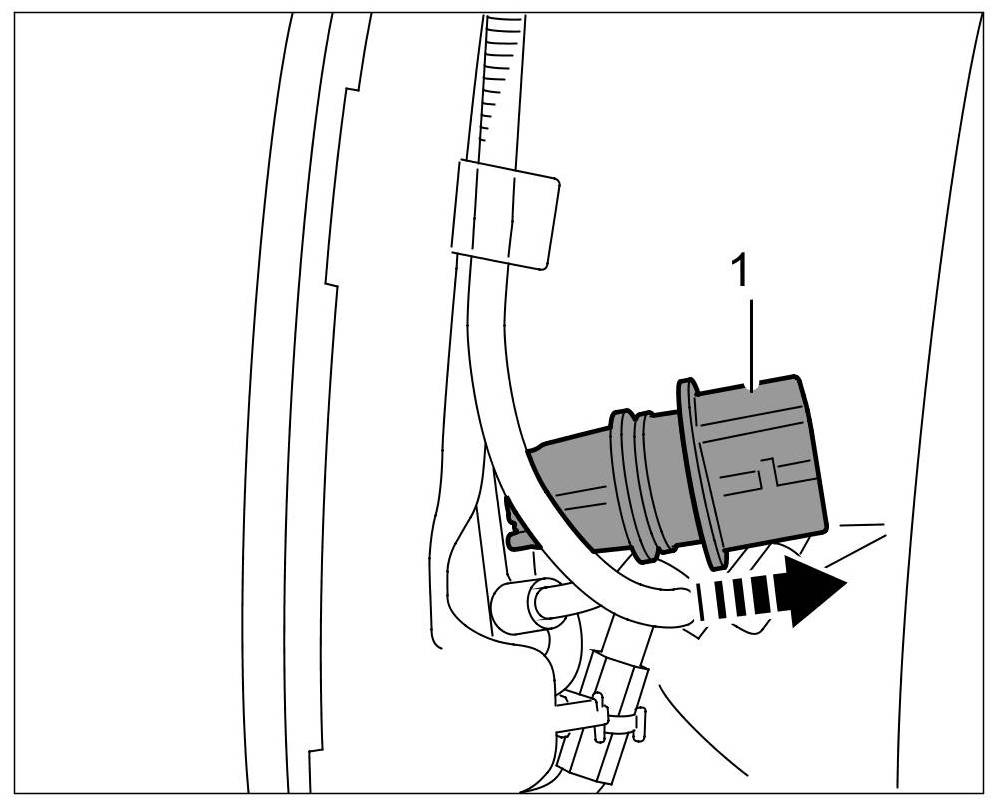

1. Insert the sensor -1- into the rubber sleeve by turning it back and forward slightly.





Inserting sensor

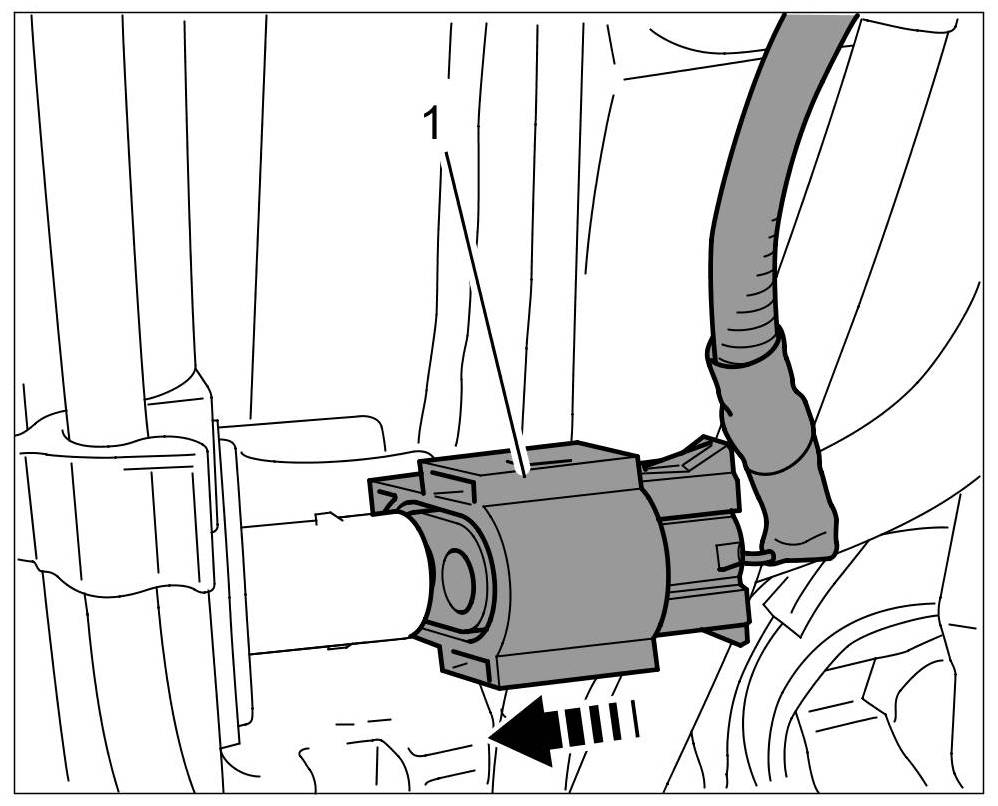

2. Plug in electric plug connection -1- until it locks with an audible click.





Connecting electric plug connection

Subsequent work

1. Install rear part of front right wheel housing liner. -> 505619 Removing and installing front wheel housing liner - section on "Installing" Service and Repair
