Parking Brake Control Module: Locations
WM 4661IN Position of electric parking brake (EPB) componentsInformation The Panamera models are fitted with an electric parking brake at the rear axle.
This transfers the driver's intent from the switch (actuator)
-3- , via the control unit
-2- and directly to the two actuators
-1- at the rear axle.

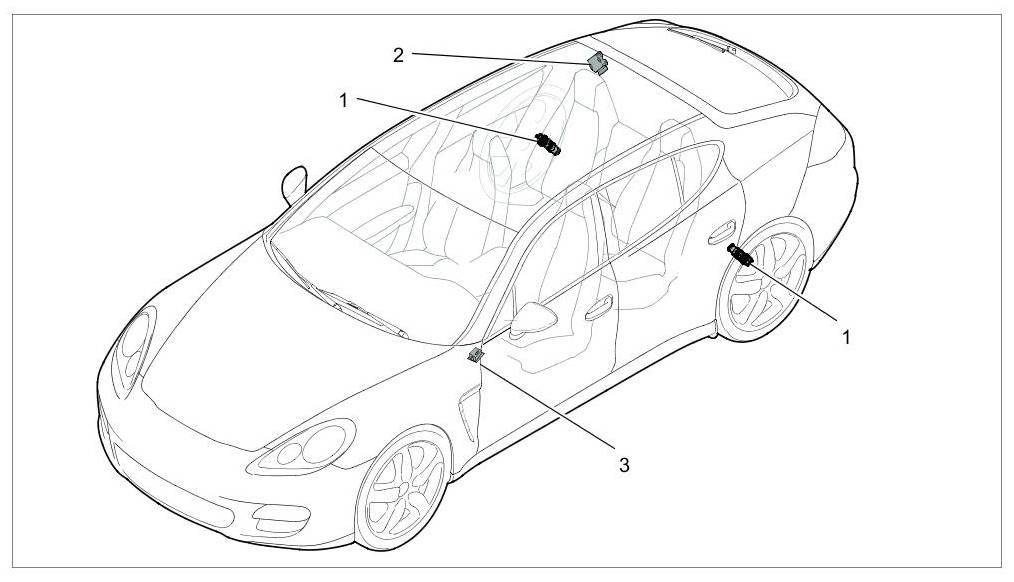

Position of electric parking brake (EPB) components
