System Specifications


WM 3X00IN Technical values, transmission

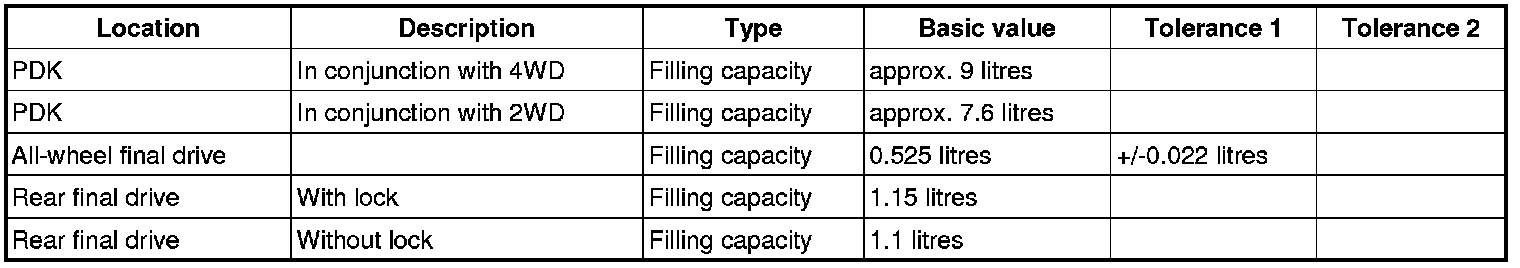

Technical values





Technical values for Porsche Doppelkupplung (PDK)

Information

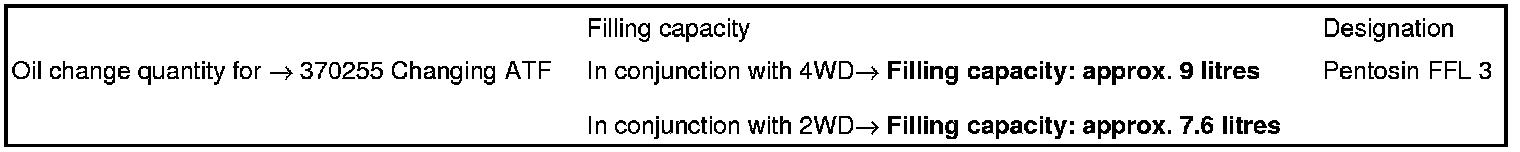

ATF specifications for Porsche Doppelkupplung (PDK):

- Storage: Store in a dry place, away from direct sunlight, at a temperature not less than -40 °C and not higher than +50 °C

- Storage time: 5 years from fill date on container

- Before using oil: Shake the container well for at least 10 seconds.

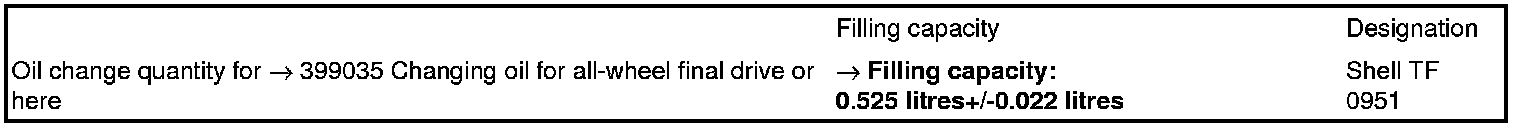

Technical values for all-wheel final drive





Technical values for rear final drive
