Left Side

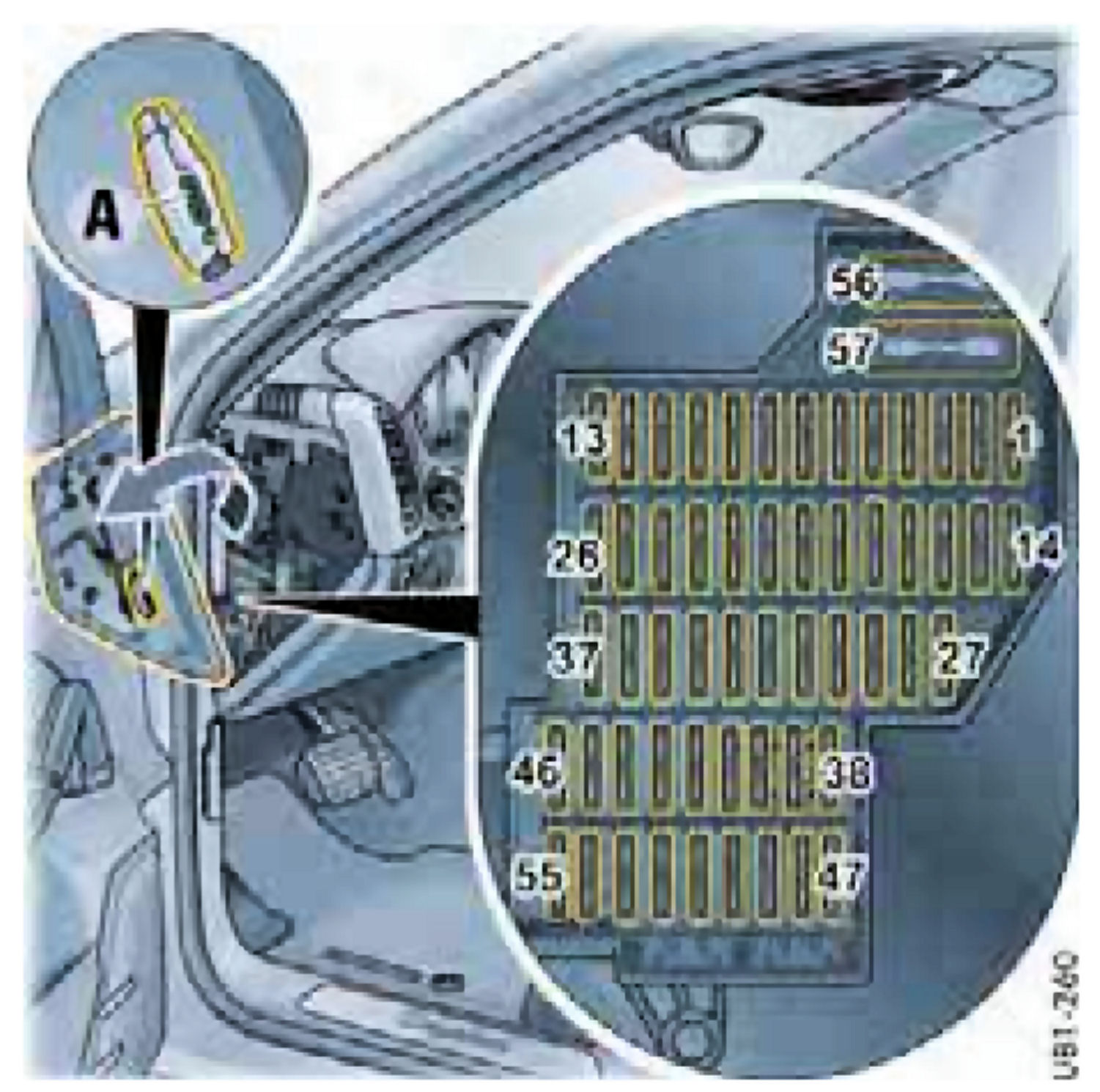

Fuse Box on Left Side of DashboardOpening Fuse Box Cover at the Left Side of the Dashboard 1.
Carefully lever off the plastic cover with a screwdriver and remove it.
2.
Carefully remove the fuses using the plastic gripper.

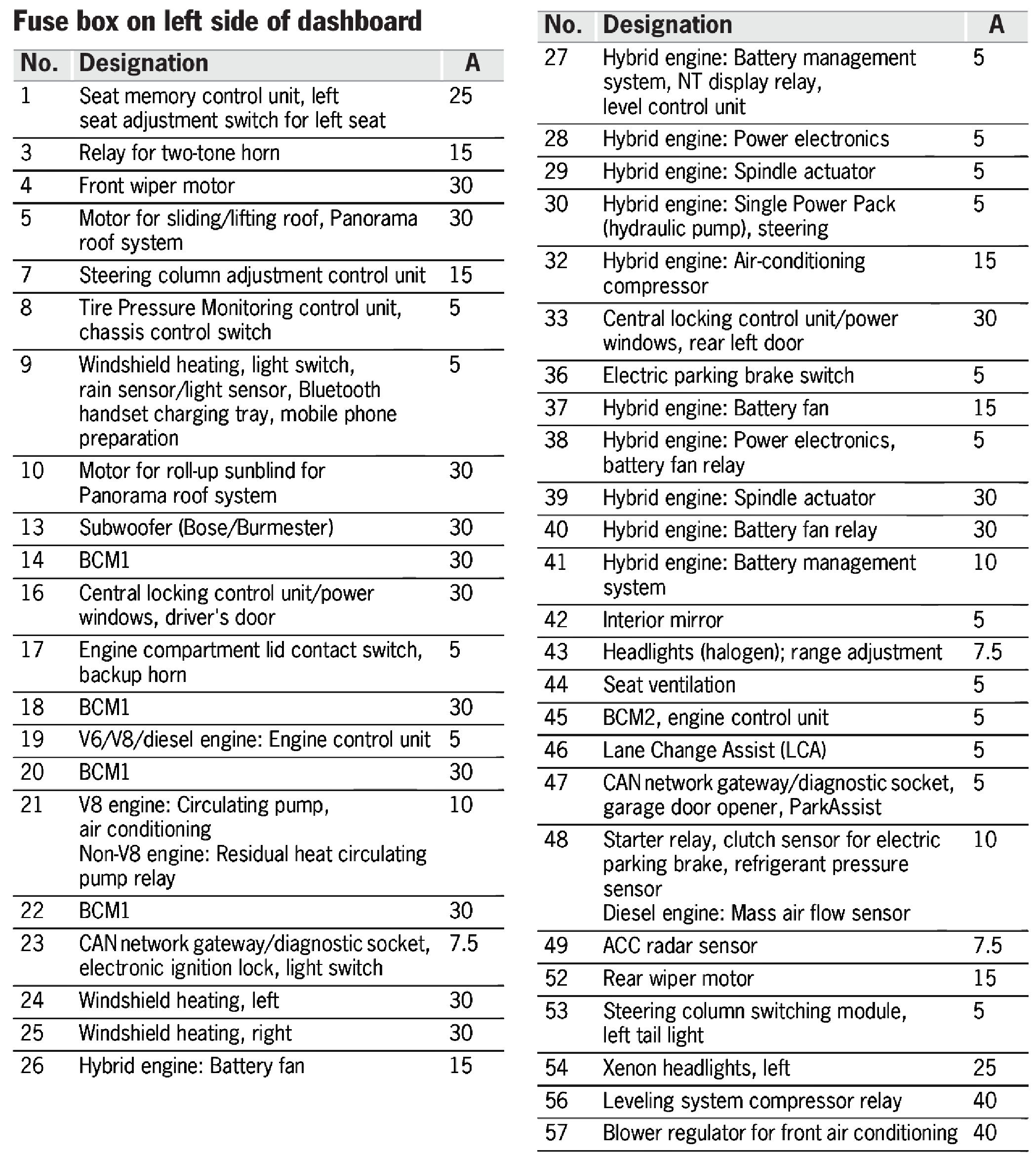

Fuse Box on Left Side of Dashboard
