Dashboard




Fuse Box Left and Right of the Dashboard

Plastic Gripper:

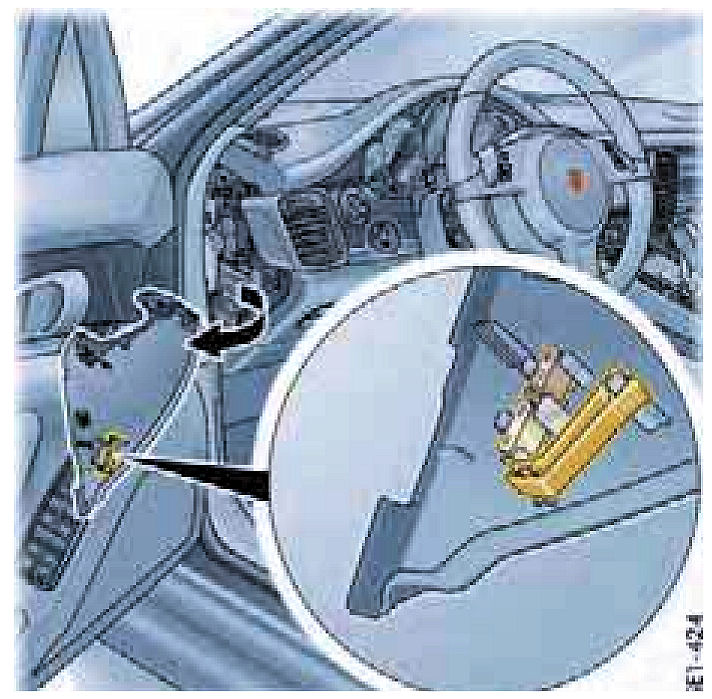

Opening Fuse Box Cover at the Left and Right of the Dashboard

1. Carefully lever off the plastic cover with a screwdriver (arrow) and remove it.
The positions of the fuses are shown on the inside of the cover.
2. Carefully remove the fuses using the plastic gripper.
- Spare fuses can be found in both fuse box covers (left: 7.5 and 10 A; right: 20 and 25 A).

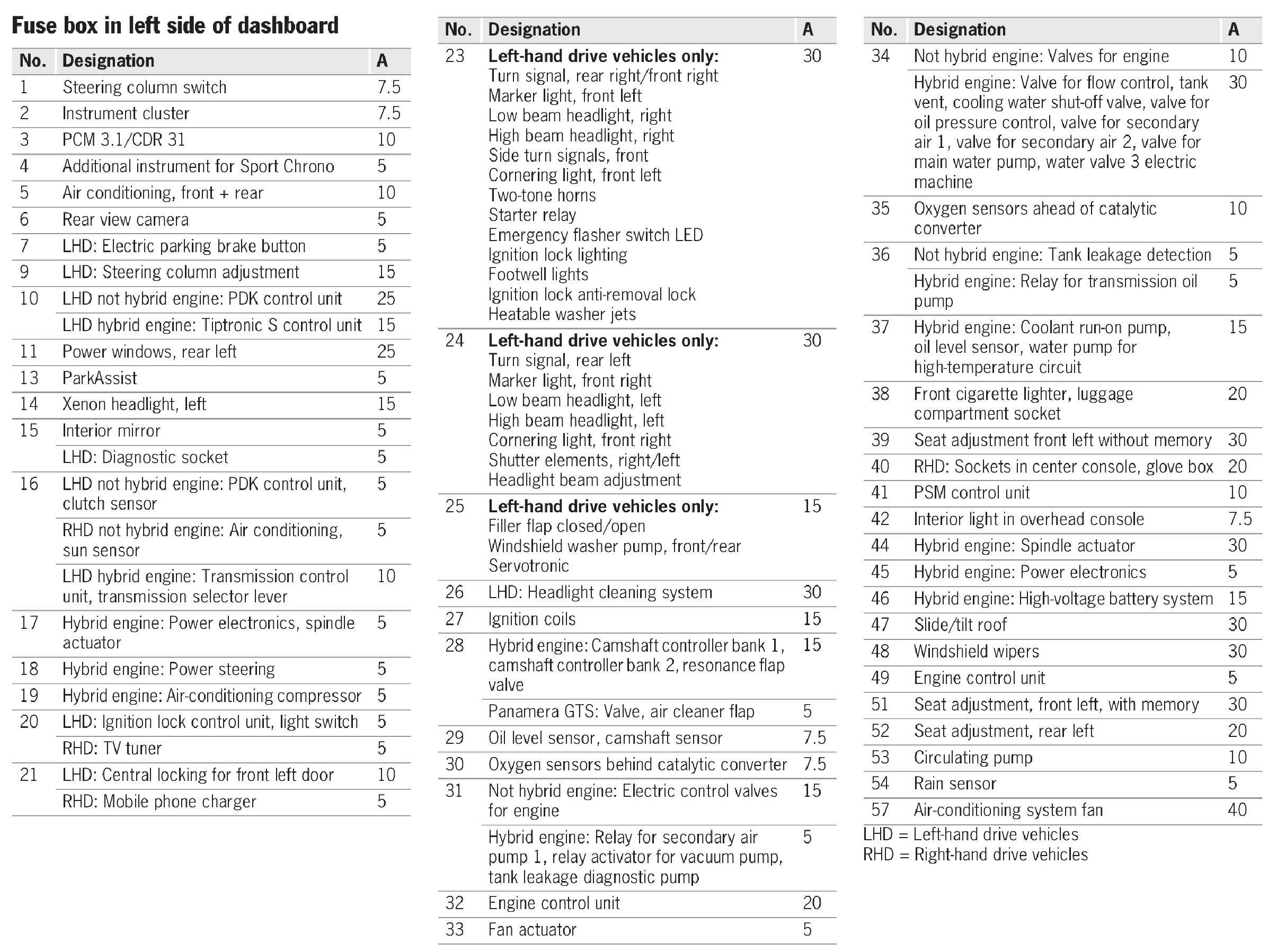

Fuse Box in Left Side of Dashboard

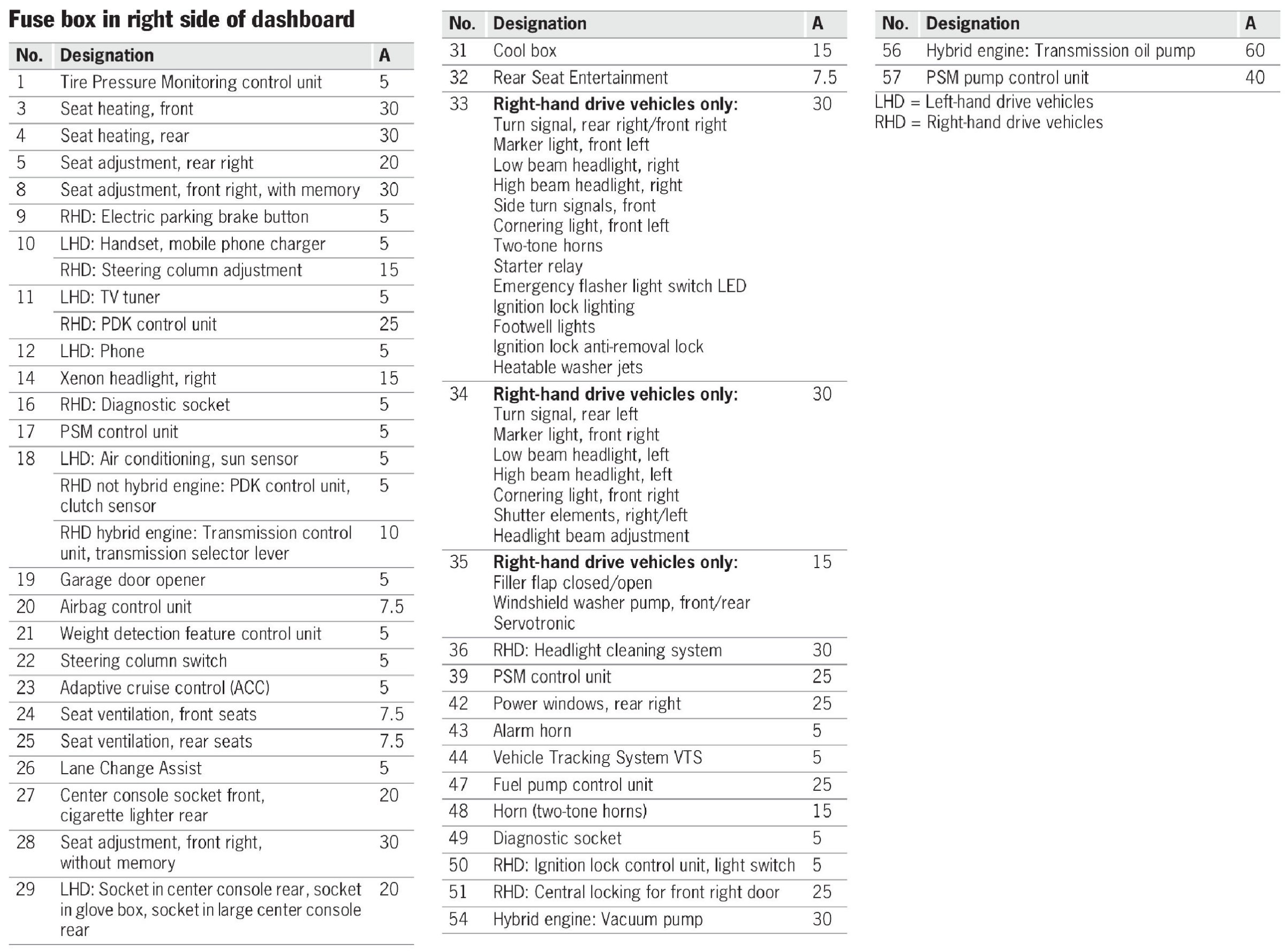

Fuse Box in Right Side of Dashboard
