Compressor and Condensor Fan

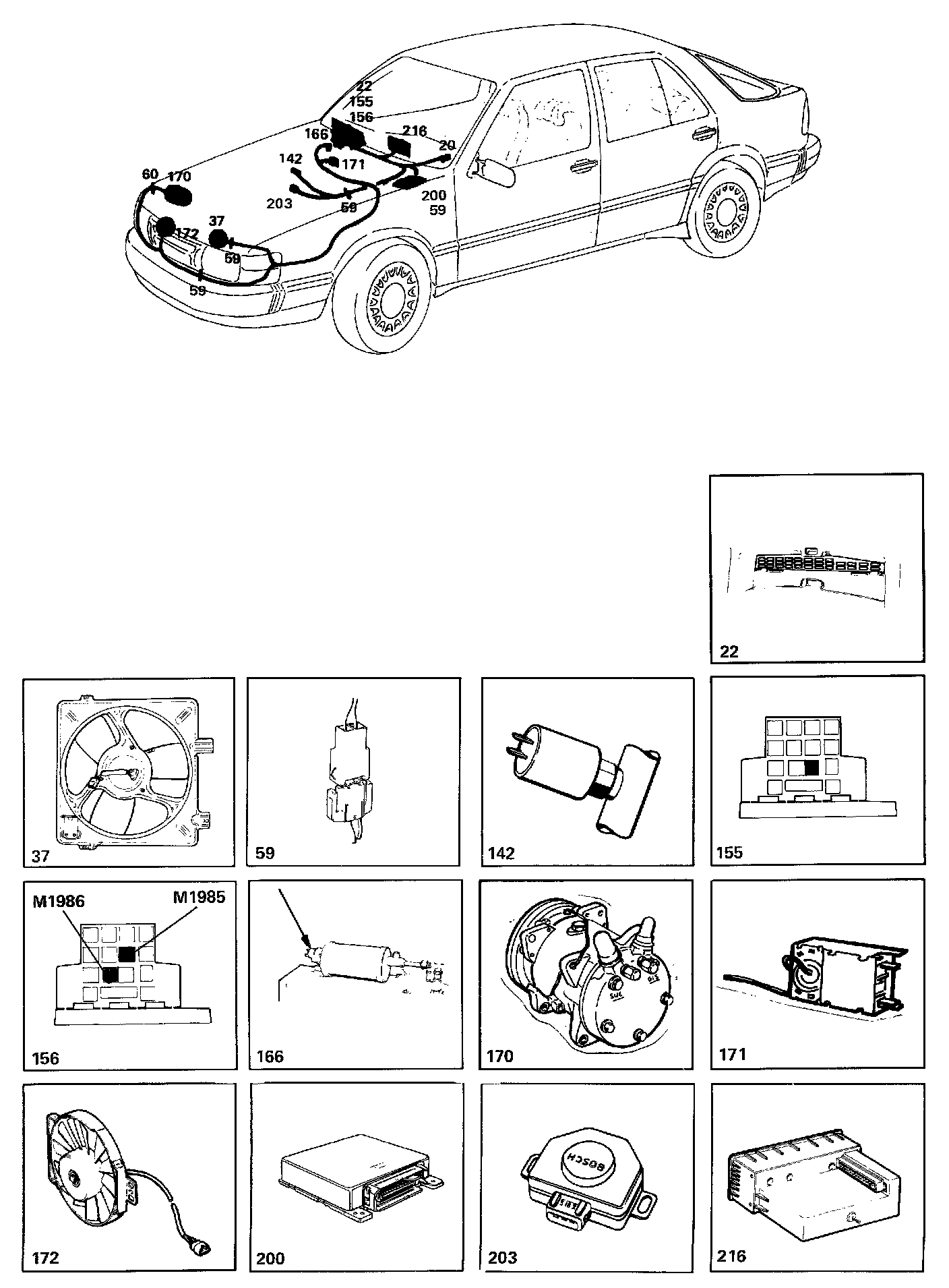

List of Components

20 Ignition switch on the right-hand side of the steering column.

22 Fuse box in the electrical distribution box behind the glove compartment.

37 Radiator fan on the left-hand side of the engine radiator assembly.

59 Two-pole connector one adjacent to radiator fan motor 37 one in the left-hand front corner of the car one at the wiper motor.

60 Single-pole connector at the terminals of the compressor.

142 Soleniod valve for raising the engine idling speed in the by-pass hose on the butterfly valve housing.

155 Relay for the AC radiator fan in the electrical distribution box behind the glove compartment.

156 Relay for the radiator fan in the electrical distribution box behind the glove compartment.

166 Pressure switch for the radiator fan on the accumulator/dryer unit, to the left below the windscreen.

170 Compressor for the AC at the extreme front, to the right, above the manifold.

171 Anti-freeze thermostat (cycling clutch switch) on the evaporator housing, to the right below the windscreen.

172 Radiator fan for the AC to the right behind the grille, in front of the condenser.

173 Diode for the AC compressor at the AC compressor (in the wiring).

200 Control unit for the LH fuel system on the left-hand side of the bulkhead between the engine compartment and the passenger compartment.

203 Butterfly valve angle transmitter on the intake manifold.

216 Climate control unit in the interior, at the top of the centre console.
