Distributor: Description and Operation

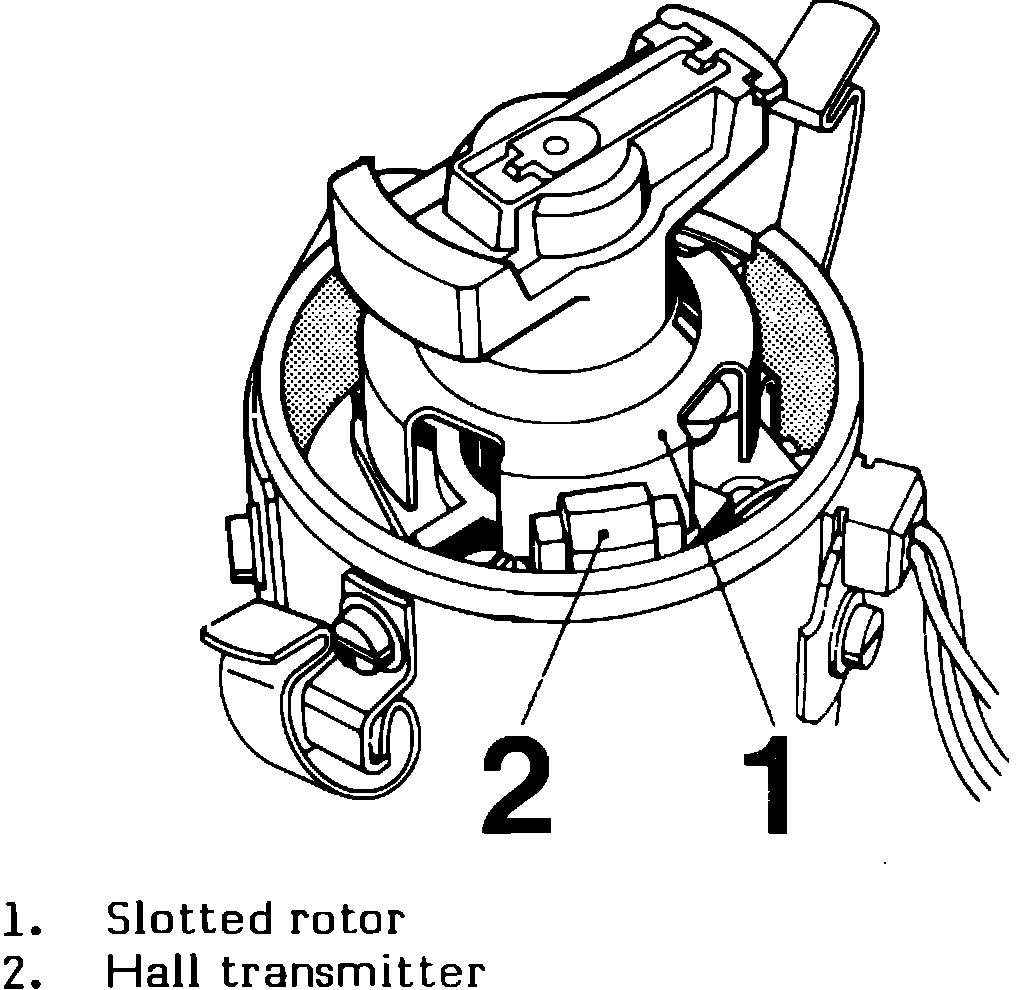

Fig. 1 Ignition Distributor:
The
distributor,
Fig. 1, contains a slotted rotor mounted on the distributor shaft and a Hall effect switch mounted on a plate inside of the distributor. The distributor has no vacuum or centrifugal advance, as all advance functions are controlled by the ECU.
