Compressor and Condensor Fan

Climate Control Locations Part 2:

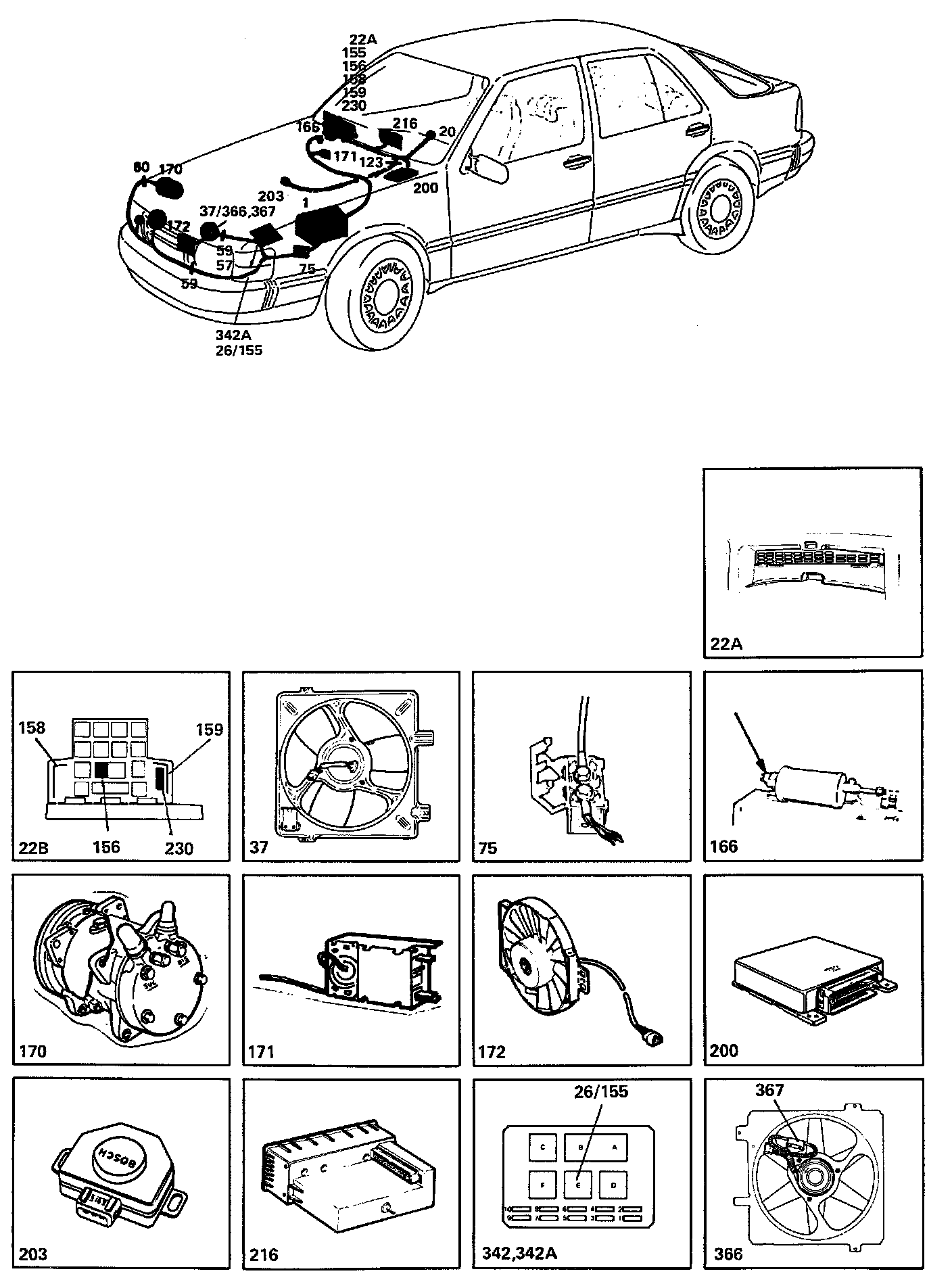

Locations of Components:

7 Earthing point
on the left-hand wheel housing
22A Fuse board
behind the access panel in the glove cornpartment
26 Time-delay relay for the radiator fan
in the electrical distribution box in the engine compartment
37 Radiator fan motor
on the left-hand side of the engine radiator assembly
57 3-pole connector
at the radiator fan motor
59 2-pole connector
one adjacent to radiator fan motor 37 or 366
one in front, at the engine radiator
60 Single-pole connector
at the terminals of the compressor
113 Relay/time-delay relay for the rear window heater
in the electrical distribution box behind the glove compartment
123 4-pole connector
in the engine compartment, at the windscreen wiper motor
155 Relay for the radiator fan
in the electrical distribution box in the engine compartment
156 Time-delay relay for the AC and ACC radiator fan
in the electrical distribution box behind the glove compartment
158 Negative distribution terminal
in the electrical distribution box behind the glove compartment
159 Distribution terminal +15
in the electrical distribution box behind the glove compartment
166 Pressure switch for the radiator fan (AC and ACC)
on the accumulator/dryer unit, to the right, below the windscreen
170 Compressor for the AC
on the right-hand side at the front, above the manifold
171 Anti-freeze thermostat (cycling clutch switch)
on the evaporator housing, below the windscreen on the right-hand side
172 Radiator fan for the AC
behind the grille on the right-hand side, in front of the condenser
200 Control unit for the LH fuel system
in the engine compartment, on the left-hand side of the bulkhead
201 Engine earthing point
at the engine lifting lug
203 Throttle angle transmitter
on the intake manifold
216 Automatic climate control unit
in the facia
230 Distribution terminal +30
in the electrical distribution box behind the glove compartment
342A Fuse board
in the electrical distribution box in the engine compartment, behind the left-hand headlamp
366 Motor for 2-speed radiator fan
on the left-hand side, at the front
367 Resistor
beside the radiator fan motor
