Ambient Temperature Sensor / Switch HVAC: Service and Repair

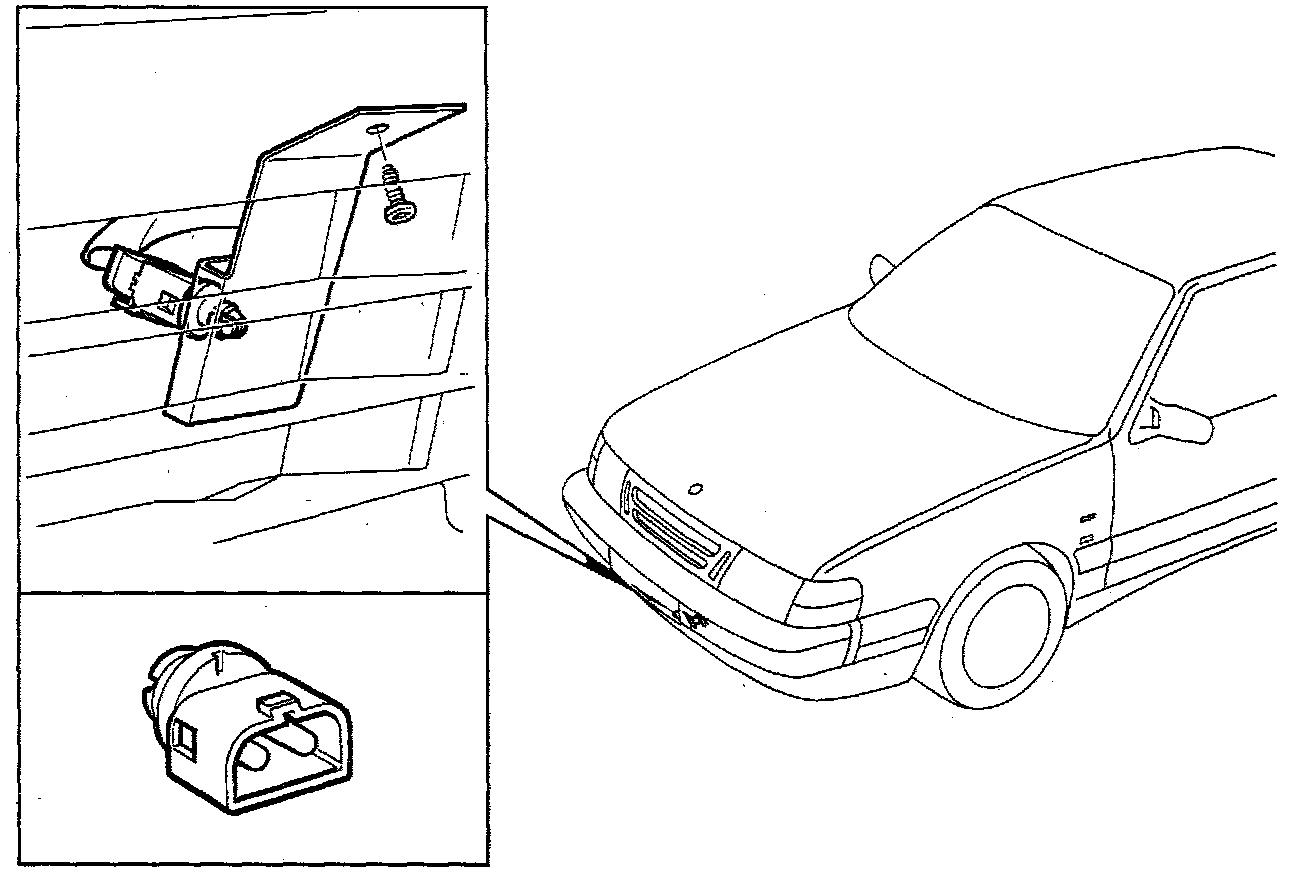

Removal:
1.
Undo screws securing the bracket in which the
outside temperature sensor is fitted.
2.
Pull the bracket back in order to remove it from its plastic grooves.
3.
Carefully push the bracket through the air intake in the spoiler.
4.
Remove the temperature sensor.
Installation:
Install in reverse order.
