Manifold Pressure/Vacuum Sensor: Service and Repair
Pressure sensor To check To check the pressure sensor, see fault diagnosis "Diagnostic trouble codes 46660/26660".

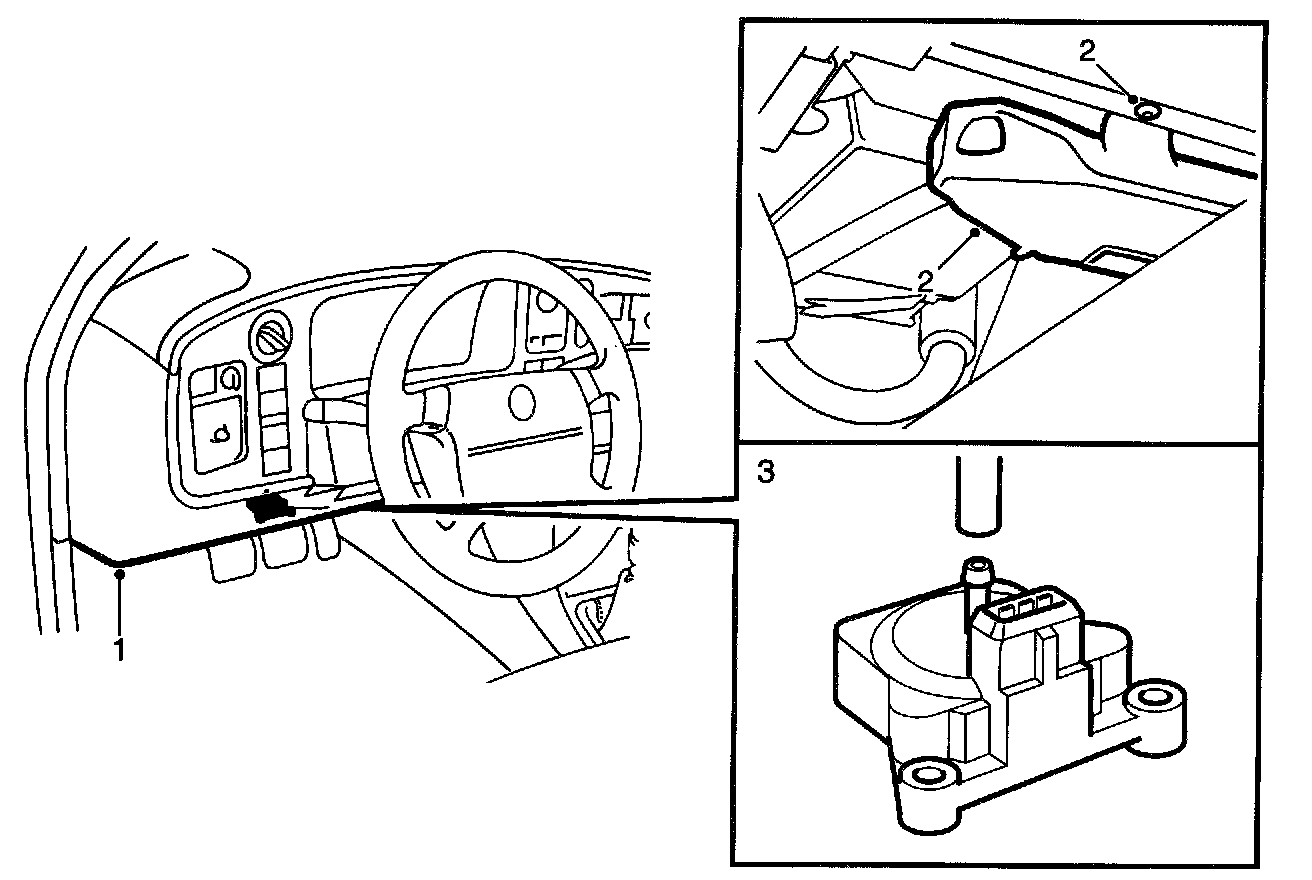

46660/26660 To remove 1
Switch off the ignition.
2
Remove the sound baffle.
3
Remove the air duct.
4
Remove the pressure sensor.
To fit Fit in reverse order.
