Washer Fluid Level Switch: Service and Repair

To Remove
1 Disconnect the negative battery cable.

Important :
Do not disconnect the battery cable while the engine is running as this could seriously damage the generator (alternator).

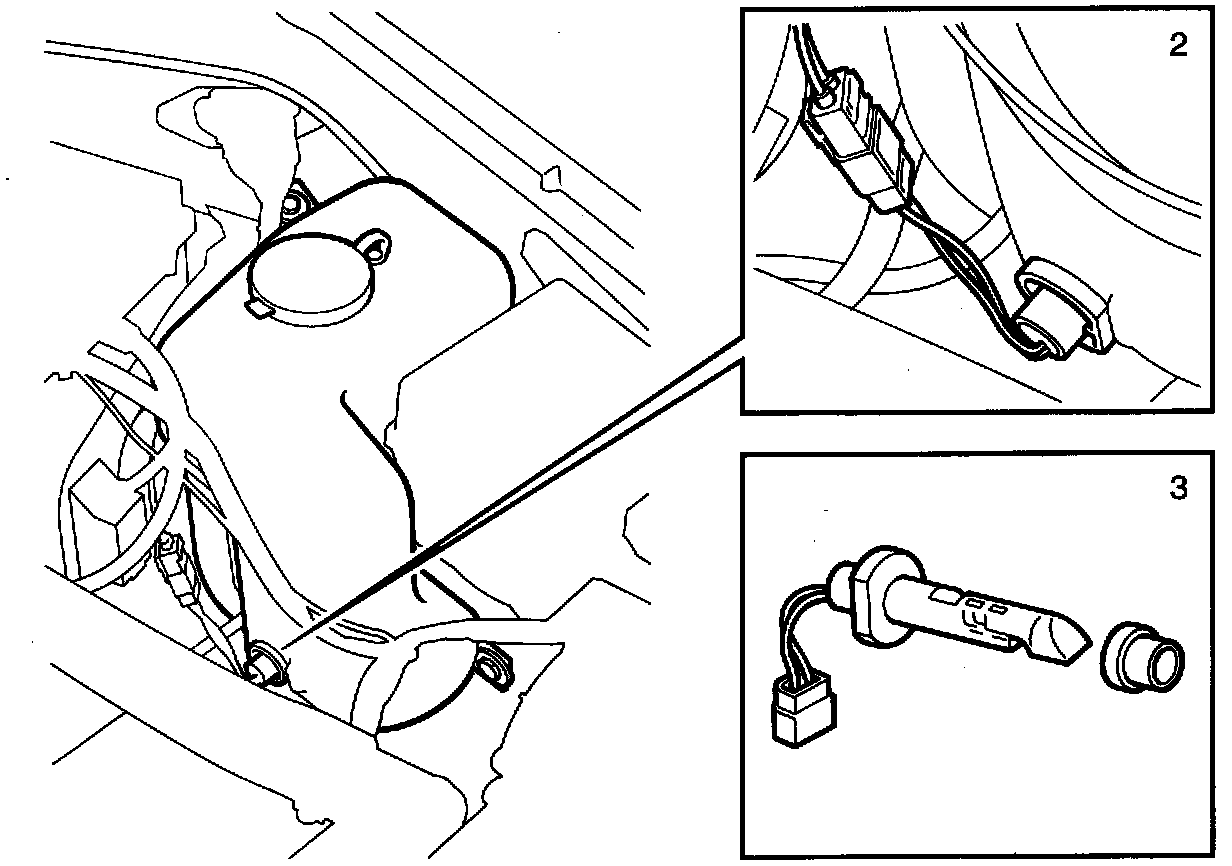

2 Unplug the connector from the level switch.

Important :
The reservoir should not contain more than 0.5 litres (0.5 qts) of fluid as it will otherwise run out when the level switch is removed.

3 To remove the level switch, pull it straight out of the rubber bush.

To Install
Install in reverse order.
