Grounds

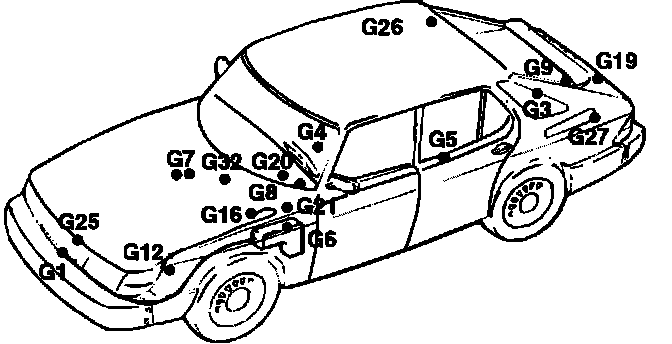

Ground Locations:

G1: Radiator Cross Member
G3: Luggage Compartment
G4: Between Ignition Switch And Handbrake
G5: Under Rear Seat
G6: Ground Distribution, Main Fuse/Relay Panel
G7: Engine Lifting Lug
G8: Behind Instrument Panel
G9: Luggage Compartment
G12: Left Wheel Housing
G16: Front Of ABS Hydraulic Unit
G19: Hatchback
G20: SRS Airbag Ground At Electronic Unit
G21: SRS Airbag Redundant Ground
G25: Gearbox
G26: Right C Pillar On Sedans
G27: Electronic Antenna
G32: Alternator Bracket
