Pre-Replacement Check of Ignition Discharge Module: Overview
SI No. 340-1630PI No. 1/97 Group 3 D 2.0
Date September 1997
Distr. all
9000

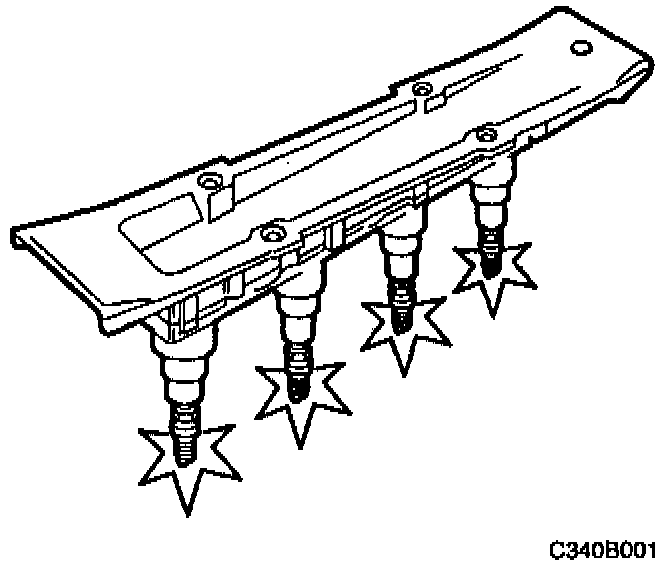

Pre-replacement function check of ignition discharge module
Cars affected
All cars with electronic ignition
Background
Because there is no diagnostic tool specifically for the ignition discharge module, it can be difficult to measure certain of the module's functions. Saab now has produced a special test module, Part No. 83 95 279 (CA: 30567748). This module, used together with the other special tools and diagnostic procedures, makes it possible to test the ignition discharge module and thereby avoid unnecessary replacements.
The test module is a standard ignition discharge module, except that ports have been provided between the mounting holes on the sides of the module. A hole for hanging the module has been provided and the module is painted blue. The test module has undergone comprehensive function checks during both factory and road tests.
Materials
Test module: 83 95 279 (CA: 30567748)
Adaptor lead: 9321 787 (CA: 30545484) (For use of test module or fitting of new ignition discharge module in pre-M93 cars.
See SI 103-1814 for information on these tools.
