Cruise Control
Cruise Control:
Cars without TCS:

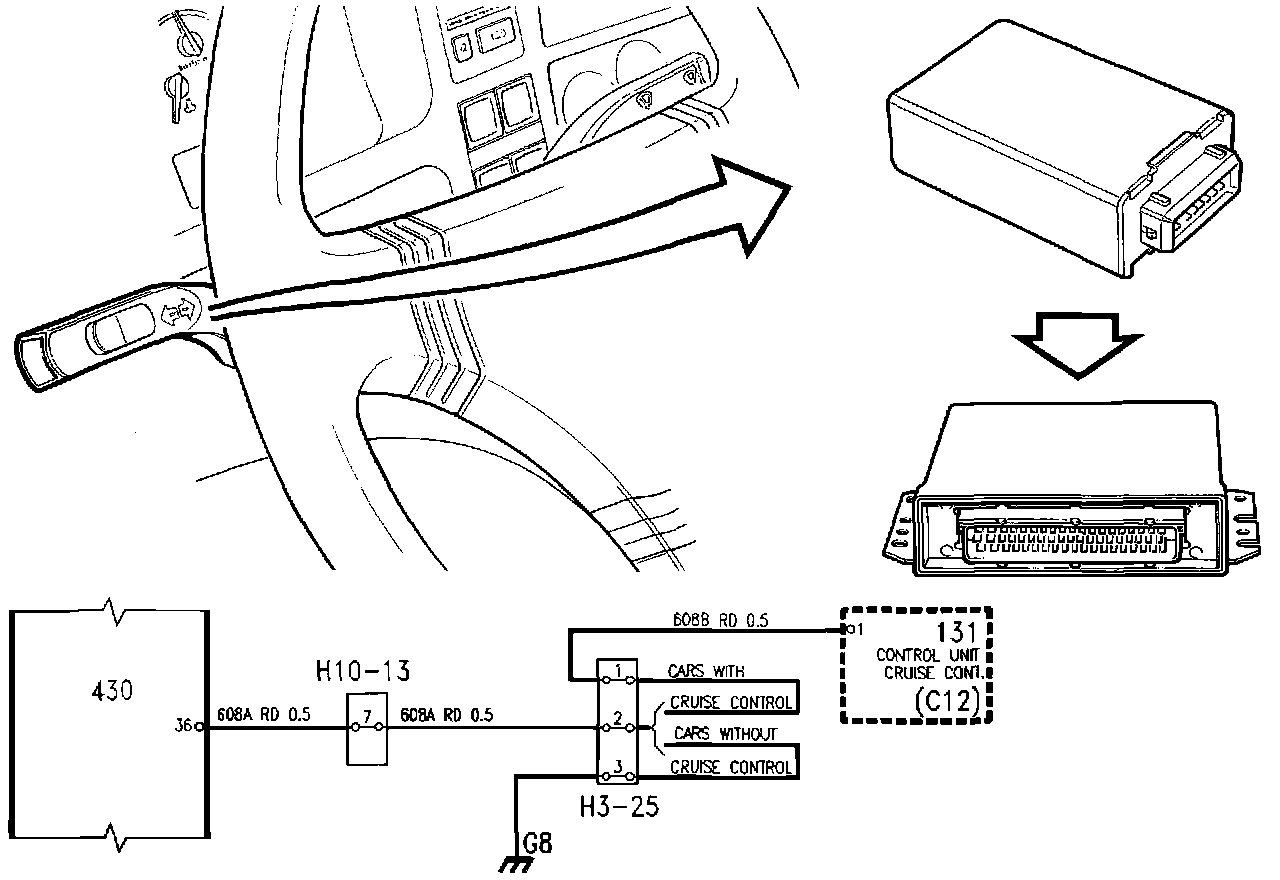

When the Cruise Control is activated, a 12 V signal is applied to pin 36 of the ECM, causing the charging pressure to be limited to basic charging pressure.
Cars with TCS:
On cars with TCS, the Cruise Control function is integrated in the ETS control module and charging pressure not limited to basic charging pressure.
